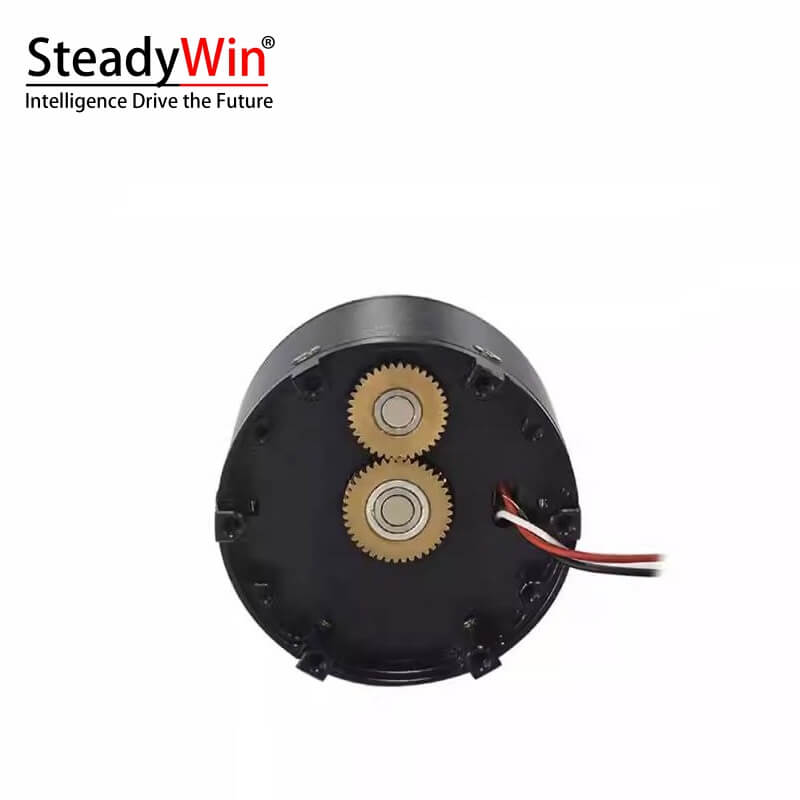

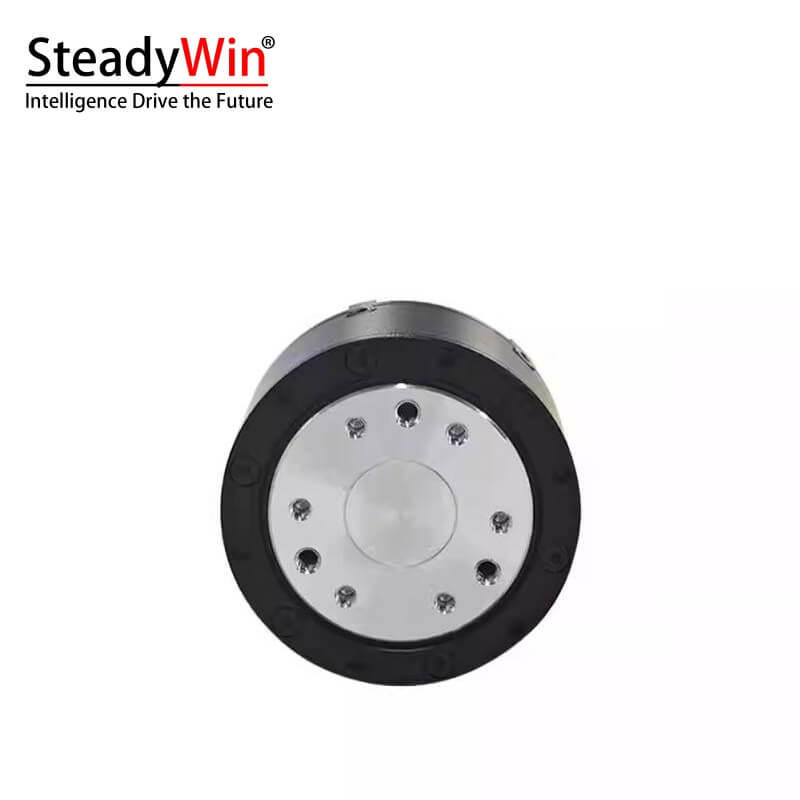

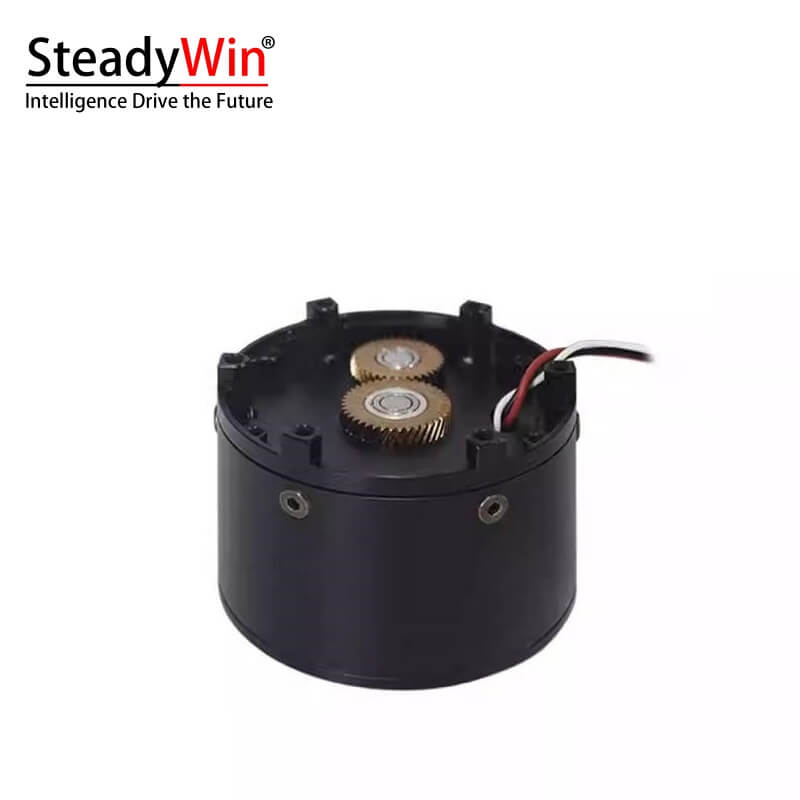

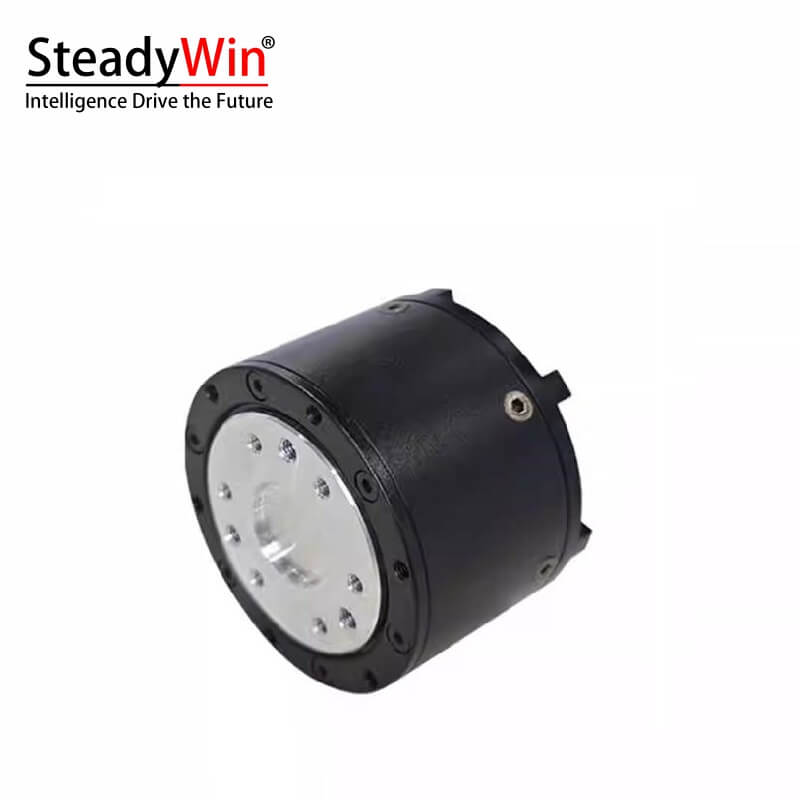

SteadyWin GIM3505-9 Planetary Reducer Motor
Regular price
$60.00
Unit price
SteadyWin GIM3505-9 Planetary Reducer Motor - GIM-3505-9 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin GIM3505-9 Planetary Reducer Motor
Regular price
$60.00
Unit price
SteadyWin GIM3505-9 Planetary Reducer Motor - GIM-3505-9 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | GIM3505-9 |
| Winding method | Y |
| Rated voltage | 24V |
| Voltage Range | 12~40V |
| Rated Power | 38.40W |
| Rated torque | 0.71N·m |
| Peak torque | 1.95N·m |
| Rated Speed after reduce | 258RPM |
| Max Speed after reduce | 380RPM |
| Rated current | 1.60A |
| Peak current | 4.19A |
| Phase-to-phase resistance | 4.466Ω |
| Phase-to-phase inductance | 0.45mH |
| Speed constant | 15.83rpm/v |
| Torque constant | 0.35N·m/A |
| Number of pole pairs | 0:00 |
| Gear Rate | 9:1 |
| Gear type | Planetary |
| Reducer gear material | ALU |
| Reducer gear backlash | 15arcmin |
| Motor weight without driver | 120g |
| Motor weight with driver | 131.7g |
| Size without Driver | 945*32.3mm |
| Size with Driver | 945*36.1mm |
| Max.Axial load | 75N |
| Max.Radial load | 300N |
| Noise | <60dB |
| Communication | CAN&485 |
| the second encoder on the output shaft | YES |
| Protection grade | IP54 |
| Working temperature | -20~+80℃ |
| Resolution of the encoder on the driver | 14bit |
| Can support separate encoder or not | YES |
