SteadyWin | SKU:

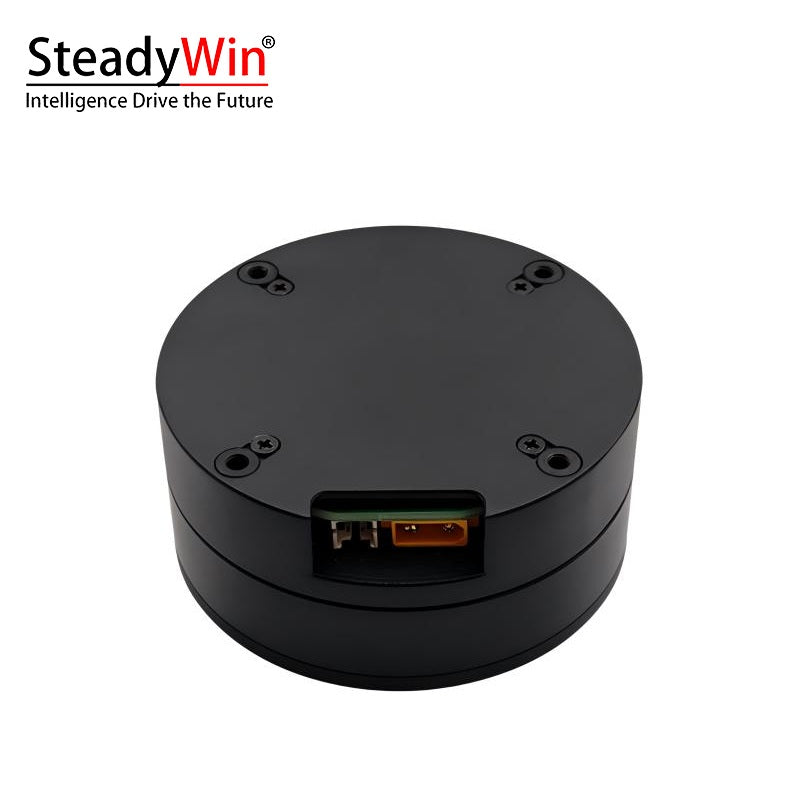

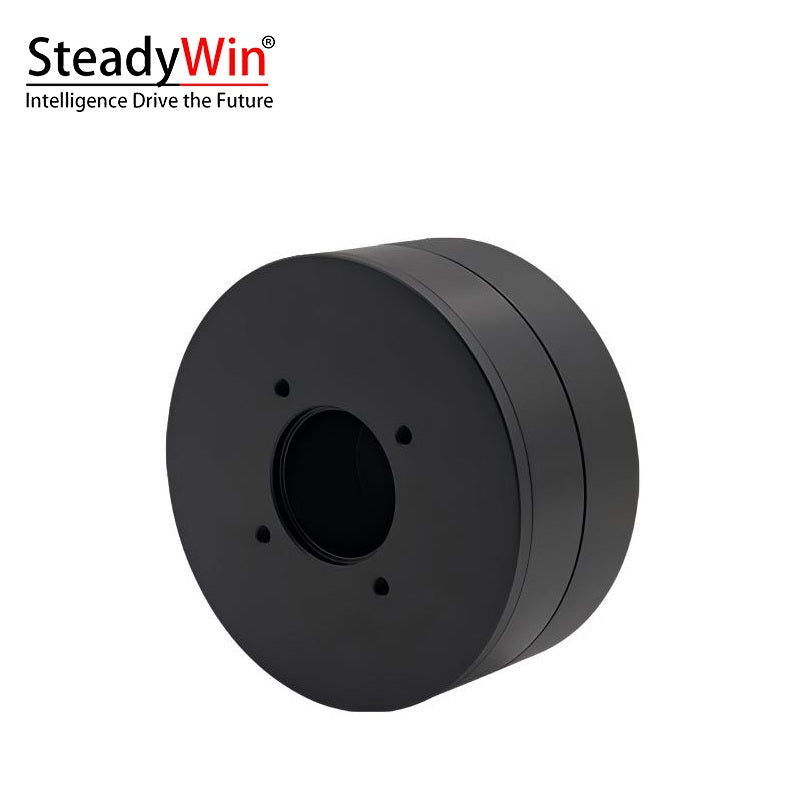

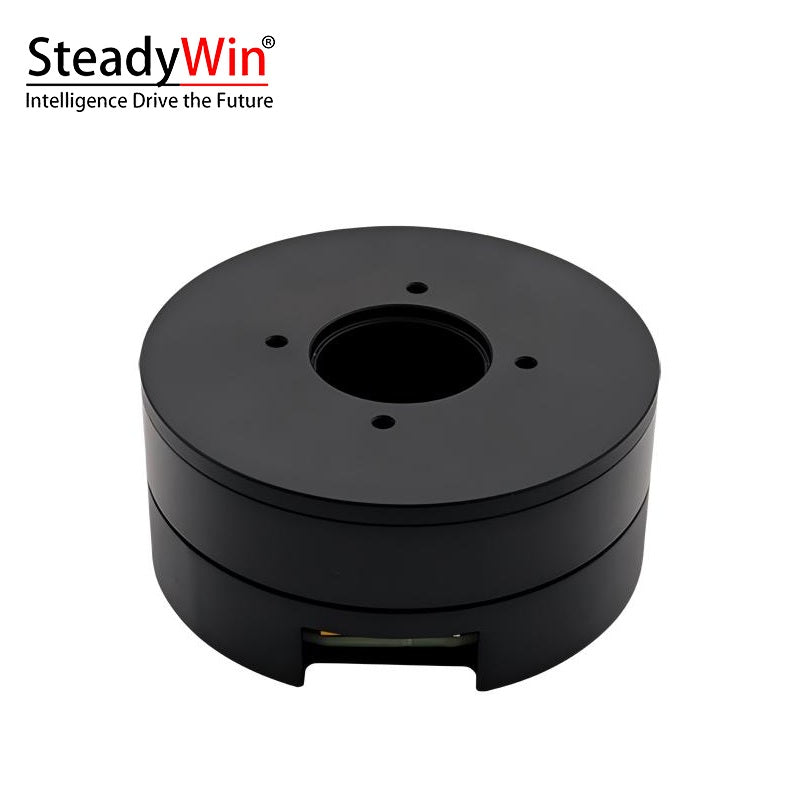

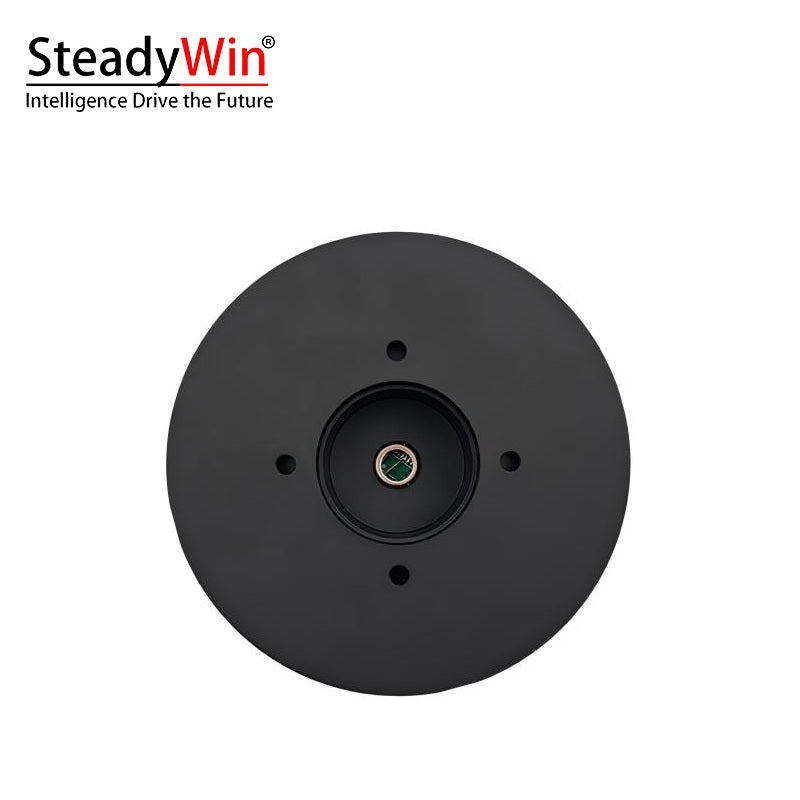

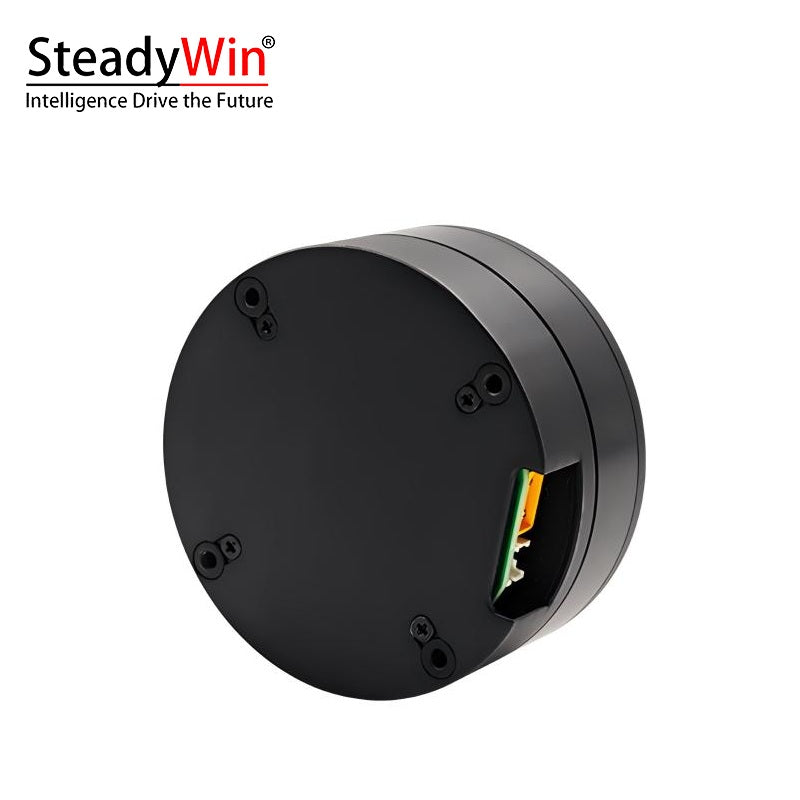

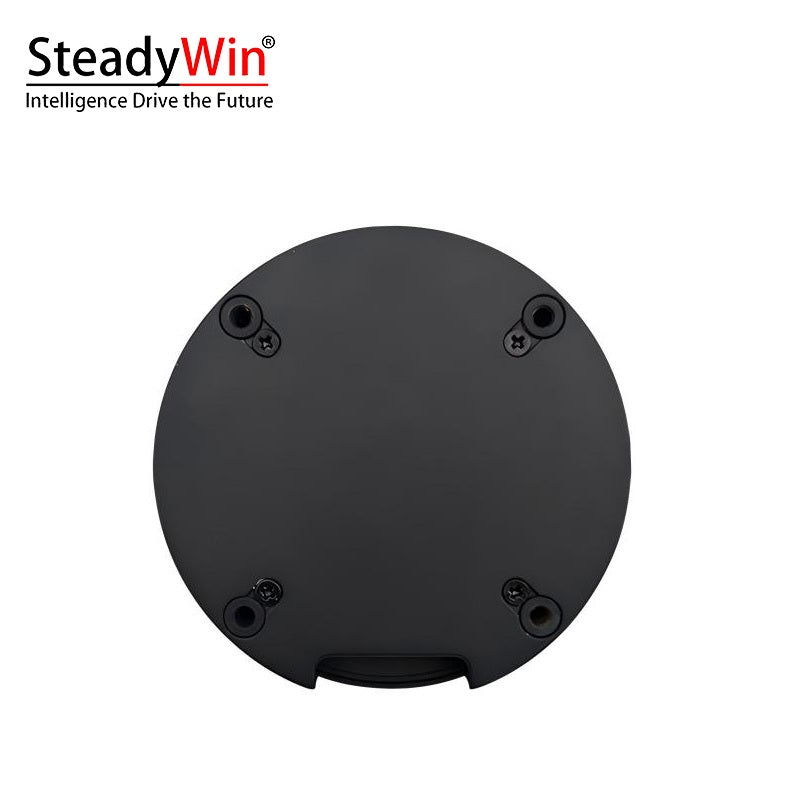

SteadyWin DD7010 Motor
Regular price
$125.00
Unit price
SteadyWin DD7010 Motor - DD7010-2 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin DD7010 Motor
Regular price
$125.00
Unit price
SteadyWin DD7010 Motor - DD7010-2 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value(DD7010-2) | Value(DD7010-11) |
|---|---|---|
| Nominal voltage | 24V | 36V |
| Voltage range | 12~40V | 12~40V |
| Nominal current | 3.1A | 1.3A |
| Nominal power | 74.4W | 46.8W |
| Nominal torque | 0.8N.M | 0.8N.M |
| Nominal speed | 618rpm | 294rpm |
| No-load max speed |
924rpm |
564rpm |
| Peak torque | 1.93N.m | 1.59N.m |
| Peak current | 16A | 2.7A |
| Speed constant |
38.5rpm/v |
15.5rpm/v |
| Torque constant | 0.22N.M/A | 0.61N.M/A |
| Number of pole pairs | 14Pairs | 14Pairs |
| Phase resistance | 0.83Ω | 5.29Ω |
| Phase inductance | 0.68Mh | 3.68Mh |
| Rotor inertial | 672gcm^2 | 672gcm^2 |
| Communication | RS485 & CAN | RS485 & CAN |
| Encoder type |
Single-turn absolute |
Single-turn absolute |
| Resolution | 14bit | 14bit |
| Motor weight | 261g | 261g |
| Working temperature | -20~80℃ | -20~80℃ |
DD7010_installation_drawing.pdf

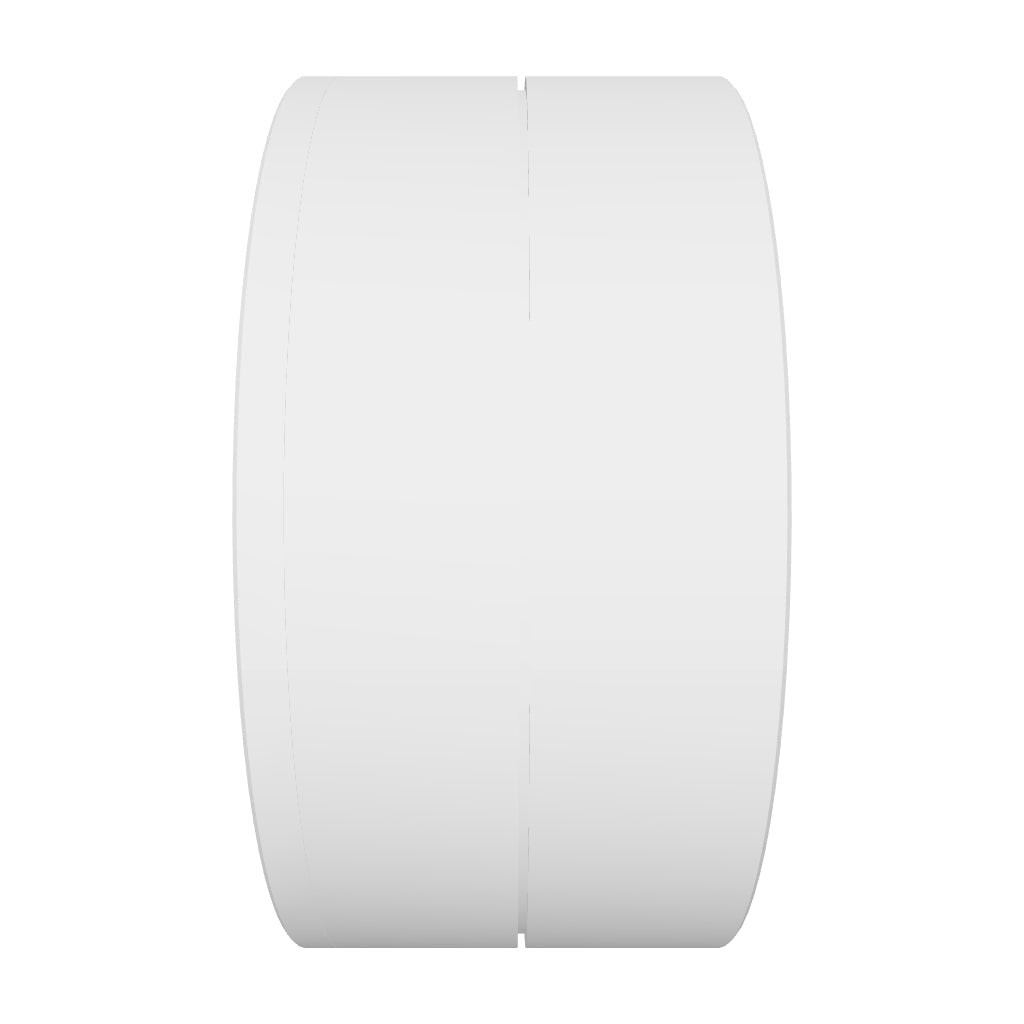

SteadyWin_DD7010_motor.stp
