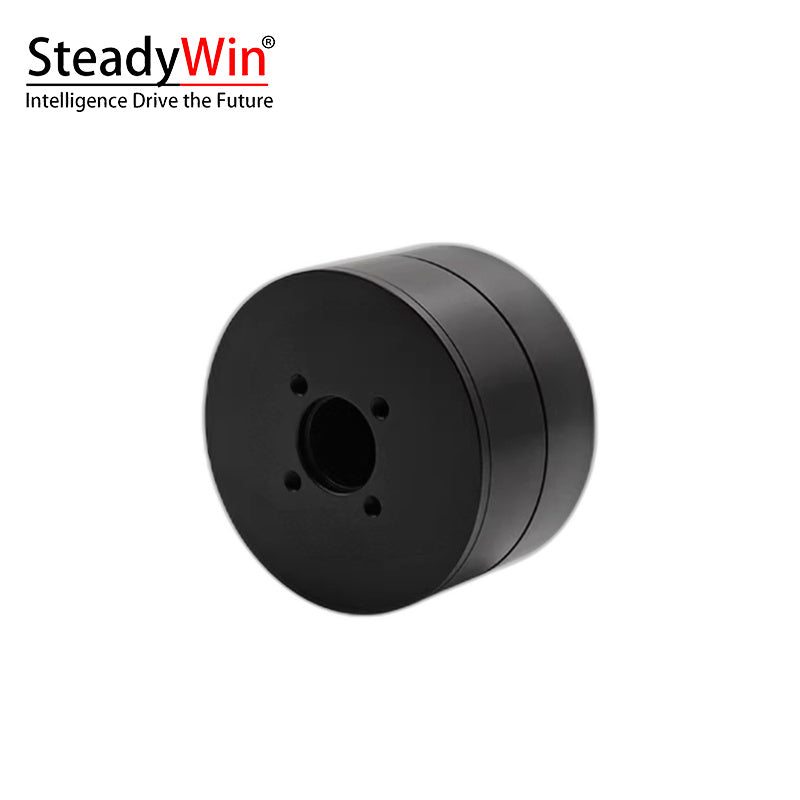

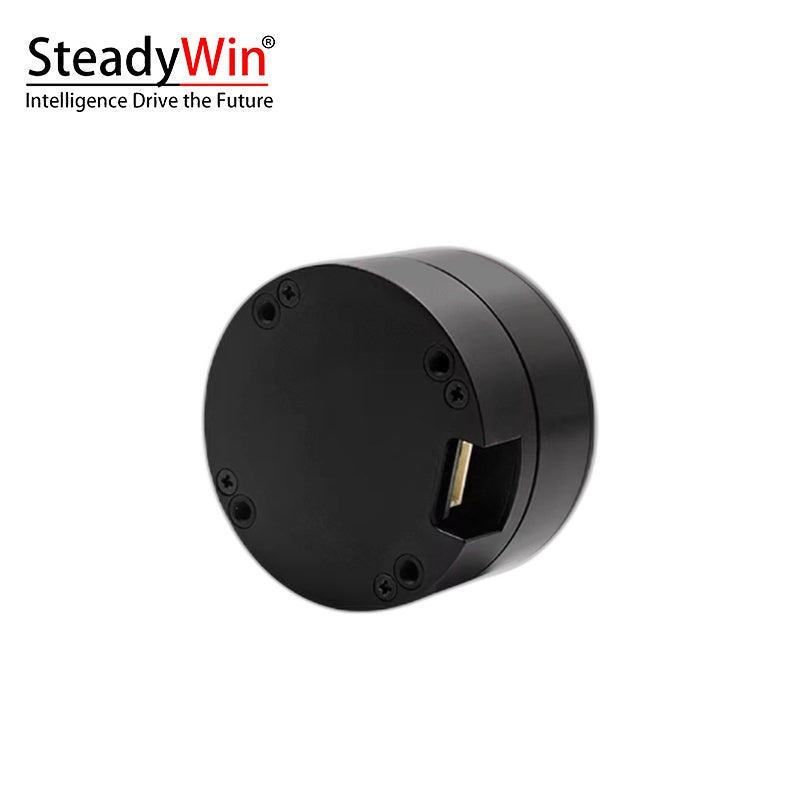

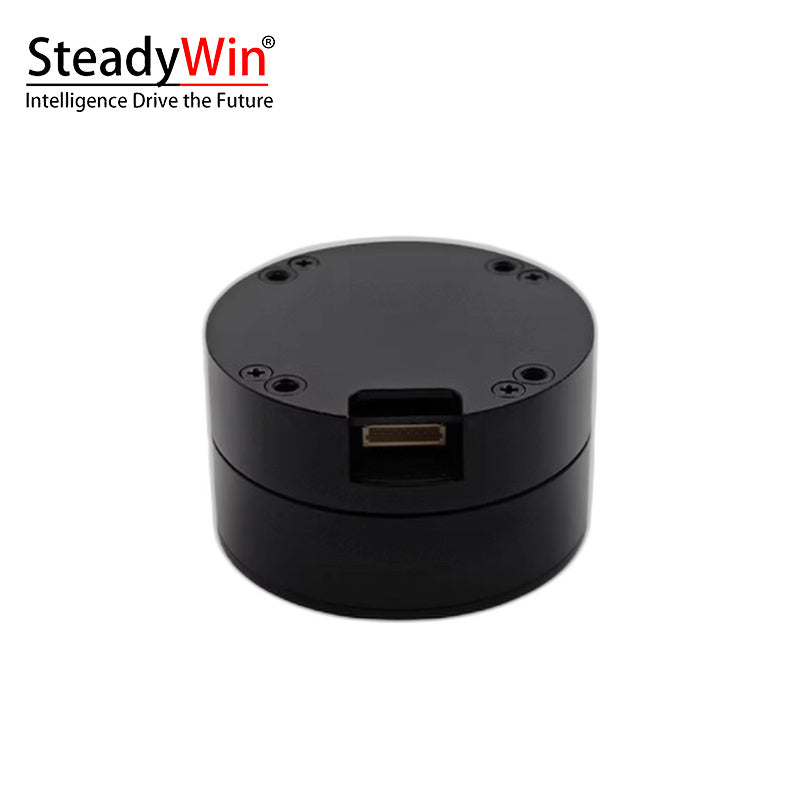

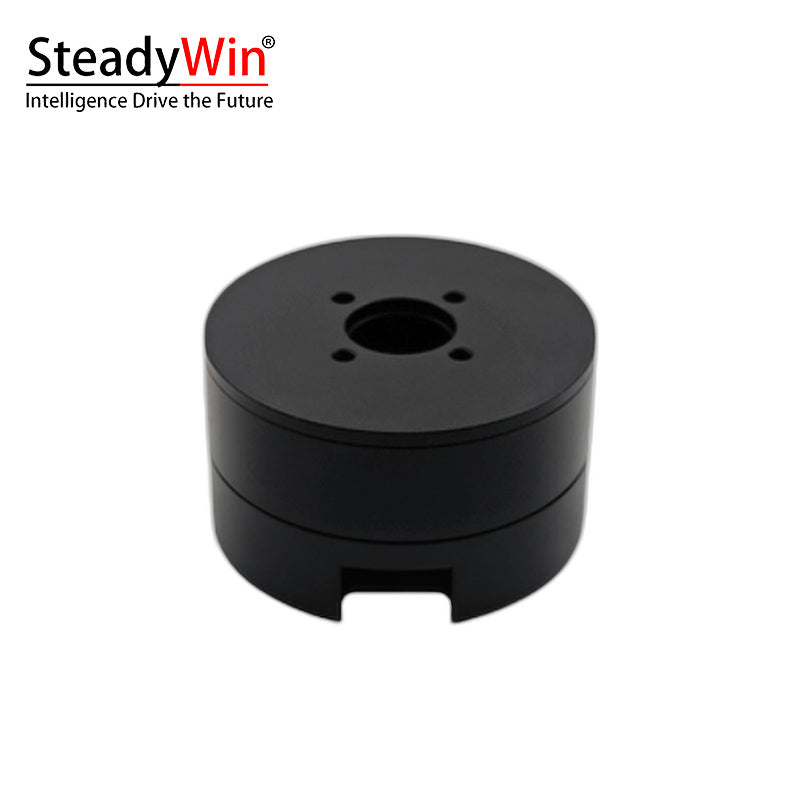

SteadyWin DD5015 Motor
Regular price
$95.00
Unit price
SteadyWin DD5015 Motor - DD5015 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin DD5015 Motor
Regular price
$95.00
Unit price
SteadyWin DD5015 Motor - DD5015 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal voltage | 24V |
| Voltage range | 10~28V |
| Nominal current | 1.2A |
| Nominal power | 28.8W |
| Nominal torque | 0.48N.M |
| Nominal speed | 30rpm |
| No-load max speed |
526rpm |
| Peak torque | 0.58N.m |
| Peak current | 1.63A |
| Speed constant |
21.92rpm/v |
| Torque constant | 0.33N.M/A |
| Number of pole pairs | 14Pairs |
| Phase resistance | 4.9Ω |
| Phase inductance | 2.046Mh |
| Communication | RS485 / CAN |
| Encoder type |
Single-turn absolute |
| Resolution | 14bit |
| Motor weight | 173g |
| Working temperature | -20~80℃ |
DD5015_installation_drawing.pdf
SteadyWin_DD5015_motor.stp
