SteadyWin | SKU:

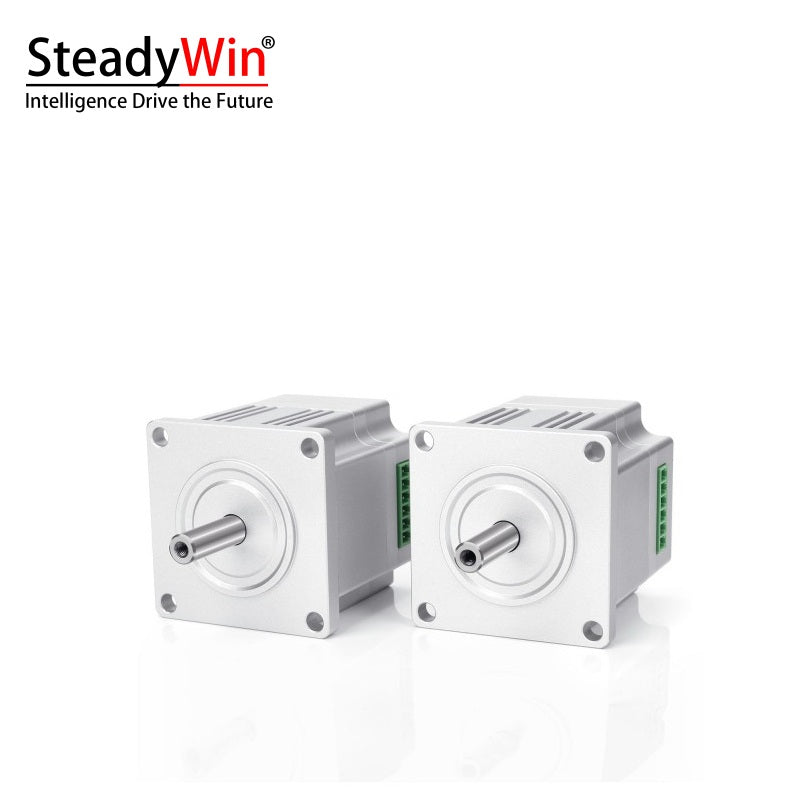

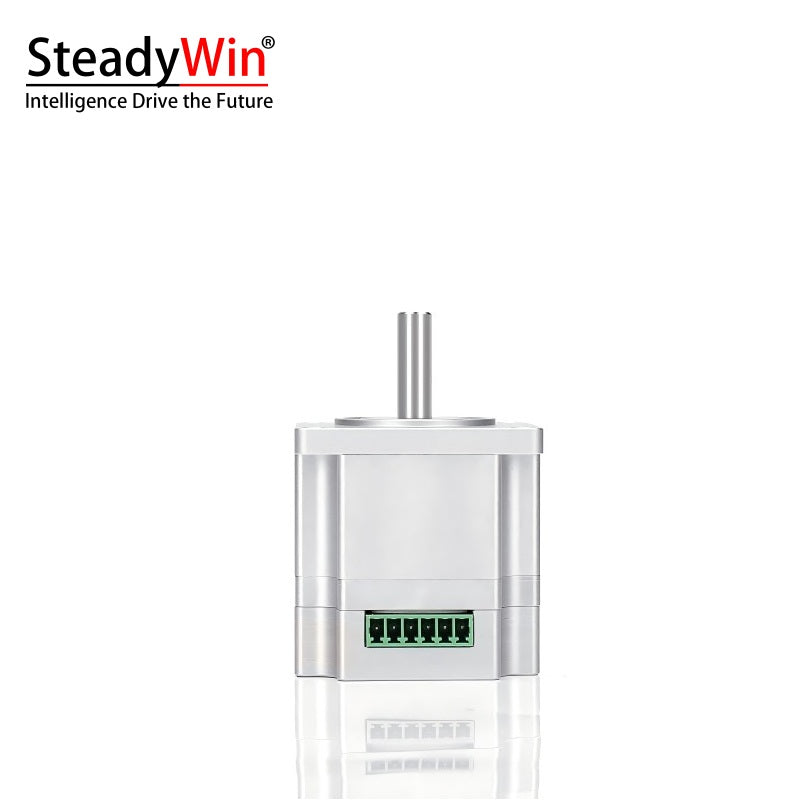

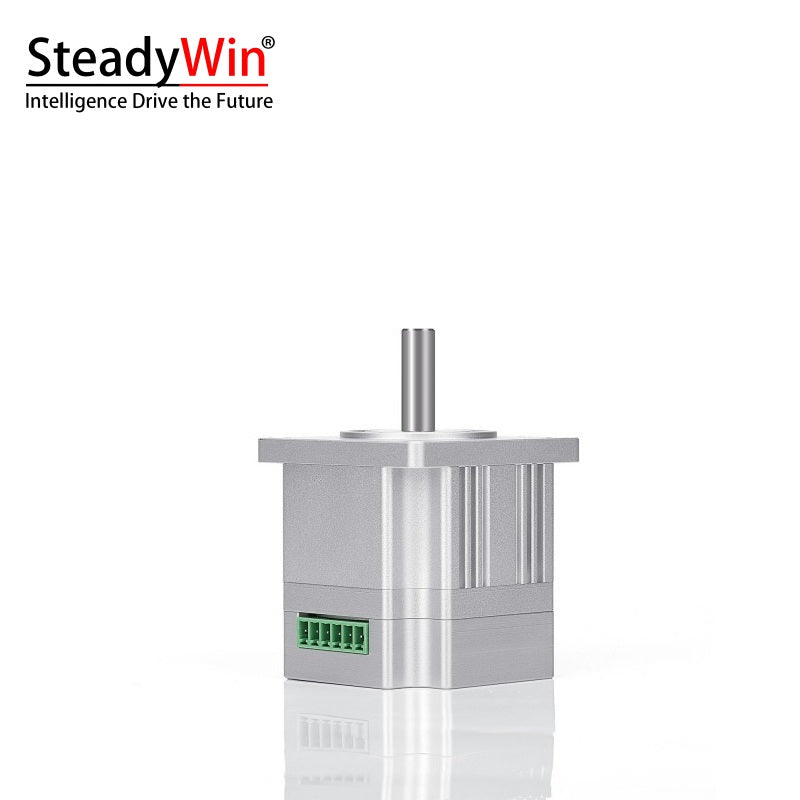

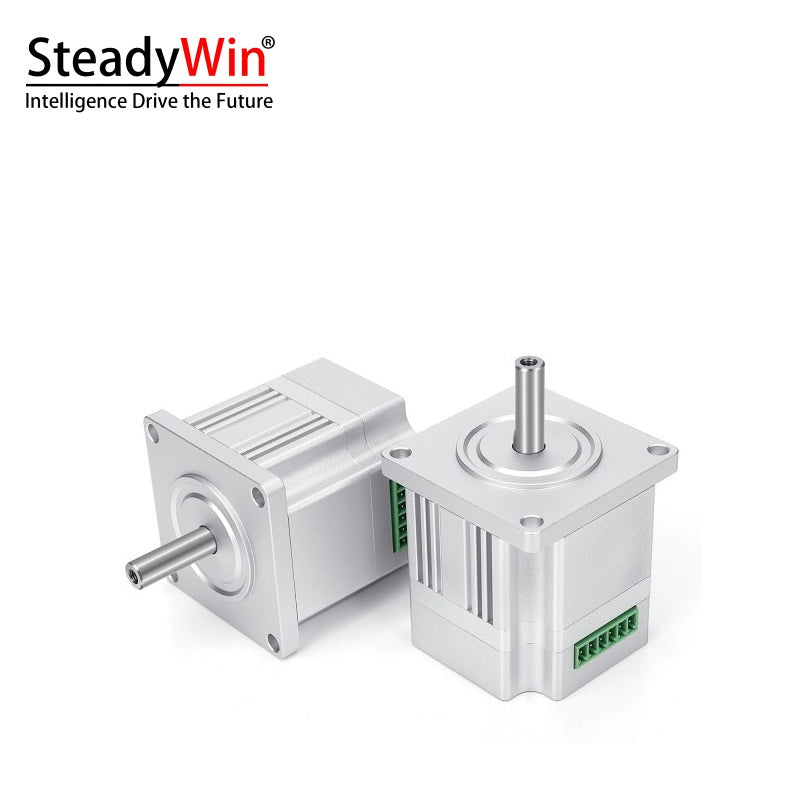

SteadyWin 5715AIO Servo Motor
Regular price
$95.00
Unit price
/
Unavailable
SteadyWin 5715AIO Servo Motor - 5715AIO is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SteadyWin 5715AIO Servo Motor
Regular price
$95.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 5715AIO |
| Nominal Voltage |
24~36V |
| Power | 50W |
| Nominal Torque | 0.48N·m |
| Nominal Speed | 1000RPM |
| Max Speed | 1500RPM |
| Nominal Current | 2.2A |
| Return Signal | multi-turn absolute value encoder(One lap 15 bits, multiple laps 9 bits, total 24 bits) |
| Communication Interface | CAN |
| Max Input Pulse Frequency | 500KHz |
| Pulse Command Mode | Pulse+ Direction, A+B |
| Position Sampling Frequency | 2KHz |
| Cooling-down Method | Natural cooling |
| Weight | 380g |
| Defencive Function | Blocking and turning alarm |
| Humidity | 5~95% |
| Working Temperature | 0~40℃ |
| Max Temperature | 85℃ |
5715AIO_Structure_diagram.pdf
