SLAMTEC

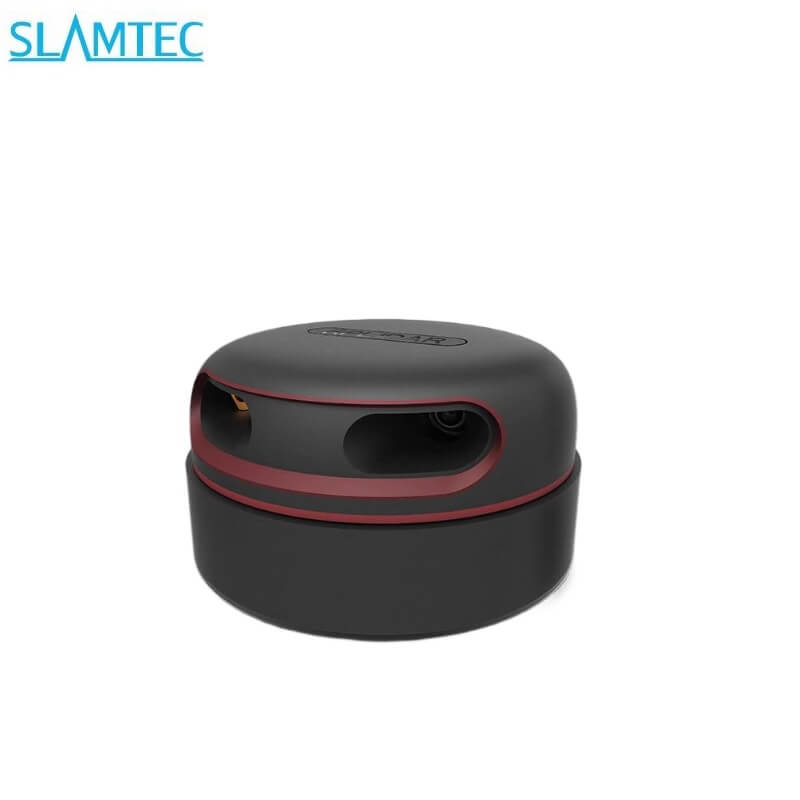

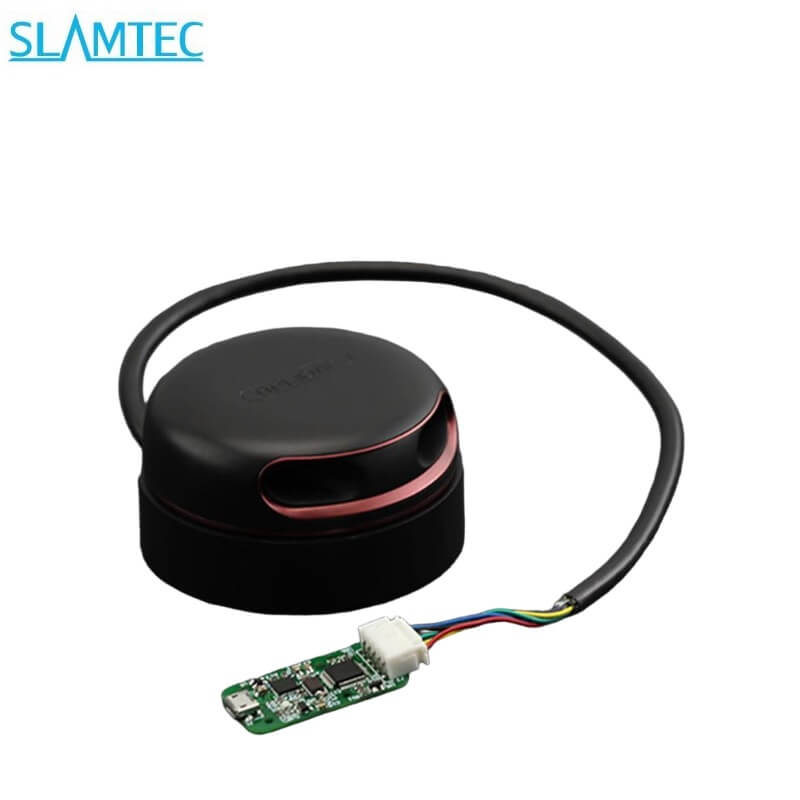

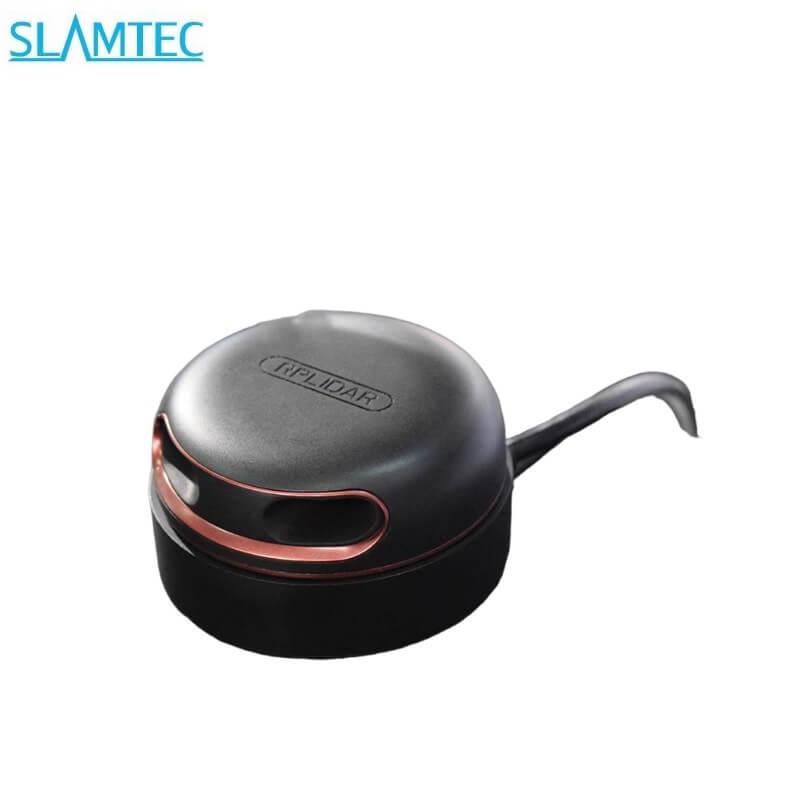

SLAMTEC RPLIDAR A2 LiDAR

$285.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information






Technical Specifications

Parameter Value
Model

SLAMTEC RPLIDAR A2
Application Scenarios

Extreme performance Ideal for indoor environments with maximum ranging distance and sampling frequency.
Operating Range White object: 12 meters
Operating Range Black object: 10 meters
Minimum  Operating   ranging 0.2m
Sample Rate

16KHz
Scan Rate Typical value: 10 Hz (adjustable between 5 Hz-15 Hz)
Angular Resolution 0.225°
Scan Field Flatness ±1.5
Communication Interface TTL UART
Communication Speed 256000 bps
Compatibility Support former SDK protocols
Laser wavelength
785nm
Laser power 10mW
Pulse length 87us
Laser Safety Class  IEC-60825 Class 1
Power Voltage

4.9—5.2V
Power Voltage Ripple

20mV
Inrush Current

2500mA
System Start Current

1500mA
Power Current

200mA (5V Power，power off )

450mA (5V Power，power on)
Weight

190g
Temperature range

0—40ºC
