SENSING | SKU:

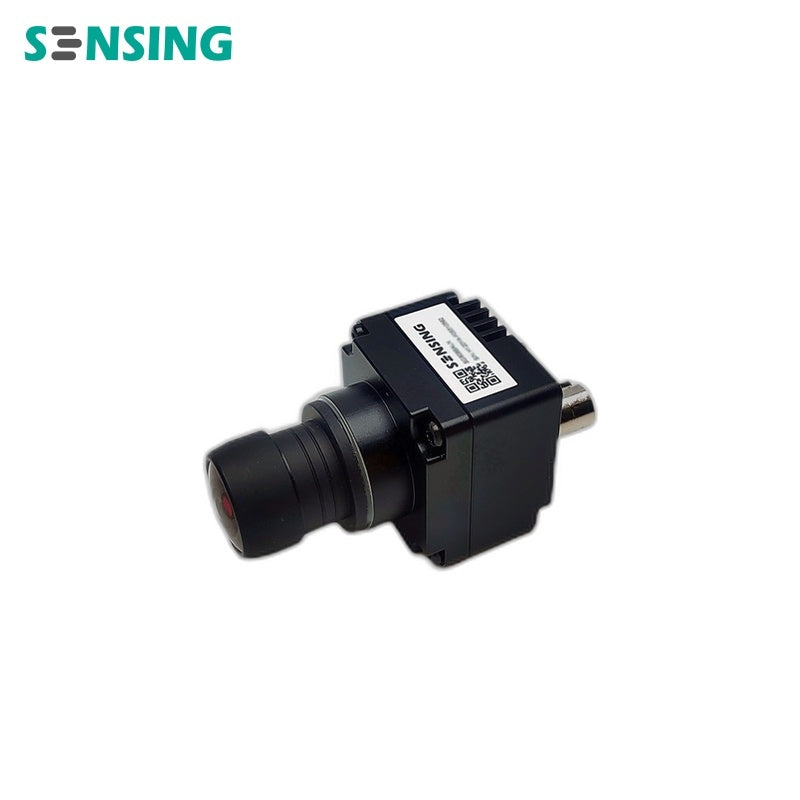

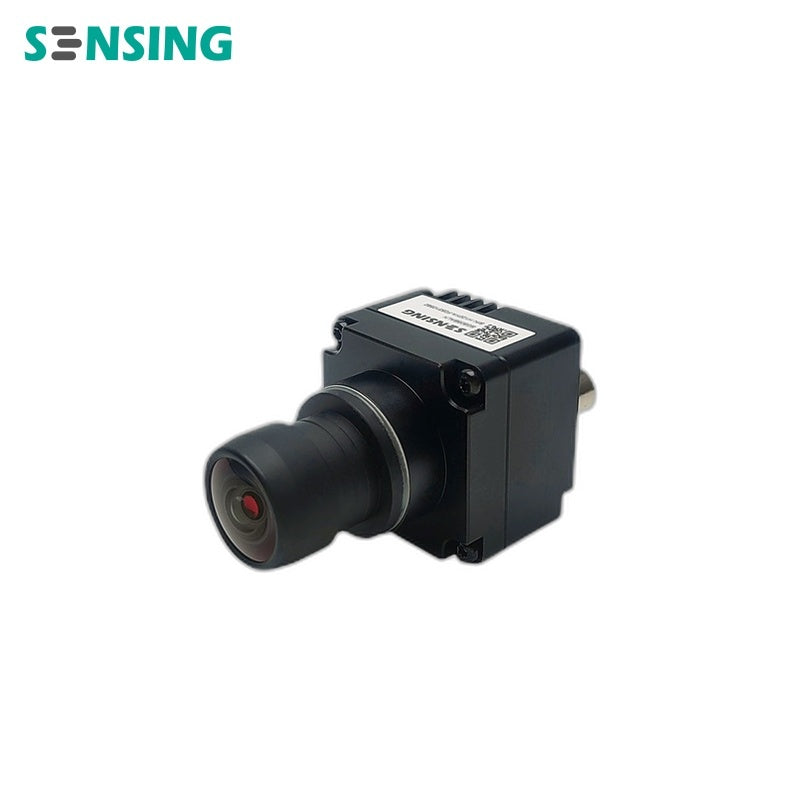

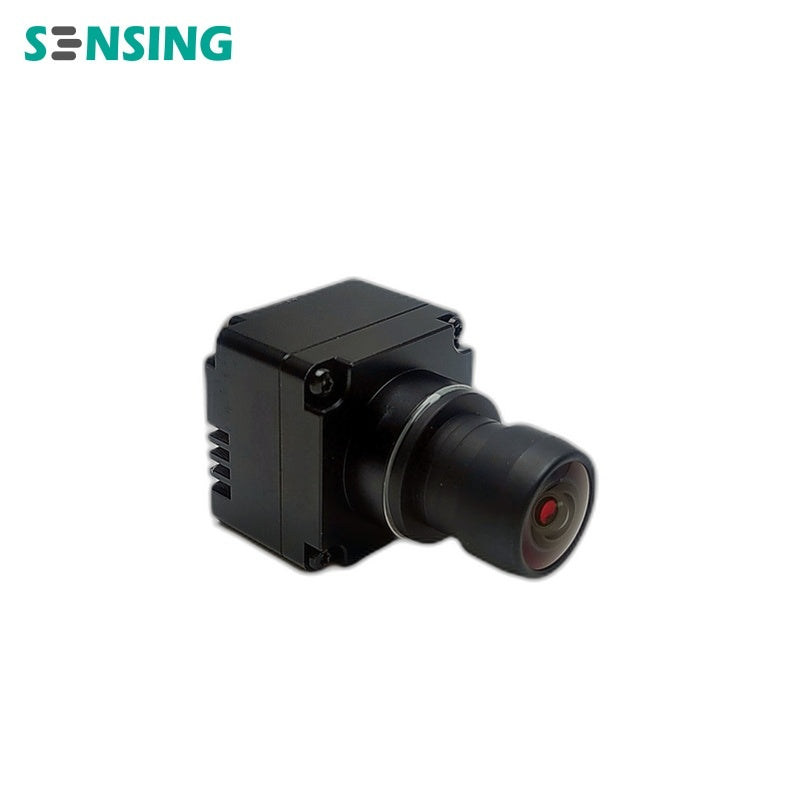

SENSING SG8S-AR0820C-5300-G3A Camera
Regular price
$549.00
Unit price
SENSING SG8S-AR0820C-5300-G3A Camera - SG8S-AR0820C-5300-G3A-H30YA is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING SG8S-AR0820C-5300-G3A Camera
Regular price
$549.00
Unit price
SENSING SG8S-AR0820C-5300-G3A Camera - SG8S-AR0820C-5300-G3A-H30YA is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | ONSEMI 2.6MP AR0233 RGGB |
| ISP | GW5200 |
| Image Size | 1/2.5 inch CMOS |
| Output Pixels | 1920H*1080V |
| Pixel Size | 3.0um*3.0um |
| Frame Rate | 1920*1080@30fps |
| HDR Support | Yes |
| LFM | Yes |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX9295A |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | <250mA@12VDC |
| Connector | Amphenol Fakra (Z Code) |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 30mm, L:30mm, H:22.5mm |
| Weight | <50g |
SENSING-SG8S-AR0820C-5300-G3A-Drawing.pdf
SENSING-SG8S-AR0820C-5300-G3A-Hxxx_Camera-Datasheet.pdf
