SENSING | SKU:

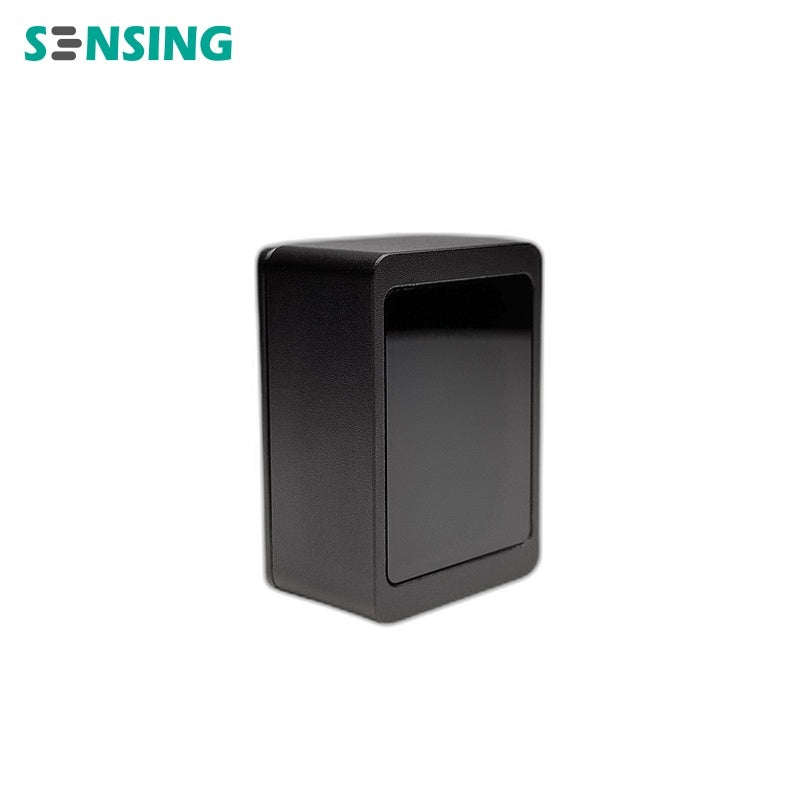

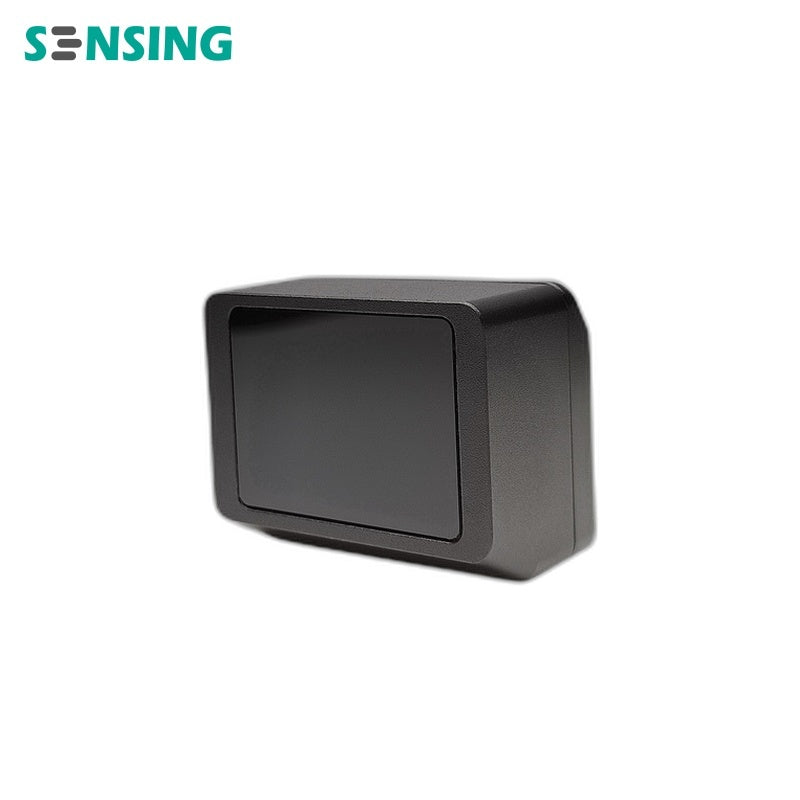

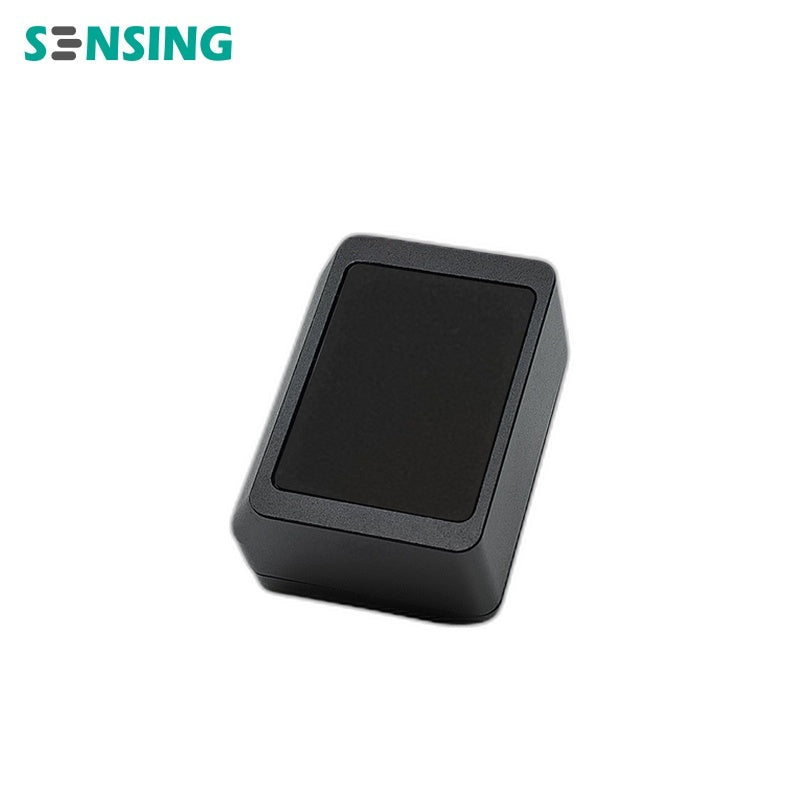

SENSING DMSBBFAN Camera
Regular price
$400.00
Unit price
SENSING DMSBBFAN Camera - DMSBBFAN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
SENSING DMSBBFAN Camera
Regular price
$400.00
Unit price
SENSING DMSBBFAN Camera - DMSBBFAN is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Sensor | OV 2.08MP OV02311 Monochrome |
| ISP | GW5200 |
| Image Size | 1/2.9 inch CMOS |
| Output Pixels | 1600H*1300V |
| Pixel Size | 3um*3um |
| Frame Rate | 1600H*1300V@30fps |
| HDR Support | / |
| LFM | / |
| Output data | YUV422@8bit |
| Serializer | MAXIM MAX96717F |
| IR Filter | 940nm band pass |
| Camera Interface | GMSL2 |
| Power Supply | 9~16V POC |
| Current | Camera<250mA@12VDC, LED < 400mA@12VDC |
| Connector | Amphenol Fakra (Z Code) + Molex |
| Operating temp. range | -40~+85°C |
| Dimensions | W: 35.3mm, L:43.6mm, H:24.8mm |
| Weight | <50g |
