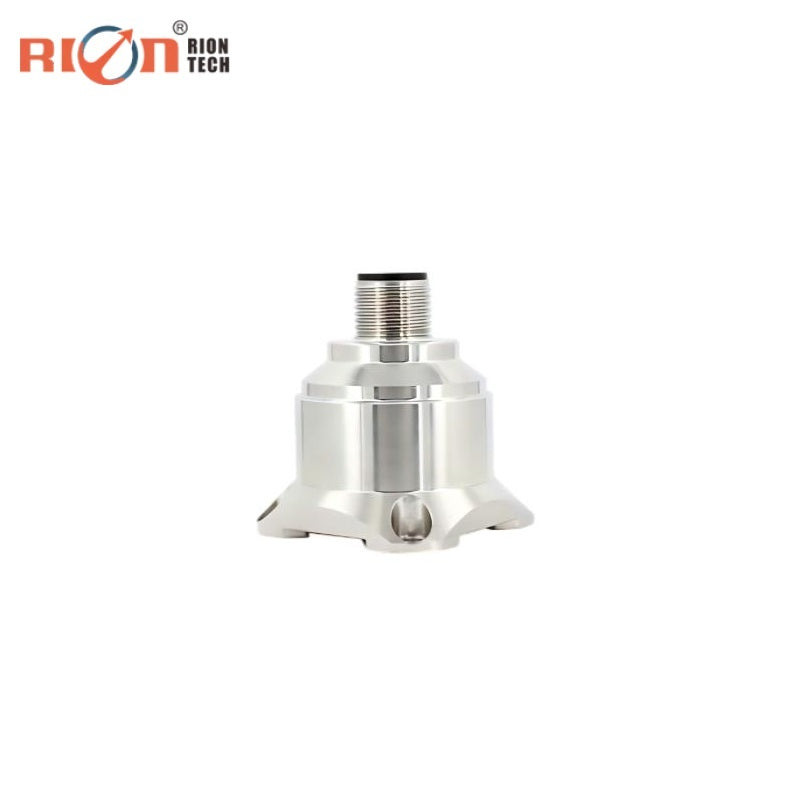

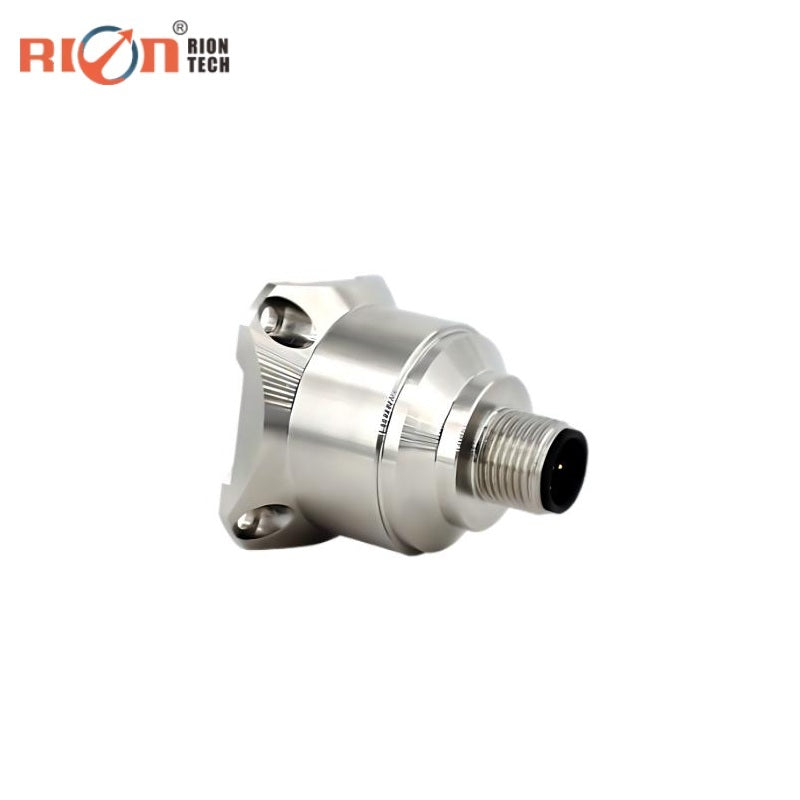

Rion Tech AKF390 MEMS Voltage Accelerometer

$380.00
Version
Installation Method
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
General Specifications:
Model AKF390
Measurement Axis X, Y, Z axes
Connector Type Industrial standard M12 connector

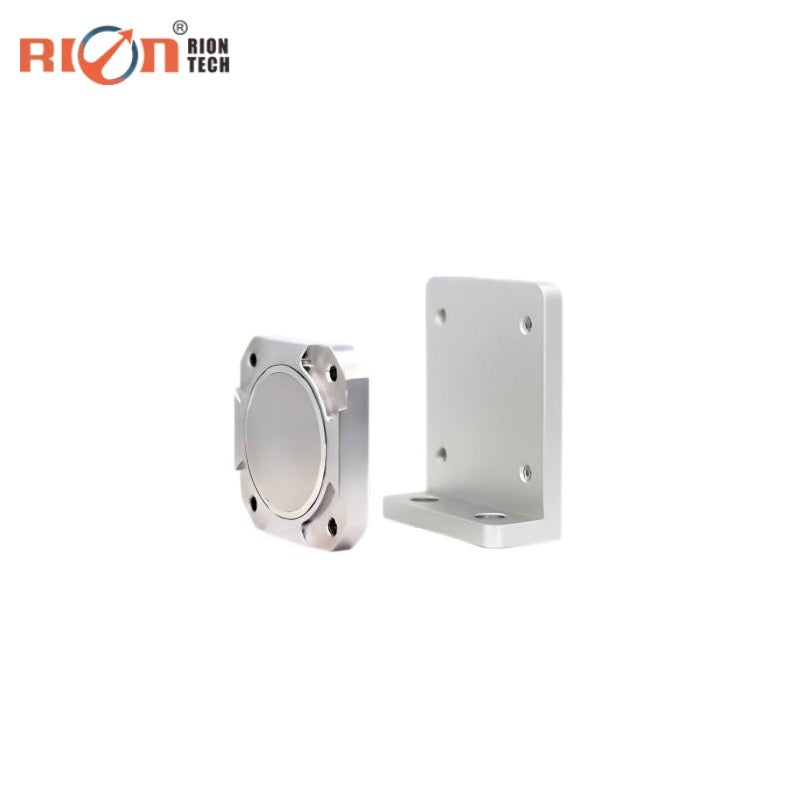

Weight Product net weight: 82 g; Magnetic base: 48 g; L-type adapter plate: 20 g
Dimensions Product: 34.3×34.3×38.5 mm
Magnetic base: 34.23×34.23×8.1 mm
L-type adapter plate: 38×44×15 mm
Measurement Characteristics:
Measurement Range ±2 g, ±4 g, ±8 g, ±10 g, ±20 g, ±40 g
Sensitivity (±10%) 1250, 625, 312.5, 250, 125, 62.5 mV/g
0g Output (2.5V Nominal) <0.01, <0.01, <0.01, <0.008, <0.008, <0.008 mV
Output Voltage Range 0 ~ 5 V
Accuracy & Performance:
Bias Calibration <1 mg
Power On/Off Repeatability <2 mg (max)
Resolution / Threshold (@ 1 Hz) <1 mg (max)
Non-linearity <0.5, <0.5, <0.8, <1, <1, <1 %FS (max)
Cross-axis Sensitivity 1%, 1%, 1%, 2%, 2%, 2%
Transverse Vibration Sensitivity Ratio 1%, 1%, 2%, 5%, 5%, 5%
Frequency & Noise:
Response Frequency 500 Hz
Bandwidth (3 dB) 1000 Hz
Resonance Frequency 2.4 kHz, 2.4 kHz, 2.4 kHz, 5.5 kHz, 5.5 kHz, 5.5 kHz
Noise Density 21, 21, 21, 86.6, 86.6, 86.6 μg/√Hz
Electrical & Environmental:
Power Supply (VDD-VSS) 9 ~ 36 VDC
Operating Current Consumption <80 mA @ 12 VDC
Bias Temperature Coefficient 0.01, 0.01, 0.01, 0.05, 0.05, 0.05 %/℃
