OCServo | SKU:

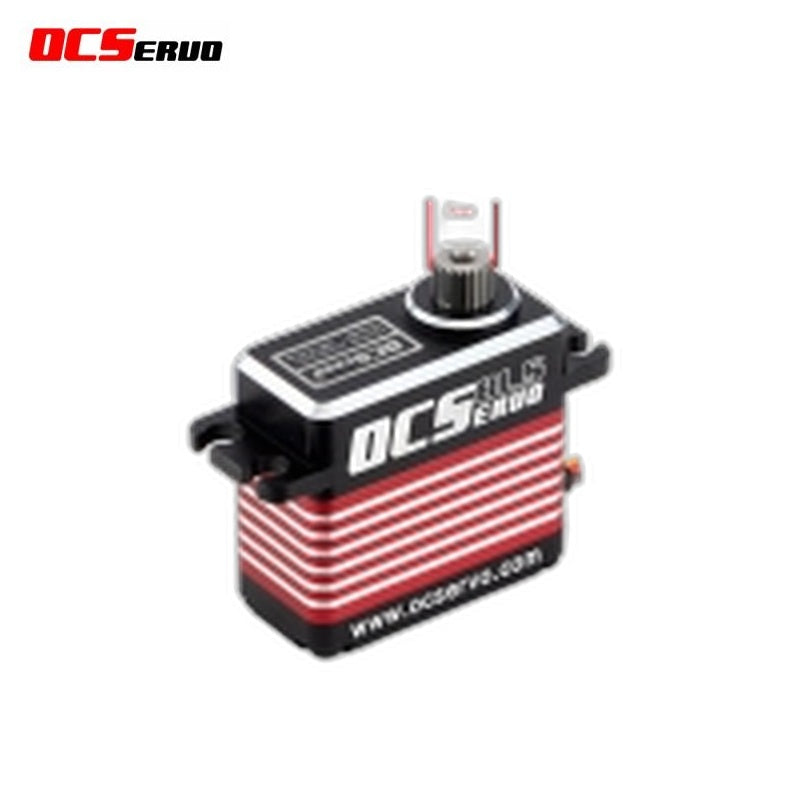

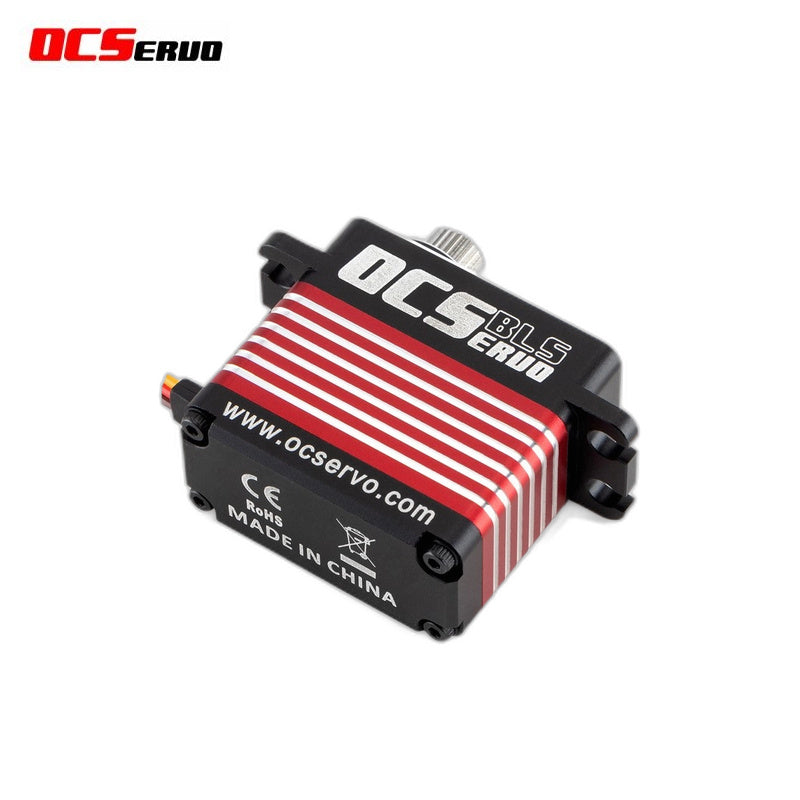

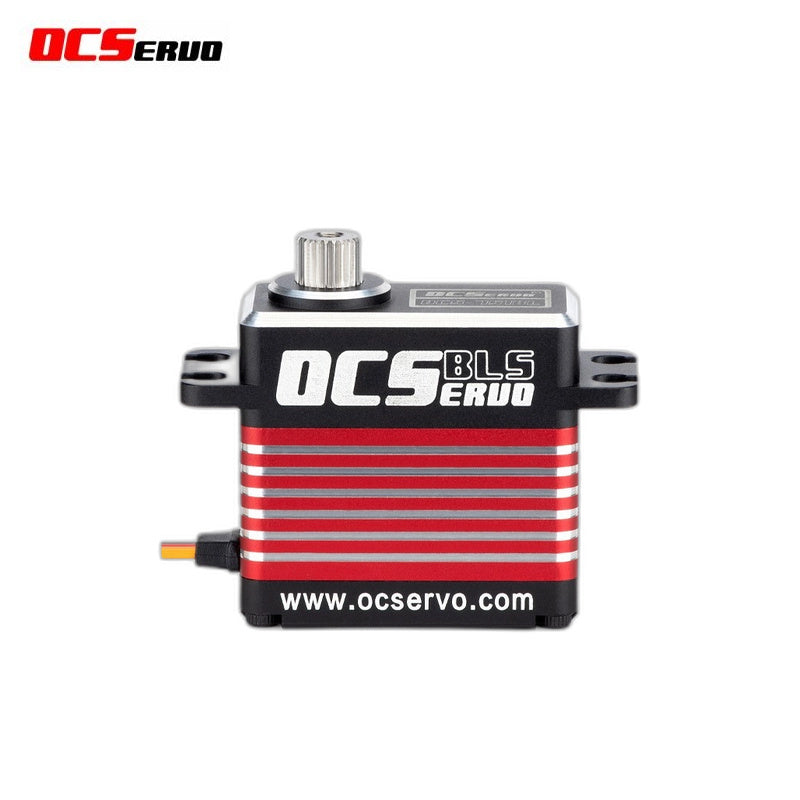

OCServo OCS-851 Servo Motor
Regular price
$155.00
Unit price
OCServo OCS-851 Servo Motor - OCS-751 / CAN is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OCServo OCS-851 Servo Motor
Regular price
$155.00
Unit price
OCServo OCS-851 Servo Motor - OCS-751 / CAN is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | OCS-751 | OCS-851 | ||
|---|---|---|---|---|
| Operating Voltage | 6.0V | 8.4V | 8.4V | 16.8V |
| Torque (kg·cm) | 53 | 75 | 42 | 85 |
| Speed (sec/60°) | 0.17 | 0.11 | 0.17 | 0.11 |
| Stall current (A) | 6 | 9 | 4 | 6 |
| Voltage Range (V DC) | 6.0 ~ 8.4 | 8.4 ~ 16.8 | ||
| Weight (g) | 88 | 92 | ||
| Bearing | Ball bearing ×2 | Ball bearing ×2 | ||
| Motor | Brushless motor | Brushless motor | ||
| Gear | Stainless Steel | Stainless Steel | ||
| Size (mm) | 40 × 20 × 38.6 | 40 × 20 × 42.6 | ||
| Case | CNC Aluminum | CNC Aluminum | ||
