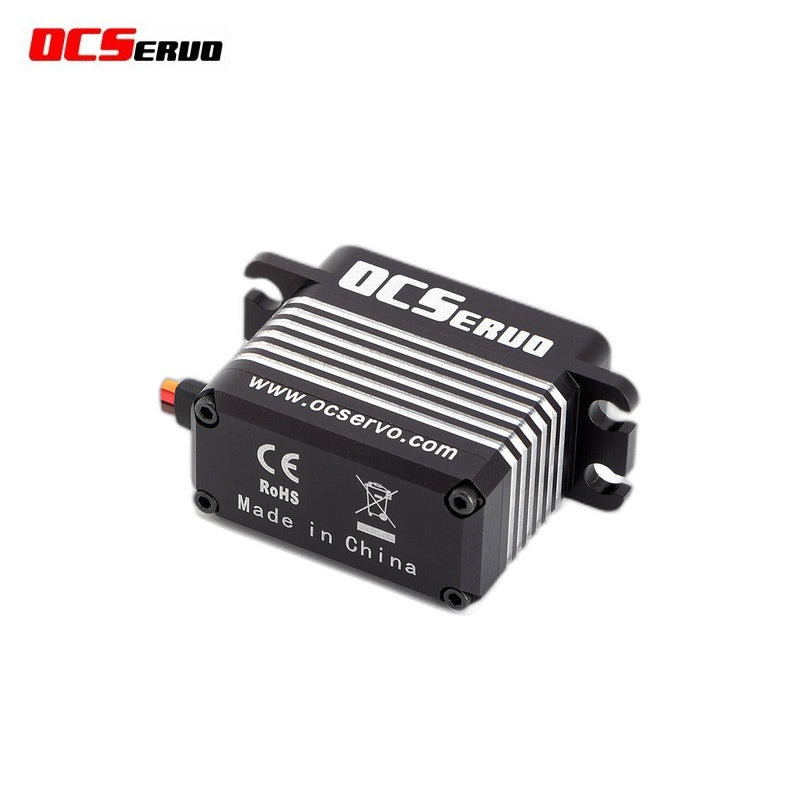

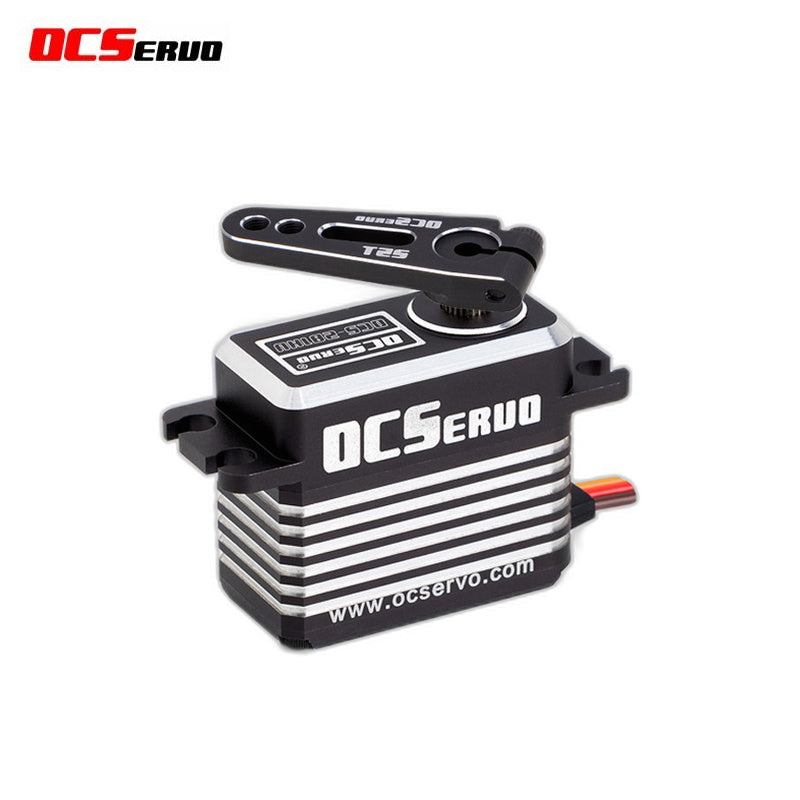

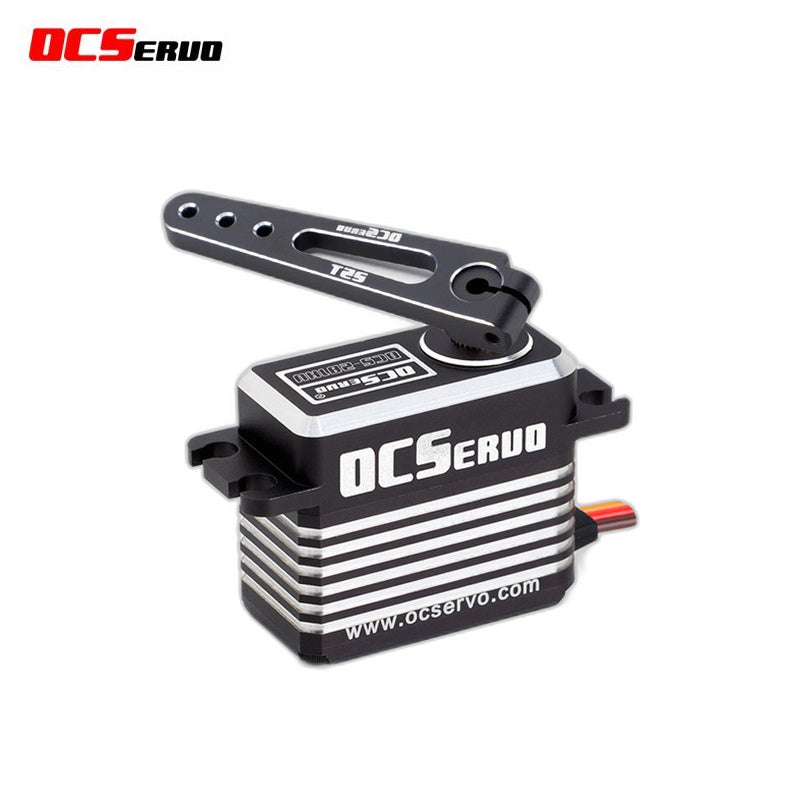

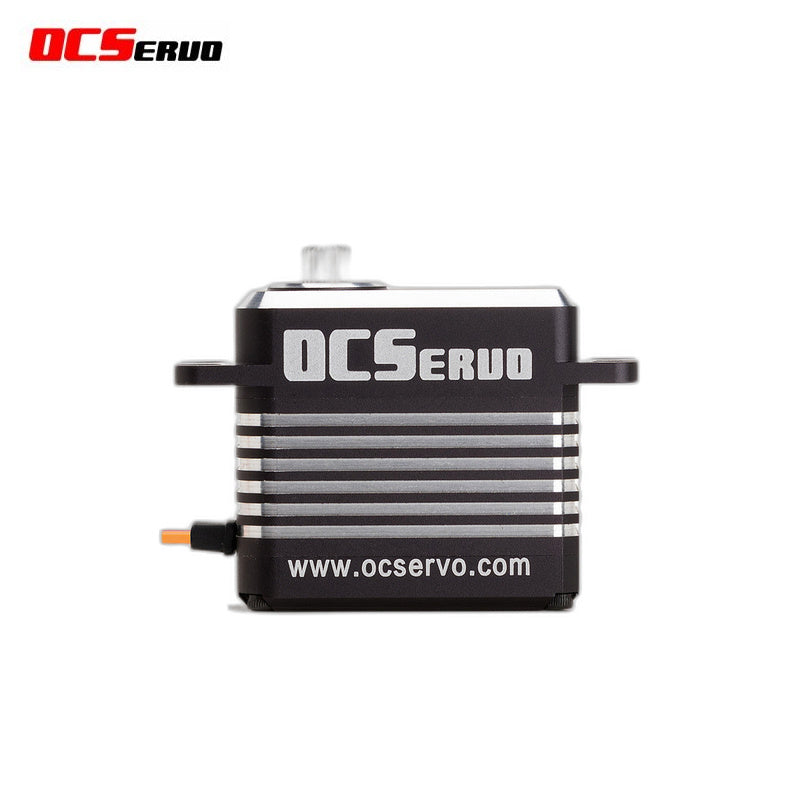

OCServo OCS-281HV Servo Motor
Regular price
$55.00
Unit price
OCServo OCS-281HV Servo Motor - OCS-281HV / No metal rocker arm is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
OCServo OCS-281HV Servo Motor
Regular priceFrom
$55.00
Unit price
OCServo OCS-281HV Servo Motor - OCS-281HV / No metal rocker arm is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | 8.4V28kg-cm High Voltage Digital Servo |
| Item No. | OCS-281HV |
| Storage Temperature Range | -20°C ~ 70°C |
| Operating Temperature Range | -15°C ~ 65°C |
| Test Temperature | 25°C ± 5°C |
| Test Humidity | 65% ± 10% |
| Size (mm) | 20 × 40 × 34 |
| Weight (g) | 65 (excluding accessory) |
| Gear Type | Stainless Steel |
| Limit Angle | 210° |
| Bearings | 2 Ball bearings |
| Output Spline | 25T - Φ5.94mm |
| Horn Type | Plastic POM |
| Case Material | Aluminium CNC |
| Connector Wire | 300 mm |
| Motor Type | Coreless motor |
| Waterproof Performance | Yes |
| Operating Voltage | 6.0V / 7.4V / 8.4V |
| No load speed (sec/60°) | 6V: 0.160; 7.4V: 0.144; 8.4V: 0.124 |
| Running current (at no load) (mA) | 6V: 300; 7.4V: 350; 8.4V: 420 |
| Peak stall torque (kg·cm) | 6V: 23; 7.4V: 27; 8.4V: 32 |
| Stall current (A) | 6V: 2.8; 7.4V: 3.0; 8.4V: 3.5 |
| Command Signal | PWM 50~333Hz |
| Amplifier Type | Digital Controller |
| Pulse Width Range | 800 ~ 2200 μsec |
| Neutral Position | 1500 μsec |
| Running Degree | 96° (when 1000~2000 μsec) |
| Dead Band Width | 1 μsec |
| Rotating Direction | CCW (when 1000~2000 μsec) |
