MUWEIDU | SKU:

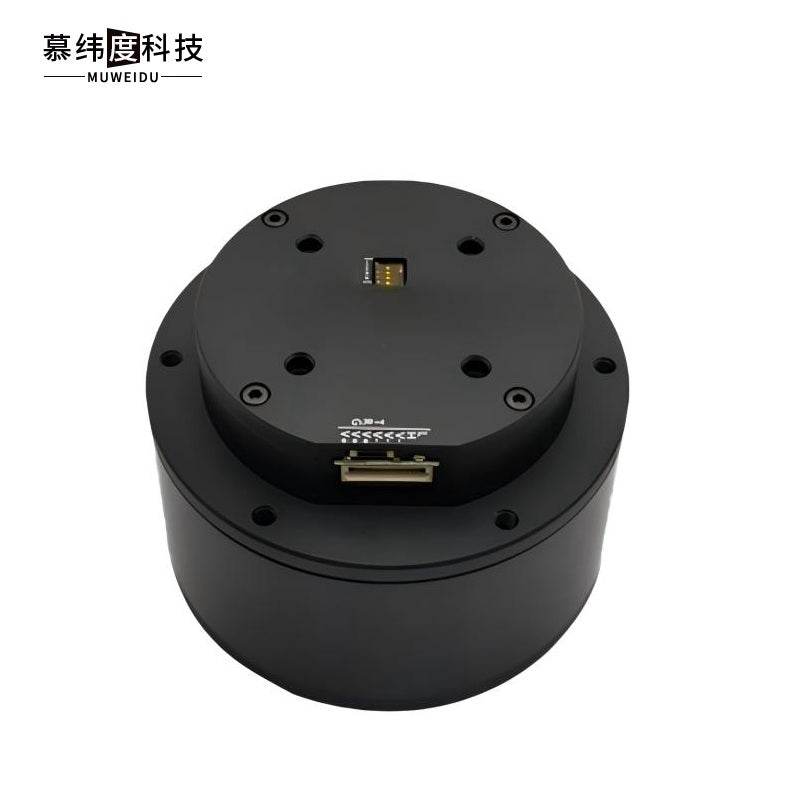

MUWEIDU K9050 Motor
Regular price
$310.00
Unit price
MUWEIDU K9050 Motor - K9050 Motor / RS485 / 16 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K9050 Motor
Regular price
$310.00
Unit price
MUWEIDU K9050 Motor - K9050 Motor / RS485 / 16 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K9050 (16T/35T) |
| Rated Voltage | 24V |
| Rated Current | 7.45A / 3.46A |
| Peak Power | 170W / 38W |
| Rated Torque | 2.42N.m / 2.79N.m |
| Peak Torque | 4.5N.m / 5.8N.m |
| Rated Speed | 490rpm / 130rpm |
| Encoder | 18bit |
| Rotor Inertia | 4656gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ89mm×53mm |
| Weight | 963g |
