MUWEIDU | SKU:

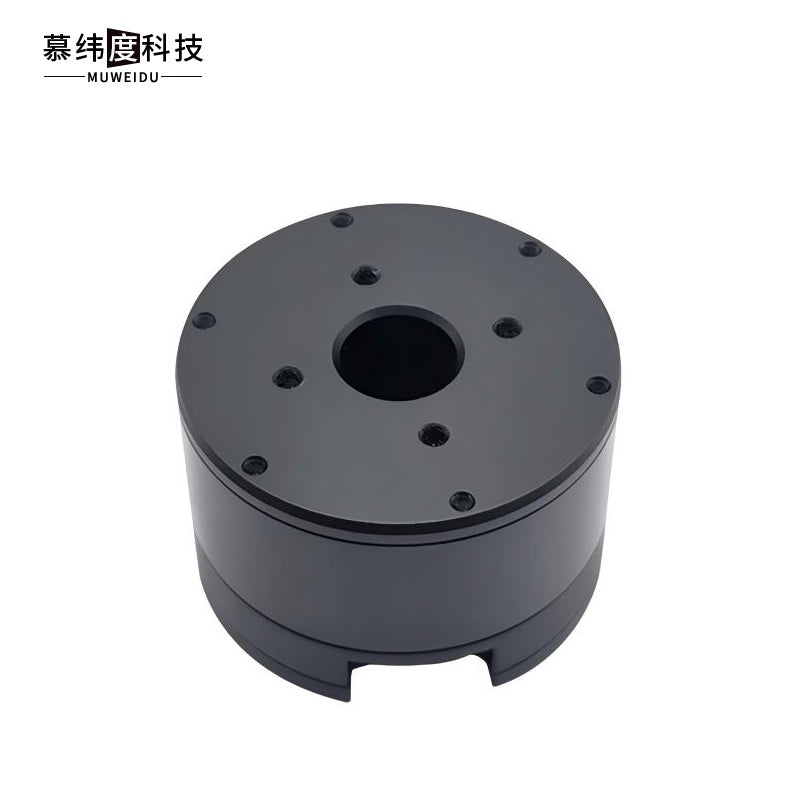

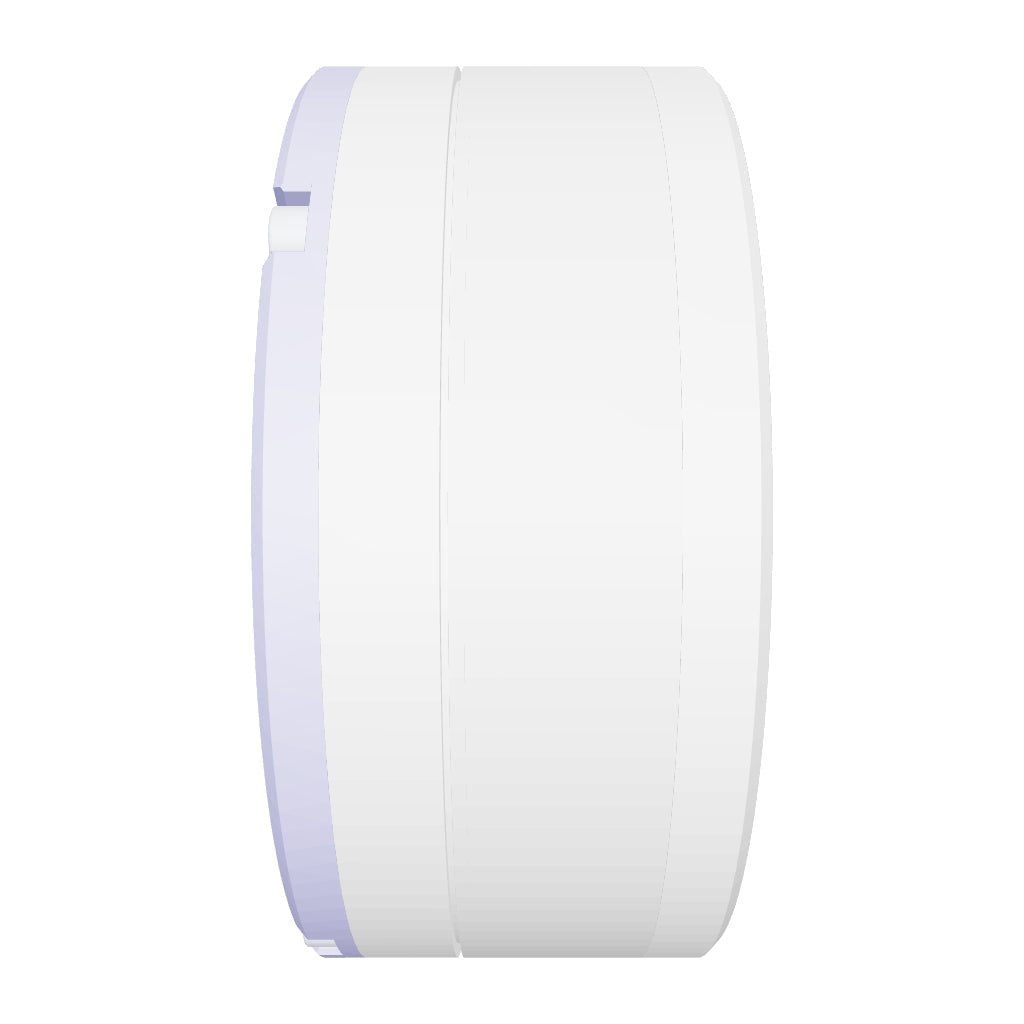

MUWEIDU K9030 Motor
Regular price
$215.00
Unit price
MUWEIDU K9030 Motor - K9030 Motor / RS485 / 17 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K9030 Motor
Regular price
$215.00
Unit price
MUWEIDU K9030 Motor - K9030 Motor / RS485 / 17 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K9030 (17/35T) |
| Rated Voltage | 24V |
| Rated Current | 6.66A / 3.27A |
| Peak Power | 215W / 128W |
| Rated Torque | 1.09N.m / 1.07N.m |
| Peak Torque | 2.2N.m / 4.1N.m |
| Rated Speed | 1080rpm / 450rpm |
| Encoder | 18bit |
| Rotor Inertia | 2860gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ89mm×37mm |
| Weight | 525g |
