MUWEIDU | SKU:

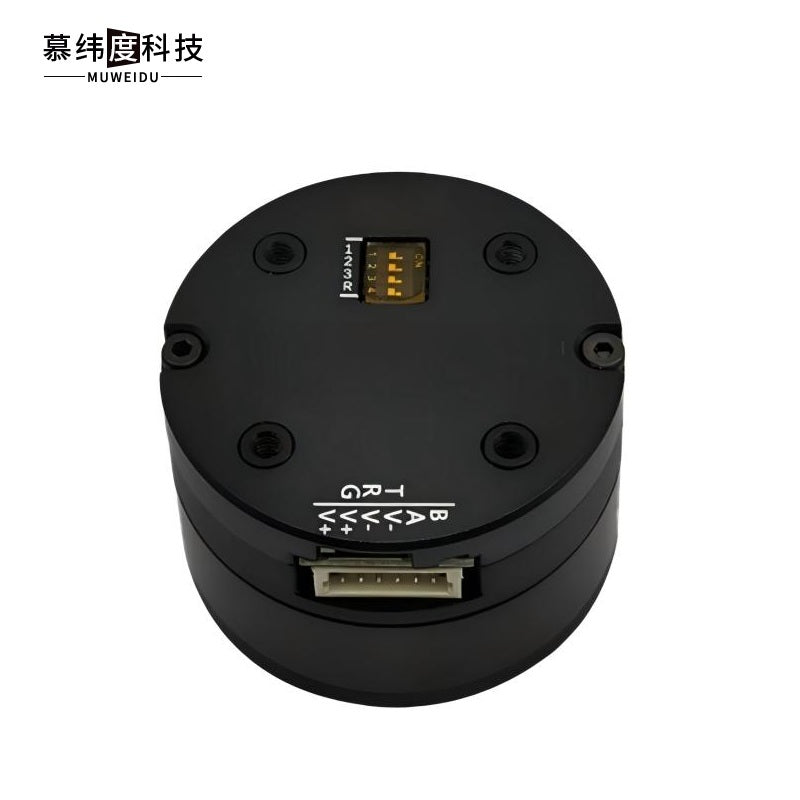

MUWEIDU K4020 Motor
Regular price
$120.00
Unit price
MUWEIDU K4020 Motor - K4020 Motor / RS485 / 25 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MUWEIDU K4020 Motor
Regular price
$120.00
Unit price
MUWEIDU K4020 Motor - K4020 Motor / RS485 / 25 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Model | K4020 (25/40T) |
| Rated Voltage | 12V |
| Rated Current | 1.44A / 0.81A |
| Peak Power | 14W / 4.6W |
| Rated Torque | 0.07N.m / 0.06N.m |
| Peak Torque | 0.25N.m / 0.12N.m |
| Rated Speed | 1600rpm / 700rpm |
| Encoder | 18bit |
| Rotor Inertia | 56gcm² |
| Motor Temperature Monitoring | YES |
| Control Modes | Speed/Position |
| Communication Protocol | RS485 or CAN |
| Overall Dimensions | Φ39.6mm×23mm |
| Weight | 65g |
