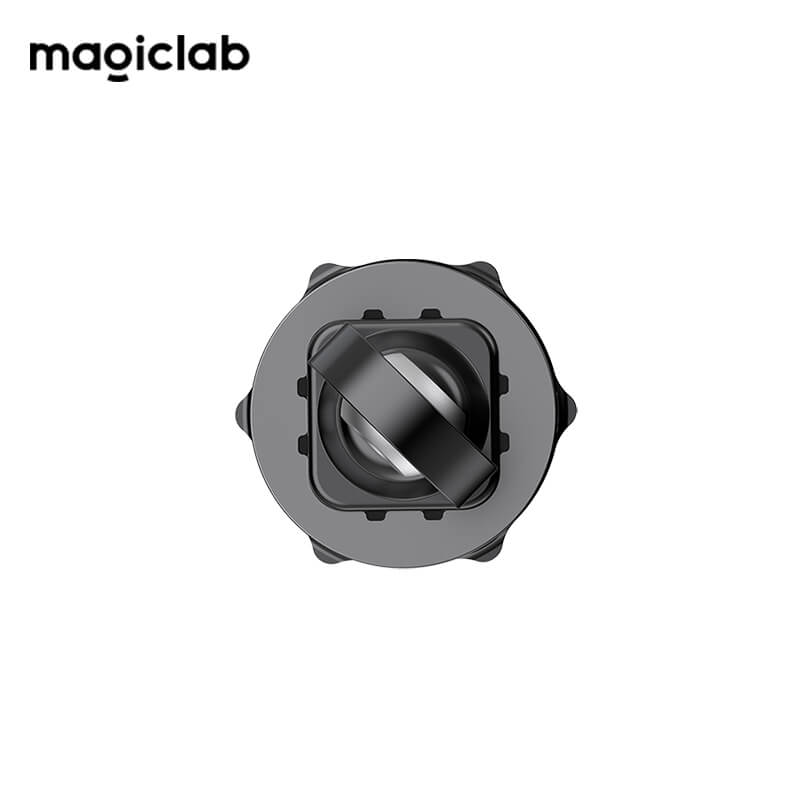

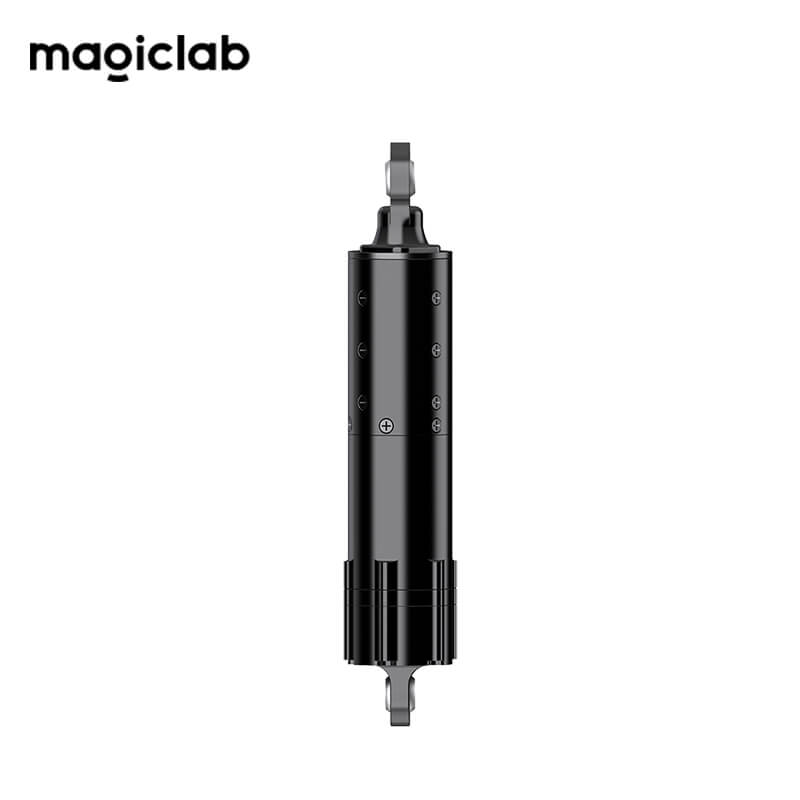

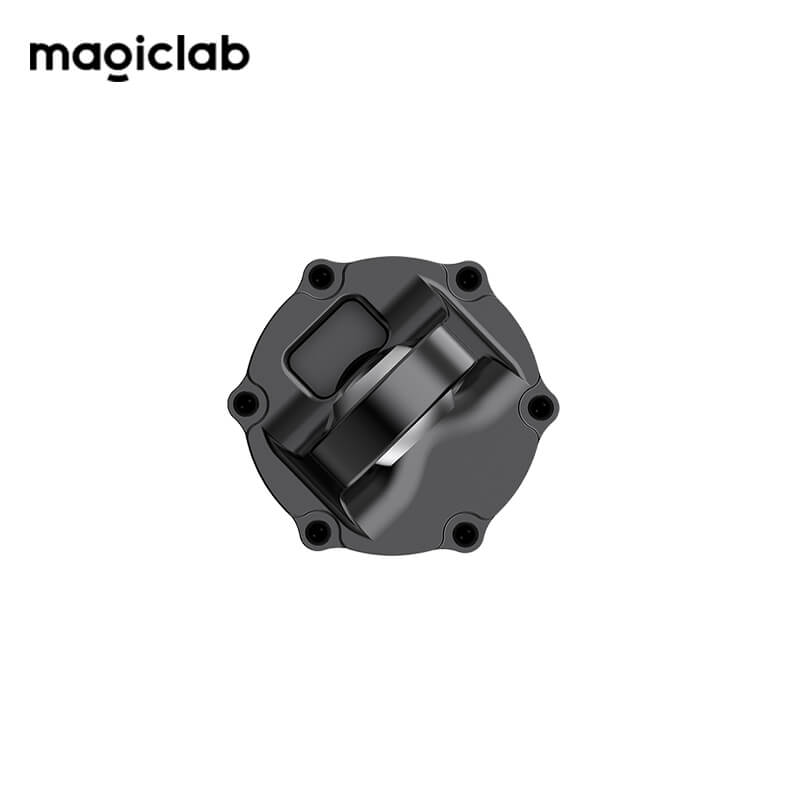

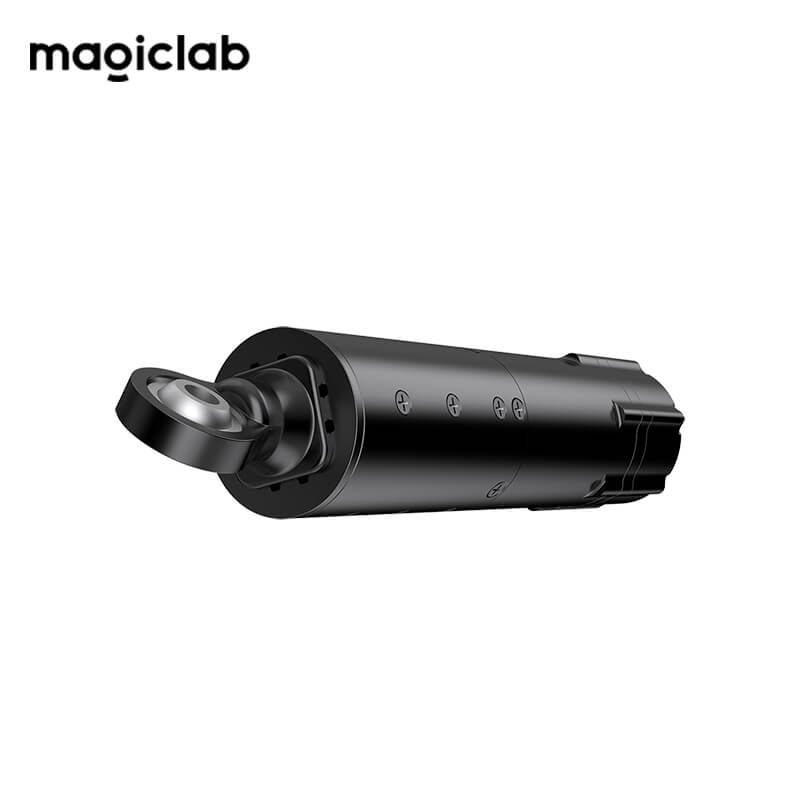

MagicLab T28 Motor
Regular price
$1,130.00
Unit price
MagicLab T28 Motor - T28 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MagicLab T28 Motor
Regular price
$1,130.00
Unit price
MagicLab T28 Motor - T28 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gearbox Type | Ball Screw |
| Maximum Speed | 116 mm/s |
| Module Weight | 340g |
| Max Stroke | 40 mm |
| Dimensions | φ32*155 |
| Rated Thrust | 300 N |
| Communication Interface | RS485 |
| Peak Thrust | 750 N |
| Recommended Operating Environment | -5°C ~ 40°C |
| Encoder Configuration | Dual Encoder |
| Operating Voltage | 48V (Recommended) |
| Motor Encoder Resolution | 18 Bit |
| Control Frequency | 25,000 Hz |
