MagicLab

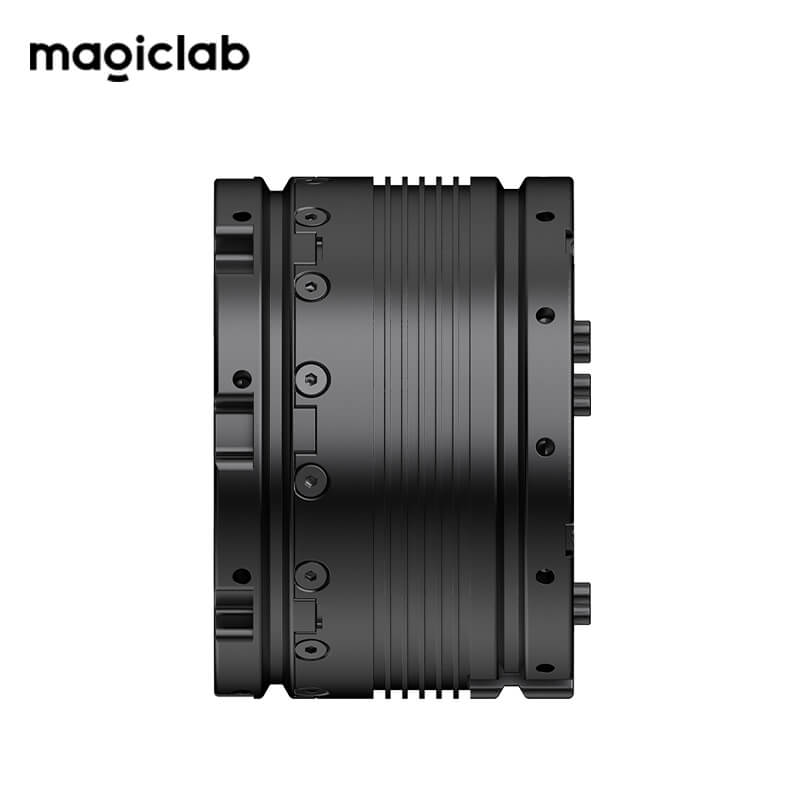

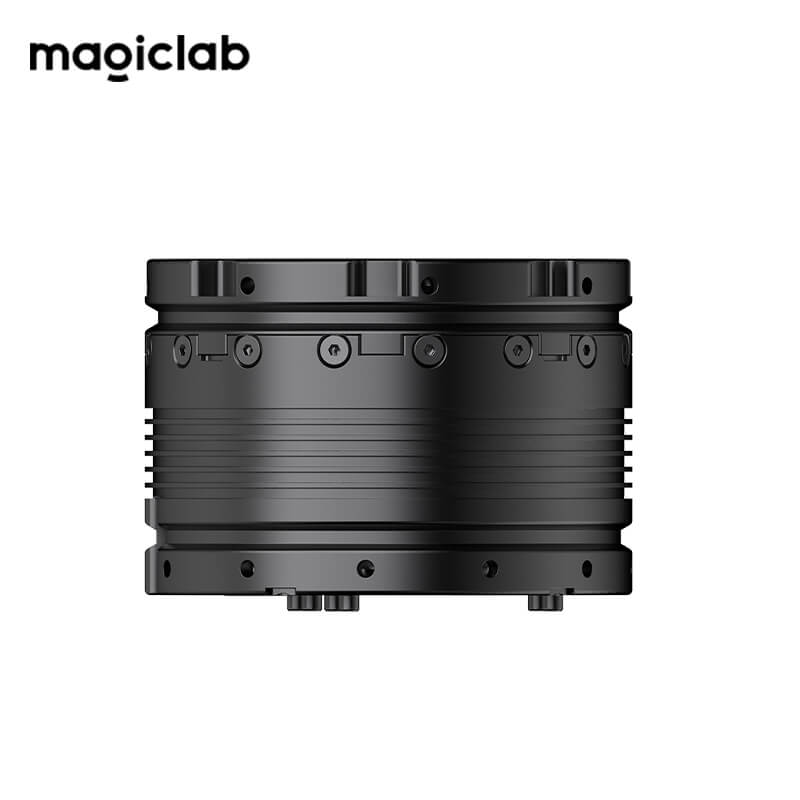

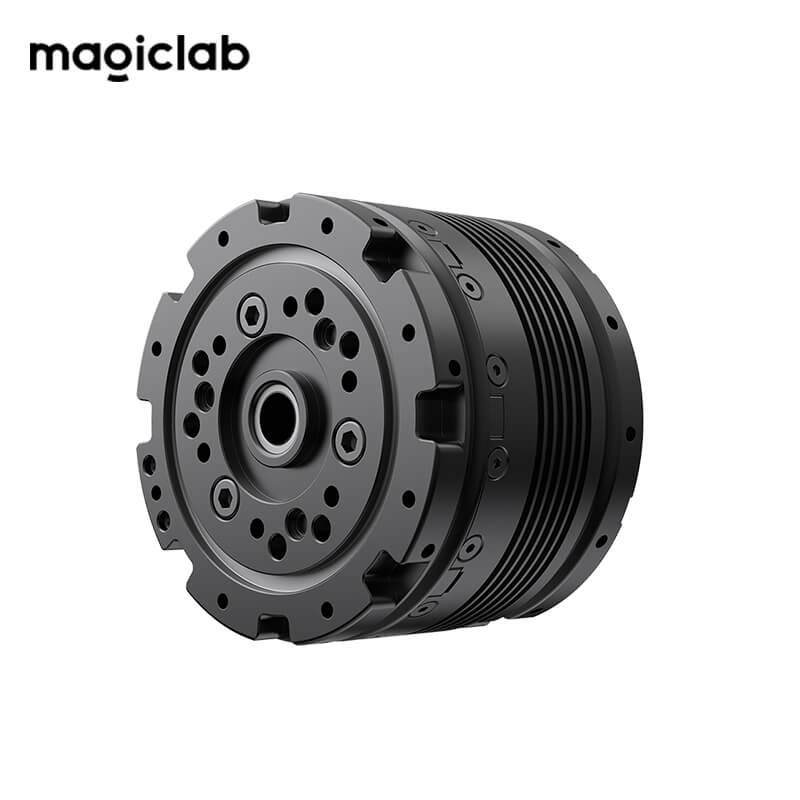

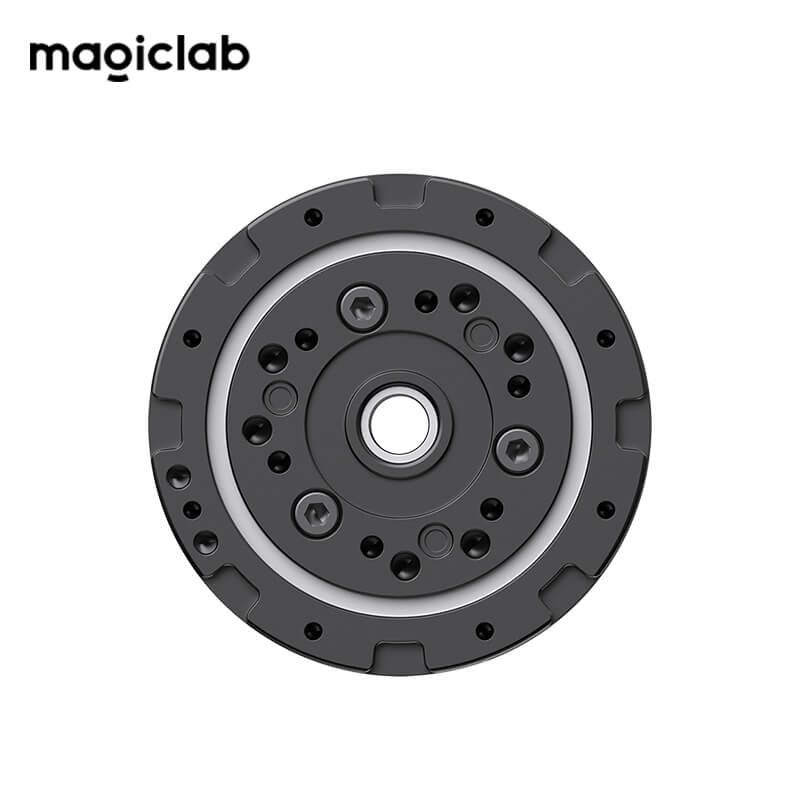

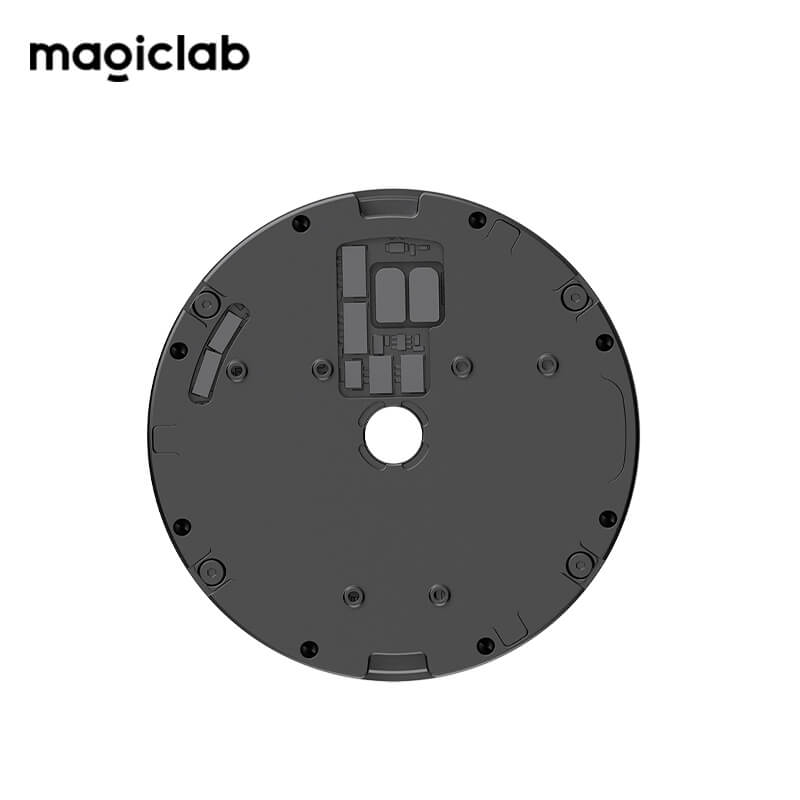

MagicLab P90N20 Motor

$2,260.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Maximum Speed 300 rpm (24V power supply)
Module Weight 1100g
Rated Torque 35 N·m
Dimensions φ92*63.4
Peak Torque 130 N·m
Communication Interface CAN / EtherCAT
Peak Current 67.2 A
Recommended Operating Environment -5°C ~ 40°C
Encoder Configuration Dual Encoder
Operating Voltage 48V - 54V
Motor Encoder Resolution 18 Bit
Control Frequency 25,000 Hz
