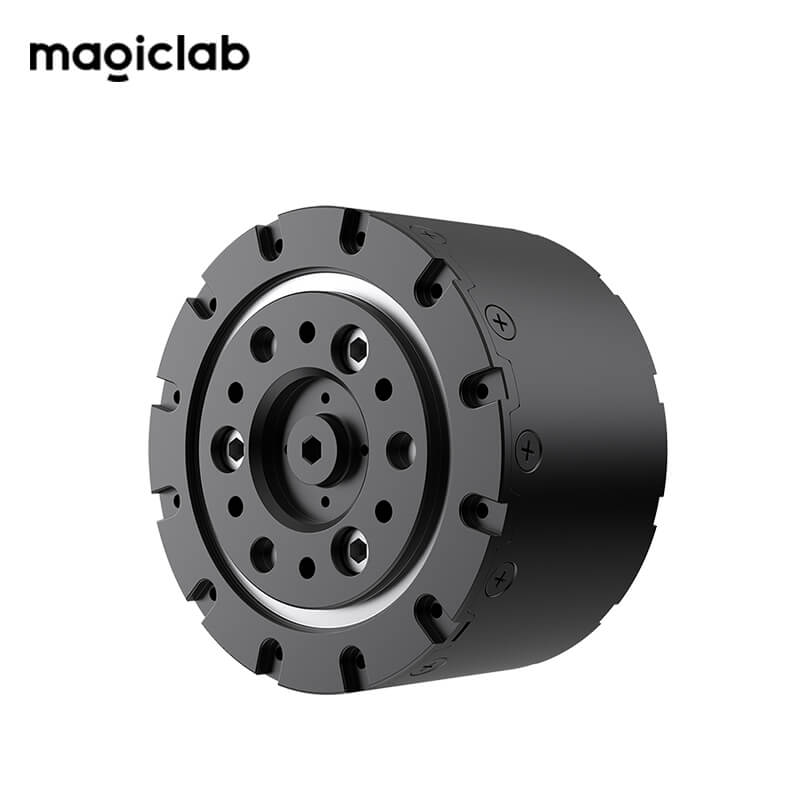

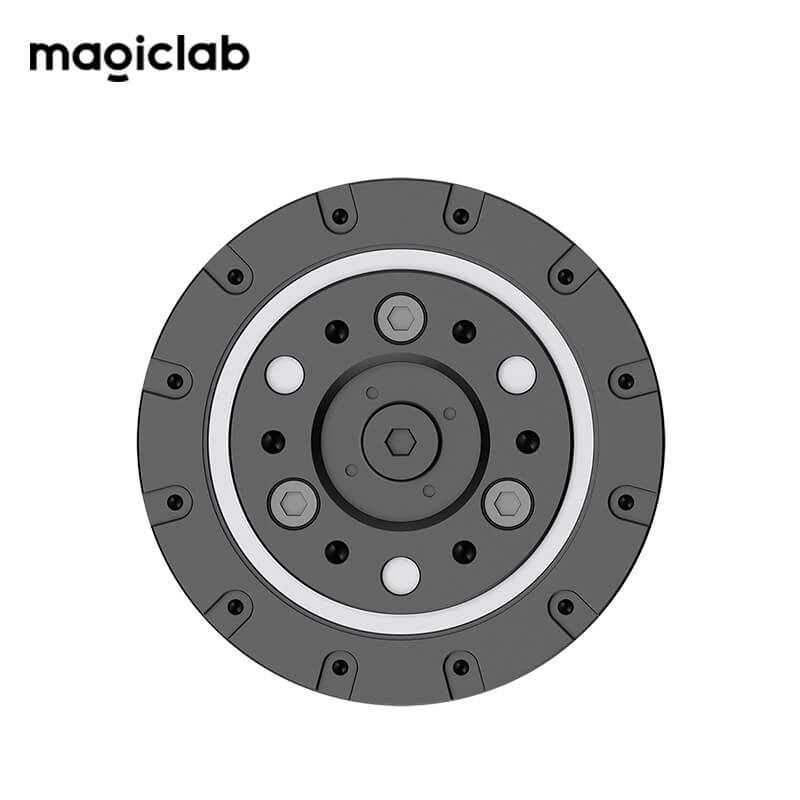

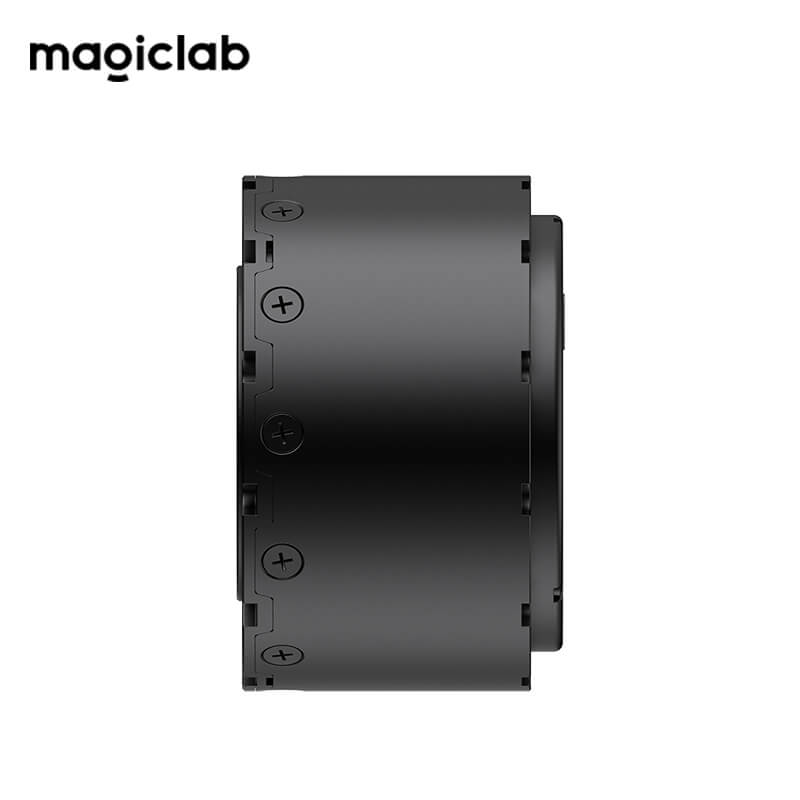

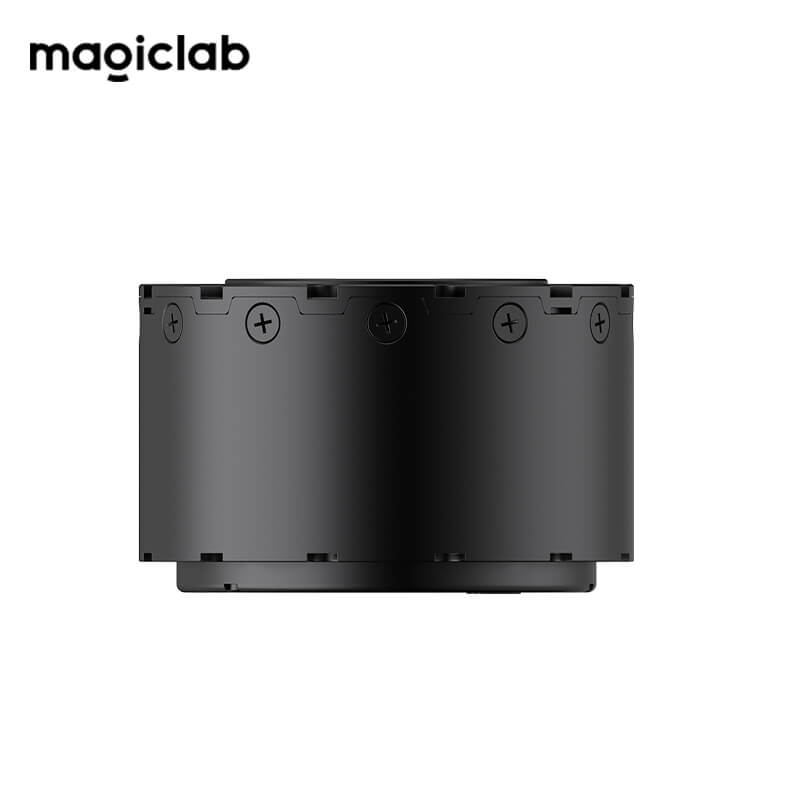

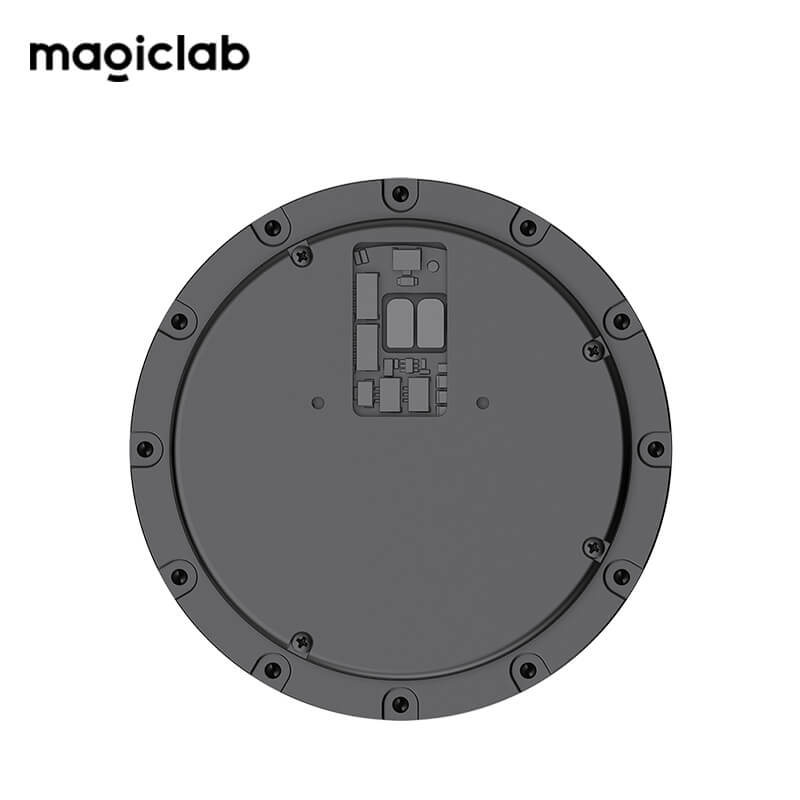

MagicLab P110 Motor
Regular price
$3,770.00
Unit price
MagicLab P110 Motor - P110 Motor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MagicLab P110 Motor
Regular price
$3,770.00
Unit price
MagicLab P110 Motor - P110 Motor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Maximum Speed | 20 rpm (24V power supply) |
| Module Weight | 1900g |
| Rated Torque | 90 N·m |
| Dimensions | Φ112*71.5 |
| Peak Torque | 360 N·m |
| Communication Interface | CAN / EtherCAT |
| Peak Current | 137 A |
| Recommended Operating Environment | -5°C ~ 40°C |
| Encoder Configuration | Dual Encoder |
| Operating Voltage | 48V - 54V |
| Motor Encoder Resolution | 15 Bit |
| Control Frequency | 25,000 Hz |
