LSLIDAR | SKU:

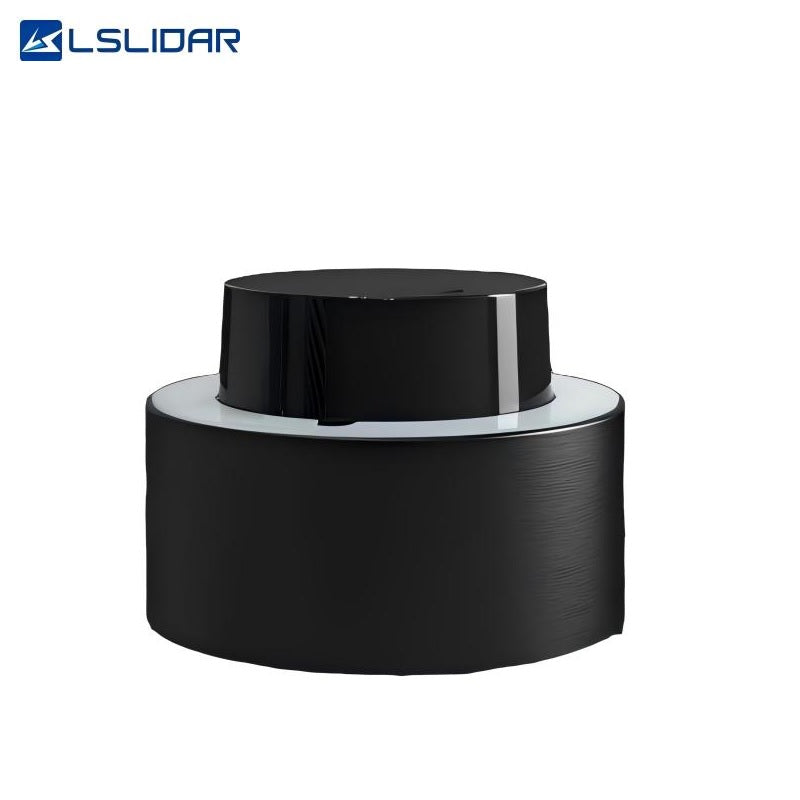

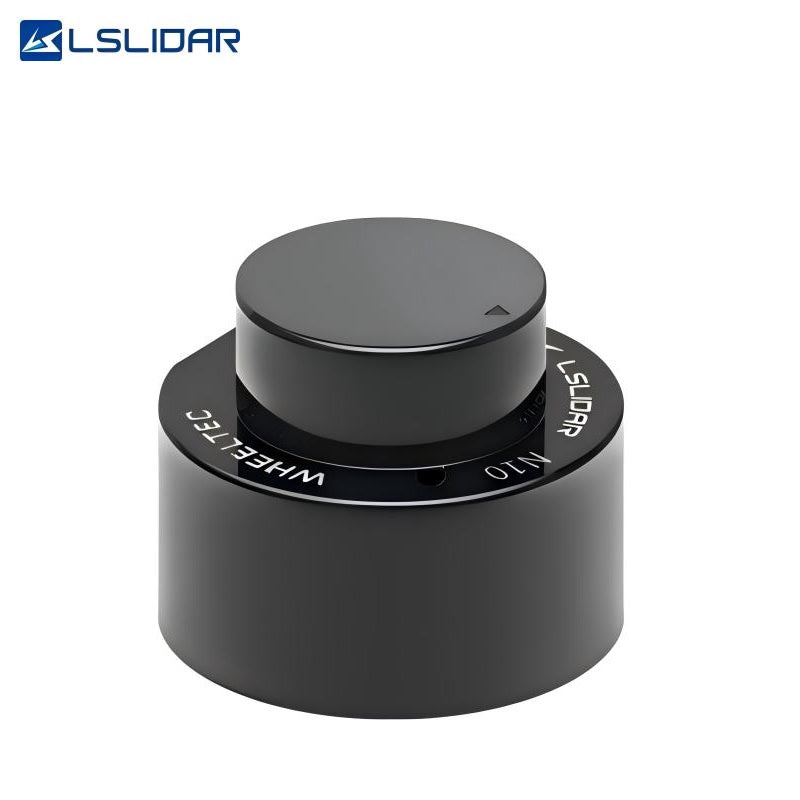

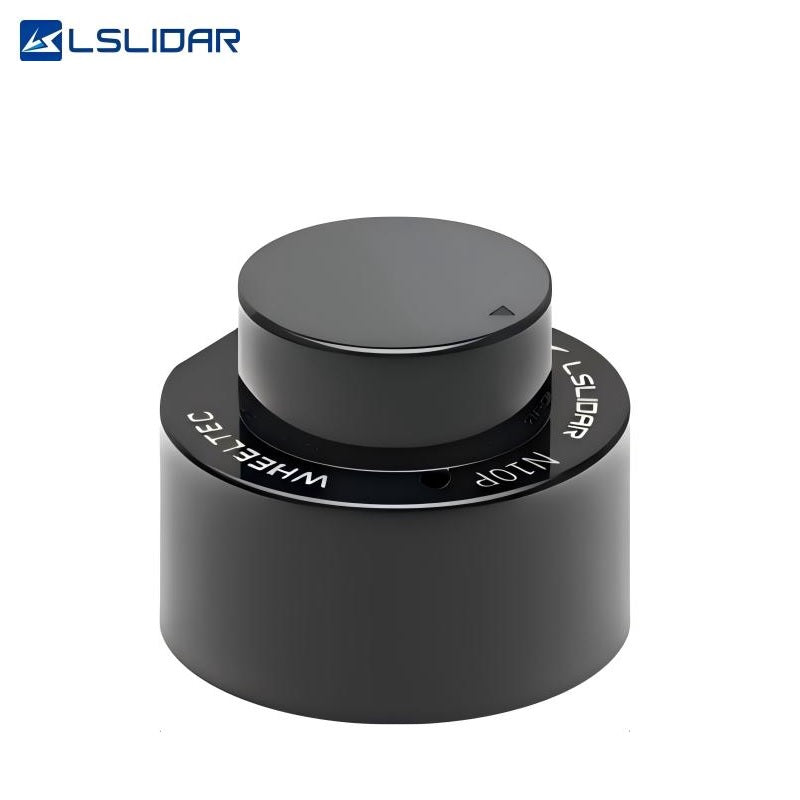

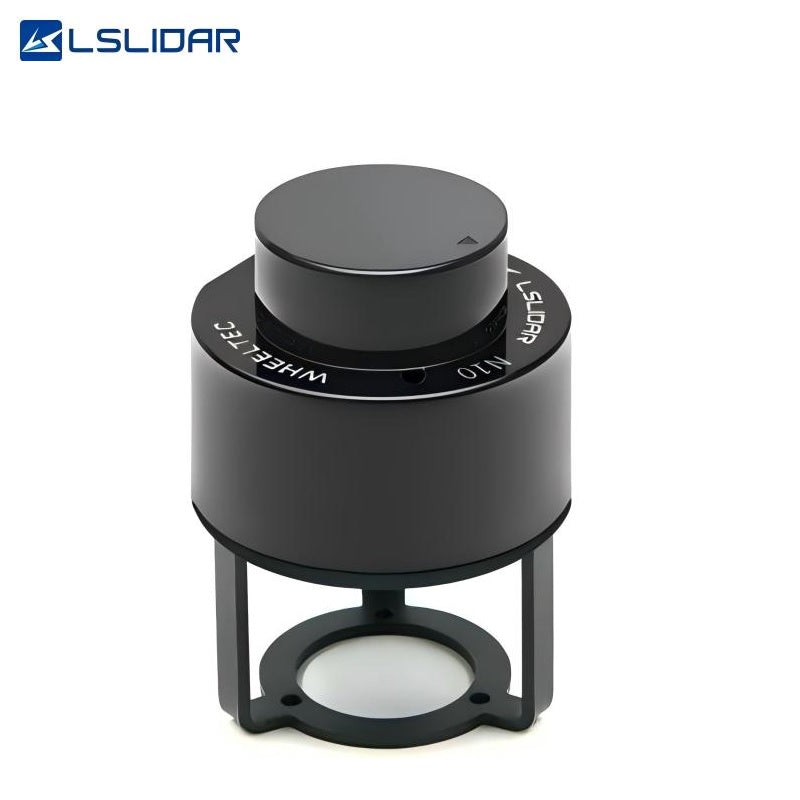

LSLIDAR N10 LiDAR
Regular price
$100.00
Unit price
LSLIDAR N10 LiDAR - N10 / Serial Adapter Module / NOT Include is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LSLIDAR N10 LiDAR
Regular priceFrom
$100.00
Unit price
LSLIDAR N10 LiDAR - N10 / Serial Adapter Module / NOT Include is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | N10 |
|---|---|
| Laser Wavelength | 905 nm |
| Laser Class | Class I |
| Data Content | Distance、Angle、Intensity |
| Detection Range | 0.02~12m@70% |
| Range Precision | ±3cm(0~6m); ±4.5cm(≥6m)@70% |
| PRF | 4.5KHz |
| Scanning Angle | 360° |
| FPS | 6~12Hz |
| Angular Resolution (H) | 0.48°~0.96° |
| Data Point Generating Rate | 4,500 pts/sec |
| Communication Interface | Standard asynchronous serial port(Baud rate 230,400 bps） |
| Input Voltage | 5V DC (4.75V~5.25V DC) |
| Power Consumption |
1W
|
| Operating Temperature | -10℃~40℃ |
| IP Grade | IPX-4 |
| Anti-light | 4K lux |
| Weight | ≈60 g |
| Dimensions (D × H) | Ф52x36.1 mm |
