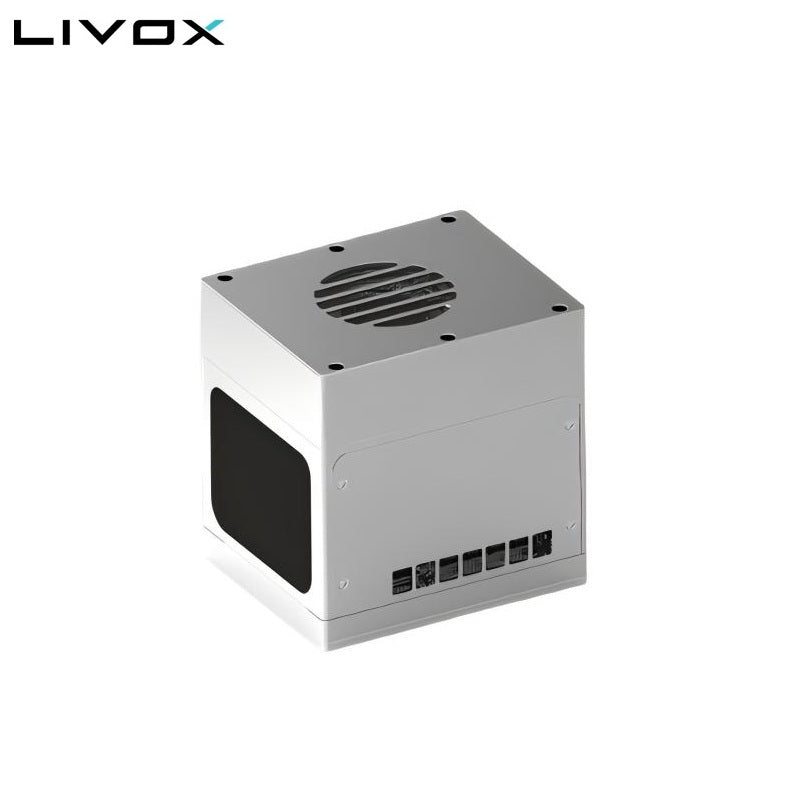

Livox Avia2 LiDAR

$4,600.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Technical Specifications

Parameter Value
Product Name Livox Avia 2
Laser Wavelength 1535 nm
Eye Safety Level Class 1 (IEC 60825-1:2014) eye-safe
Range (@100 klx) Normal: ≥500m@10% reflect
Focus: ≥650m@10% reflect
Blind Zone 5m@80% reflect
Distance Accuracy System error ≤5cm
Point Cloud Data x/y/z/intensity
FOV Normal 80° * 80°
Focus 15° * 15°
Point Rate Normal 350k pts/s
Focus 100k pts/s
Weight With fan ≤1.8kg
Without fan ≤1.5kg
Dimensions With fan 146(L)*113(W)*139(H) mm
Without fan 146(L)*113(W)*103(H) mm
Power Consumption Startup 55W, steady 50W
Supply Voltage 9~27V
Echo Mode Strongest echo, First echo, Dual echo
Operating Temperature -20~65°C (with fan)
Ingress Protection With fan IP55
Without fan IP66
