HiPNUC | SKU:

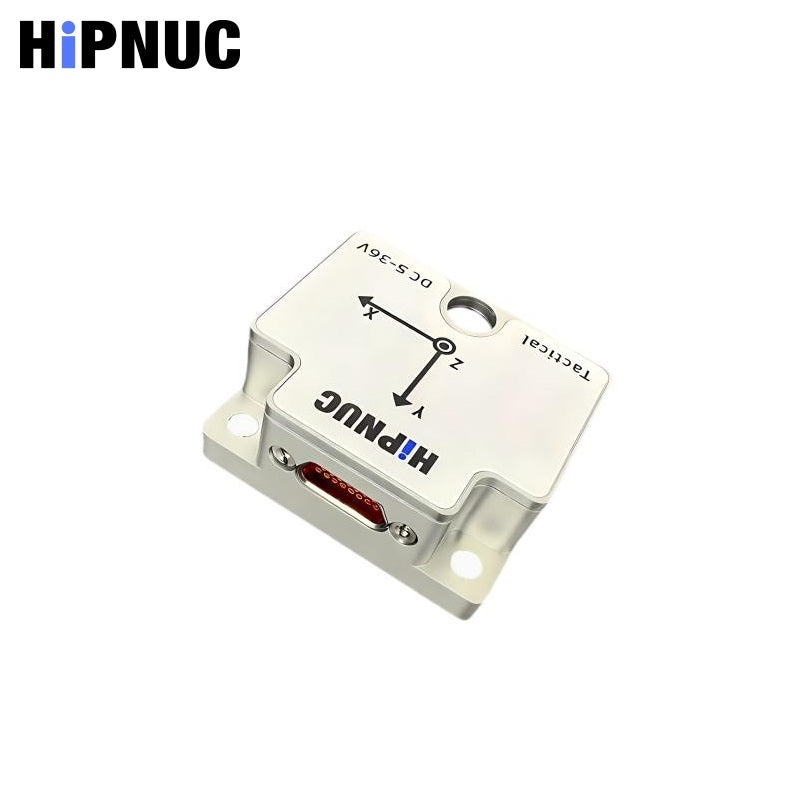

HiPNUC HI70 Sensor
Regular price
$2,180.00
Unit price
HiPNUC HI70 Sensor - HI70T2 / MI0-000 IMU/VRU is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HiPNUC HI70 Sensor
Regular priceFrom
$2,180.00
Unit price
HiPNUC HI70 Sensor - HI70T2 / MI0-000 IMU/VRU is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Magnetometer Specifications: | |
| Magnetometer Range | -20 ~ 20 Gauss |
| Magnetometer Sampling Rate | 200 Hz |
| Magnetometer Linearity | 0.1% Fs |
| Attitude Performance: | |
| Pitch Angle Range | ±90° |
| Roll Angle Range | ±180° |
| Yaw Angle Range | ±180° |
| Angle Resolution | 0.01° |
| Quaternion Output | Supported |
| Pitch/Roll Static Accuracy | 0.05° ~ 0.07° |
| Pitch/Roll Dynamic Accuracy | 0.05° ~ 0.07° |
| Yaw Static Drift (6DOF, Static 2h) | 0.1° |
| Yaw Accuracy (AHRS Magnetometer-Aided) | 2° ~ 3° |
| Yaw Rotation Error (6DOF, 100°/s Rotation) | <0.5° ~ 1° |
