HiPNUC | SKU:
HiPNUC HI32 Sensor
Regular price
$1,630.00
Unit price
HiPNUC HI32 Sensor - HI32R6-MI0-000 Single RTK-GNSS/INS is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

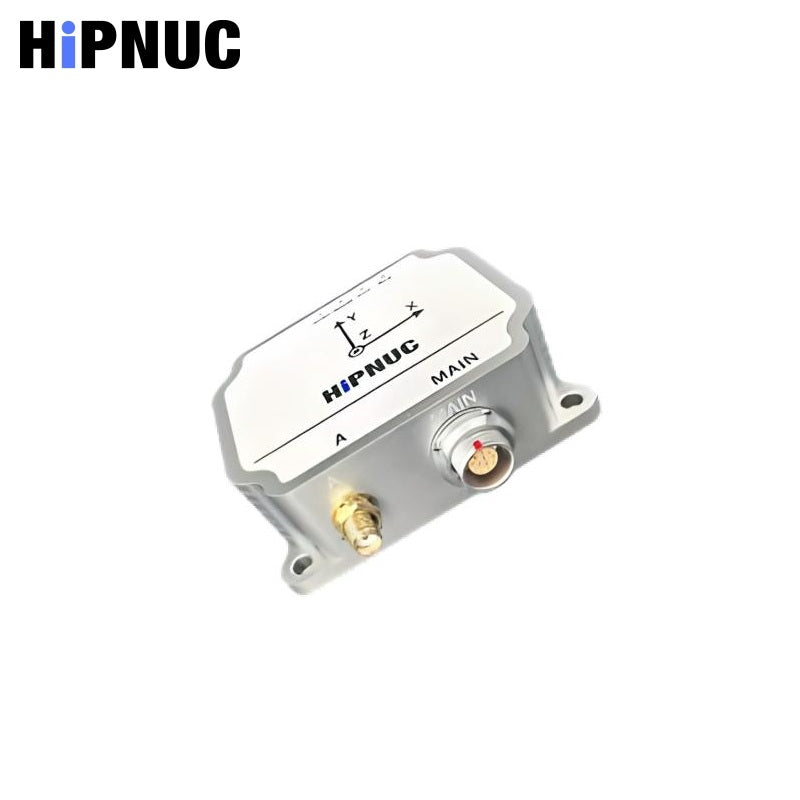

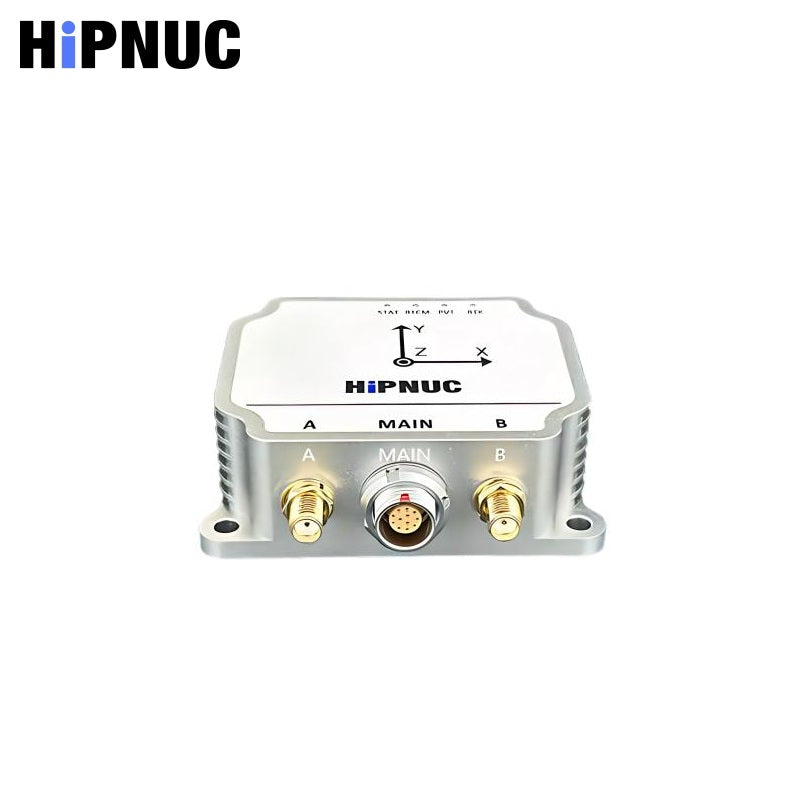

HiPNUC HI32 Sensor
Regular priceFrom
$1,630.00
Unit price
HiPNUC HI32 Sensor - HI32R6-MI0-000 Single RTK-GNSS/INS is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| General Specifications: | |
| Input Voltage | 9 – 36 V |
| Power Consumption | 1.6 W (Nominal), 2 W (Max) |
| Operating Temperature Range | -40 ℃ to 85 ℃ |
| Dimensions | 75 × 60 × 25.2 mm |
| Weight | 180 g |
| Housing Material | Aluminum Alloy CNC |
| Sensor Measurement Range: | |
| Gyroscope Measurement Range | 125 °/s (Min), 2000 °/s (Nom/Max); Configurable via commands (Note 1) |
| Accelerometer Measurement Range | 3 g (Min), 6 g (Nom), 24 g (Max); Configurable via commands (Note 1) |
| Environmental & Reliability: | |
| Vibration Resistance | 1.0 mm (10Hz–58Hz) & ≤20g (58Hz–600Hz) |
| Drop Test Specification | 3 free falls from 75 cm height on test bench |
| Temperature Shock Test | 5 cycles: -40℃ to 85℃ within 1 hour |
| Compliance： | |
| Environmental Compliance | RoHS Directive 2011/65/EU |
| EMC Compliance | LVD Directive 2014/35/EU |
