HiPNUC

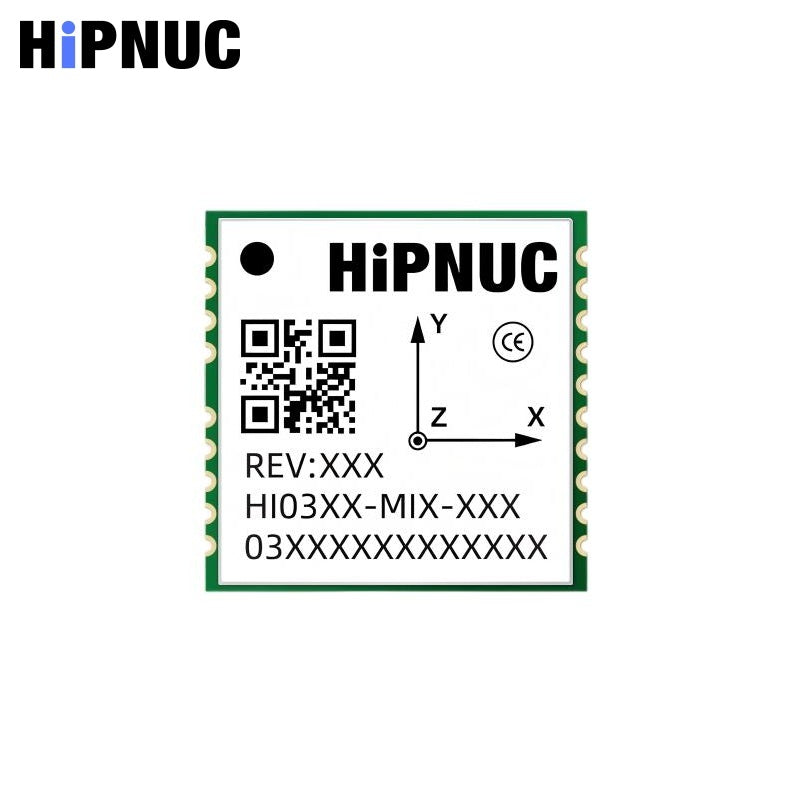

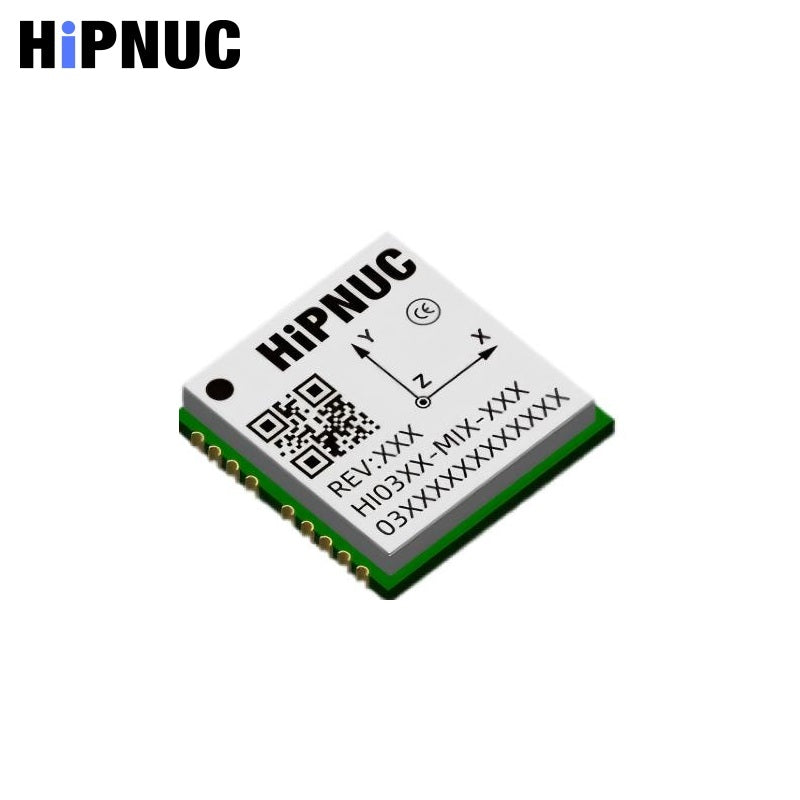

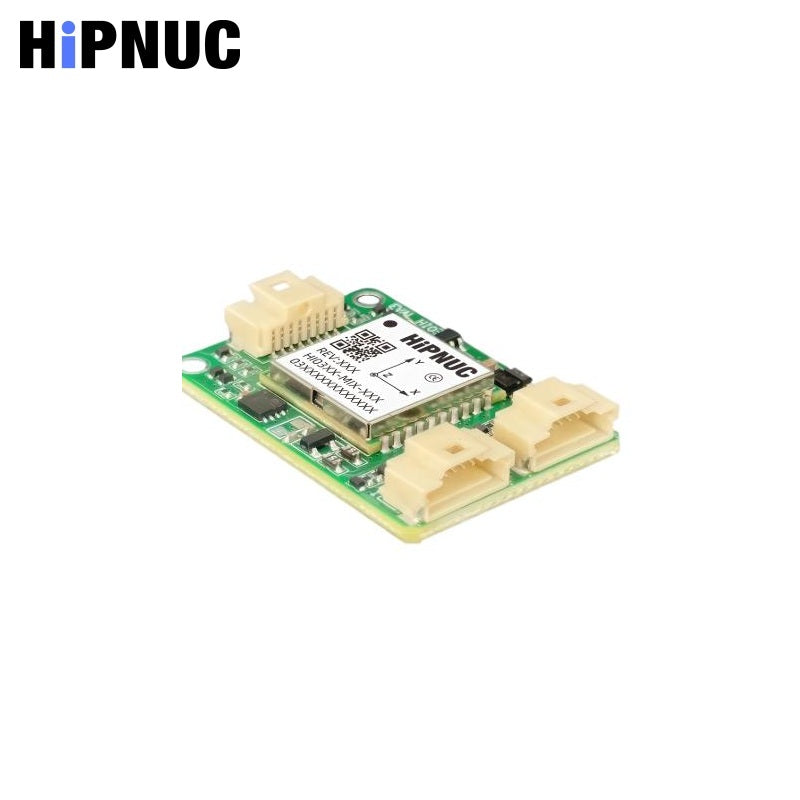

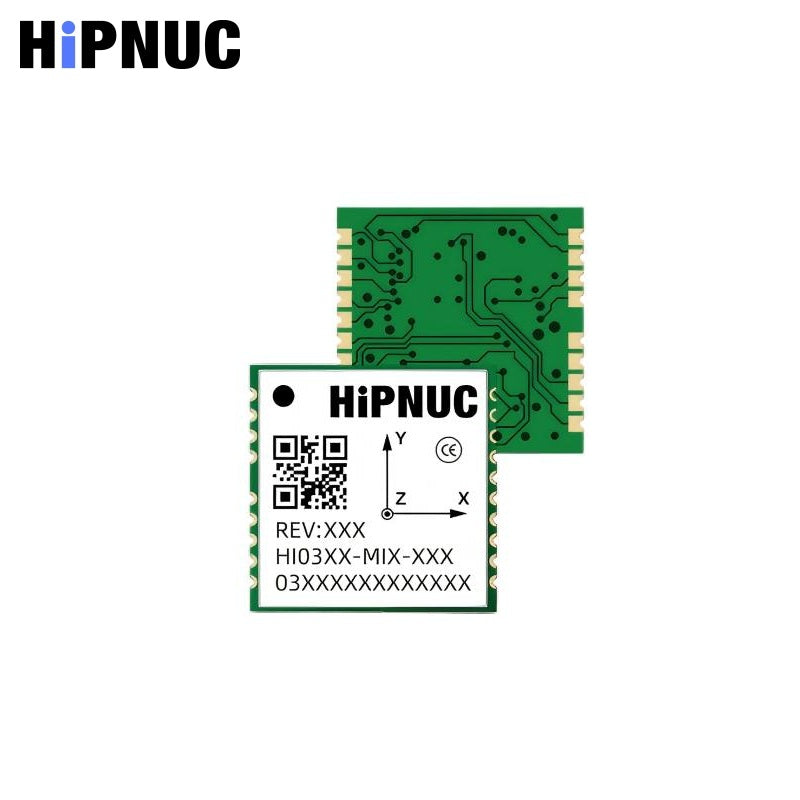

HiPNUC HI03 Sensor

$75.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope:
Measurement Range ±2000 °/s
Resolution 16 bit
Nonlinearity ±0.05 %FS
Noise Density (47 Hz Bandwidth) 0.008 °/s/√Hz
3dB Bandwidth 80 Hz
   Sampling Rate 1000 Hz
   Bias Instability (Allan Variance, X/Y/Z) 1.5 / 1.9 / 1.7 °/h
Angle Random Walk (Allan Variance, X/Y/Z) 0.3 / 0.4 / 0.2 °/√h
Accelerometer:
Measurement Range ±12 g
Resolution 16 bit
   Nonlinearity 0.01 %FS
Noise Density (47 Hz Bandwidth) 0.1 mg/√Hz
3dB Bandwidth 90 Hz
Sampling Rate 1000 Hz
Bias Instability (Allan Variance, X/Y/Z) 0.015 / 0.02 / 0.015 mg
Random Walk (Allan Variance) 0.055 m/s/√h
Magnetometer:
Measurement Range ±2000 µT
Noise Floor 0.19 µT
Nonlinearity ±10 µT
Temperature Sensor:
Measurement Range -40 ~ 85 °C
Offset Error ±5 °C
Attitude Fusion Accuracy:
Static Pitch/Roll (Before SMT) 0.1 °
Static Pitch/Roll (After SMT) 0.3 °
Dynamic Pitch/Roll (Before SMT) 0.2 °
Dynamic Pitch/Roll (After SMT) 0.4 °
Heading (AHRS Mode) 2 °
Heading Static Drift (6DOF, 2h) 0.15 °
