HiPNUC

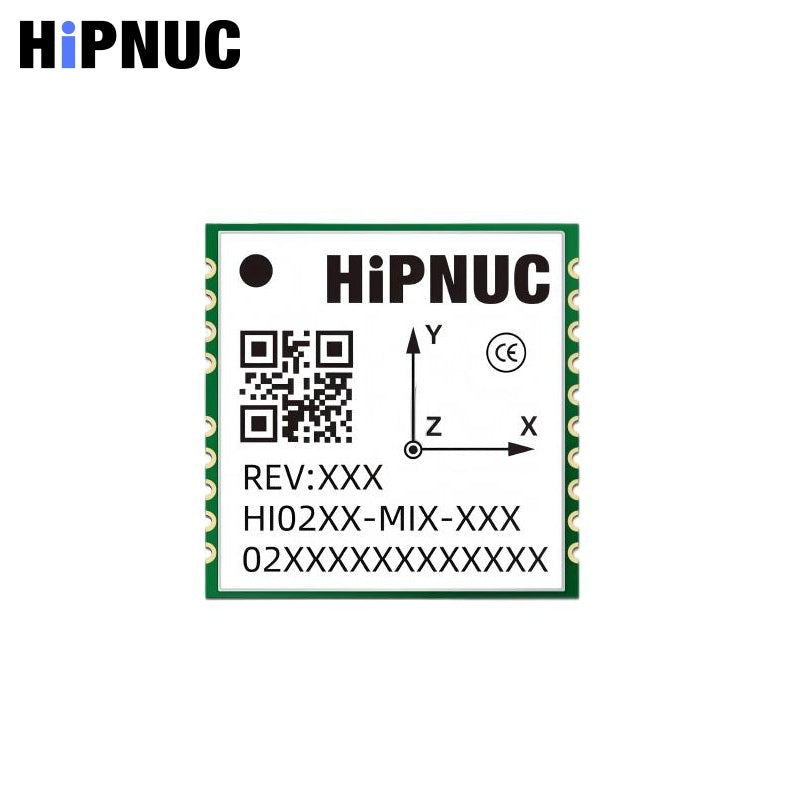

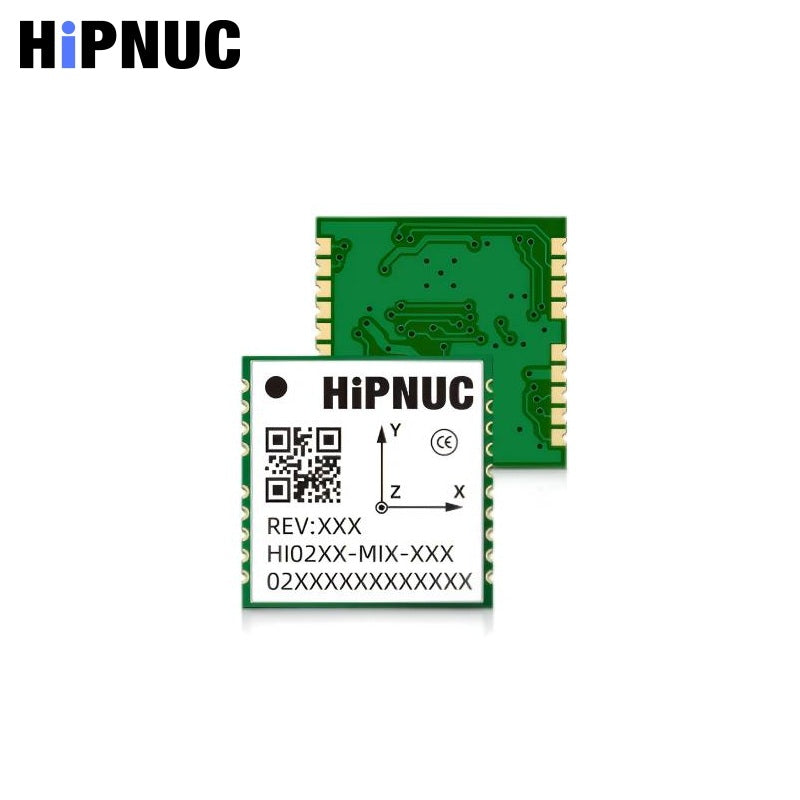

HiPNUC HI02 Sensor

$90.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope:
Measurement Range ±125 ~ ±2000 °/s
Resolution 16 bit
Sampling Rate 1000 Hz
Bias Instability (Typ, Allan Variance) X: 2.5 °/h; Y: 3.2 °/h; Z: 3 °/h
Noise Density (47Hz Bandwidth) 0.014 °/s/√Hz
   Bias Variation Over Temperature (Compensated,           -40~85℃) 0.07 ~ 0.15 °/s
   G-sensitivity 0.05 °/s/g
Accelerometer:
Measurement Range ±2 ~ ±24 g
Resolution 16 bit
Sampling Rate 1000 Hz
   Noise Density 0.16 ~ 0.2 mg/√Hz
Bias Instability (Typ, Allan Variance) X: 0.021 mg; Y: 0.032 mg; Z: 0.023 mg
Bias Variation Over Temperature (Compensated, -40~85℃) 3 ~ 8 mg
Velocity Random Walk 0.11 m/s/√h
Temperature Sensor:
Range -40 ~ 85 ℃
Offset Error ±5 ℃
Attitude Accuracy:
Static Pitch/Roll Accuracy (Typ, Pre-SMT) 0.1 °
Static Pitch/Roll Accuracy (Typ, Post-SMT) 0.4 ~ 1 °
Dynamic Pitch/Roll Accuracy (Typ, Pre-SMT) 0.2 ~ 0.3 °
Dynamic Pitch/Roll Accuracy (Typ, Post-SMT) 0.5 ~ 1 °
Static Heading Drift (6DOF, 2h Static, Typ) 0.15 ~ 0.2 °
Dynamic Heading Drift (6DOF) <±10 ~ ±18 °
