Hinson | SKU:

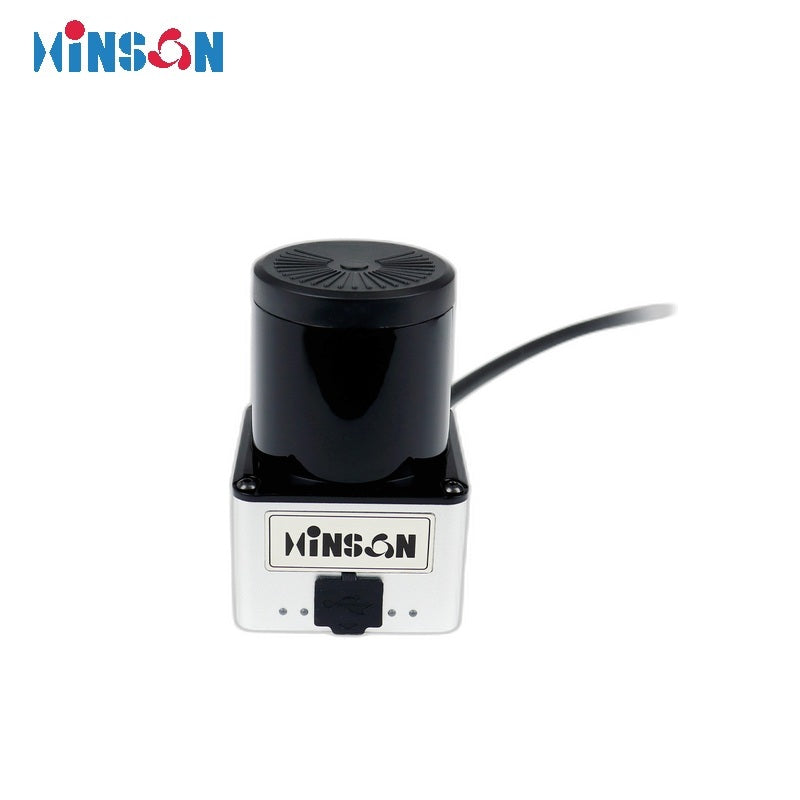

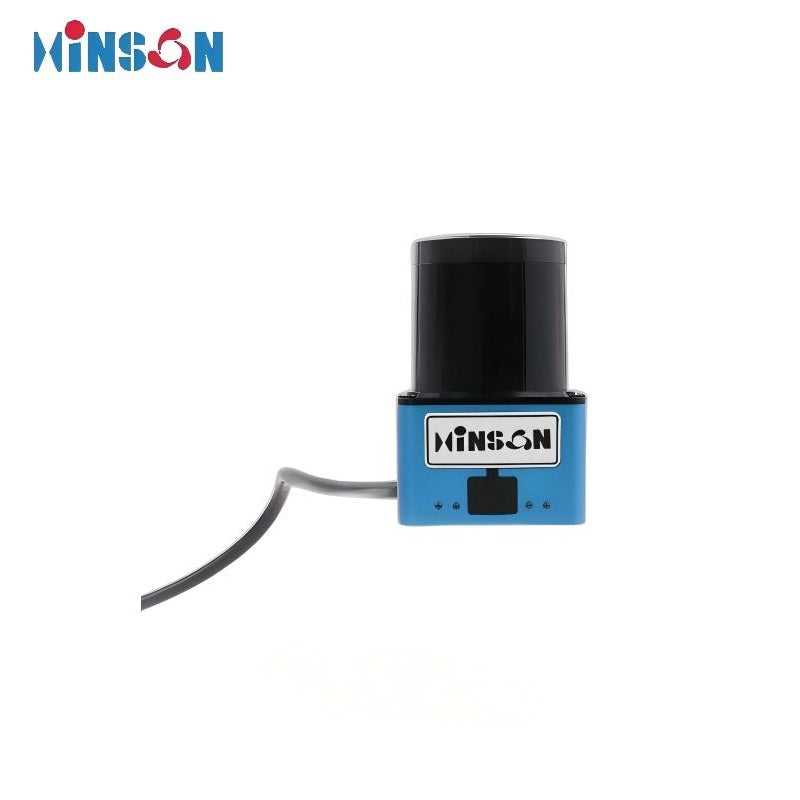

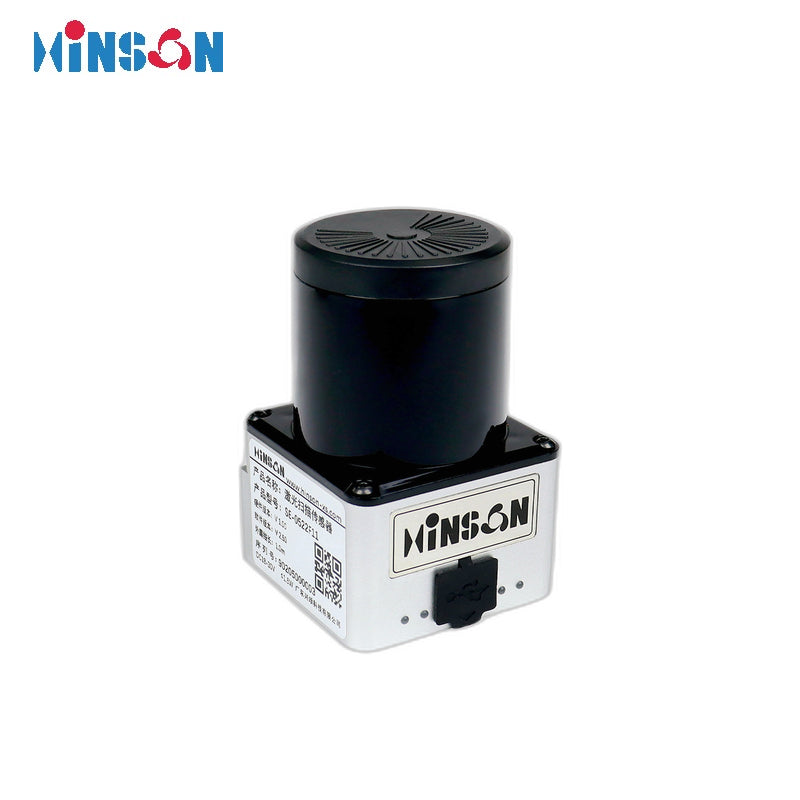

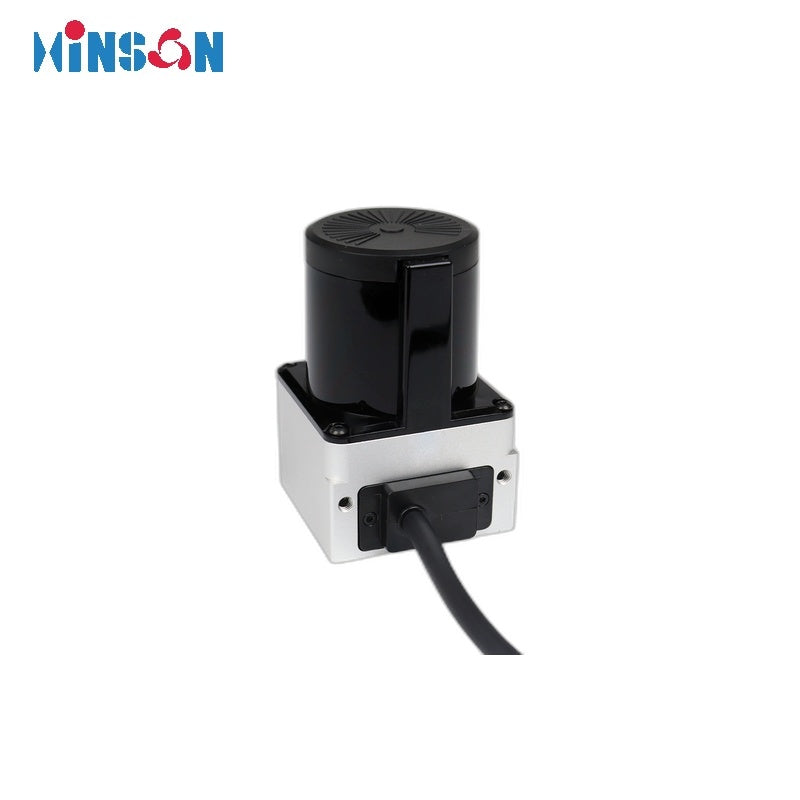

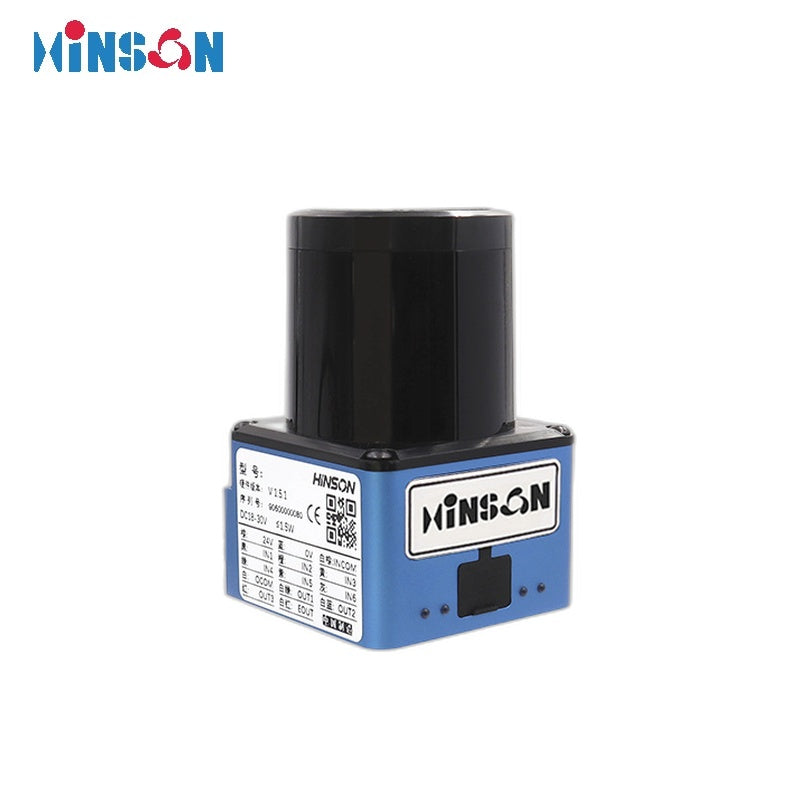

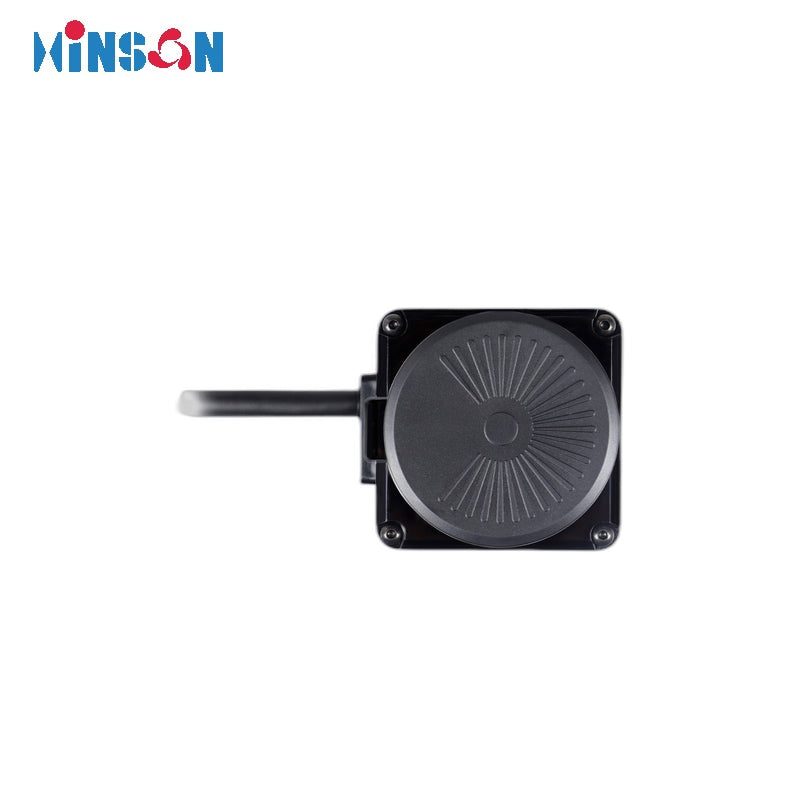

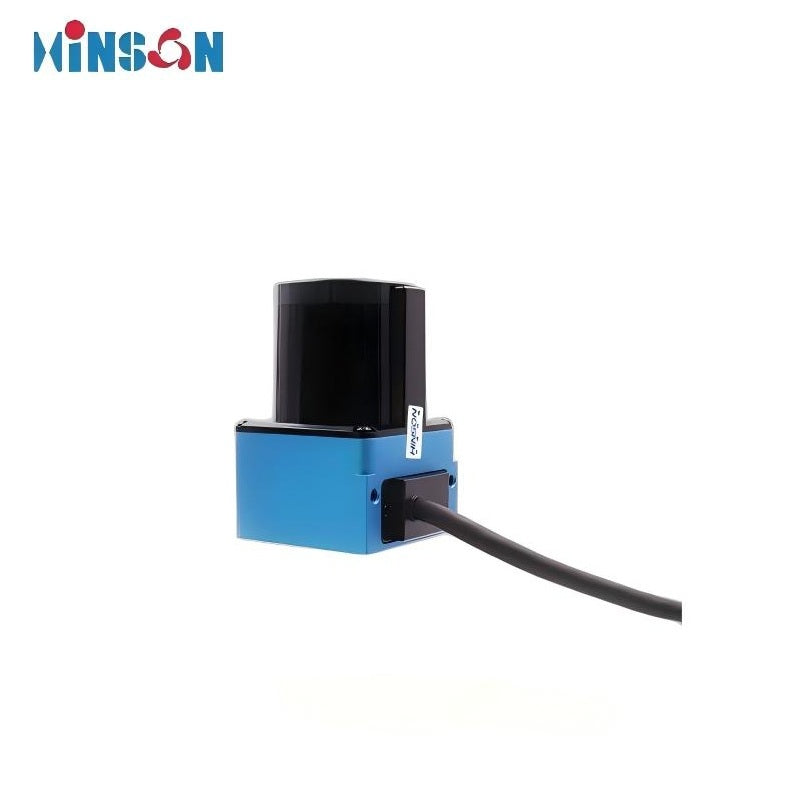

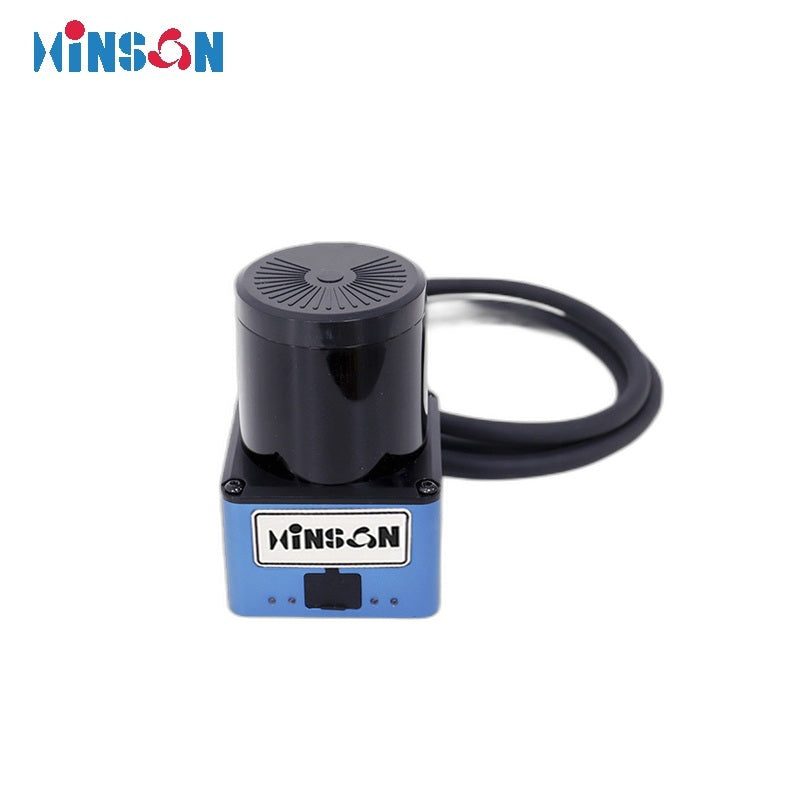

Hinson SE-0526 LiDAR
Regular price
$255.00
Unit price
Hinson SE-0526 LiDAR - SE-0526 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Hinson SE-0526 LiDAR
Regular priceFrom
$255.00
Unit price
Hinson SE-0526 LiDAR - SE-0526 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | SE-0526 | SE-0526F11 |
|---|---|---|
| Detection Distance | 0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity) |
0.05‑5 m (90% reflectivity) 0.05‑2 m (10% reflectivity) |
| Detection Angle | 270° (2D) | 270° (2D) |
| Angular Resolution | 0.1° / 0.2° (software configurable) | 0.1° / 0.2° (software configurable) |
| Scan Frequency | 20 Hz | 20 Hz |
| Recognizable Object Shape | Any shape, resolution depends on detection distance | Any shape, resolution depends on detection distance |
| Absolute Accuracy | ±30 mm | ±30 mm |
| Repeat Accuracy | ±30 mm | ±30 mm |
| Measurement Noise | ±10 mm | ±10 mm |
| Detection Output Delay | 0‑500 ms configurable | 0‑500 ms configurable |
| Detection Hold Delay | 0‑500 ms configurable | 0‑500 ms configurable |
| Digital Input | 6 × PNP | 6 × PNP |
| Digital Output | 4 × PNP | 4 × PNP |
| Micro‑USB | Supported | Supported |
| Number of Echoes | 3 (1st, 2nd, last, max. energy) | |
| Obstacle Avoidance Channels | 64 (each channel provides 3 independent detection zones) | 64 (each channel provides 3 independent detection zones) |
| Operating Voltage | DC 18 ~ 32 V | DC 18 ~ 32 V |
| Rated Power | < 2 W | < 2 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator LEDs | 4 × LED (Green, Yellow, Orange, Red) | 4 × LED (Green, Yellow, Orange, Red) |
| Material | Aluminum alloy, scanning window / PMMA | Aluminum alloy, scanning window / PMMA |
| Cable | 1 m (custom length available) | 1 m (custom length available) |
| Scanning Window Process | Nano electroplating | Nano electroplating |
| Object Reflectivity | 2 ~ 1000% | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) | < 80000 Lux (sunlight resistant) |
| Operating Environment | -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing) | -10°C ~ 50°C (indoor use), < 80% RH (non‑condensing) |
| Durability Test | 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019) | 10 Hz – 1000 Hz; 5g; 10 cycles per axis (GB/T 2423.10-2019) |
| Vibration Resistance | 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018) | 55‑250 Hz, RMS = 42.4 m/s², 5 h per axis (GB/T 2423.56-2018) |
| Shock Resistance | 50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019) |
50g, 6ms, 3 shocks per axis; 25g, 6ms, 1000 shocks per axis; 50g, 3ms, 5000 shocks per axis (GB/T 2423.5-2019) |
| Temperature Cycling Test | -25°C … +55°C (GB/T 2423.22-2012) | -25°C … +55°C (GB/T 2423.22-2012) |
