Haptron Scientific | SKU:

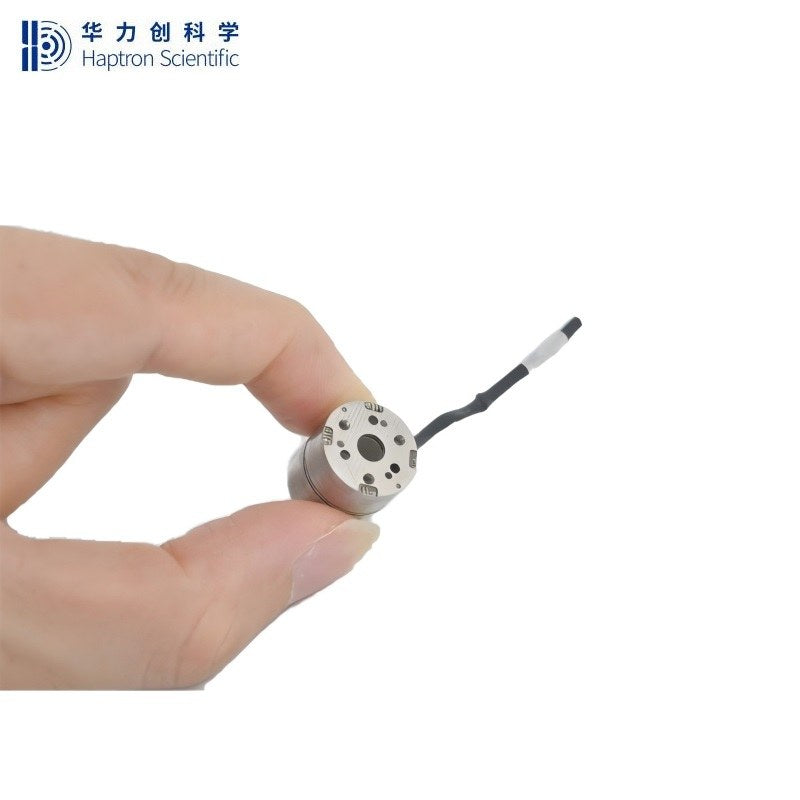

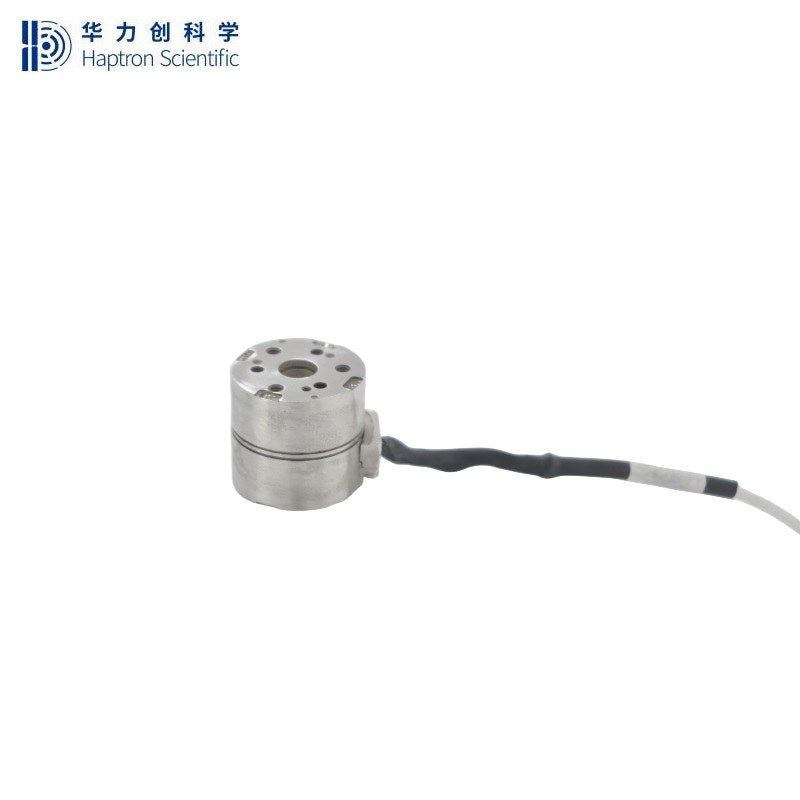

Haptron Scientific Photon R15 Sensor
Regular price
$7,500.00
Unit price
Haptron Scientific Photon R15 Sensor - Photon R15 Sensor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Haptron Scientific Photon R15 Sensor
Regular price
$7,500.00
Unit price
Haptron Scientific Photon R15 Sensor - Photon R15 Sensor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Temperature Cycle Test | Passed 14h temperature test (Low: -20℃ / High: 80℃) |
| Constant Damp Heat Test | Passed 48h constant damp heat test (Temperature: 40℃ / Relative Humidity: 93%) |
| Electromagnetic Compatibility Test | Passed comprehensive tests: Power Frequency Magnetic Field / RF Amplitude Modulated Electromagnetic Field / Electrostatic Discharge / RF Common Mode |
| Vibration Test | Passed 75min vibration test (Vibration Frequency: 10Hz~150Hz / Amplitude: 0.15mm) |
| Range | Fx=Fy=Fz: 200N; Mx=My=Mz: 2N.m |
| Overload |
200%F.S.
|
| Repeatability | 0.5%F.S. |
| Ingress Protection Rating | IP64 |
| Supply Voltage | DC 5V±5% |
| Temperature Compensation | -10℃～ 50℃ |
| Operating Temperature | -10℃～ 50℃ |
| Communication Interface | RS485 |
| Sampling Frequency | 1000Hz |
