Haptron Scientific

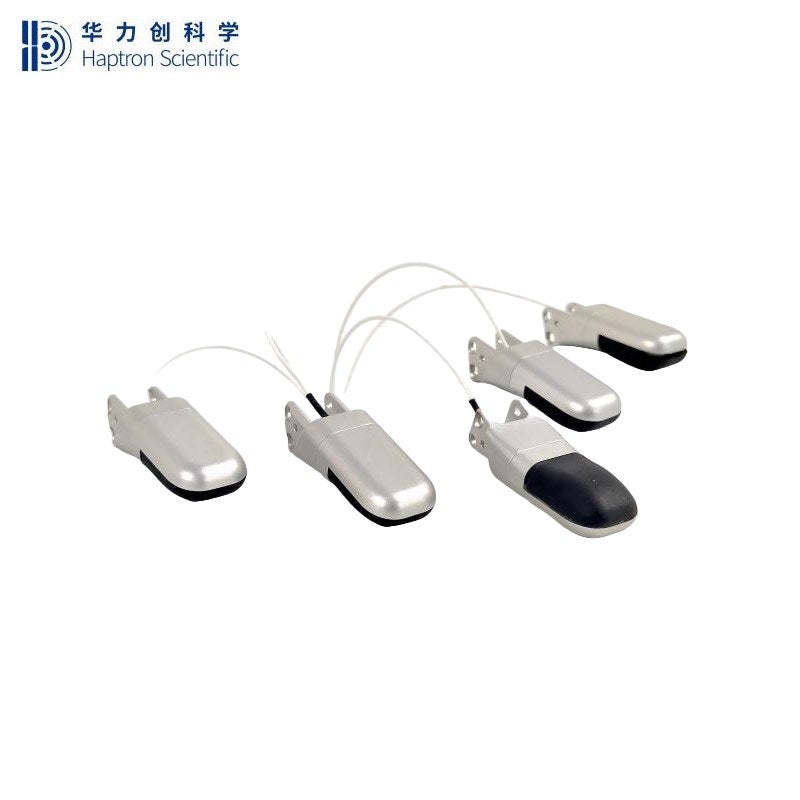

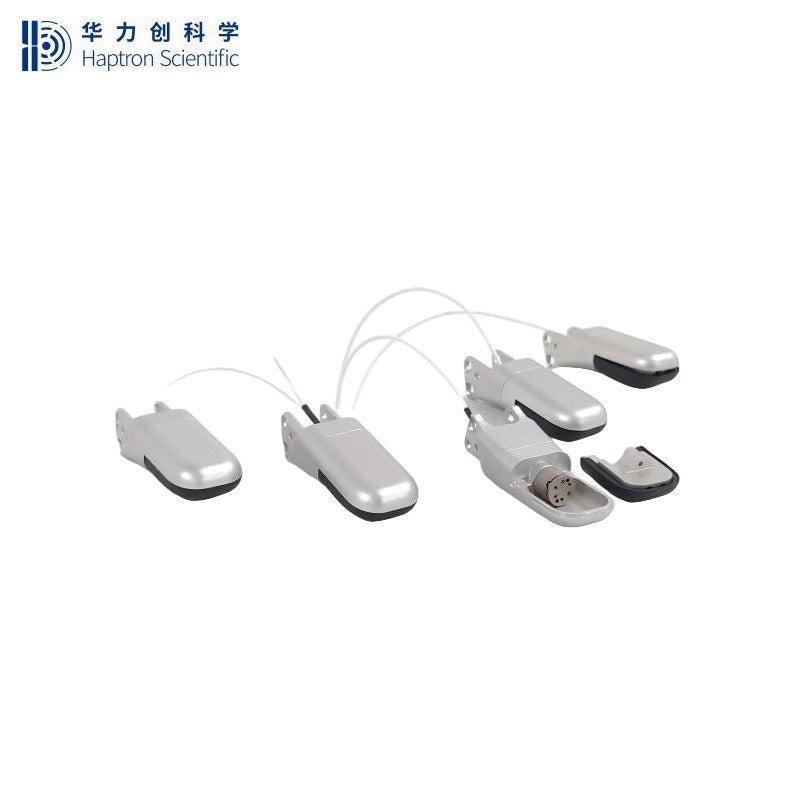

Haptron Scientific Photon Finger 5in1 Sensor

$7,800.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information







Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Repeatability test Passed the repeatability test, repeatability R ≤ 0.5% F.S.
Resolution test Passed the resolution test, ≤ 0.05N
Overload test Passed the overload test, overload ≥ 150% F.S.
Linearity test Passed the linearity test, ≤ ±0.5% F.S.
Noise test Peak-to-peak value ≤ 0.5% F.S., RMS ≤ 0.1% F.S.
Hysteresis test Passed the hysteresis test, ≤ ±1% F.S.
Life test - Durability test 300,000 force cycles, comparing initial and final performance parameters, loading error ≤ 5% F.S.
Temperature cycle test Passed the temperature cycle test, accuracy error ≤ 1% F.S.
Photon Finger-B
Dimensions D8.5*7mm
Range Fx=Fy:20N,Fz=30N; Mx=My:50N.mm
Overload 150%F.S.
Repeatability 1%F.S.
Resolution 0.05N
