HAITAI | SKU:

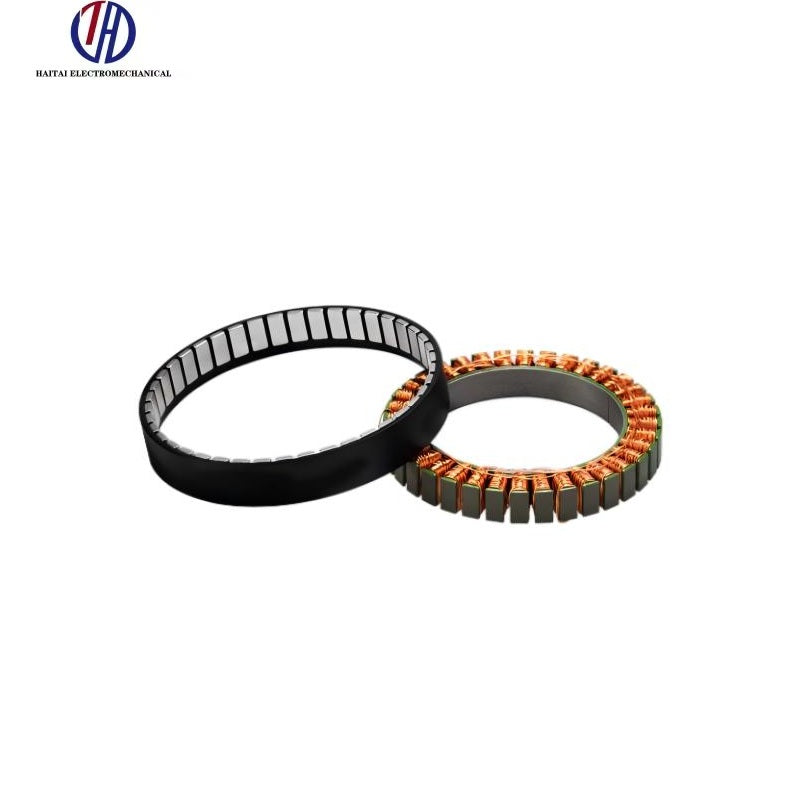

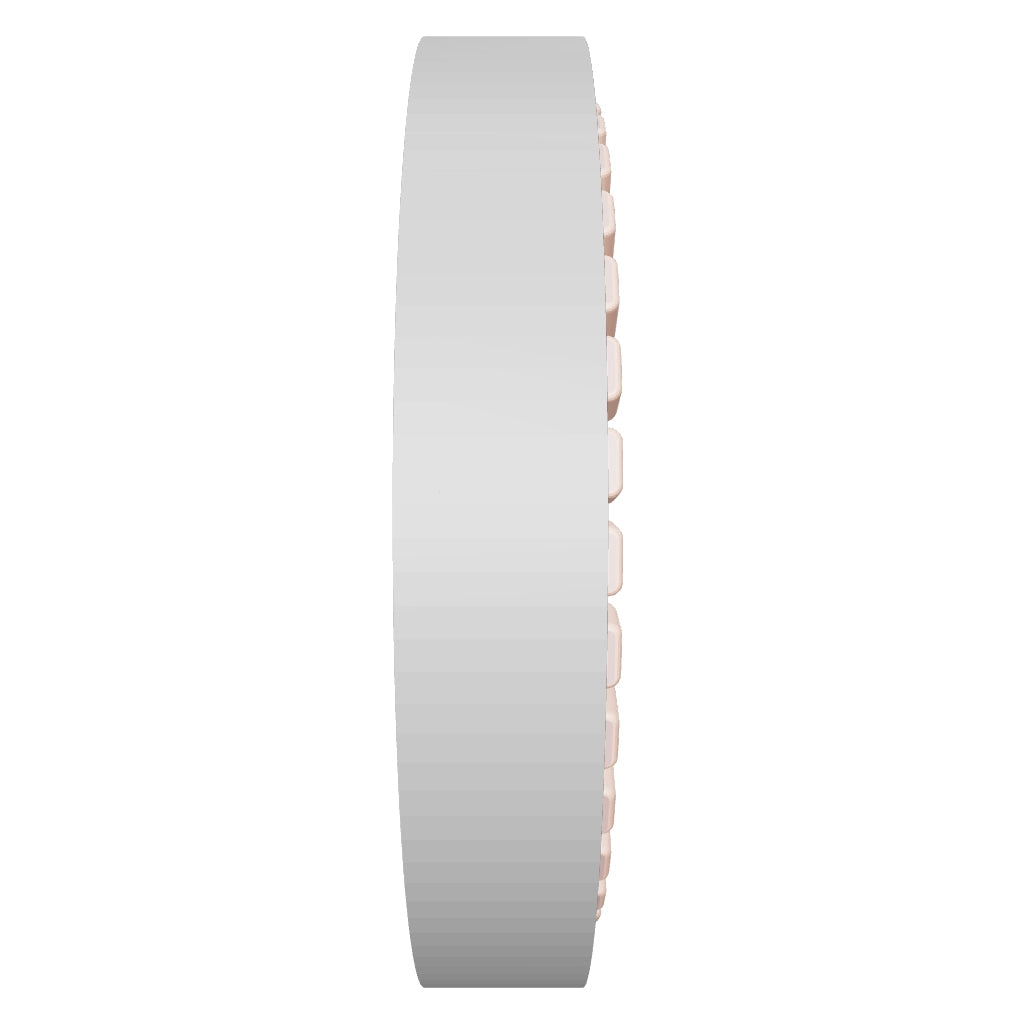

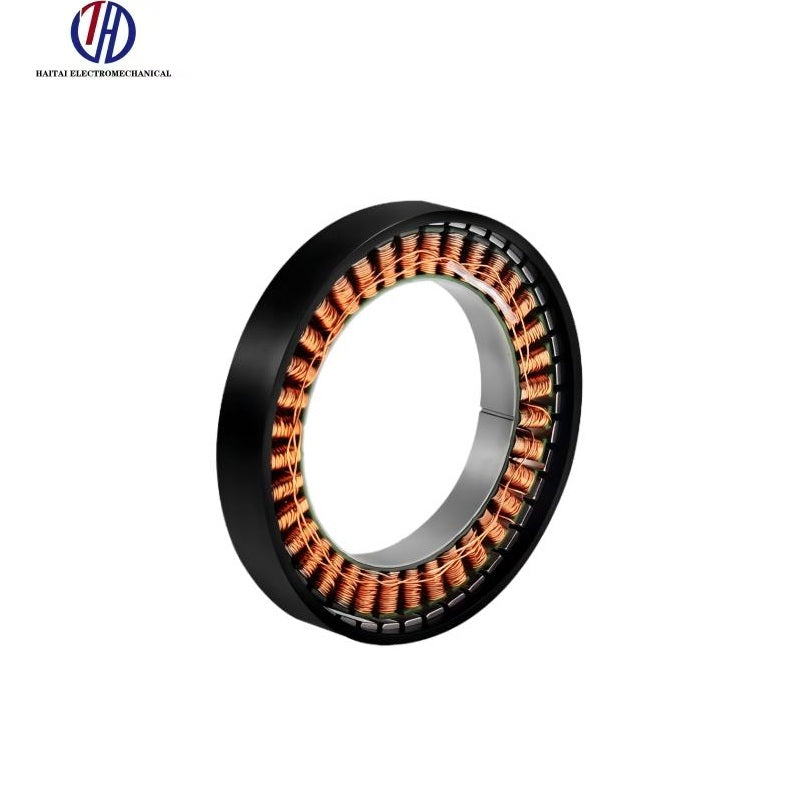

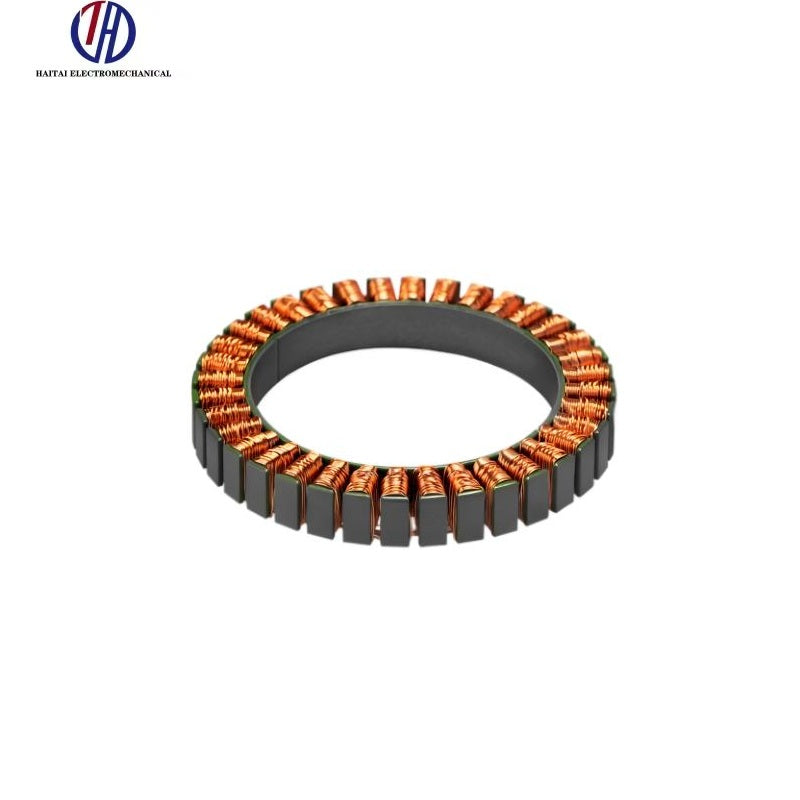

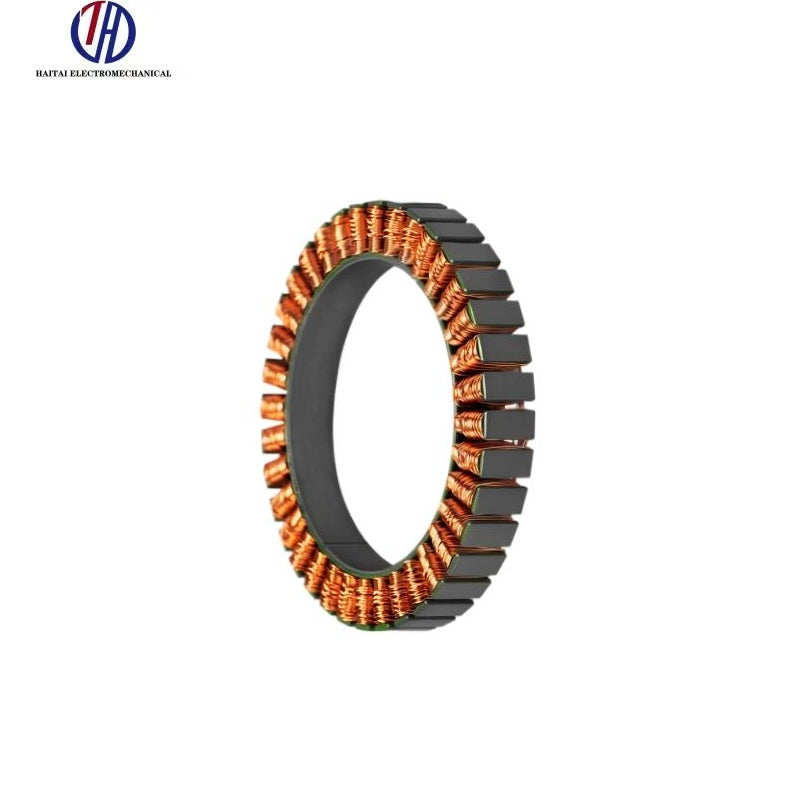

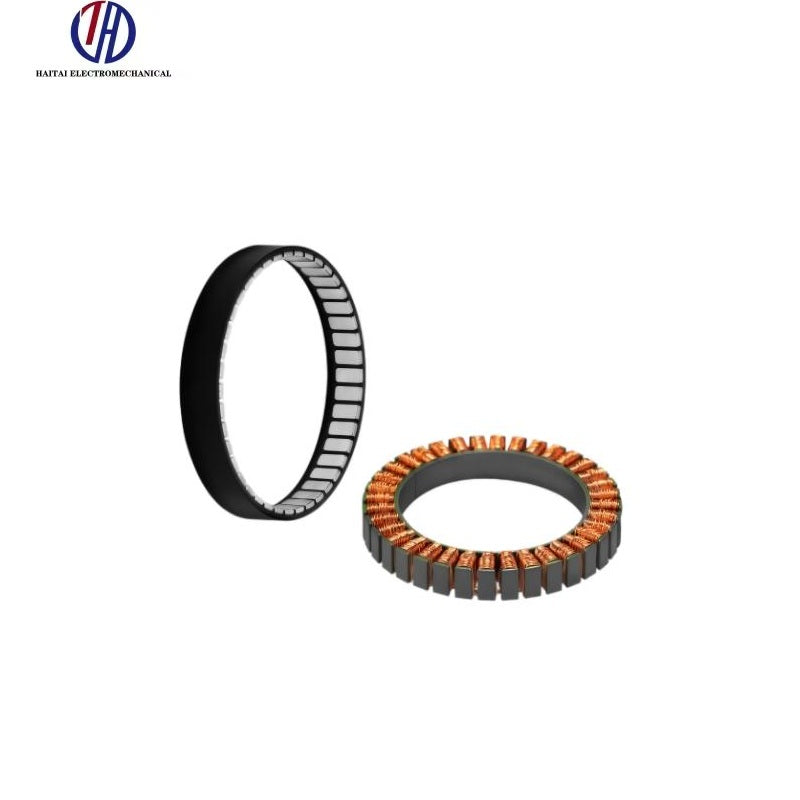

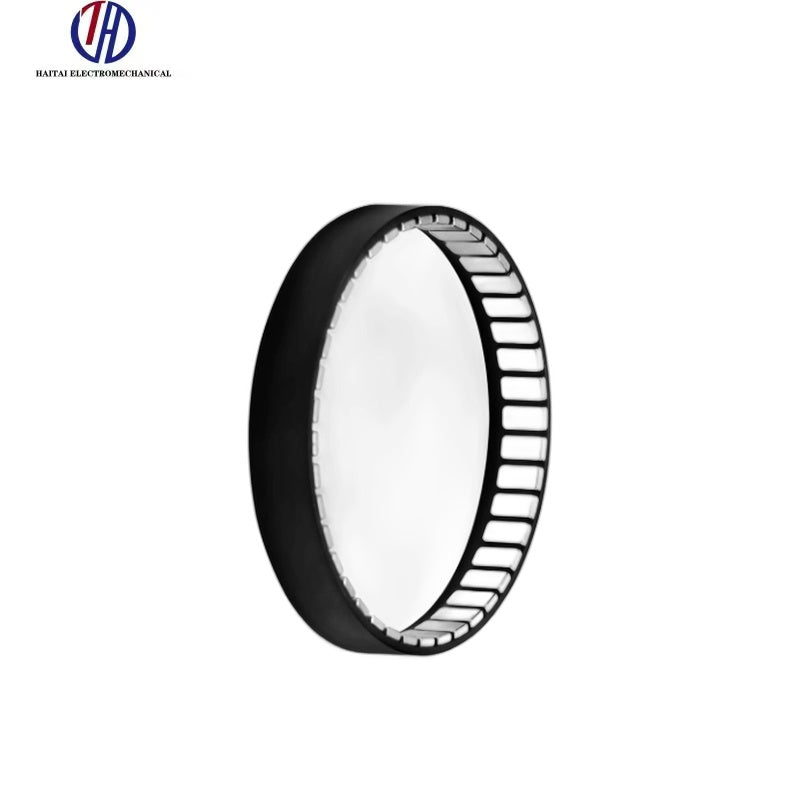

HAITAI WK8110H Motor
Regular price
$65.00
Unit price
HAITAI WK8110H Motor - WK8110H Magnetic Disc Rotor is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
HAITAI WK8110H Motor
Regular price
$65.00
Unit price
HAITAI WK8110H Motor - WK8110H Magnetic Disc Rotor is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Ratings: | |
| Nominal Voltage | 24 V |
| Nominal Current | 2.49 A |
| Nominal Torque | 0.93 N.m |
| Nominal Speed | 349 rpm |
| Stall & Limit Performance: | |
| Stall Torque | 2.4 N.m |
| Stall Current | 6.51 A |
| Maximum Speed | 566 rpm |
| Internal Characteristics: | |
| Motor Winding Turns | 30 T |
| Phase-to-Phase Resistance | 2.29 Ohm |
| Phase-to-Phase Inductance | 2.32 mH |
| Speed Constant | 24 rpm/V |
| Torque Constant | 0.39 N.m/A |
| Rotor Inertia | 1716 g.cm2 |
| Number of Pole Pairs | 21 Pairs |
| Physical & Environmental: | |
| Motor Dimensions | Phi 90 x 14 mm |
| Stator Inner Diameter | 58.5 mm |
| Motor Weight | 206 g |
| Operating Temperature Range | -20 ~ +80 deg C |
| Maximum Demagnetization Temperature | 120 deg C |
