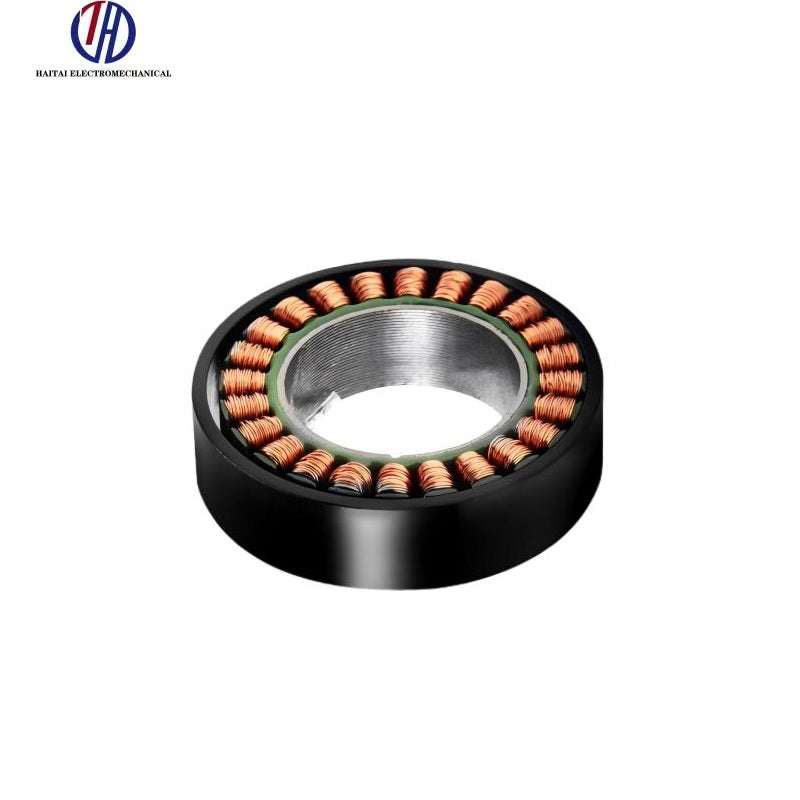

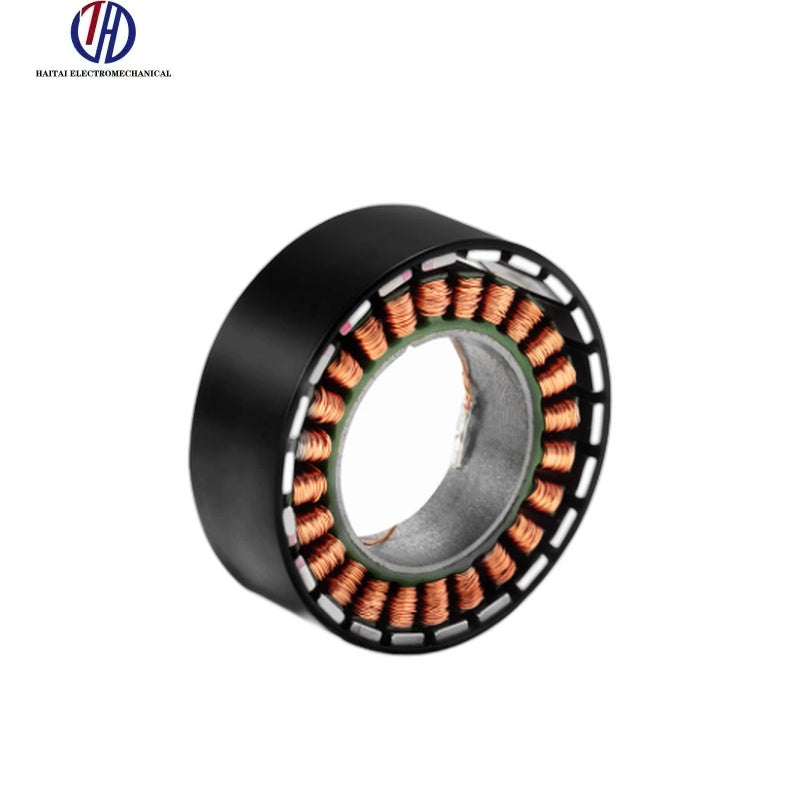

HAITAI WK3510 Motor

$35.00

Version

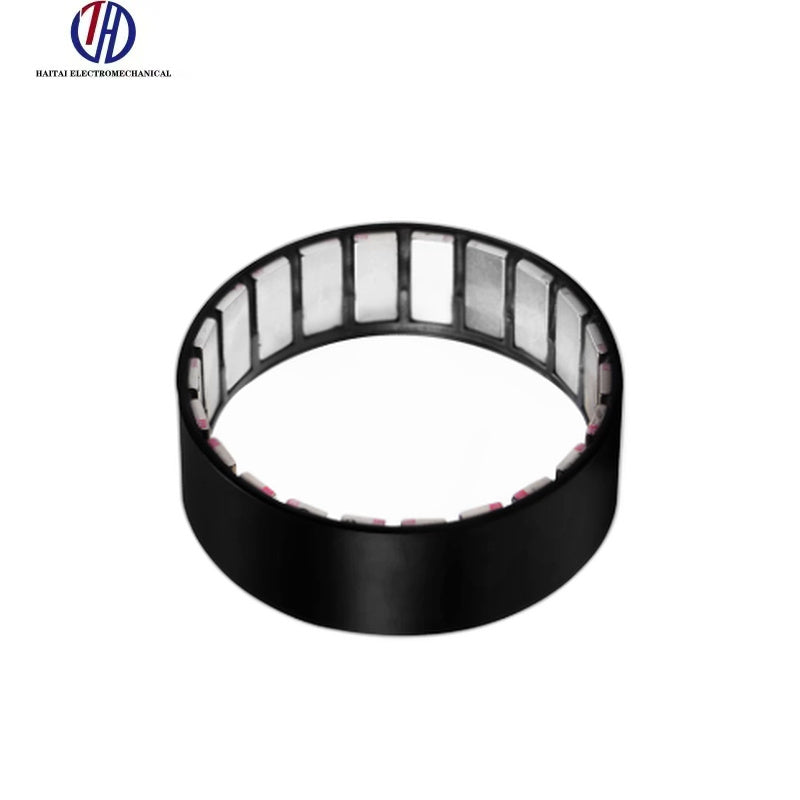

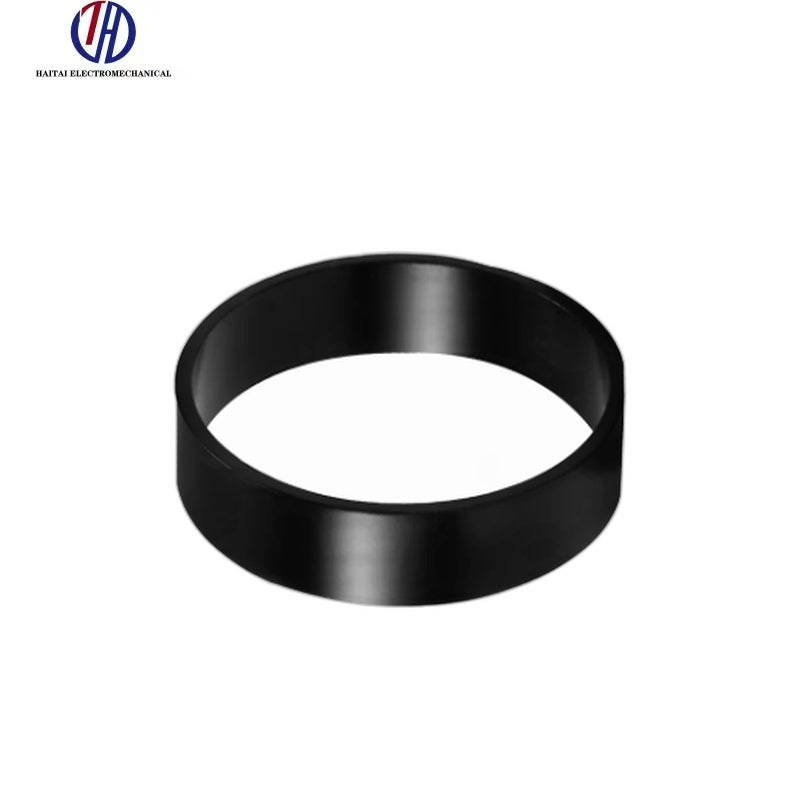

WK3510CH Magnetic Disc Rotor WK3510H Magnetic Ring Rotor

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value (WK3510H / WK3510CH)
Nominal Ratings:
Nominal Voltage	12 V / 12 V
Nominal Current	0.53 A / 0.53 A
Nominal Torque	0.11 N.m / 0.06 N.m
Nominal Speed	363 rpm / 363 rpm
Stall & Limit Performance:
Stall Torque	0.16 N.m / 0.08 N.m
Stall Current	0.8 A / 0.8 A
Maximum Speed	965 rpm / 965 rpm
Internal Characteristics:
Motor Winding Turns	40 T / 40 T
Phase-to-Phase Resistance	8.53 Ohm / 8.53 Ohm
Phase-to-Phase Inductance	1.9 mH / 1.9 mH
Speed Constant	80 rpm/V / 80 rpm/V
Torque Constant	0.2 N.m/A / 0.1 N.m/A
Rotor Inertia	76 g.cm2 / 33 g.cm2
Number of Pole Pairs	11 Pairs / 11 Pairs
Physical & Environmental:
Motor Dimensions	Phi 40 x 13.7 mm / Phi 38.4 x 13 mm
Stator Inner Diameter	22 mm / 22 mm
Motor Weight	47 g / 36 g
Operating Temperature Range	-20 ~ +80 deg C / -20 ~ +80 deg C
Maximum Demagnetization Temperature	120 deg C / 120 deg C
