Goermicro | SKU:

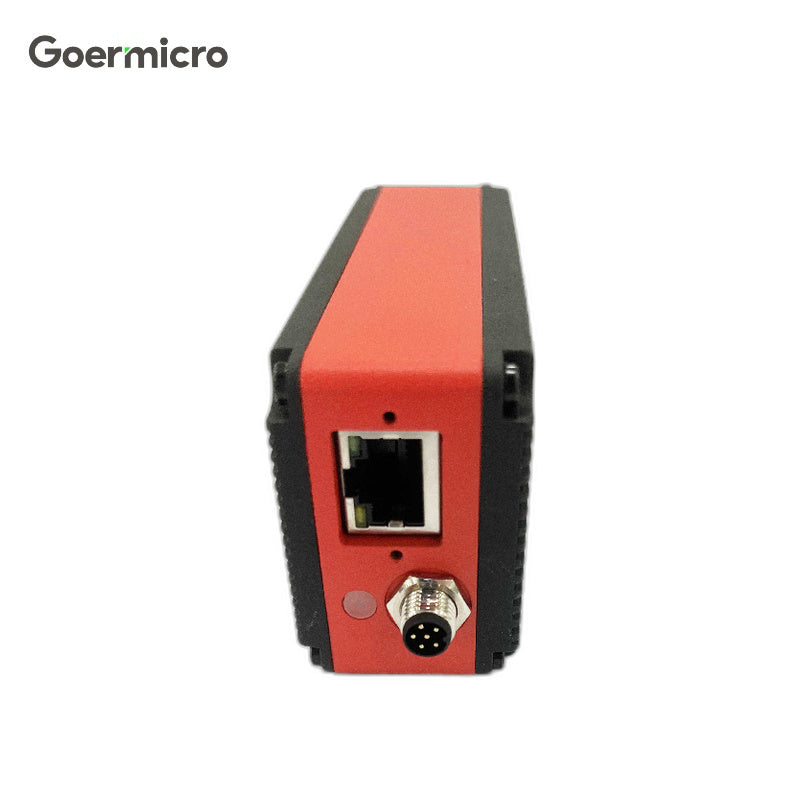

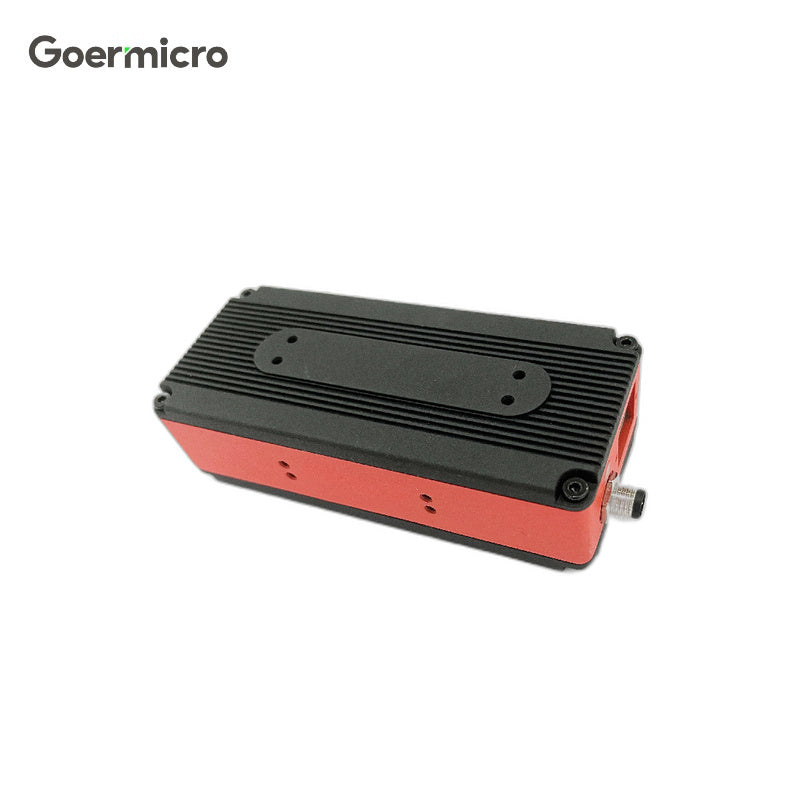

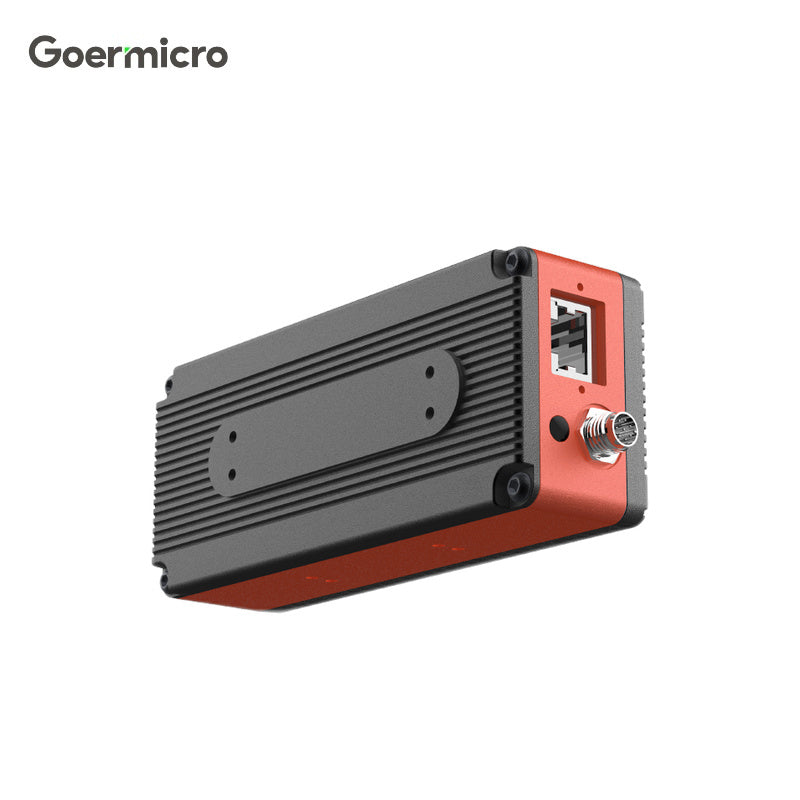

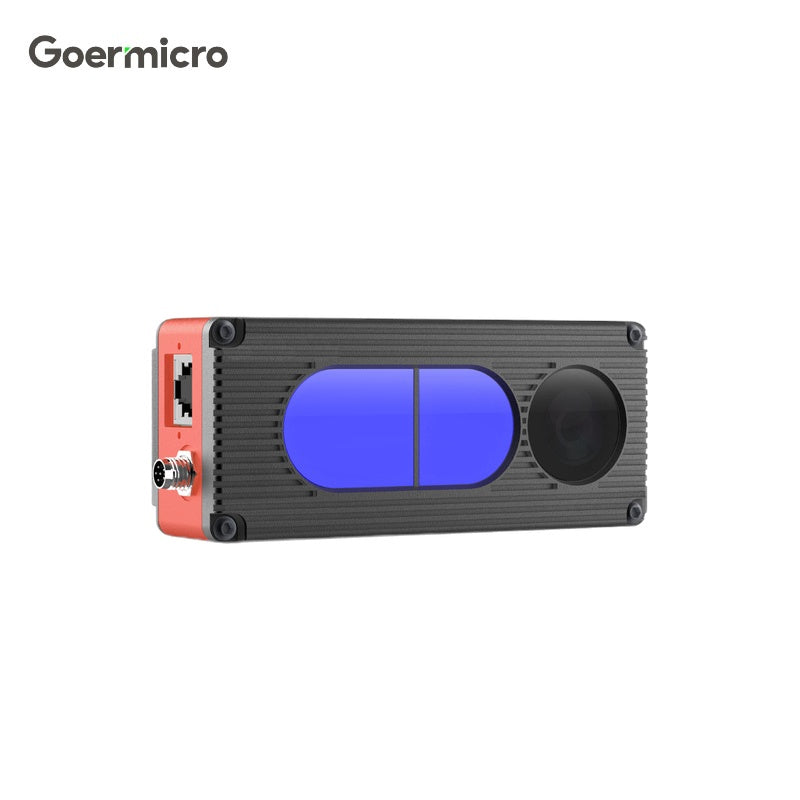

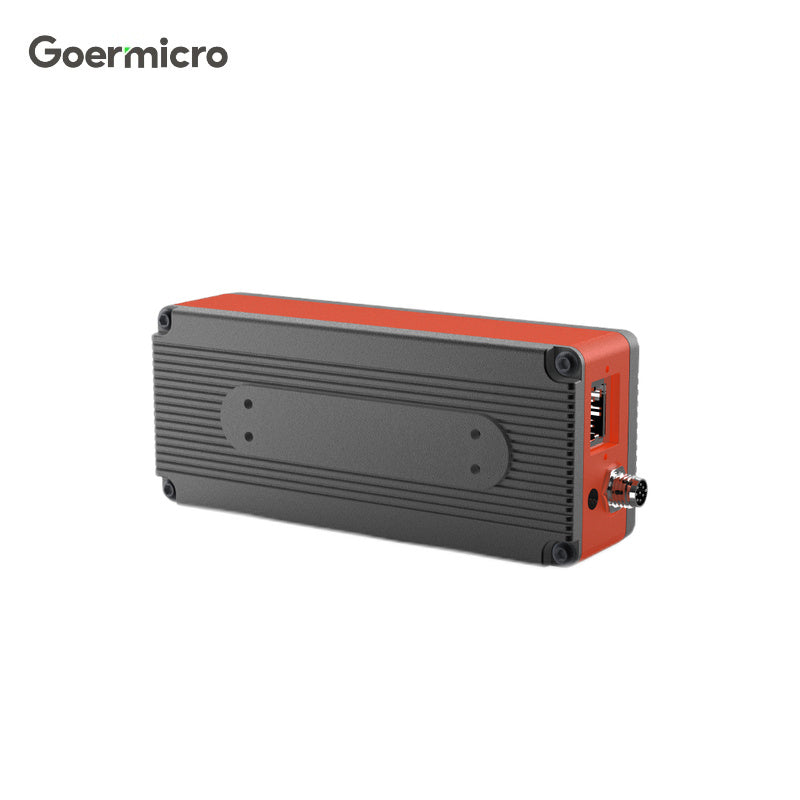

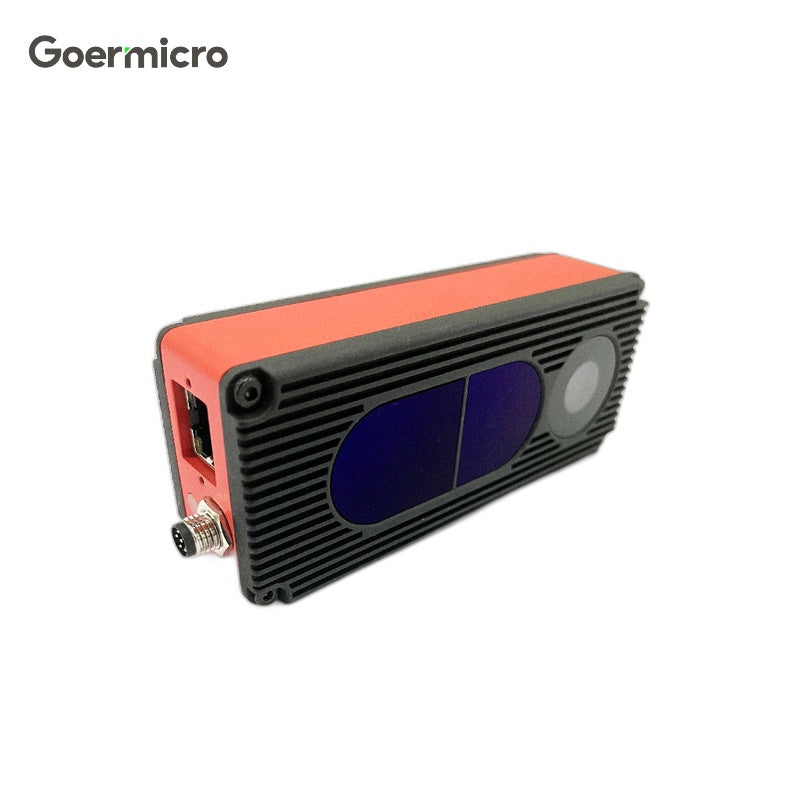

Goermicro DS86 Camera
Regular price
$555.00
Unit price
Goermicro DS86 Camera - DS86 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Goermicro DS86 Camera
Regular price
$555.00
Unit price
Goermicro DS86 Camera - DS86 is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| ToF Sensor | Sony IMX570 CMOS, 640×480 |
| ToF Frame Rate | Max. 15 fps |
| Emitter | 940 nm VCSEL × 2 |
| ToF Field of View | 67°(H) × 50°(V) |
| RGB Module | Global Shutter, 1600×1200 |
| RGB Field of View | 70°(H) × 50°(V) |
| Power Supply | 12 V ~ 24 V DC |
| Physical Connection | RJ45 + M8 Aviation Plugs |
| Communication | 1000M Ethernet & RS485 |
| Output Format | 16bit (depth) + 8bit (IR) + JPEG (RGB) |
| Accuracy Error | 1% |
| Work Range | 0.15 m ~ 5 m |
| Work Temperature | -20°C ~ 50°C |
| Operation System & Platform | Windows / Linux / Arm Linux / ROS1 / ROS2 |
| SDK Support | C / C++ / Python |
| IP Rating | IP42 |
| Weight (Product Only) | 256 g |
| Weight (With Package) | 680 g |
