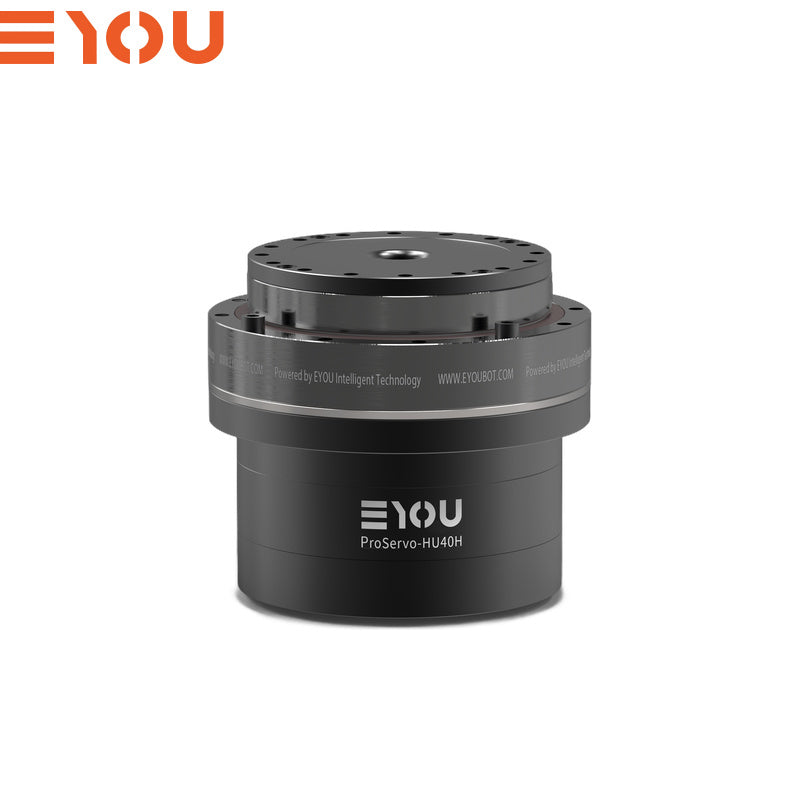

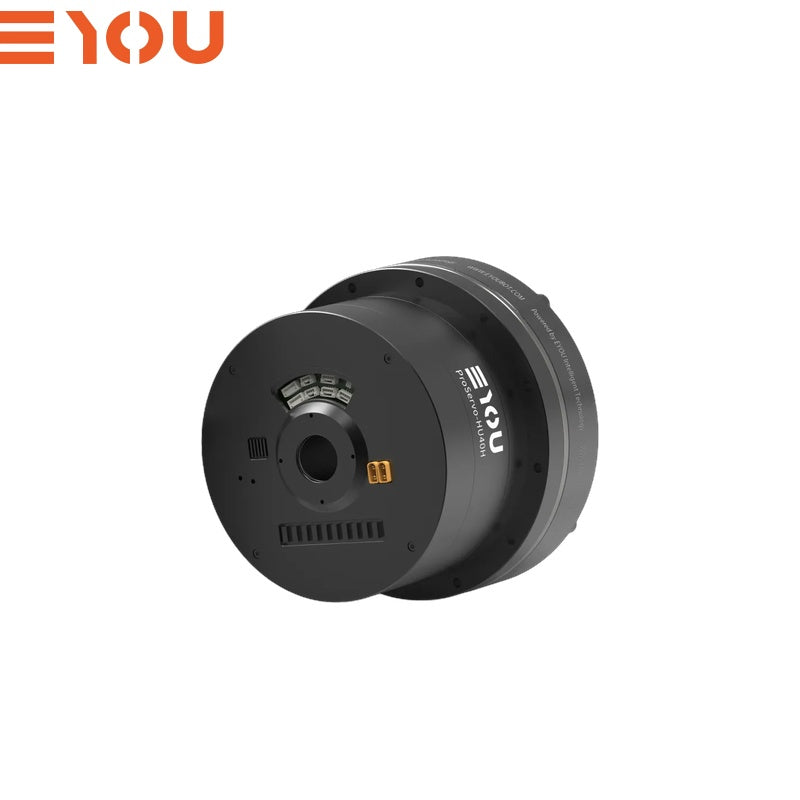

EYOU PHU40H-170 Motor
Regular price
$1,140.00
Unit price
EYOU PHU40H-170 Motor - PHU40H-170 / Without Brake / 81 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
EYOU PHU40H-170 Motor
Regular priceFrom
$1,140.00
Unit price
EYOU PHU40H-170 Motor - PHU40H-170 / Without Brake / 81 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Module Model | PHU-40H-170 |
| Reducer Type | Harmonic |
| Motor Rated Power (W) | 905 |
| Motor Rated Torque (N·m) | 3.6 |
| Motor Peak Torque (N·m) | 14.4 |
| Reduction Ratio | 81 / 101 / 121 / 161 |
| Joint Rated Power (W) - Life Constraint | 659 / 664 / 554 / 416 |
| Rated Torque at 2000rpm Input (N·m) | 255 / 320 / 320 / 320 |
| Average Load Torque at Output (N·m) | 351 / 460 / 557 / 557 |
| Peak Torque at Output (N·m) | 641 / 702 / 762 / 800 |
| Max Allowable External Torque at Output (Instantaneous) (N·m) | 1210 / 1334 / 1458 / 1458 |
| Backlash (Arcsec) | ≤20 / ≤20 / ≤20 / ≤20 |
| Rated Speed at Output (rpm) - Life Constraint | 25 / 20 / 17 / 12 |
| Peak Speed at Output (rpm) | 30 / 24 / 20 / 15 |
| Brake (B/N) | B/N |
| Dimensions (Outer Diameter × Axial) (mm) | Φ170 × 149 |
| Weight (kg) (B/N) | 9.34 / 8.70 |
| Hollow Diameter (mm) | 23 |
| Housing Appearance (Process Color) | Black Anodized (Non-sandblasted) |
| Reducer Appearance (Process Color) | Outer Ring Blackened |
| Radial (dynamic/static) Allowable Load at Output (N) | 2000 |
| Axial (dynamic/static) Allowable Load at Output (N) | 2000 |
| Output Bending Moment (N·m) | 600 |
| Reducer Torsional Stiffness (N·m/rad) | 1876.452 / 1876.452 / 1876.452 / 1876.452 |
| Reducer Input Inertia (kg·mm²) (B) | 1876.452 / 1876.452 / 1876.452 / 1876.452 |
| Equivalent Joint Output Inertia (kg·mm²) (B) | 12311402 / 19141687 / 27473134 / 48639512 |
| Rated Operating Voltage (VDC) | 48 |
| Operating Voltage Range (VDC) | 24~48 |
| Driver | Built-in |
| Encoder/Bit (bit) | Dual Absolute / Motor side 17Bit & Reducer side 19Bit |
| Driver Interface (see terminal model description) | Power (DC in DC out), CAN FD (In,Out), EtherCAT (In,Out), STO (1,2) |
| Communication Protocol (see communication description) | EtherCAT / CANopen |
| Control Modes | Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc. |
| Operating Ambient Temperature (°C) | -20~60 |
| Housing Temperature Rise (°C) | ≤80 |
| Noise (dB) | ≤60 |
| Life (h) | >10000 |
