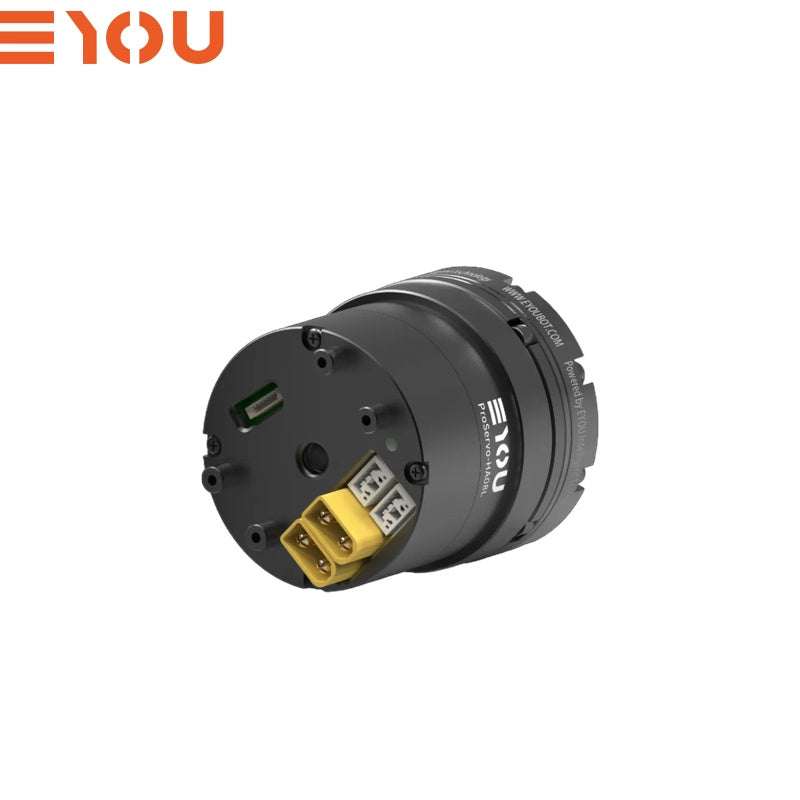

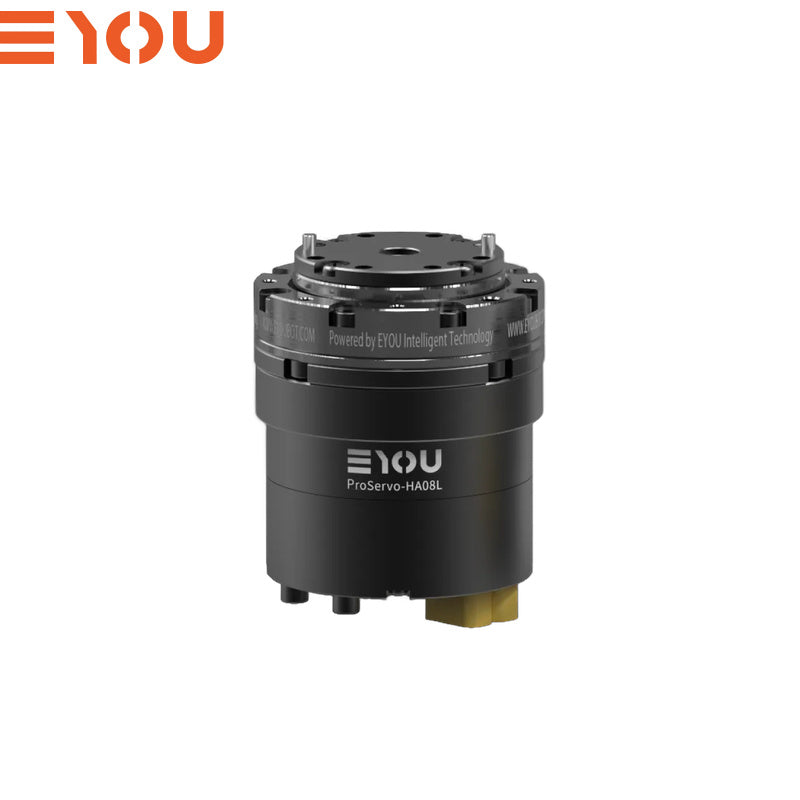

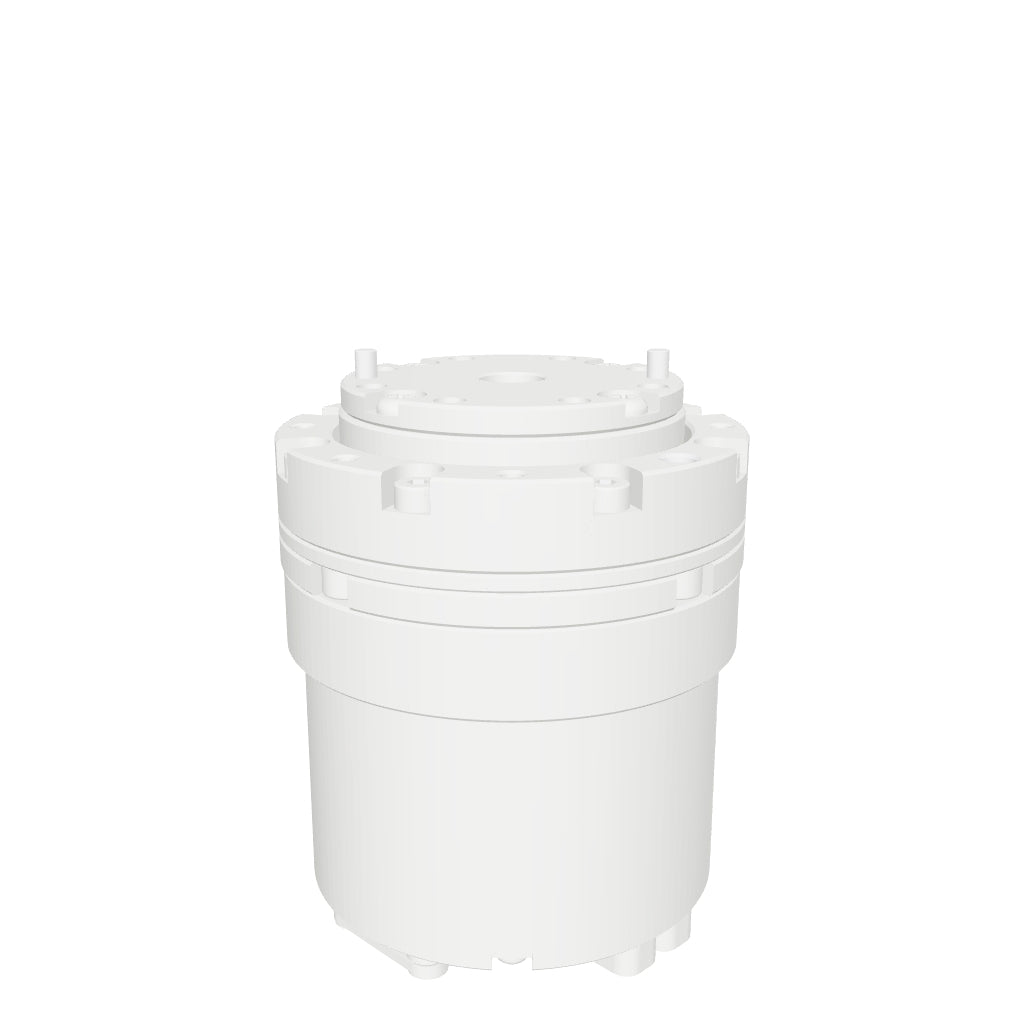

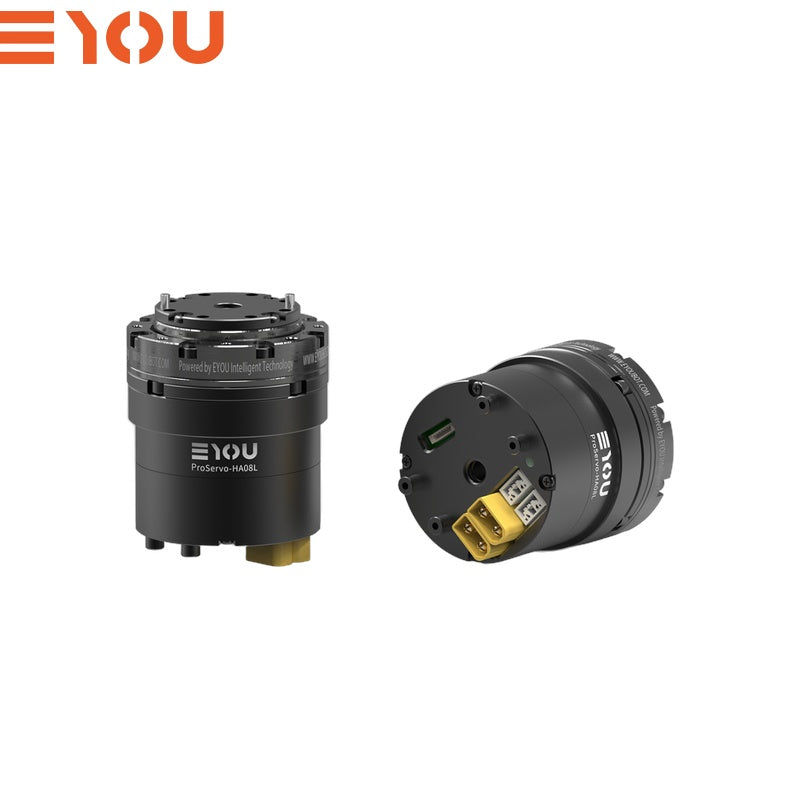

EYOU PHA08L-101-C Motor

$730.00

Version

PHA08L-101-C

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Module Model	PHA08
Reducer Type	Harmonic
Motor Rated Power	17 W
Motor Rated Torque	0.04 N·m
Motor Peak Torque	0.12 N·m
Reduction Ratio	101
Joint Rated Power - Life Constraint	3 W
Rated Torque at 2000rpm Input	1.65 N·m
Average Load Torque at Output	2.3 N·m
Peak Torque at Output	3.3 N·m
Max Allowable External Torque at Output (Instantaneous)	6.3 N·m
Backlash	≤40 Arcsec
Rated Speed at Output - Life Constraint	20 rpm
Peak Speed at Output	36 rpm
Brake (B/N)	N
Dimensions (Outer Diameter × Axial)	Φ43 × 48.3 mm
Weight	0.207 kg
Hollow Diameter	4.4 mm
Housing Appearance (Process Color)	Matte Black Anodized
Reducer Appearance (Process Color)	Outer Ring Blackened
Radial (dynamic/static) Allowable Load at Output	100 N
Axial (dynamic/static) Allowable Load at Output	100 N
Output Bending Moment	13.5 N·m
Reducer Torsional Stiffness	800 N·m/rad
Reducer Input Inertia	2 kg·mm²
Equivalent Joint Output Inertia	20402 kg·mm²
Rated Operating Voltage	24 VDC
Operating Voltage Range	24~36 VDC
Driver	Built-in
Encoder/Bit	Dual Absolute / Motor side 16Bit & Reducer side 16Bit
Driver Interface (see terminal model description)	Power (DC in DC out), CANFD (In,Out)
Communication Protocol (see communication description)	CANopen
Control Modes	Profile Position (PP), Profile Velocity (PV), Profile Torque (PT), Cyclic Synchronous Position (CSP), Cyclic Synchronous Velocity (CSV), etc.
Operating Ambient Temperature	-20~60 °C
Housing Temperature Rise	≤60 °C
Noise	≤60 dB
Life	>8000 h
