DSSERVO

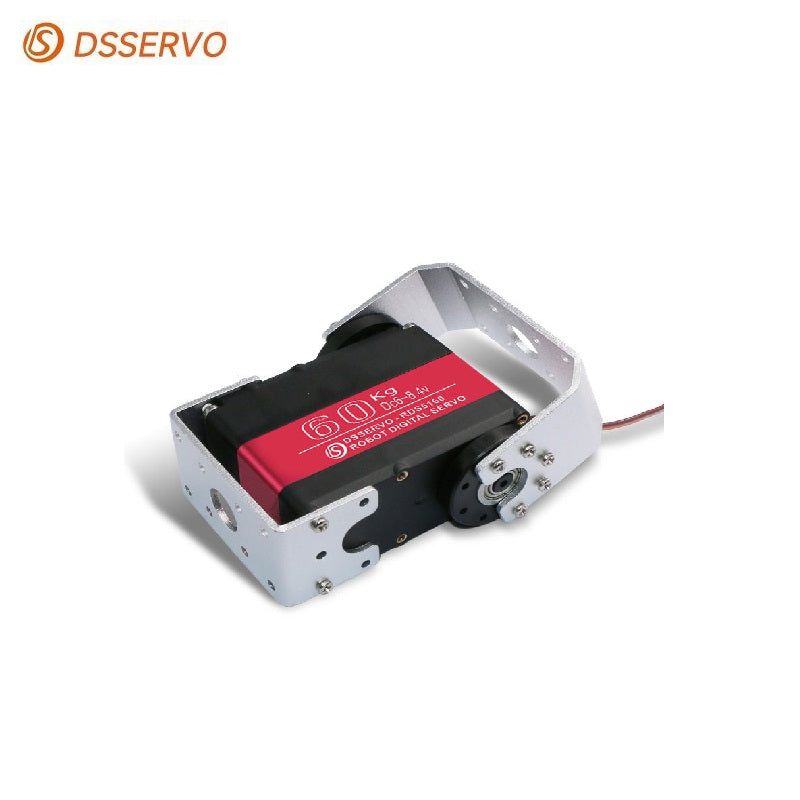

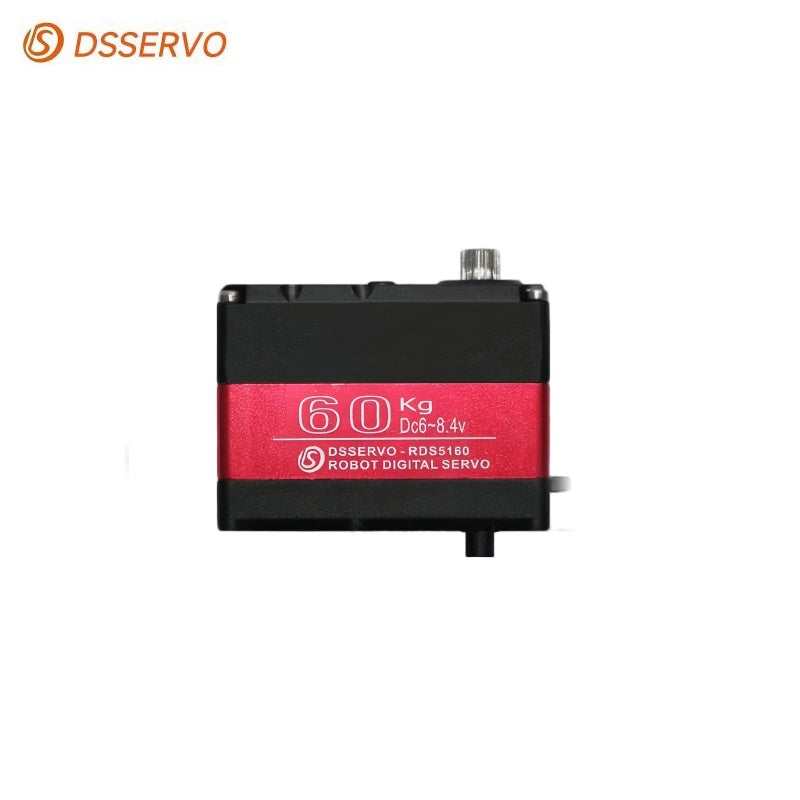

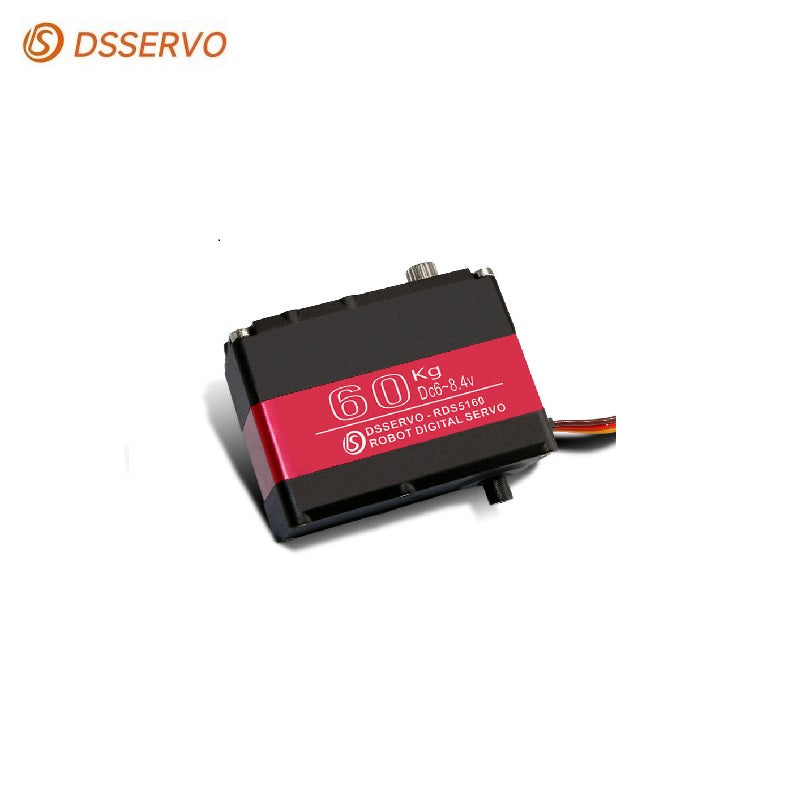

DSSERVO RDS5160 Servo Motor

$60.00
Version
Angle Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value
Operating Voltage 6V 7.4V 8.4V
Storage Temperature Range -30℃～80℃ -30℃～80℃ -30℃～80℃
Operating Temperature Range -15℃～70℃ -15℃～70℃ -15℃～70℃
Operating Voltage Range 6-8.4V 6-8.4V 6-8.4V
Size 65*30*48mm 65*30*48mm 65*30*48mm
Weight 163g 163g 163g
Gear ratio 279 279 279
Bearing Double bearing Double bearing Double bearing
Connector wire 300±5mm 300±5mm 300±5mm
Motor 3-pole(s) 3-pole(s) 3-pole(s)
Waterproof performance No No No
Idle current (at stopped) 4mA 5mA 5mA
Operating speed (at no load) 0.17 sec/60° 0.15 sec/60° 0.13 sec/60°
Stall torque (at locked) 58 kg·cm 65 kg·cm 70 kg·cm
Stall current (at locked) 4.1A 5.4A 6.5A
Control System PWM (Pulse width modification) PWM (Pulse width modification) PWM (Pulse width modification)
Pulse width range 500~2500μsec 500~2500μsec 500~2500μsec
Neutral position 1500μsec 1500μsec 1500μsec
Running degree 180° or 270° (when 500~2500 μsec) 180° or 270° (when 500~2500 μsec) 180° or 270° (when 500~2500 μsec)
Dead band width 3 μsec 3 μsec 3 μsec
Operating frequency 50~330Hz 50~330Hz 50~330Hz
Rotating direction Counterclockwise (when 500~2500 μsec) Counterclockwise (when 500~2500 μsec) Counterclockwise (when 500~2500 μsec)
