DSpower

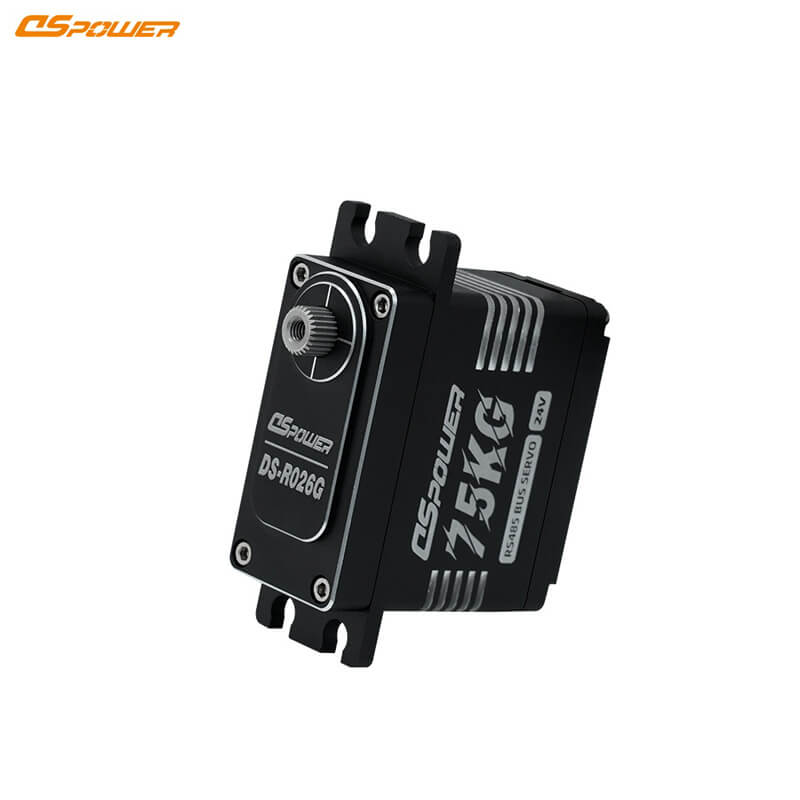

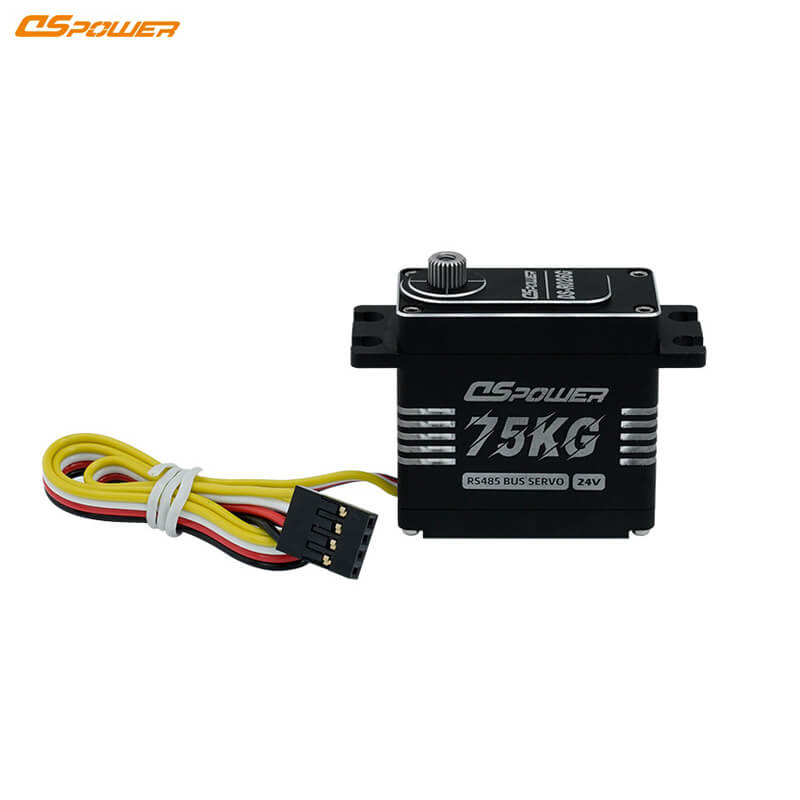

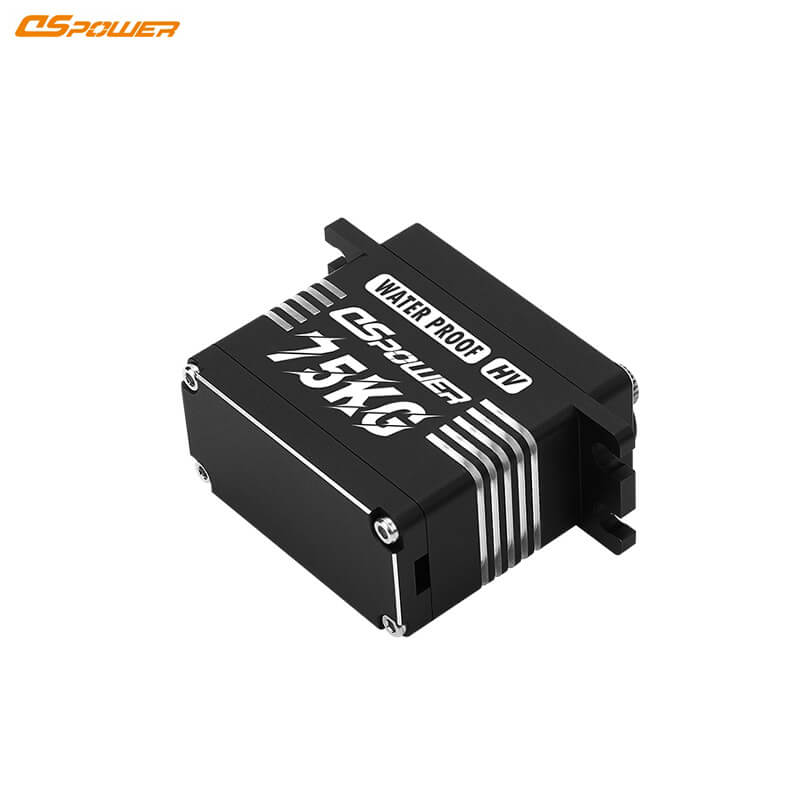

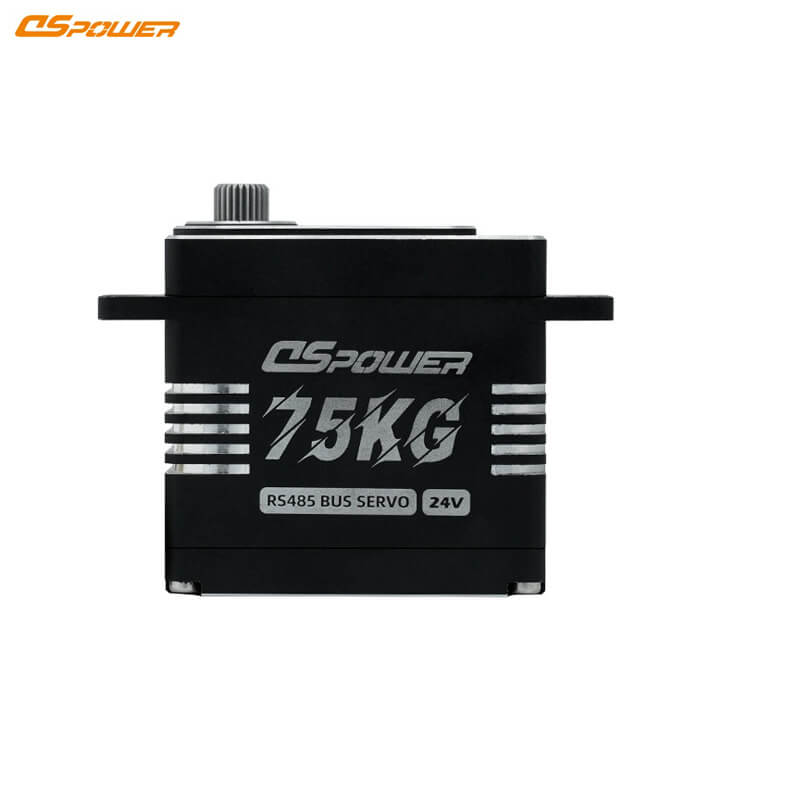

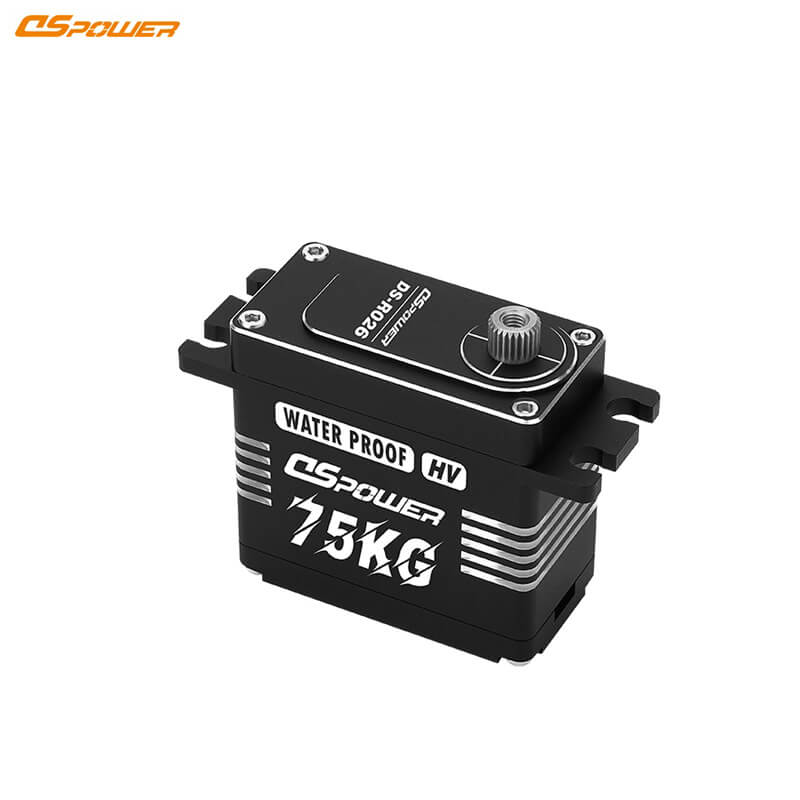

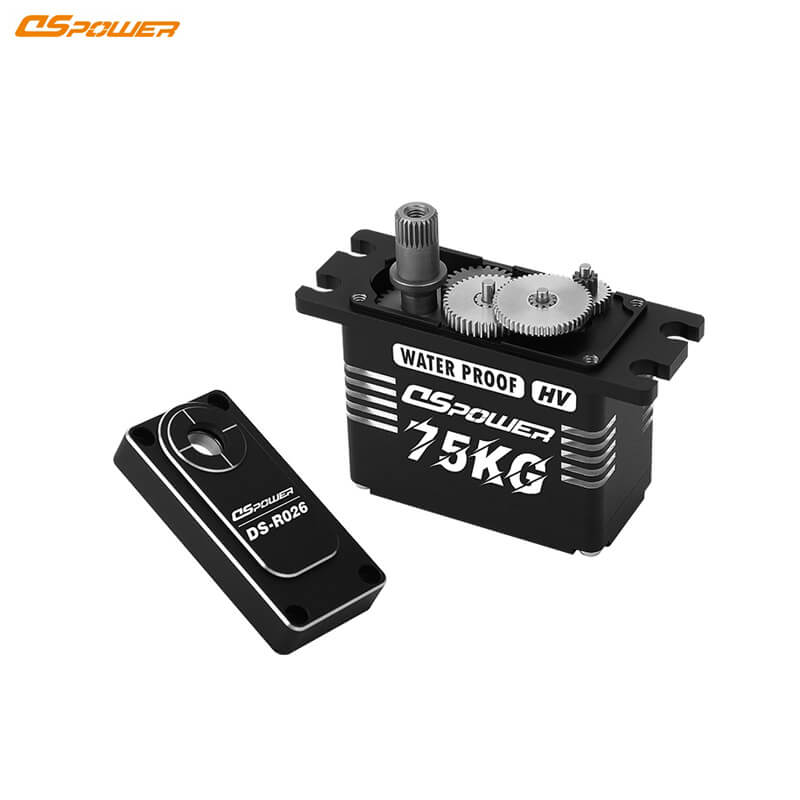

DSpower DS-R026 Servo Motor

$200.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Parameter Value
Product Model DS-R026 Product Model DS-R026G
Operating Voltage 6.0 – 8.4 V DC Operating Voltage 5.0 – 30.0 V DC
No Load Speed ≤0.13 sec/60° at 7.4V Static Current ≤30 mA
No Load Current ≤350 mA at 7.4V Stall Current ≤6 A
Stall Current ≤12 A at 7.4V Stall Torque ≥65 kgf·cm
Stall Torque ≥70 kgf·cm at 7.4V Rotating Direction CW (0 – 4095)
Pulse Width Range 500 – 2500 μs No-load Speed ≤0.12 sec/60°
Operating Travel Angle 180° ± 10° Pulse Width Range 0 – 4095
Mechanical Limit Angle 360° Operating Travel Angle 360° ± 10°
Weight 91.5 ± 5.0 g Return Angle Deviation ≤2°
Case Material Aluminium Alloy Weight 91.5 ± 2.0 g
Gear Set Material Metal Gears Communication Interface RS485
Motor Type Brushless Motor Output Shaft 25T / D6


Case Material Aluminium alloy

DSpower DS-R026 Servo Motor.pdf
