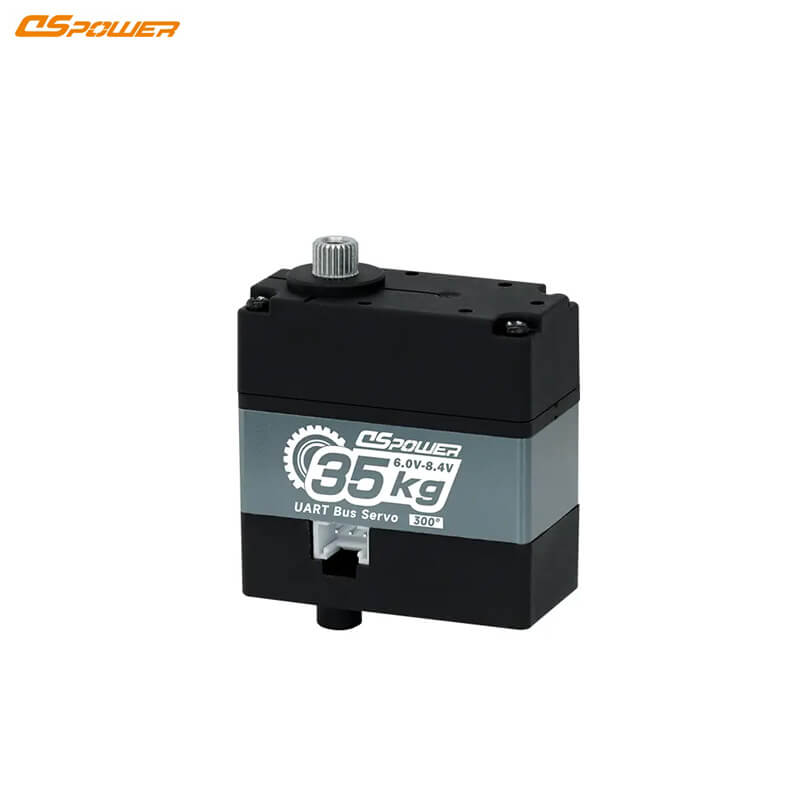

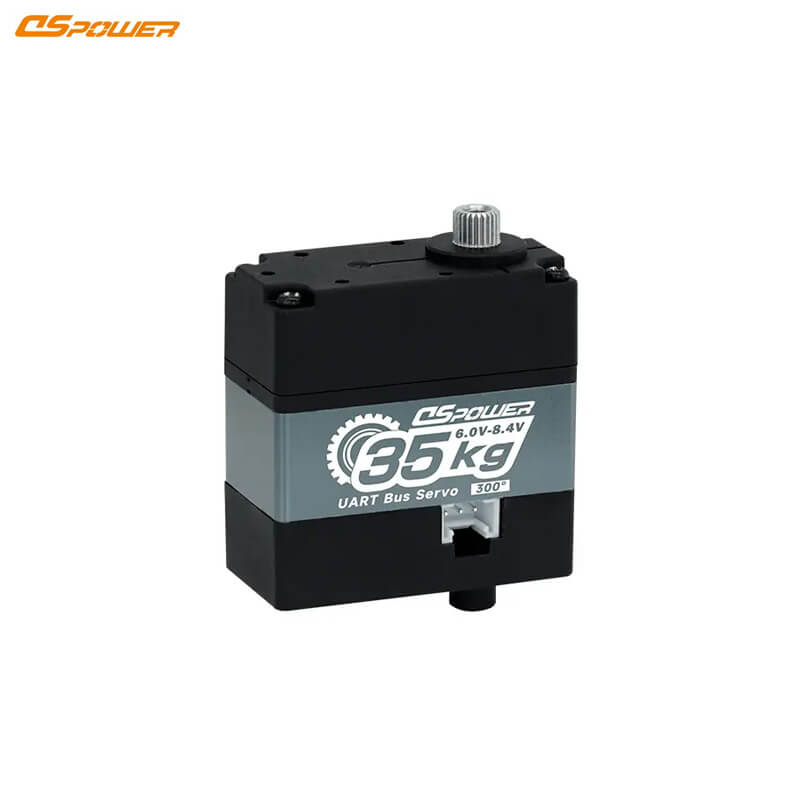

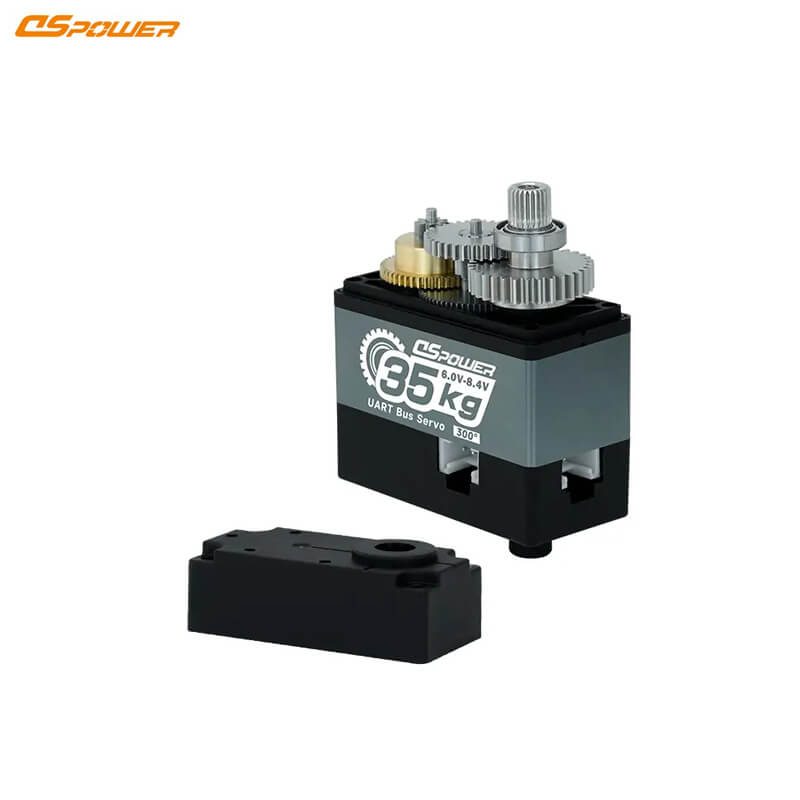

DSpower DS-R003E Servo Motor

$40.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 6 – 8.4 V DC
Static Current ≤50 mA
Stall Current ≤5 A
Stall Torque ≥35 kgf·cm
Rotating Direction CCW
No-load Speed ≤0.22 sec/60°
Pulse Width Range 0-4095 / 500 µs – 2500 µs
Operating Travel Angle 300° ± 10° / 180° ± 10°
L&R Angle Deviation ≤10°
Weight 61.5 ± 0.5 g
Communication Interface TTL / PWM
Output Shaft Ø6.0 mm × 25T
Life ≥80 hours

DSpower DS-R003E Servo Motor.pdf
