CubeMars

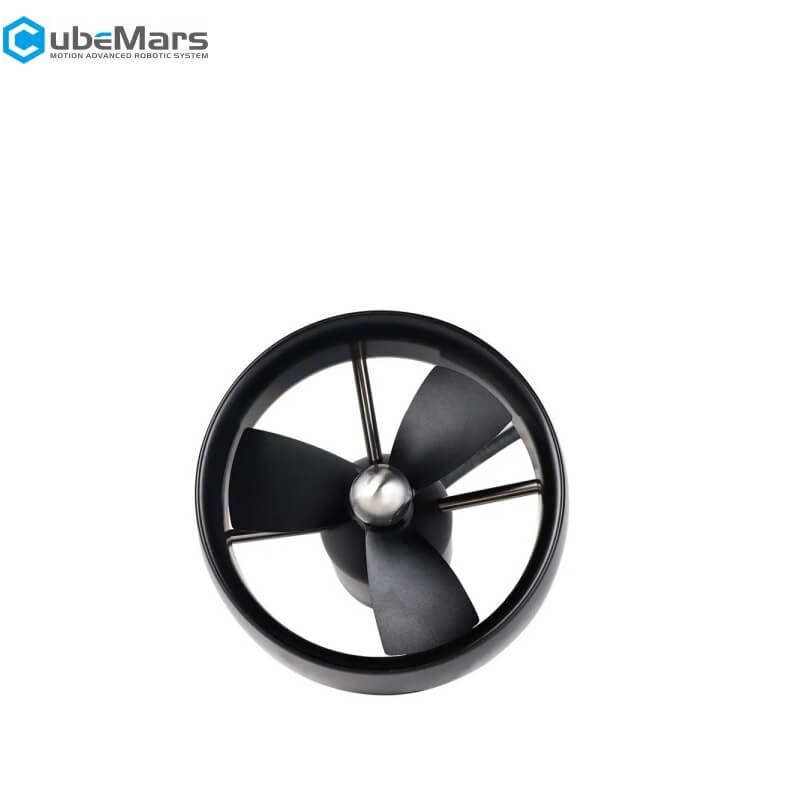

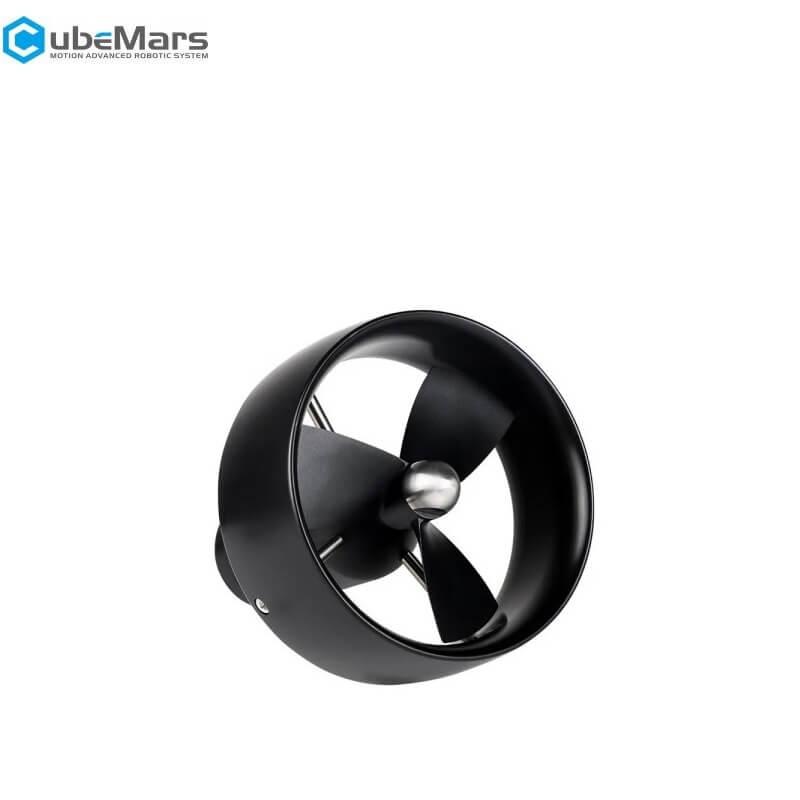

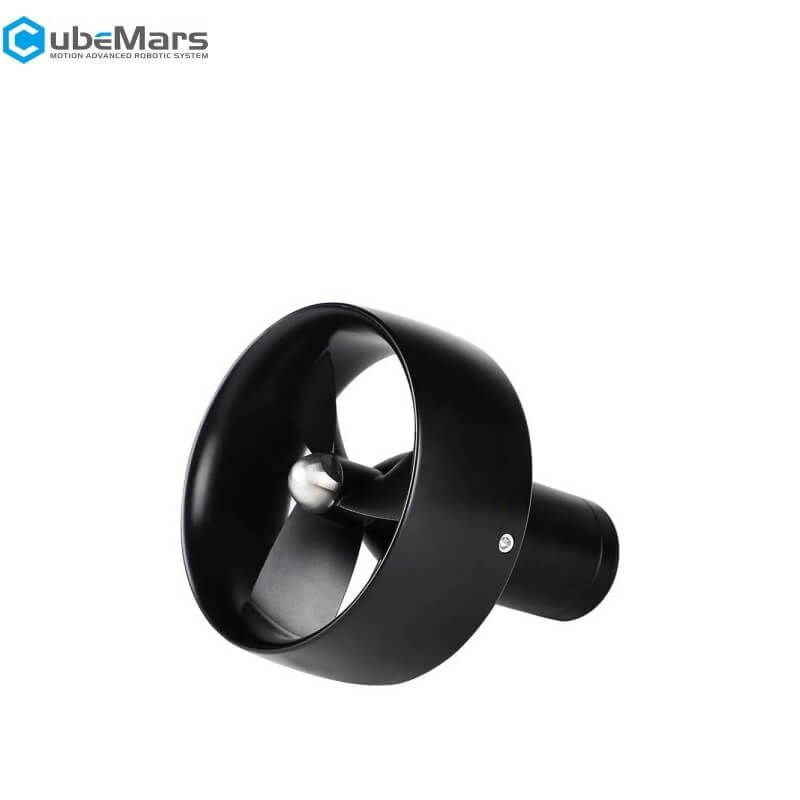

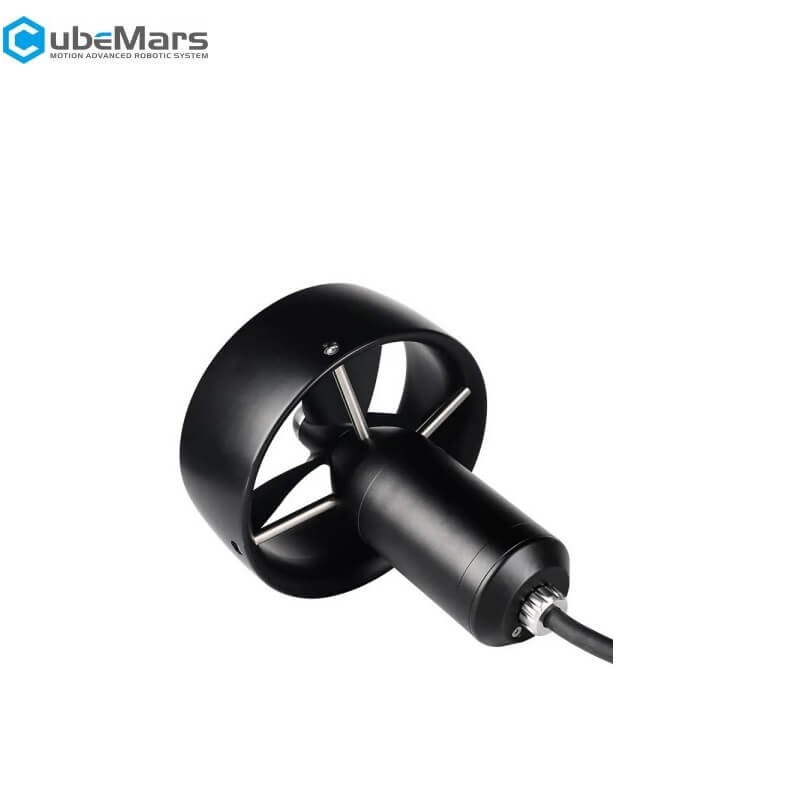

CubeMars DW25 Underwater Thruster

$599.90
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information



Technical Specifications

Parameter Value
Rated power 1315W
Rated voltage 48V
Maximum mooring thrust ≥25kgf
Applicable water depth 0-350M
Material of the nozzle POM
Material of the propeller Aluminum alloy
Material of the shell Aluminum alloy
Propeller specifications φ126mm
Motor rotor pole number 20P
Main shaft sealing method Low-resistance dynamic seal
Main body structure Two-stage sealing chamber
Cable specifications TPU(Matte) φ9.5mm- 3*12AWG- 1.5M
Driver External
Applications Unmanned surface vehicle, Electric surfboard，ROV,etc.
Weight 1780g(in the air) 995g(in the water)
Environmental conditions 0-50℃(Storage) 0-40℃(Operating )
Usage tips Rinse with clean water promptly after use.
Recommended ESC matching TW-80A-12S
DW25-2D.pdf

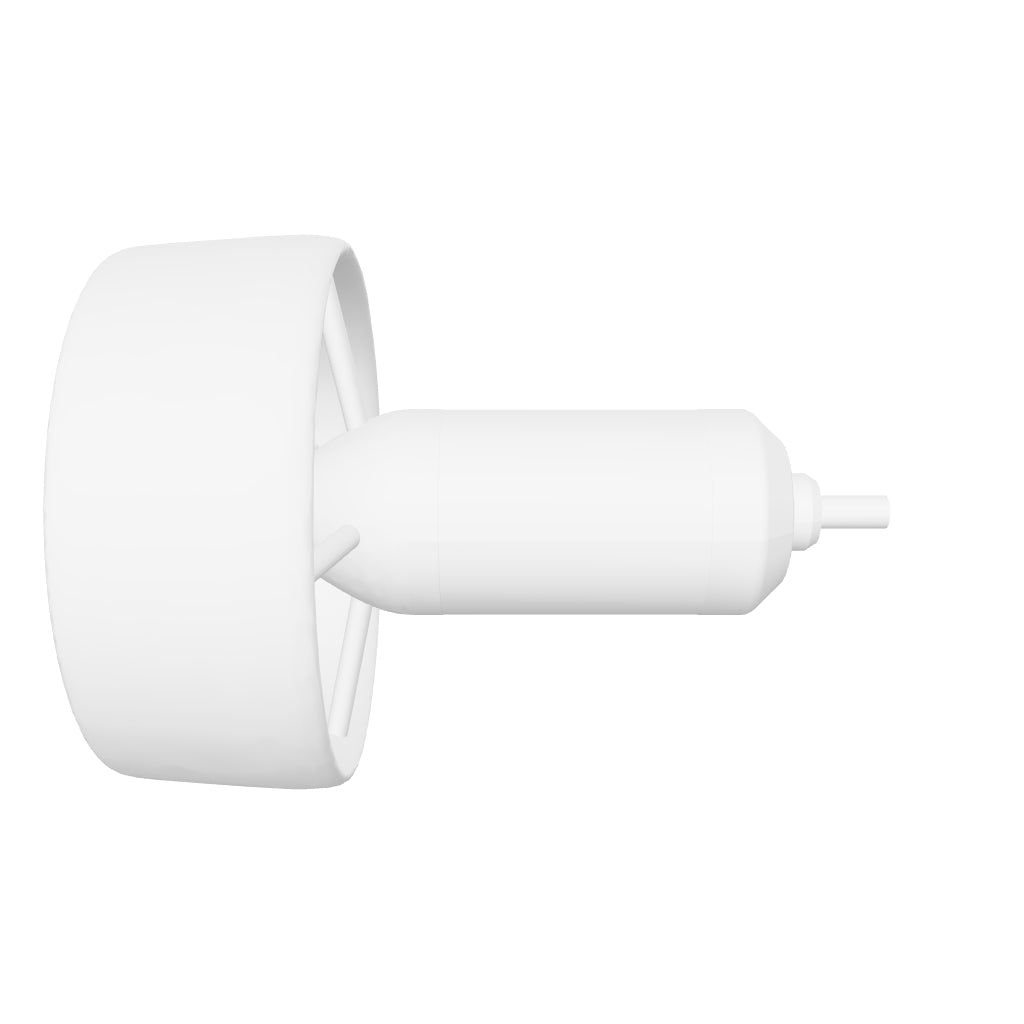

DW25_3D.stp
