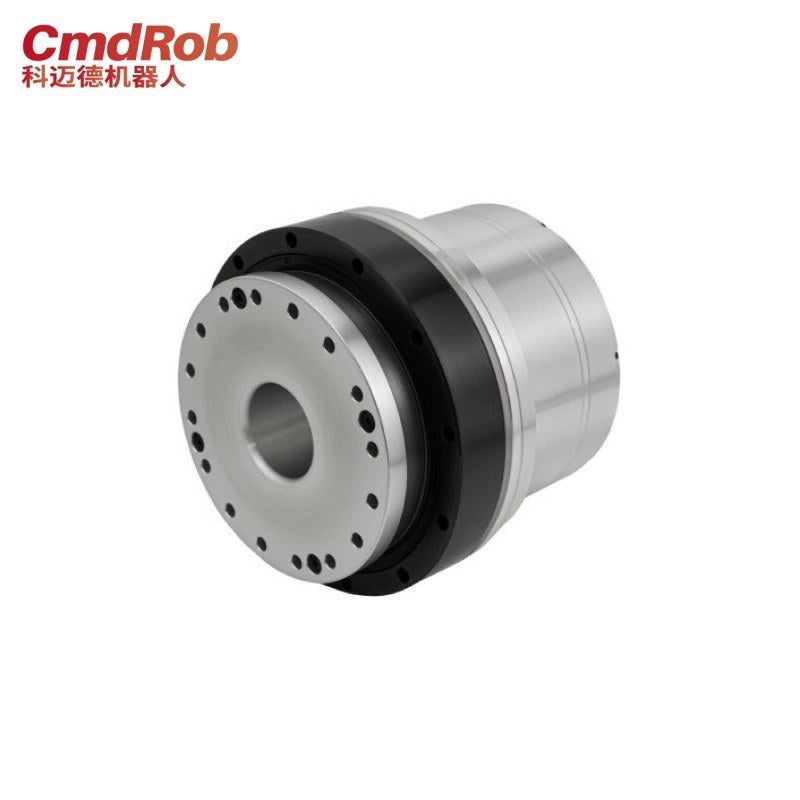

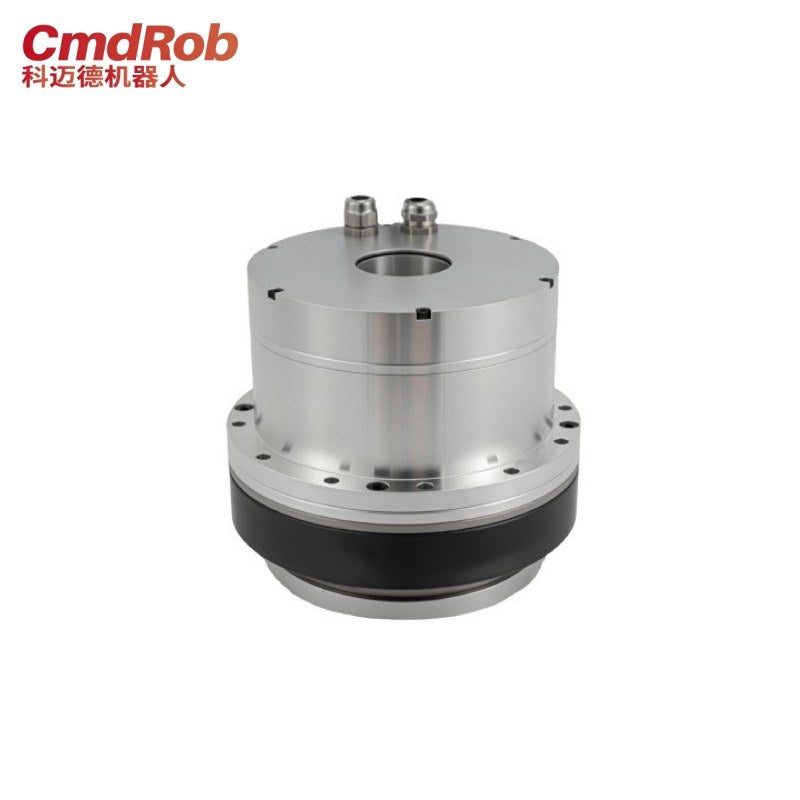

CmdRob M142 Motor

$1,120.00
Version
Reduction Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Model M142 M142 M142 M142
Reduction Ratio 51 81 101 121
Input Voltage 220 (±10%)V 220 (±10%)V 220 (±10%)V 220 (±10%)V
Maximum Torque 497N.m 738N.m 841N.m 892N.m

50.71kgf.m  75.30kgf.m  85.82kgf.m  91.02kgf.m
Average Load Torque 140N.m 217N.m 281N.m 281N.m

14.29kgf.m  22.14kgf.m  28.67kgf.m  28.67kgf.m
Start-Stop Peak Torque 281N.m 395N.m 433N.m 459N.m
28.67kgf.m  40.30kgf.m  44.18kgf.m  46.84kgf.m
Maximum Speed 95r/min 60r/min 48r/min 40r/min
Rated Speed 60r/min 37r/min 30r/min 25r/min
Motor Torque Constant 0.59N·m/A 0.59N·m/A 0.59N·m/A 0.59N·m/A


0.006kgf·m/A 0.006kgf·m/A 0.006kgf·m/A 0.006kgf·m/A
Maximum Current 10.94A 9.68A 8.51A 7.53A
Allowable Continuous Current 5.45A 5.32A 5.52A 4.61A
Back EMF Constant 42.1V/krpm 42.1V/krpm 42.1V/krpm 42.1V/krpm
Phase Resistance (20°C) 0.46Ω 0.46Ω 0.46Ω 0.46Ω
Phase Inductance 2.5mH 2.5mH 2.5mH 2.5mH
Moment of Inertia 680(kg·mm²) 680(kg·mm²) 680(kg·mm²) 680(kg·mm²)

680*10^-4(kgf·cm·s²) 680*10^-4(kgf·cm·s²) 680*10^-4(kgf·cm·s²) 680*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy<sup>(1)</sup> 20arc-sec 20arc-sec 20arc-sec 20arc-sec
Positioning Accuracy<sup>(2)</sup> 60arc-sec 60arc-sec 60arc-sec 60arc-sec
Encoder Communication Protocol BISS / TAMAGAWA BISS / TAMAGAWA BISS / TAMAGAWA BISS / TAMAGAWA
Encoder Communication Interface BISS-C / TAMAGAWA BISS-C / TAMAGAWA BISS-C / TAMAGAWA BISS-C / TAMAGAWA
Encoder Resolution(Single-turn) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution 6,684,672pulses/rev 10,616,832pulses/rev 13,238,272pulses/rev 15,859,712pulses/rev
Mass 6.5 KG 6.5 KG 6.5 KG 6.5 KG
Ambient Environmental Conditions



Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m



 Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m 		Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m		 Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m
Design Life（H） 10000 15000 15000 15000

Motor Insulation

 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)

Mounting Orientation

 Omnidirectional Mounting Omnidirectional Mounting Omnidirectional Mounting Omnidirectional Mounting

Protection Rating

 Totally Enclosed, Non-Ventilated (IP54) Totally Enclosed, Non-Ventilated (IP54) Totally Enclosed, Non-Ventilated (IP54) Totally Enclosed, Non-Ventilated (IP54)

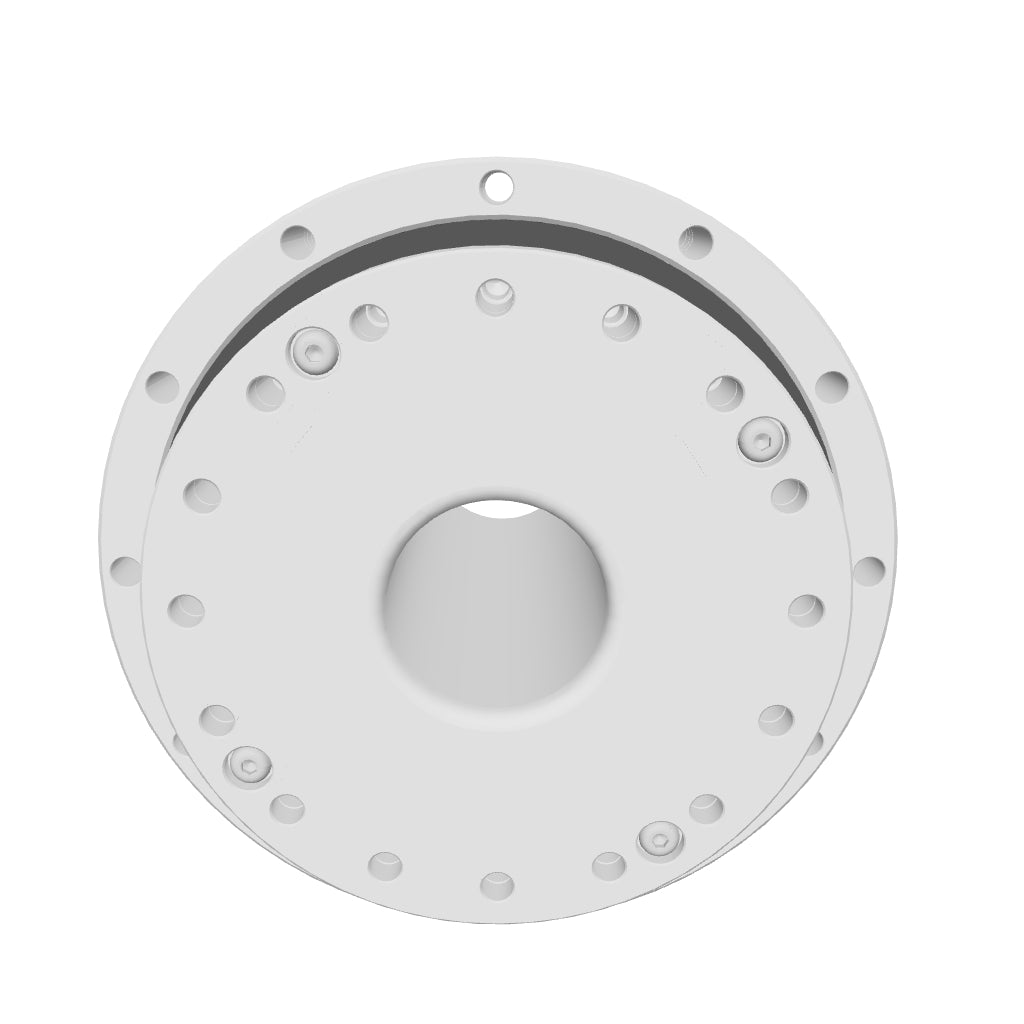

CmdRob-M142-D-XXX-BS-C00-2D-Drawing.pdf

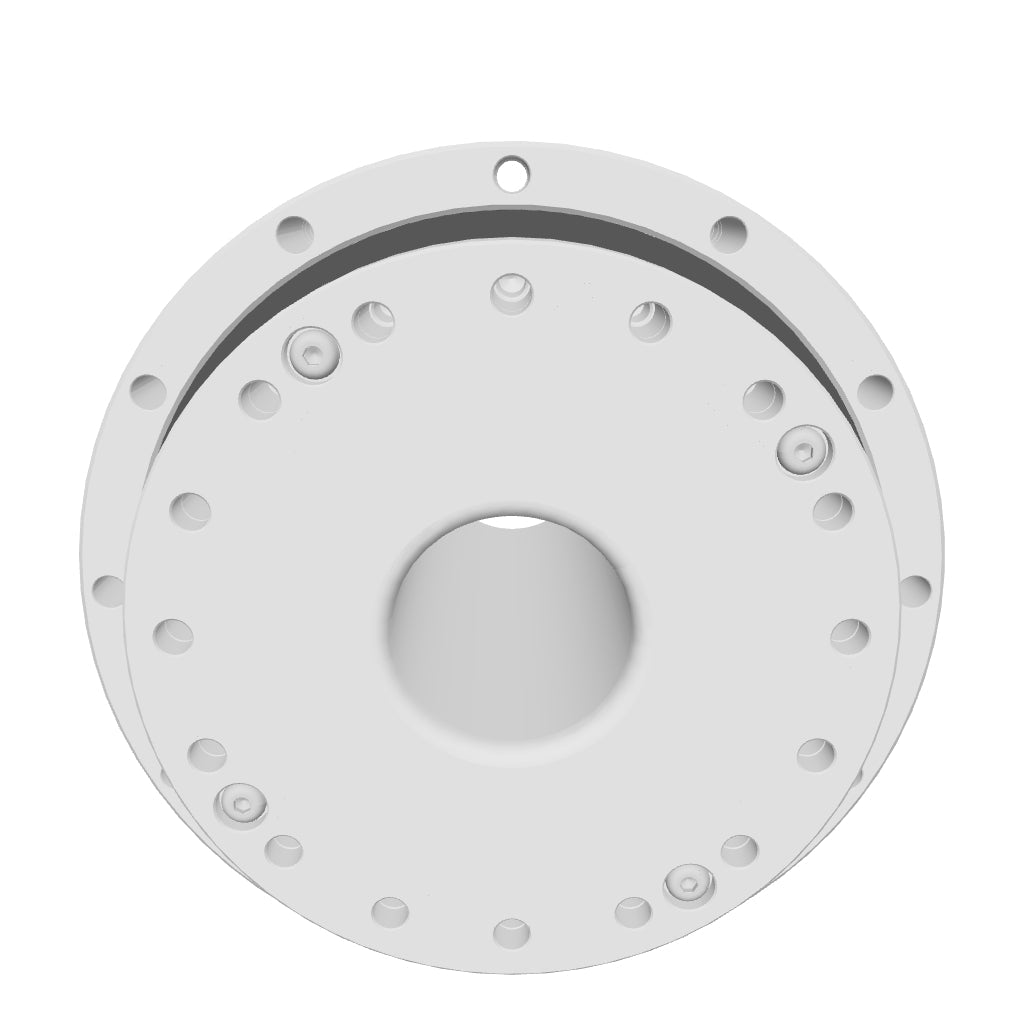

CmdRob-M142-D-XXX-BF-C00-2D-Drawing.pdf
