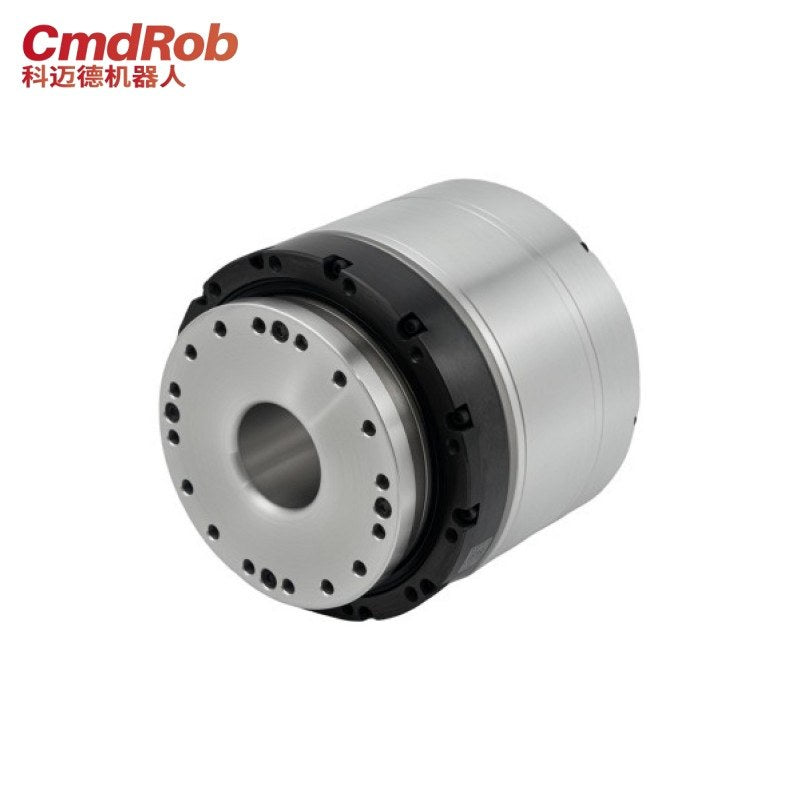

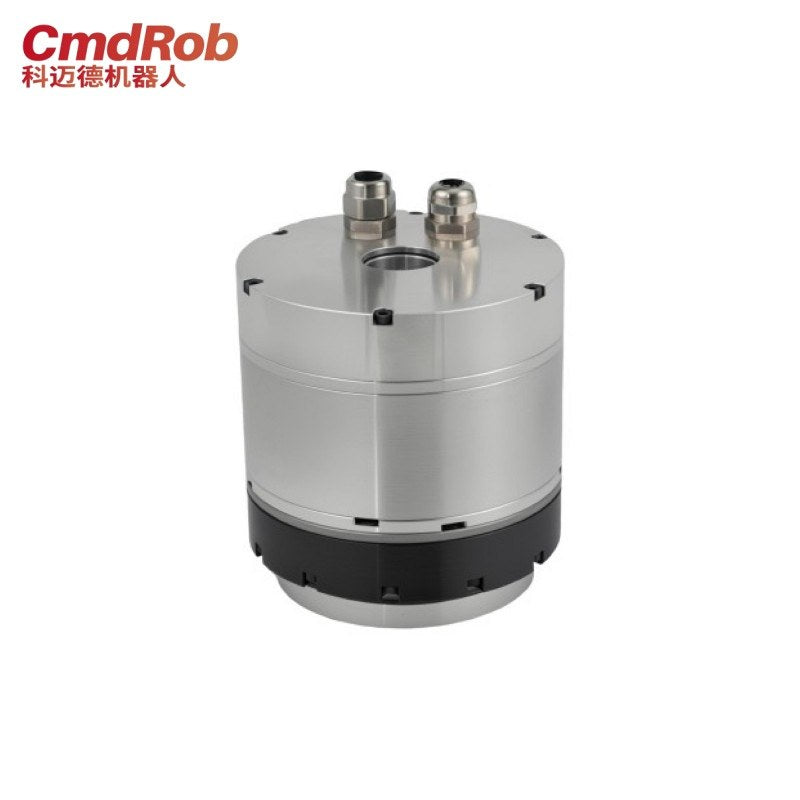

CmdRob M110 Motor

$770.00
Version
Reduction Ratio

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Model M110 M110 M110 M110
Reduction Ratio 51 81 101 121
Input Voltage 220 (±10%)V 220 (±10%)V 220 (±10%)V 220 (±10%)V
Ultimate Torque 242N.m 332N.m 369N.m 395N.m

24.69kgf.m  33.88kgf.m  37.65kgf.m  40.30kgf.m
Average Load Torque 72N.m 113N.m 140N.m 140N.m

7.34kgf.m  11.5kgf.m  14.29kgf.m  14.29kgf.m
Start-Stop Peak Torque 127N.m 178N.m 204N.m 217N.m
12.95kgf.m  18.16kgf.m  20.82kgf.m  22.14kgf.m
Maximum Speed 110r/min 70r/min 56r/min 47r/min
Rated Speed 60r/min 37r/min 30r/min 25r/min
Motor Torque Constant 0.44N·m/A 0.44N·m/A 0.44N·m/A 0.44N·m/A


0.045kgf·m/A 0.045kgf·m/A 0.045kgf·m/A 0.045kgf·m/A
Maximum Current 8.15A 7.19A 6.61A 5.87A
Allowable Continuous Current 4.62A 4.57A 4.54A 5.87A
Back EMF Constant 27.51V/krpm 27.51V/krpm 27.51V/krpm 27.51V/krpm
Phase Resistance (20°C) 0.51Ω 0.51Ω 0.51Ω 0.51Ω
Phase Inductance 1.75mH 1.75mH 1.75mH 1.75mH
Moment of Inertia 280(kg·mm²) 280(kg·mm²) 280(kg·mm²) 280(kg·mm²)

280*10^-4(kgf·cm·s²) 280*10^-4(kgf·cm·s²) 280*10^-4(kgf·cm·s²) 280*10^-4(kgf·cm·s²)
Repeatable Positioning Accuracy<sup>(1)</sup> 20arc-sec 20arc-sec 20arc-sec 20arc-sec
Positioning Accuracy<sup>(2)</sup> 60arc-sec 60arc-sec 60arc-sec 60arc-sec
Encoder Communication Protocol BISS / TAMAGAWA BISS / TAMAGAWA BISS / TAMAGAWA BISS / TAMAGAWA
Encoder Communication Interface BISS-C / TAMAGAWA BISS-C / TAMAGAWA BISS-C / TAMAGAWA BISS-C / TAMAGAWA
Encoder Resolution(Single-turn) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev) 17-bit (131,072 pulses/rev)
Encoder Resolution(Multi-turn) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs) 16-bit (-32,768 to +32,767 revs)
Output Shaft Resolution 6,684,672pulses/rev 10,616,832pulses/rev 13,238,272pulses/rev 15,859,712pulses/rev
Mass 3.5 KG 3.5 KG 3.5 KG 3.5 KG
Ambient Environmental Conditions



Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m



 Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m 		Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m		 Operating Temperature: 0 to 40 °C / Storage Temperature: -20 to 60 °C
Operating/Storage Humidity: 20 to 80%RH (non-condensing)
Vibration Resistance: 25 m/s² (Frequency: 10 to 400 Hz)
Shock Resistance: 300 m/s²
Environment: Free from dust, metal powder, corrosive gases, flammable gases, oil mist, etc.
Usage: Indoor use, avoid direct sunlight
Altitude: Below 1000 m
Design Life（H） 10000 15000 15000 15000

Motor Insulation

 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)		 Insulation Resistance: 500 MΩ or more (at DC 500 V)
Dielectric Strength: AC 1500 V / 1 min
Insulation Class: Class F (155°C)

Mounting Orientation

 Omnidirectional Mounting Omnidirectional Mounting Omnidirectional Mounting Omnidirectional Mounting

Model

 M110 M110 M110 M110

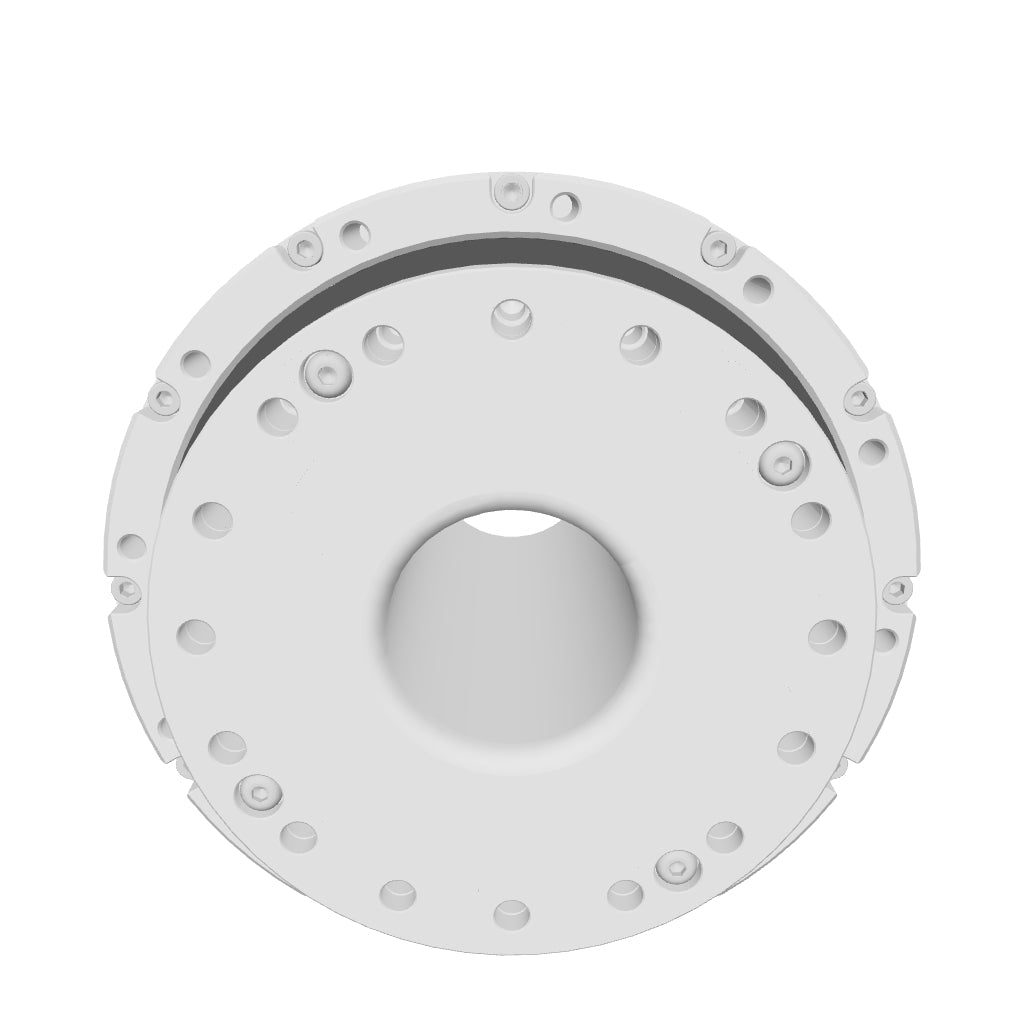

CmdRob-M110-D-XXX-BF-C00-2D-Drawing.pdf

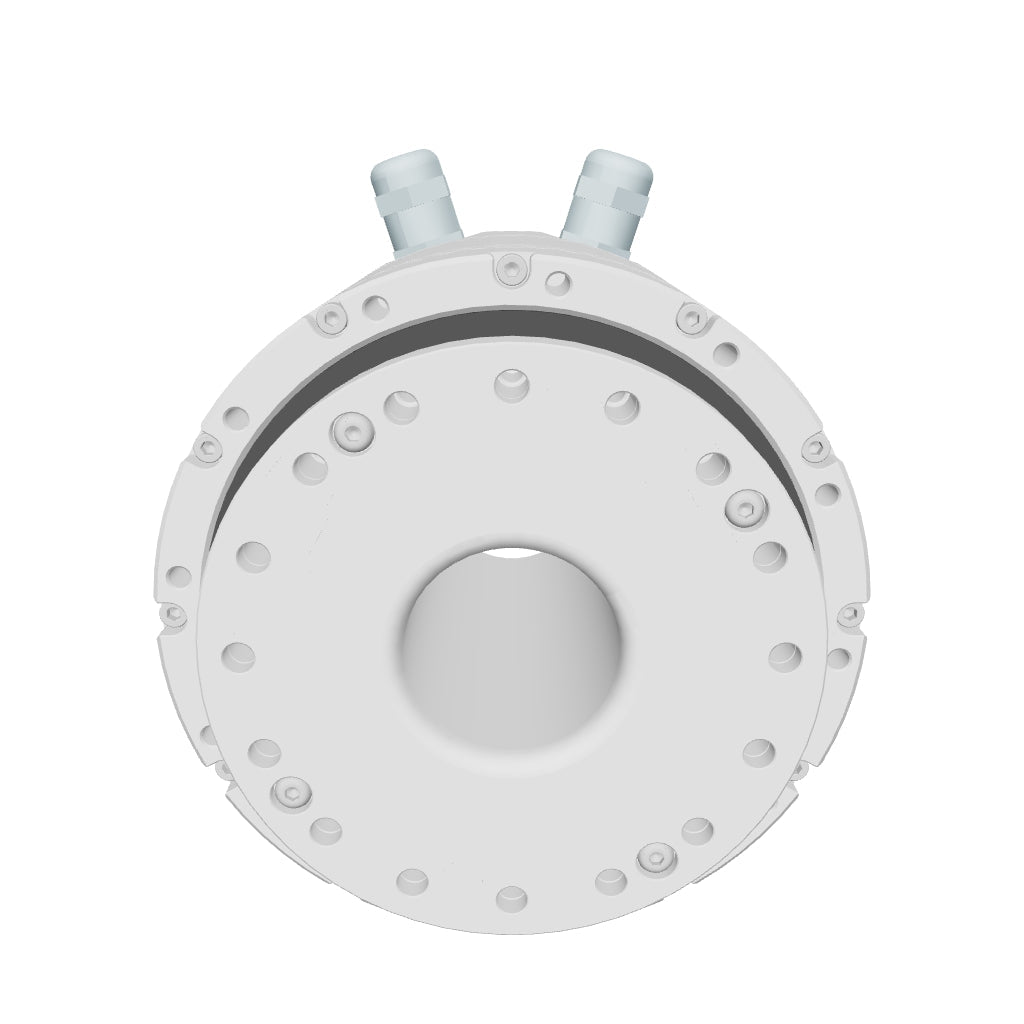

CmdRob-M110-D-XXX-BS-C00-2D-Drawing.pdf
CmdRob-M110-D-XXX-BS-C00.stp
CmdRob-M110-D-XXX-BF-C00.stp
