XGRIDS | SKU:

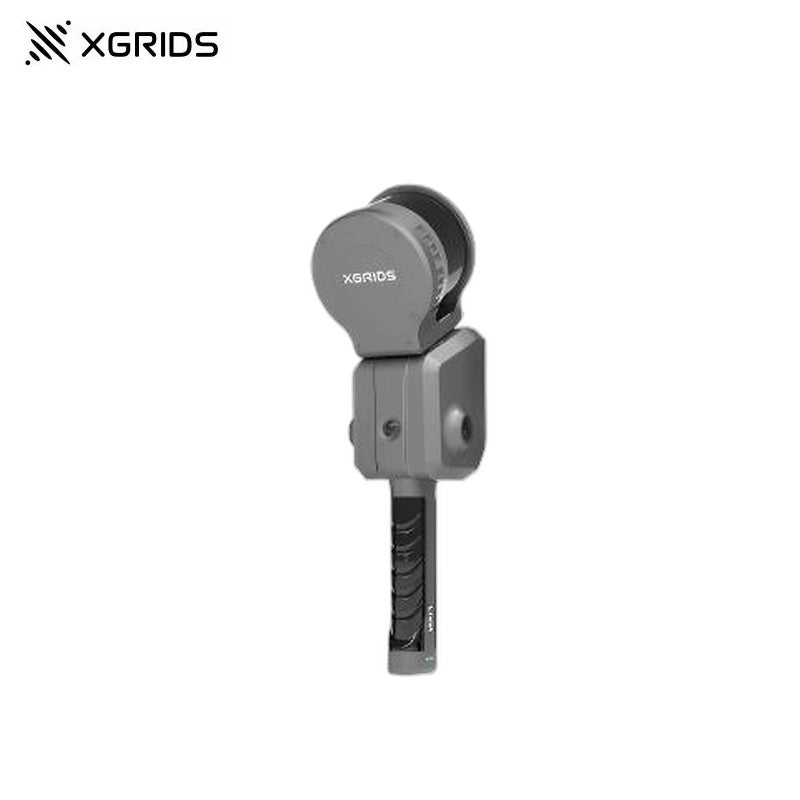

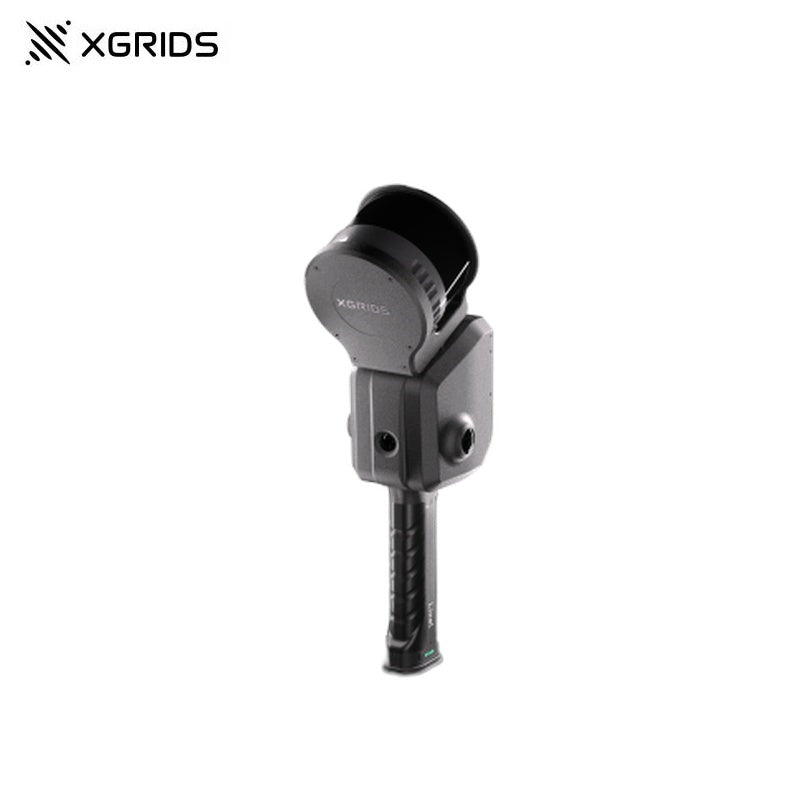

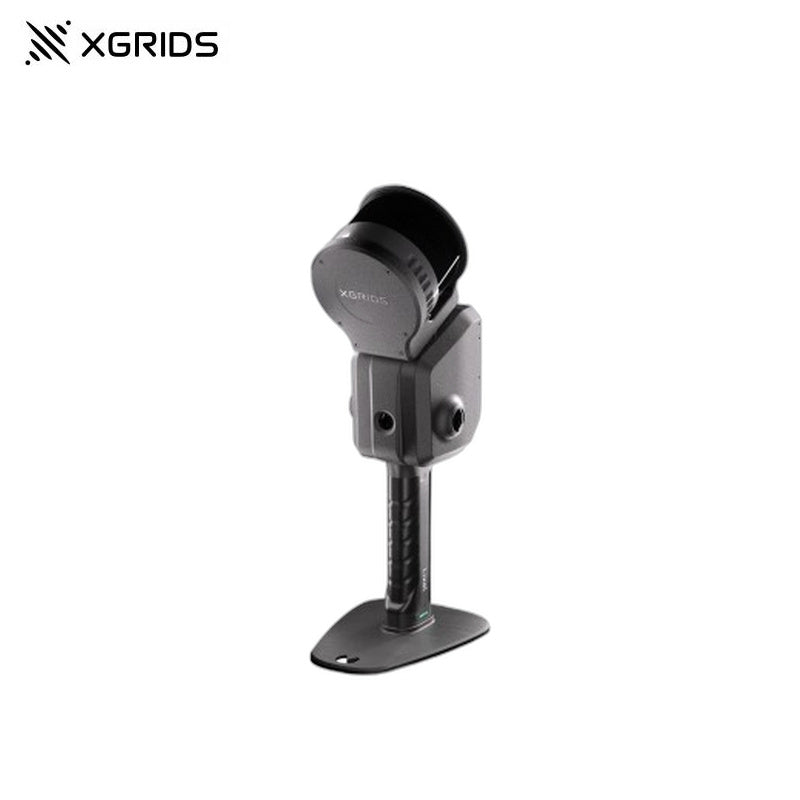

XGRIDS Lixel L2 Pro LiDAR
Regular price
$35,000.00
Unit price
XGRIDS Lixel L2 Pro LiDAR - Lixel L2 Pro (16 Channels) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
XGRIDS Lixel L2 Pro LiDAR
Regular price
$35,000.00
Unit price
XGRIDS Lixel L2 Pro LiDAR - Lixel L2 Pro (16 Channels) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Handheld Unit Weight | 1.7kg (without battery) |
| Dimensions | 180mm × 130mm × 400mm |
| Outer Casing | Industrial-grade Aluminium |
| Power Consumption | <30W |
| Data Interface | USB 3.1 Gen2 |
| Storage | 1T SSD |
| Operating Time | 1.5h |
| Wireless Module | Supports WiFi, Bluetooth: 802.11a/b/g/n/ac, 2.4G (2412-2472MHz), 5G2 (5180-5240MHz), 5G8 (5745-5825MHz) |
| Operating Temperature | -20℃ ~ 50℃ |
| IP Rating | IP54 |
| Visual SLAM Positioning | Supported |
| Real-time Colored Point Cloud | Supported |
| Real-time RTK fusion | Supported |
| Point Cloud Format | .las |
| Image Formats | jpg |
| Absolute Accuracy - Elevation (RMSE) | 3cm |
| Absolute Accuracy - Horizontal (RMSE) | 3cm |
| Relative Accuracy (RMSE) | 1cm |
| Repeatability (max) | 2cm |
| Point Cloud Thickness | 0.5cm |
| Horizontal Accuracy (RTK/Controlpoint Fusion) | 0.015° |
| LixelUpSample | Supported |
| Scanning Range | 0.5m ~ 120m / 0.5m ~ 300m |
| Laser Class | Class 1 / 905nm |
| Field of View (FOV) - LiDAR | 360° × 270° |
| Scan Rate | 320,000 points/s / 640,000 points/s |
| Camera Resolution | 2 × 48MP |
| Panoramic Image Resolution | Max 56MP |
| Focal Length (Panoramic) | 2mm |
| Aperture | F/2.0 |
| CMOS Sensor Size | 1/2" |
| Shutter Type (Panoramic) | Rolling shutter |
| Field of View(FOV) | 190° × 190° |
| Resolution (Camera for Visual Positioning) | 1 × 1MP |
| Shutter (Camera for Visual Positioning) | Global shutter |
| FOV (Camera for Visual Positioning) | 190° × 119° |
| Voltage | 14.4V |
| Battery Capacity | 46.8Wh |
| Input | 100V~240V, 50~60Hz, 1.5A, 80VA |
| Output | 16.8V, 2.0A |
| Power | 34W |
| Backpack (Scanning System) | Dimensions: 60cm×60cm×15cm, Weight: 2.5kg |
| Backpack | Dimensions: 55cm×35cm×25cm, Weight: 2.7kg |
| Standard RTK+ bracket - Supported channels | GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6b |
| Standard RTK+ bracket - Accuracy | Horizontal: 0.8 cm + 1 ppm, Elevation: 1.5 cm + 1 ppm |
| Standard RTK+ bracket - Antenna | Impedance: 50Ω, Polarization: right-handed circular, Horizontal coverage: 360°, Output standing wave ≤2.0, Gain: 2.8dBi |
| Surveying RTK+ bracket - Supported channels | GPS L1/L2/L5, GLONASS L1/L2, BDS B1/B2/B3, Galileo E1/E5a/E5b/E6b |
| Surveying RTK+ bracket - Accuracy | Horizontal: 0.8 cm + 1 ppm, Elevation: 1.5 cm + 1 ppm |
| Surveying RTK+ bracket - Antenna | Impedance: 50Ω, Polarization: right-handed circular, Axial ratio: ≤3dB, Horizontal coverage: 360°, Output standing wave ≤2.0, Gain: 5.5dBi |
| 2m Extension Pole | Supported |
| Phone Mount | Supported |
| GCP Collection Base | Supported |
| Shipping case | Dimension: 42cm×34cm×18cm, Weight with System: 6.6kg |
