TTBOT | SKU:

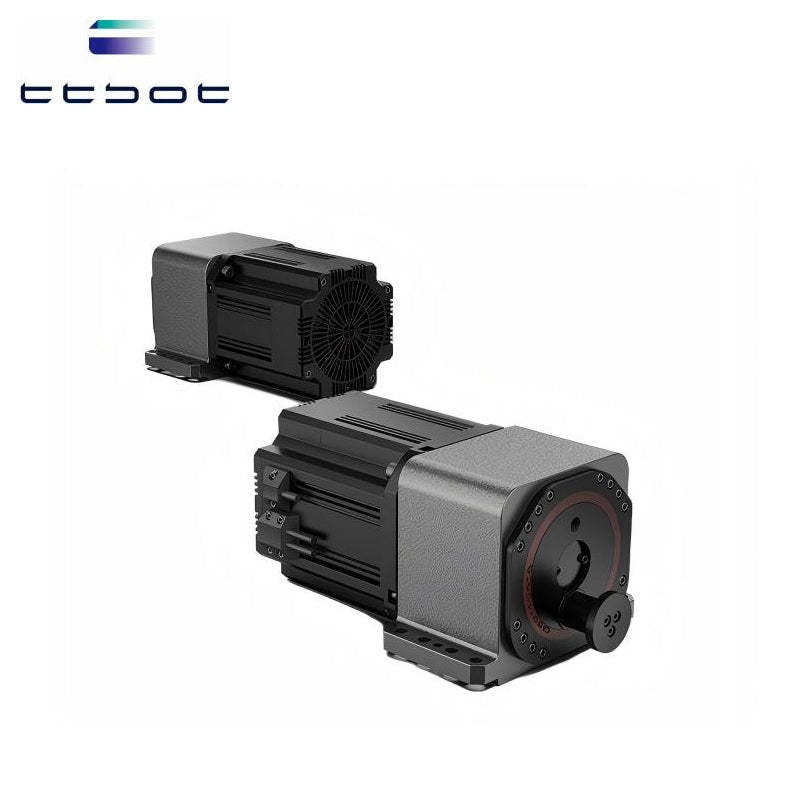

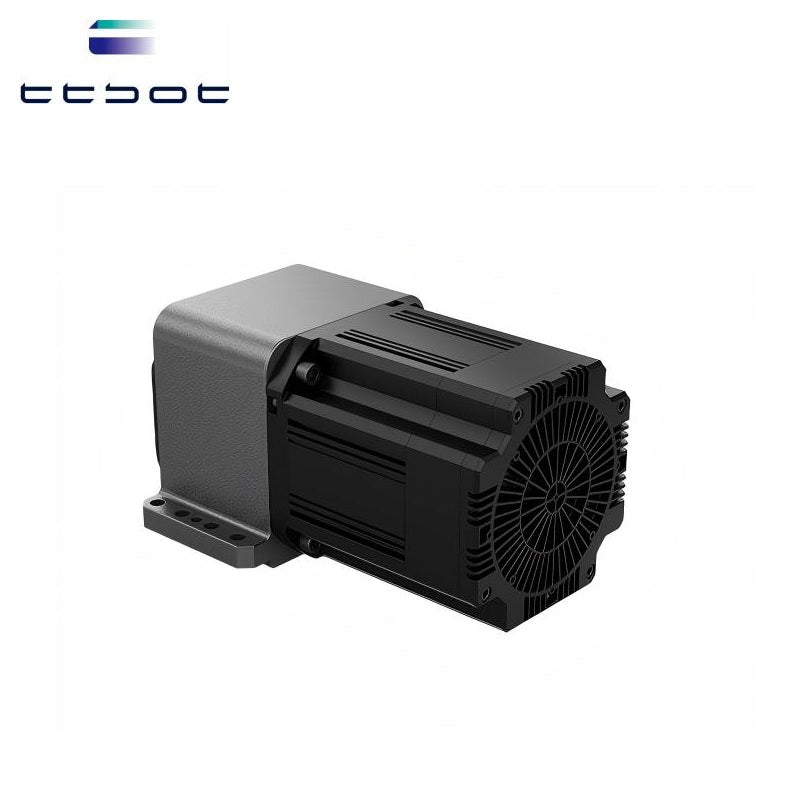

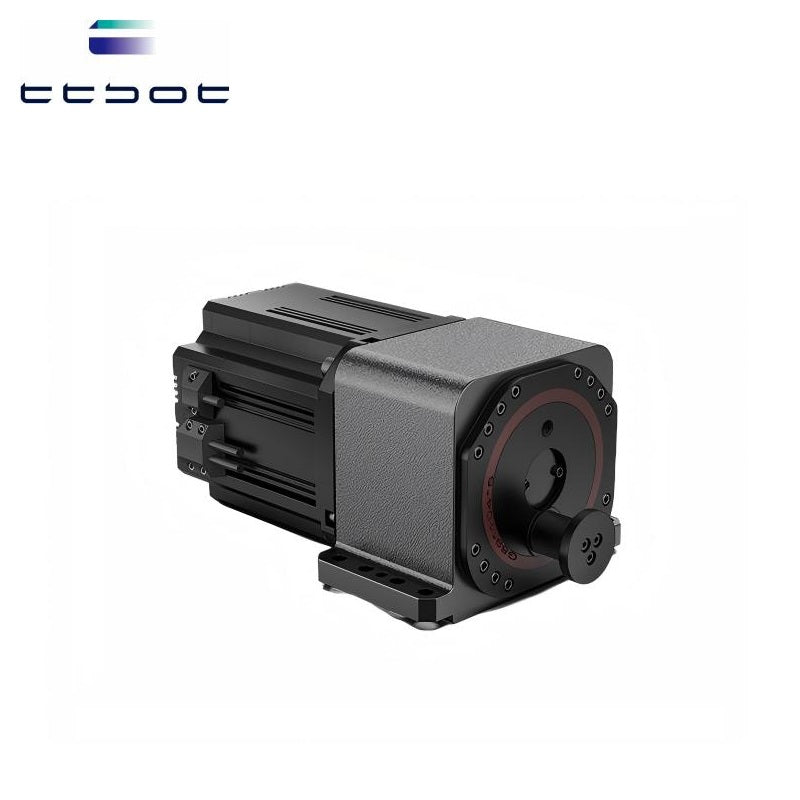

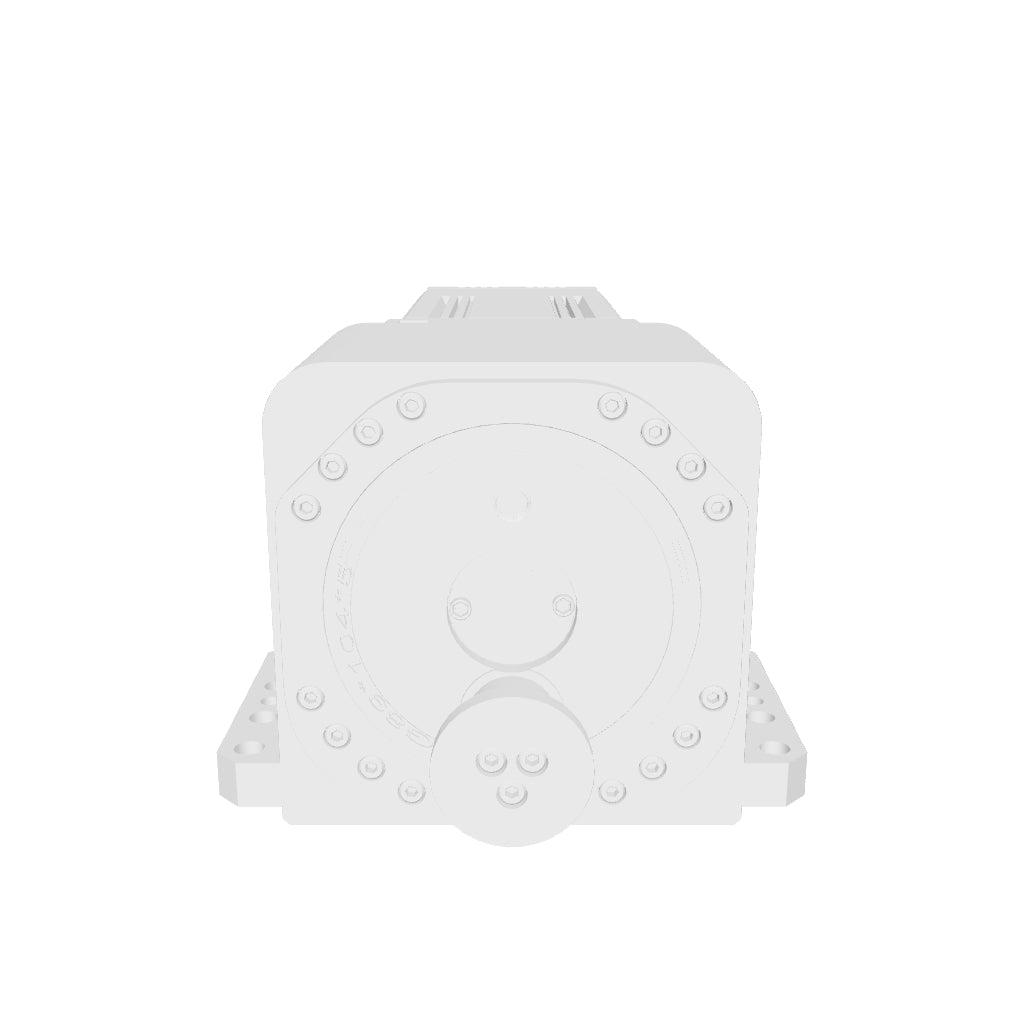

TTBOT D45B Motor
Regular price
$1,105.00
Unit price
Unavailable
TTBOT D45B Motor - D45B is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
TTBOT D45B Motor
Regular price
$1,105.00
Unit price
Unavailable
TTBOT D45B Motor - D45B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Module Model | D45B |
| Supply Voltage | 48VDC |
| Rated Torque | 350N.m |
| Starting Torque | 590N.m |
| Peak Torque | 590N.m |
| Rated Speed | 20rpm |
| Peak Speed | 30rpm |
| Communication | CAN |
| Encoder | 15-bit single-turn absolute |
| Protection Grade | IP6X |
| Operating Noise | ≤65dBA(@1m 20rpm) |
| Weight | 17.9kg |
| Operating Temperature | 0~40℃ |
| Motor Rated Current | 34.8Arms |
| Motor Peak Current | 80Arms |
| Motor Rated Speed | 2000rpm |
| Motor Rated Torque | 5N.m |
| Back EMF Constant | 10.6Vrms/Krpm |
| Torque Coefficient | 0.163N.m/Arms |
| Motor Rotor Inertia | 10.5×10⁻⁴kg.m² |
| Insulation Class | B |
| Reduction Ratio | 1:100 |
| Allowable Dynamic Load | 29.7KN |
| Allowable Static Load | 31.9KN |
| Backlash | ≤1arcmin |
| Brake Type | Electromagnetic friction disc |
| Brake Holding Torque | ≥8N.m |
| External Brake Release Voltage | 48VDC(Max.5min) |
