Xike Sensor
Sold out

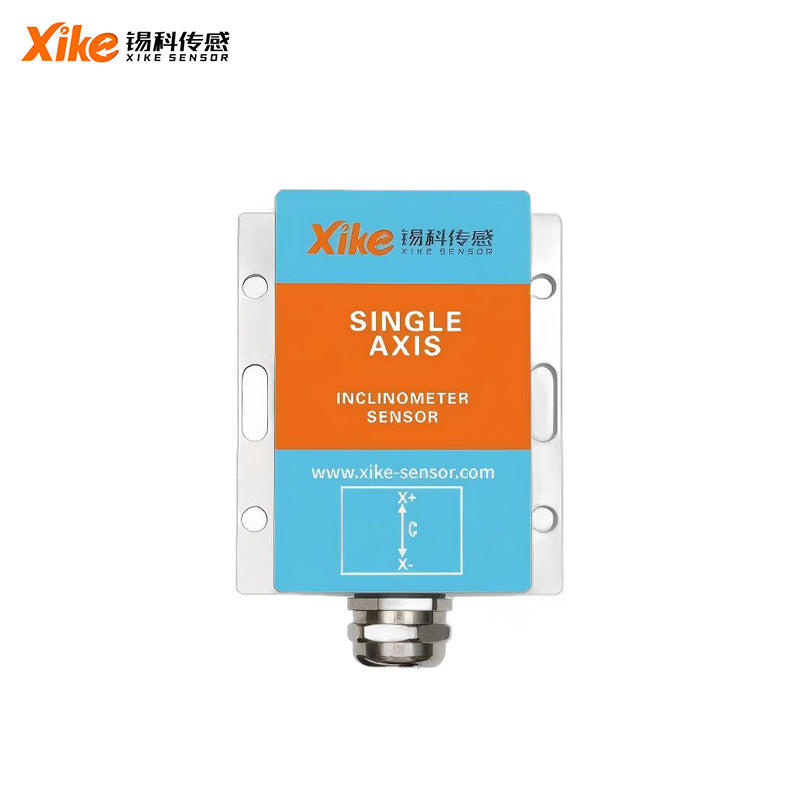

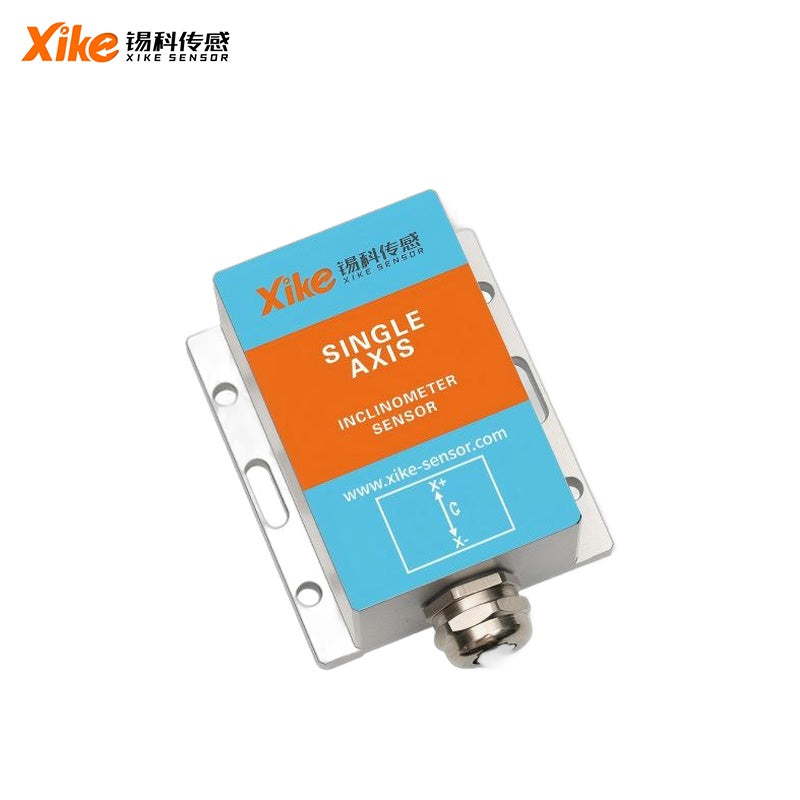

Xike XK480I Sensor

$190.00
Version
Communication
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature Range -40°C ~ +85°C
Storage Temperature Range -55°C ~ +125°C
Protection Class IP67 (IP68 customizable)
Shock Resistance 20000 g, 0.5 ms, 3 times/axis
Vibration Resistance 10 grms, 10~1000 Hz
Insulation Resistance ≥100 MΩ
Weight 150 g (excluding packaging)
Cable 1.5 m standard, wear‑resistant, oil‑resistant, wide‑temperature, shielded signal cable 5×0.2 mm²
Connector Lead wire (1.5 m) or waterproof aviation socket (custom)
Housing Material Aluminum alloy, sandblasted anodized
Mounting Three M4 screws
Supply Voltage 12/24 V (default), 9~35 V range
Operating Current (no load) 35 mA
Load Resistance (Current Output) 400 ~ 1000 Ω (resistive)
Model XK480I
Measurement Range (selectable) ±15°, ±45°, ±75°, ±90°
Measurement Axis X (Y optional)
Zero Temperature Coefficient ±0.006/°C (-40 to +85°C)
Sensitivity Temperature Coefficient ≤100 ppm/°C (-40 to +85°C)
Frequency Response DC response, 100 Hz
Resolution 0.001°
Accuracy 0.01° (±15) / 0.02° (±45) / 0.03° (±75) / 0.05° (±90) at -40~+85°C
Long‑term Stability <0.012° (±15) / <0.025° (±45) / <0.032° (±75) / <0.055° (±90) at -40~+85°C
Power‑on Startup Time 0.15 s
Response Time 0.01 s
Mean Operating Time ≥45,000 hours
Current Output at 0° 4‑20mA: 12mA; 0‑20mA: 10mA; 0‑24mA: 12mA
Output Signal (Current) 4‑20mA, 0‑20mA, 0‑24mA (optional); RS232 default, RS485 optional
