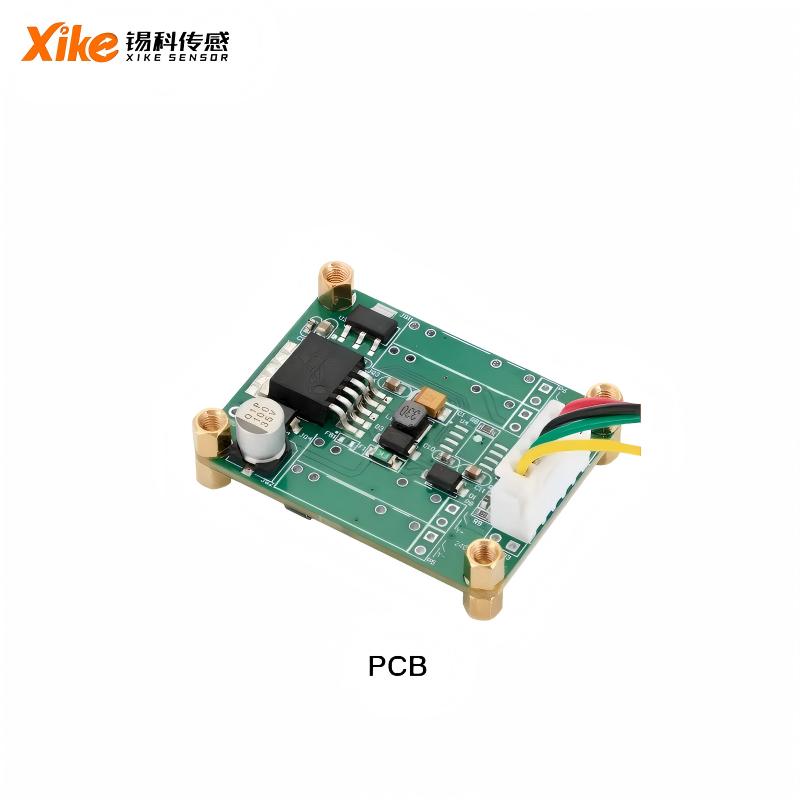

Xike XK360D-77 Sensor

$125.00
Version
Communication
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model XK360D-77
Measurement Range (selectable) ±15°, ±45°, ±75°, ±90°
Measurement Axis X‑axis
Zero Temperature Coefficient ±0.01/°C (-40 to +85°C)
Sensitivity Temperature Coefficient ≤100 ppm/°C (-40 to +85°C)
Frequency Response DC response, 100 Hz
Resolution 0.01°
Accuracy 0.1° (-40 to +85°C)
Long‑term Stability <0.12° (-40 to +85°C)
Power‑on Startup Time 0.15 s
Response Time 0.01 s
Auto Output (Frequency) 5 Hz, 15 Hz, 35 Hz, 50 Hz (settable, RS485 not supported)
Output Signal (Interface) RS232, RS485, RS422, TTL (optional)
Mean Operating Time ≥45,000 hours
Shock Resistance 20000 g, 0.5 ms, 3 times/axis
Vibration Resistance 10 grms, 10~1000 Hz
Insulation Resistance ≥100 MΩ
Protection Class IP67 (IP68 customizable)
Cable 1.5 m standard, wear‑resistant, oil‑resistant, wide‑temperature, shielded signal cable 5×0.2 mm²
Weight 100 g (excluding packaging)
Connector Lead wire (1.5 m) or waterproof aviation socket (custom)
Housing Material Aluminum alloy, sandblasted anodized
Mounting Three M4 screws
Supply Voltage Standard 9~35 V (default 12/24 V), 5 V optional
Operating Current (no load) 35 mA
Operating Temperature Range -40°C ~ +85°C
Storage Temperature Range -55°C ~ +125°C
