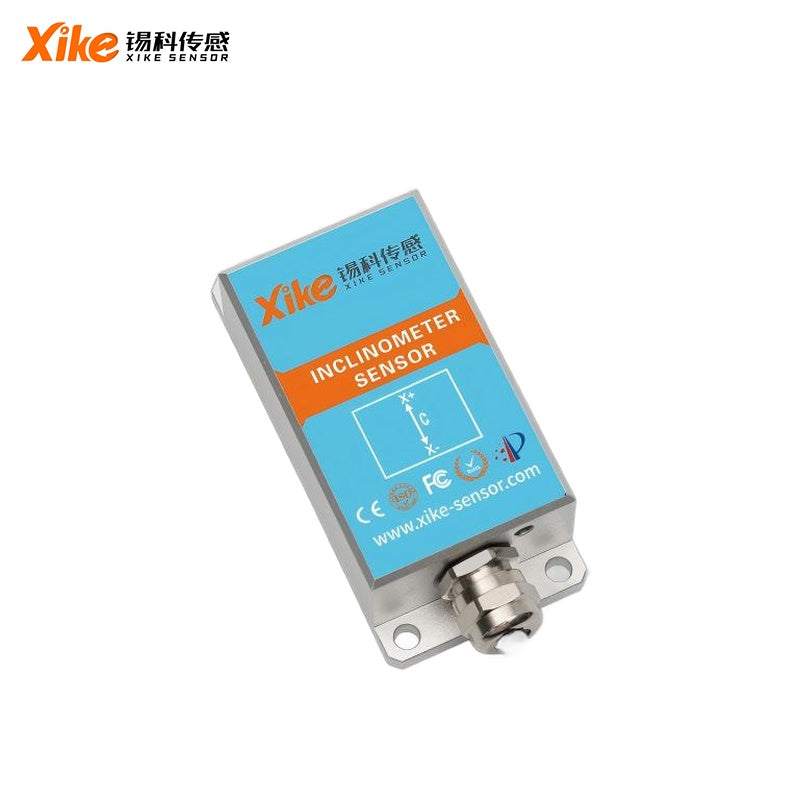

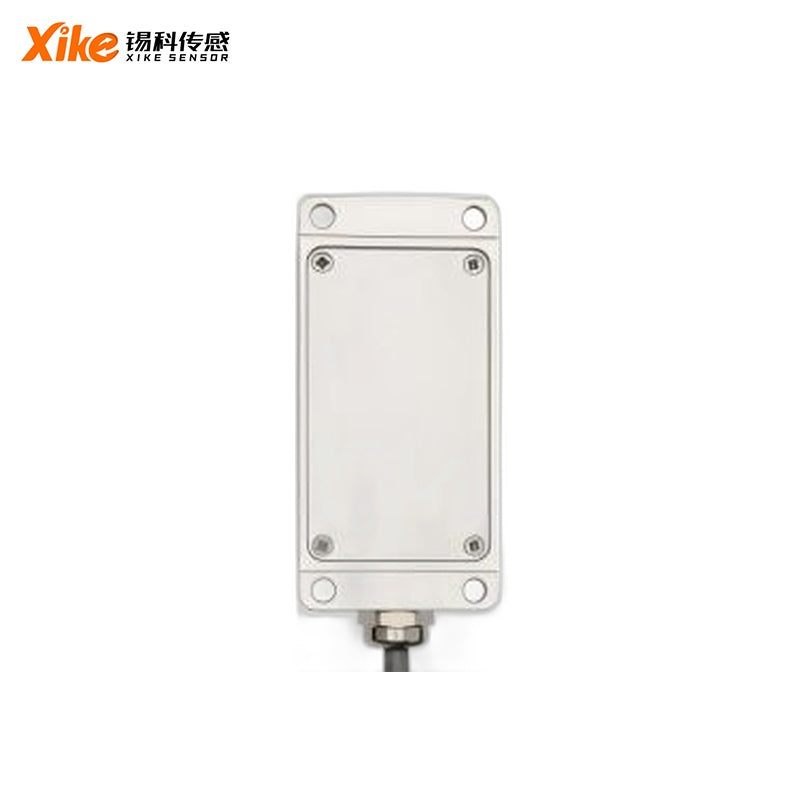

Xike XK233/XK234 Sensor

$65.00
Version
Communication
Output Type

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model XK233 XK234
Operating Temperature Range -40°C ~ +85°C -40°C ~ +85°C
Storage Temperature Range -55°C ~ +125°C -55°C ~ +125°C
Connector Metal connector lead wire (waterproof aviation socket customizable) Metal connector lead wire (waterproof aviation socket customizable)
Protection Class IP67 (IP68 customizable) IP67 (IP68 customizable)
Housing Material Aluminum alloy, sandblasted anodized Aluminum alloy, sandblasted anodized
Mounting Four M4 screws Four M4 screws
Cable 1.5 m, wear‑resistant, oil‑resistant, wide‑temperature, shielded 8×0.3 mm² 1.5 m, wear‑resistant, oil‑resistant, wide‑temperature, shielded 8×0.3 mm²
Weight (excluding packaging) 100 g 100 g
Supply Voltage Standard: 9~35 V (12/24 V typical); Custom: 5 V Standard: 9~35 V (12/24 V typical); Custom: 5 V
Operating Current (No load) 40 mA 40 mA
Measurement Range ±180° ±180°
Measurement Axes Y‑axis optional X‑axis
Alarm Axes Y‑axis optional X‑axis
Accuracy 0.2° (-40 to +85°C) 0.2° (-40 to +85°C)
Long‑term Stability <0.3° (-40 to +85°C) <0.3° (-40 to +85°C)
Power‑on Startup Time 0.2 s 0.2 s
Response Time 0.01 s 0.01 s
Output Signal Relay (normally open/normally closed) output, simultaneous RS232 (default), RS485 optional Switching (voltage) output, simultaneous RS232 (default), RS485 optional
Mean Operating Time ≥45,000 hours ≥45,000 hours
Shock Resistance 3000 g, 0.5 ms, 3 times/axis 3000 g, 0.5 ms, 3 times/axis
Vibration Resistance 10 grms, 10~1000 Hz 10 grms, 10~1000 Hz
Insulation Resistance ≥100 MΩ ≥100 MΩ
