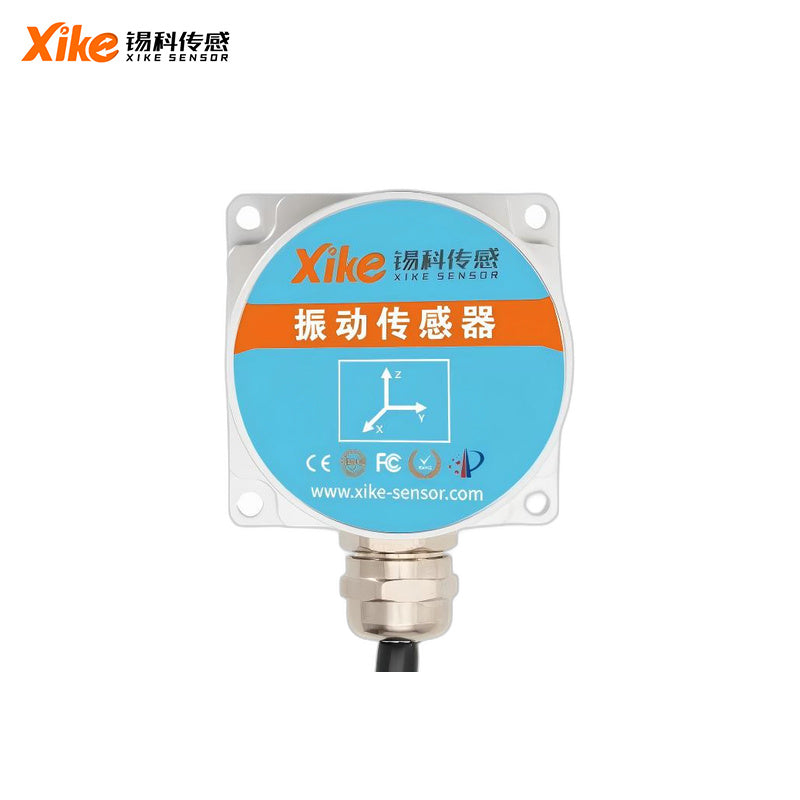

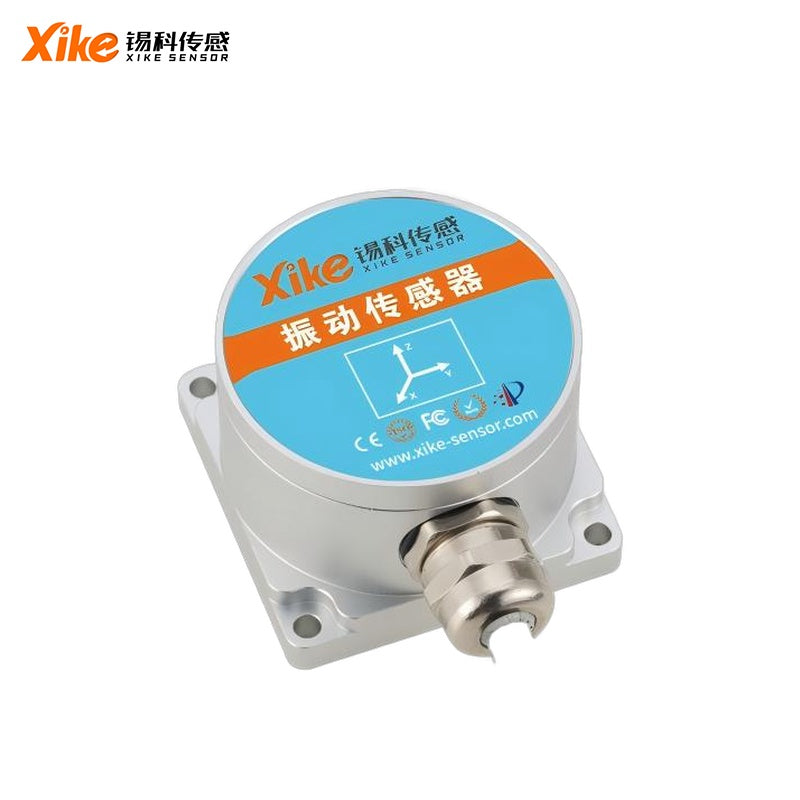

Xike GXK735D Sensor

$500.00
Version
Communication

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Temperature Range -40°C ~ +85°C
Storage Temperature Range -55°C ~ +125°C
Connector Lead wire (1.5 m) or waterproof aviation socket (custom)
Protection Class IP67
Housing Material Aluminum alloy, sandblasted anodized

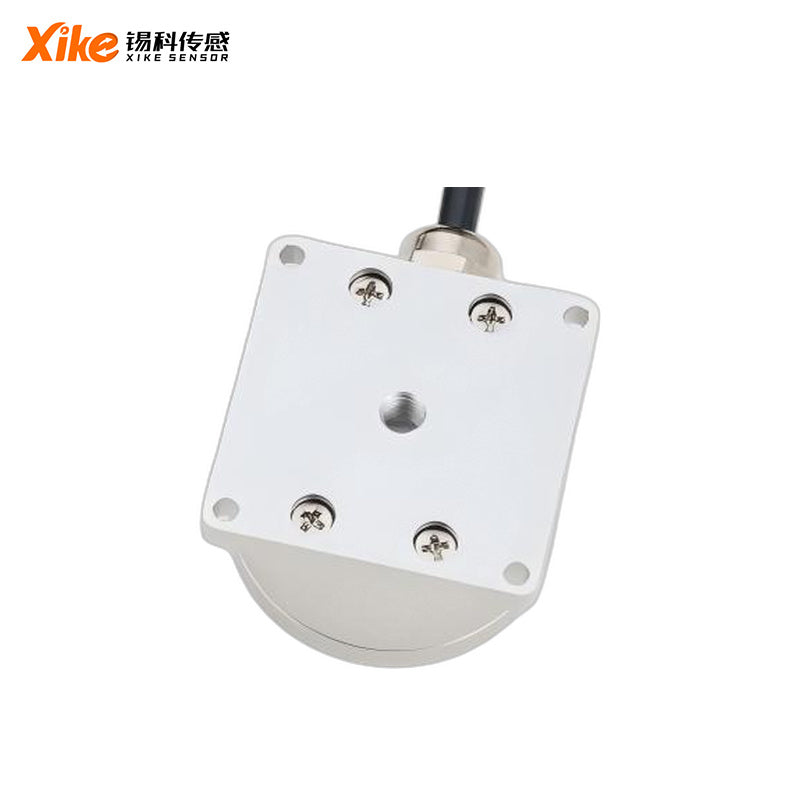

Mounting Four M4 screws
Cable 1.5 m, wear‑resistant, oil‑resistant, wide‑temperature, shielded 5×0.2 mm²
Weight (excluding packaging) 60 g
Supply Voltage Standard: 9~35 V (12/24 V typical); Optional: 5 V
Operating Current (No load) 45 mA
Measurement Axes X, Y, Z
Vibration Velocity Range 0~50 mm/s
Vibration Angle Range 0~180°
Vibration Amplitude (Displacement) Range 30 mm
Vibration Frequency Range 1~100 Hz
Vibration Velocity Accuracy 1 mm/s
Vibration Angle Accuracy 0.001°/s
Vibration Amplitude (Displacement) Accuracy 0.001 mm
Vibration Frequency Accuracy 1 Hz
Bandwidth 400 Hz (‑3 dB)
Detection Cycle <100 Hz
Cutoff Frequency <100 Hz
Automatic Output Rate 5 Hz, 15 Hz, 35 Hz, 50 Hz settable (RS485 not supported)
Output Signal RS232, RS485, RS422, TTL optional
Mean Time Between Failures ≥45,000 hours
Shock Resistance 20000 g, 2 ms, 1/2 sine
Vibration Resistance 10 grms, 10~1000 Hz
Waterproof Rating IP67
