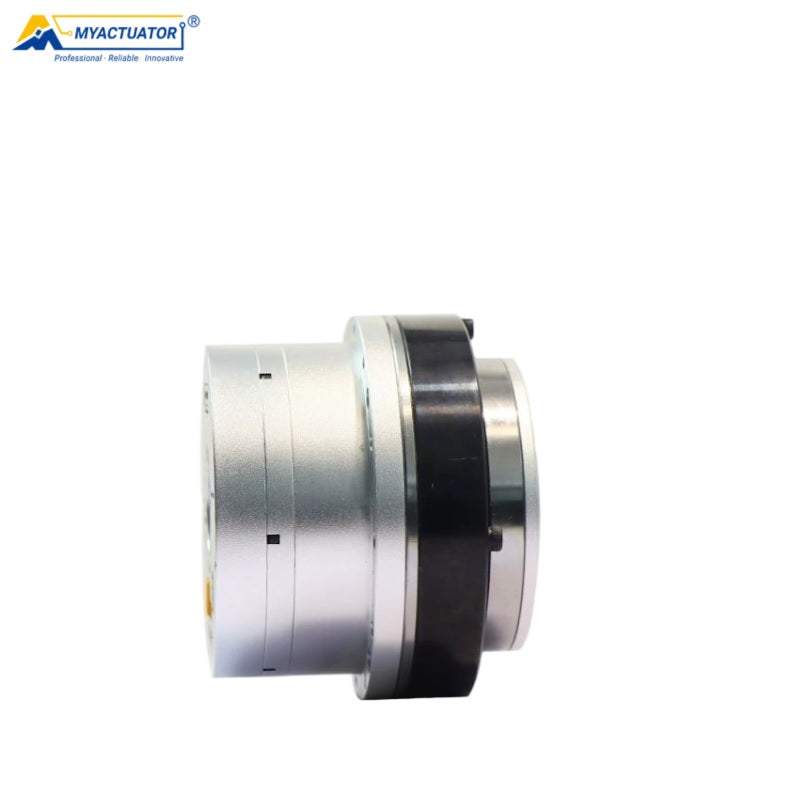

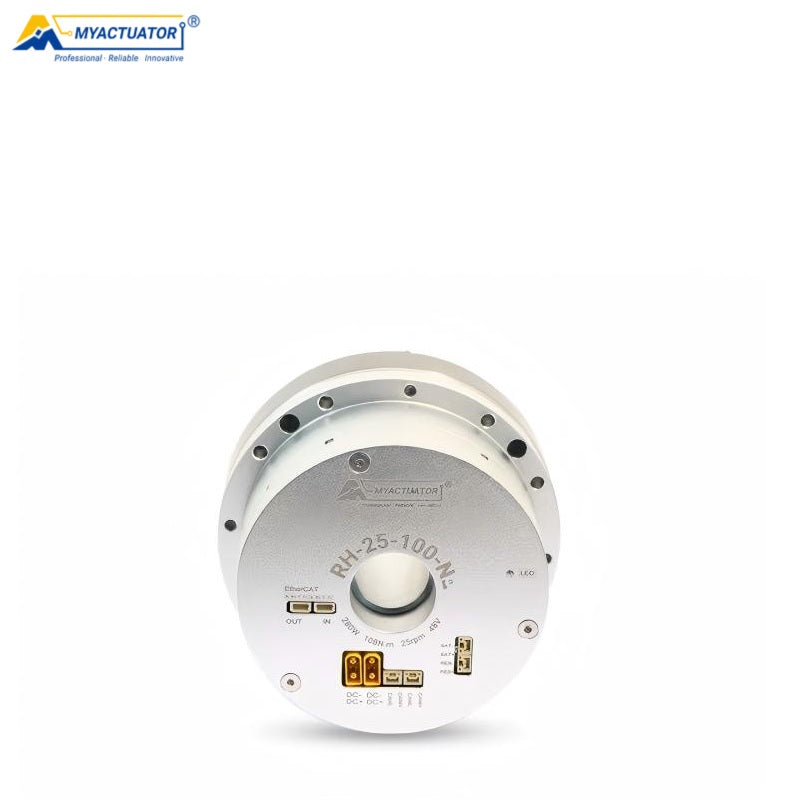

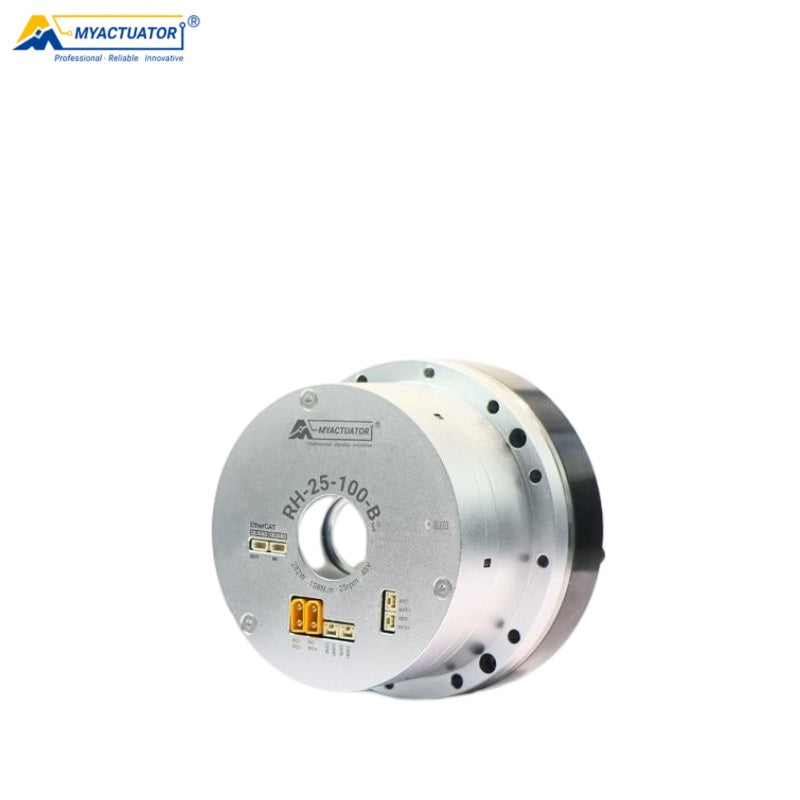

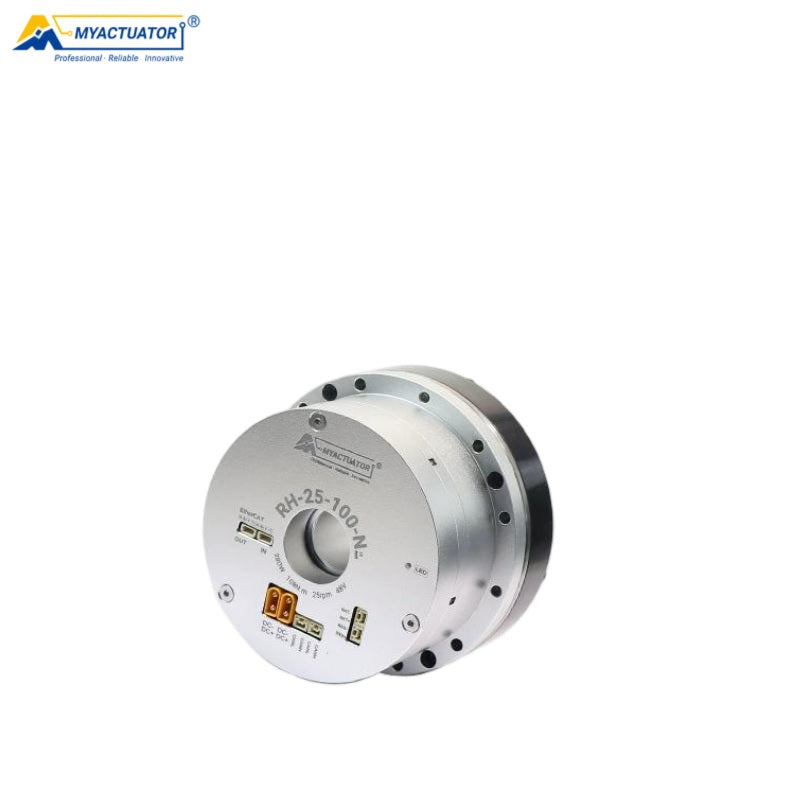

MyActuator RH-25 Motor
Sale price
$913.00
Regular price
$1,075.00
Unit price
/
Unavailable

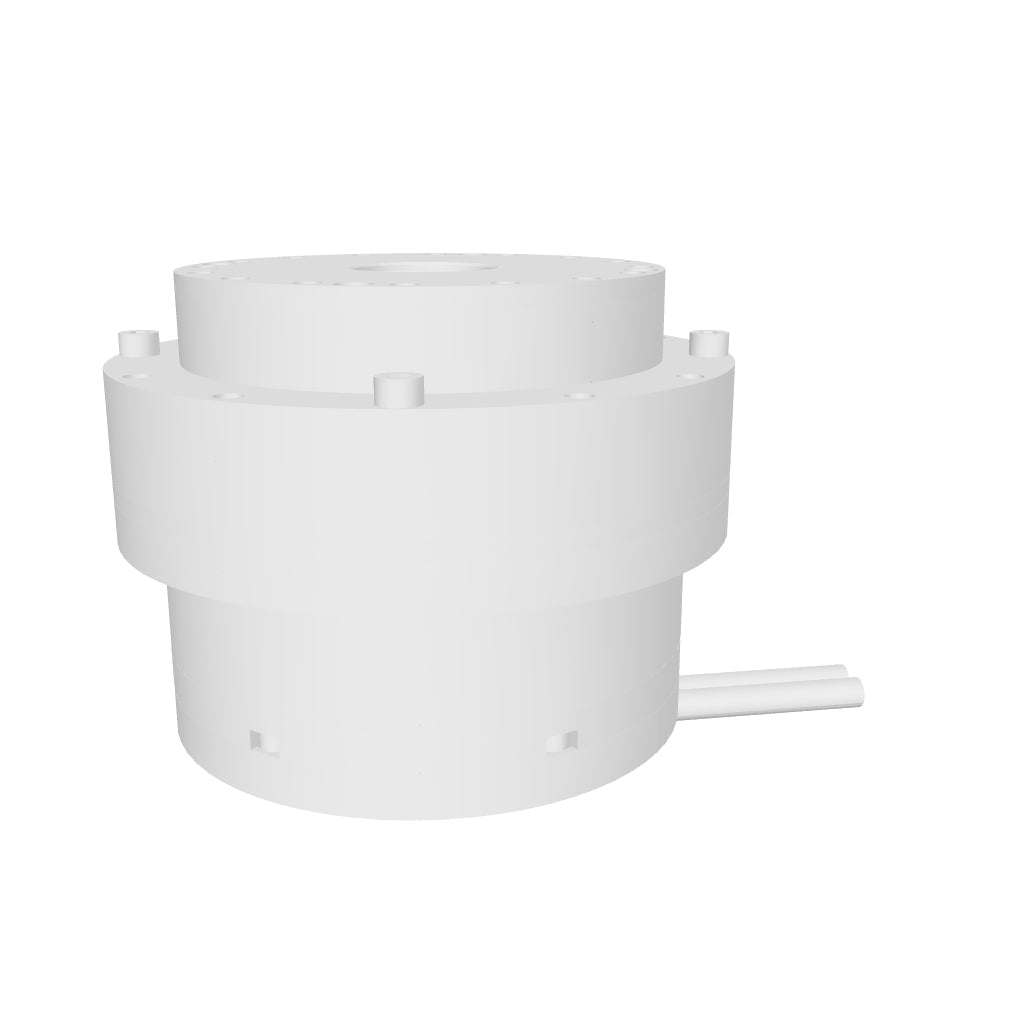

MyActuator RH-25 Motor - RH-25-100 (RS485+Single Encoder) / Without Brake is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
MyActuator RH-25 Motor
Sale price
From
$913.00
Regular price
$1,075.00
Unit price
/
Unavailable
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Gear Ratio | 100 |
| Input Voltage | 48V |
| No Load Speed | 30RPM |
| No-Load Input Current | 2A |
| Rated Speed | 25RPM |
| Rated Torque | 108N.m |
| Rated Output Power |
282W |
| Rated Phase Current |
10.6A(rms) |
| Peak Torque | 157N.m |
| Peak Phase Current | 14.1A(rms) |
| Motor Back-EMF Constant |
19.2Vdc/Krpm |
| Module Torque Constant | 10.1N.m/A |
| Motor Phase Resistance | 0.16Ω |
| Motor Phase Inductance | 0.33mH |
| Pole Pair | 10 |
| 3 Phase Connection | Y |
| Backlash | <40 Arcsec |
| Radial Load Static load |
35.8KN |
| Radial Load Dynamic load | 21.8KN |
| Axial Load Static load | 198.2KN |
| Axial Load Dynamic load | 49.1KN |
| Inertia N |
1.94Kg.cm² |
| Encoder Type | Dual Encoder ABS-17BIT(Input) | ABS-17BIT(Output) |
| Repeat Position Accuracy | <0.01Degree |
| Communication | CAN BUS/EtherCAT |
| Weight N | 2.42Kg |
| Insulation Grade | F |

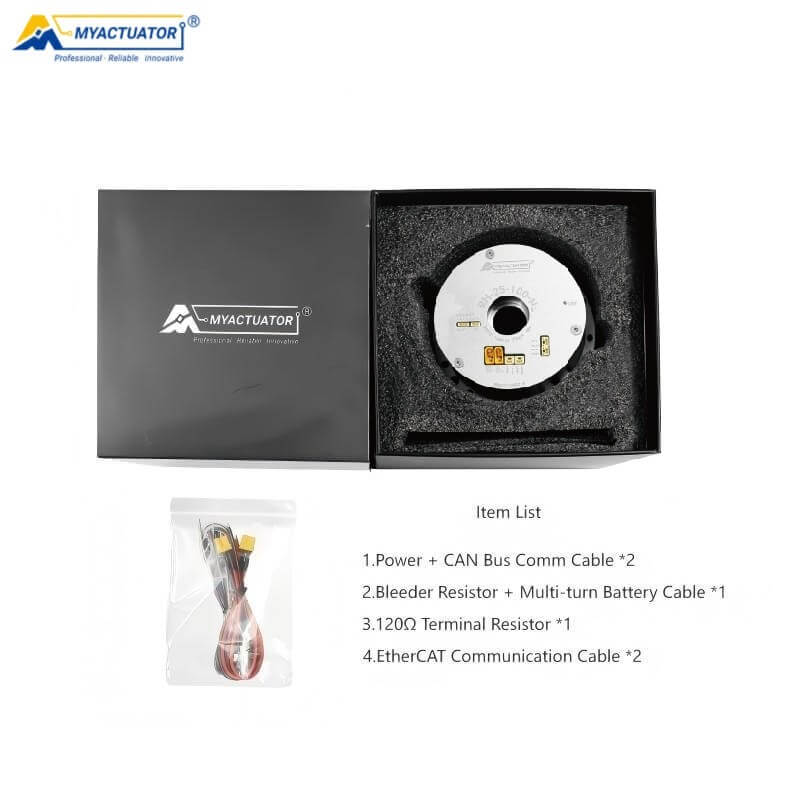

RH-25_Accessories.pdf
