Rion Tech

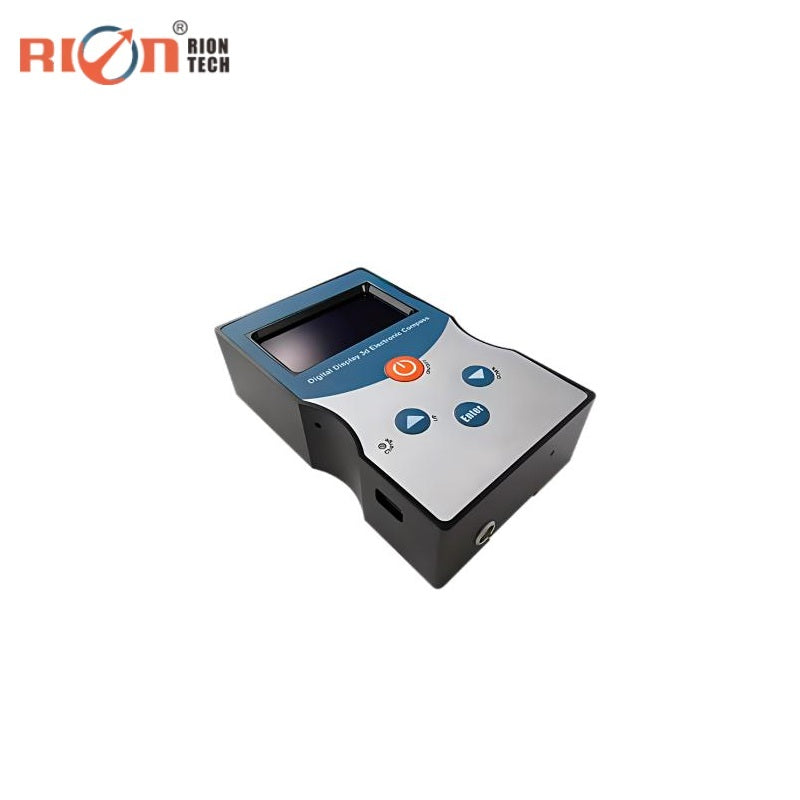

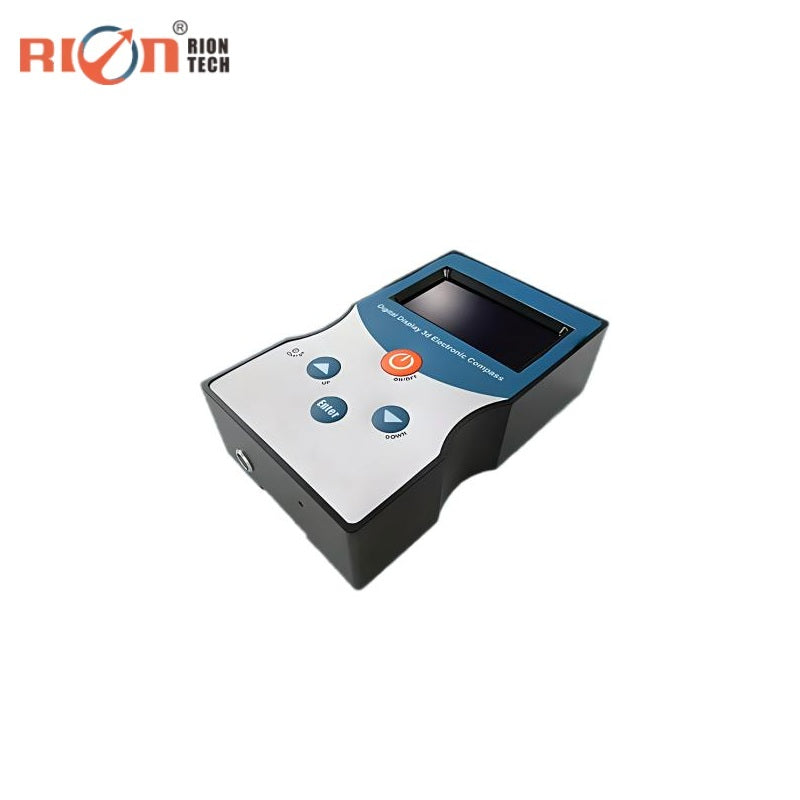

Rion Tech SDC620B-N 3D Electronic Compass

$955.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Compass Heading Parameters:
Heading Angle Accuracy 0.3°~0.5°
Measurement Range 360°
Resolution 0.1°
Repeatability 0.1°
Roll Angle Accuracy (≤60° measurement range) 0.1°
Roll Angle Accuracy (≤180° measurement range) 0.2°
Roll Angle Measurement Range ±180°
Roll Angle Resolution 0.1°
Pitch Angle Accuracy (≤60° measurement range) 0.1°
Pitch Angle Accuracy (≤85° measurement range) 0.2°
Pitch Angle Measurement Range ±85°
Calibration:
Hard Iron Calibration Yes
Soft Iron Calibration Yes
Interface Characteristics:
Start-up Delay <50ms
Maximum Sampling Rate 20Hz/s
Communication Baud Rate 9600 baud
Output Protocol Ruifen 68 Protocol
Power Supply:
Supported Voltage Built-in 3.7V Rechargeable Li-ion Battery
Operating Current (Typical) 50mA
Charging Current (Fast Mode) 1.75A, ~4 hours full charge
Charging Current (Normal Mode) 0.5A, ~12 hours full charge
Environmental Characteristics:
Operating Temperature -20℃ ~ +70℃
Storage Temperature -20℃ ~ +70℃
Vibration Resistance 3000g
Physical Characteristics:
Connector 4-PIN Remo Aerial Plug
Cable Standard 1m Cable
Dimensions 137.3×83×37mm
Weight ≤520g (excluding cable)
