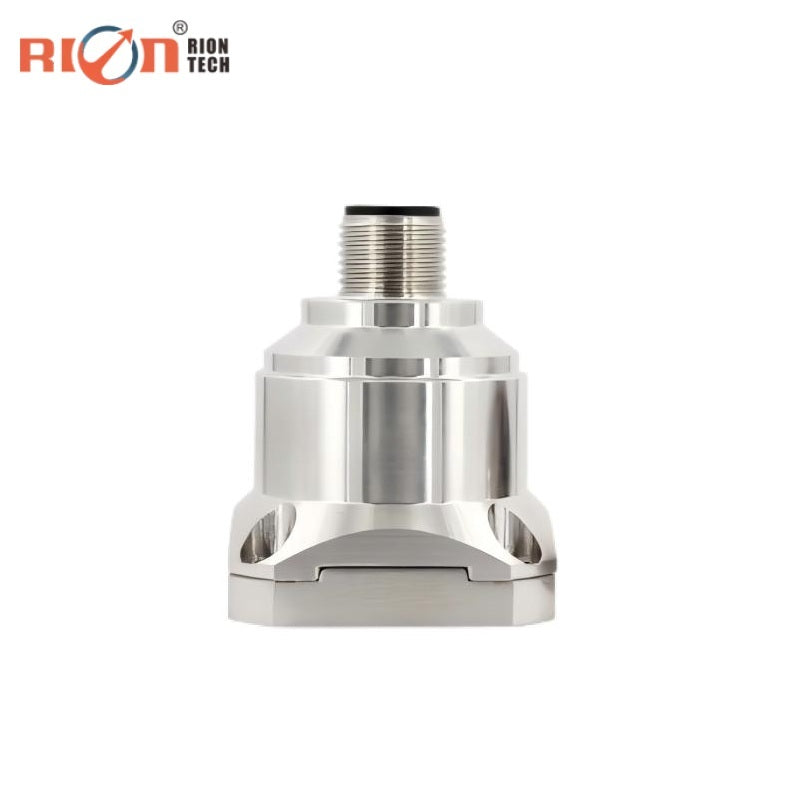

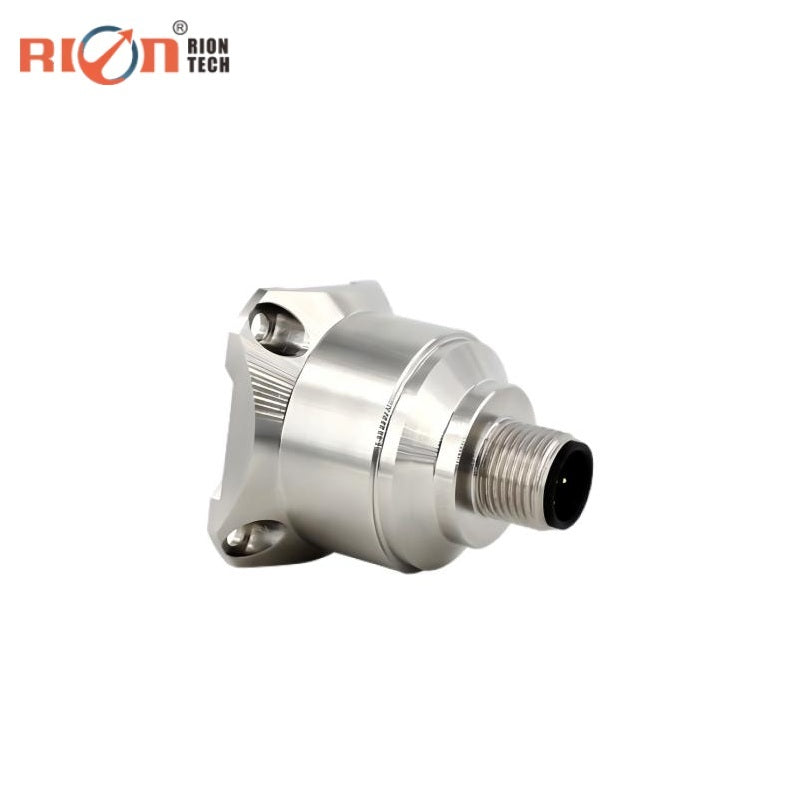

Rion Tech AKF392 MEMS Digital Accelerometer

$380.00
Version
Installation Method
Range

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Basic Specifications:
Range +/-2g, +/-4g, +/-8g, +/-10g, +/-20g, +/-40g
Measurement Axis X, Y, Z axis
Reliability MIL-HDBK-217, Level 2
Precision & Dynamic Performance:
Bias Calibration < 1 mg
Power On/Off Repeatability < 2 mg (max)
Bias Temperature Coefficient 0.01 %/deg C
Resolution/Threshold @1Hz < 1 mg (max)
Non-linearity < 1 %FS (max)
Bandwidth (3dB) 500 Hz
Cross-axis Sensitivity 1% (for +/-2/4/8g), 2% (for +/-10/20/40g)
Transverse Vibration Sensitivity Ratio 1% (for +/-2/4g), 2% (for +/-8g), 5% (for +/-10/20/40g)
Resonance Frequency 2.4 kHz (for +/-2/4/8g), 5.5 kHz (for +/-10/20/40g)
Shock Resistance 100g @ 11ms, Triaxial (Half-sine)
Recovery Time < 1ms (1000g, 1/2 sine 1ms)
Vibration 20g rms, 20~2000Hz (30 min each axis)
Communication & Electrical:
Automatic Output Rate (68 Protocol) 5Hz to 1000Hz
Automatic Output Rate (MODBUS) 10Hz, 25Hz, 50Hz
Output Interface RS232 / RS485 / TTL
Communication Protocol RION TECH Standard & MODBUS RTU
Input Voltage (VDD_VSS) 9~36 VDC
Operating Current Consumption < 60mA @ 12 VDC
Physical & Structural:
Connector Industrial Standard M12 Connector
IP Rating IP67

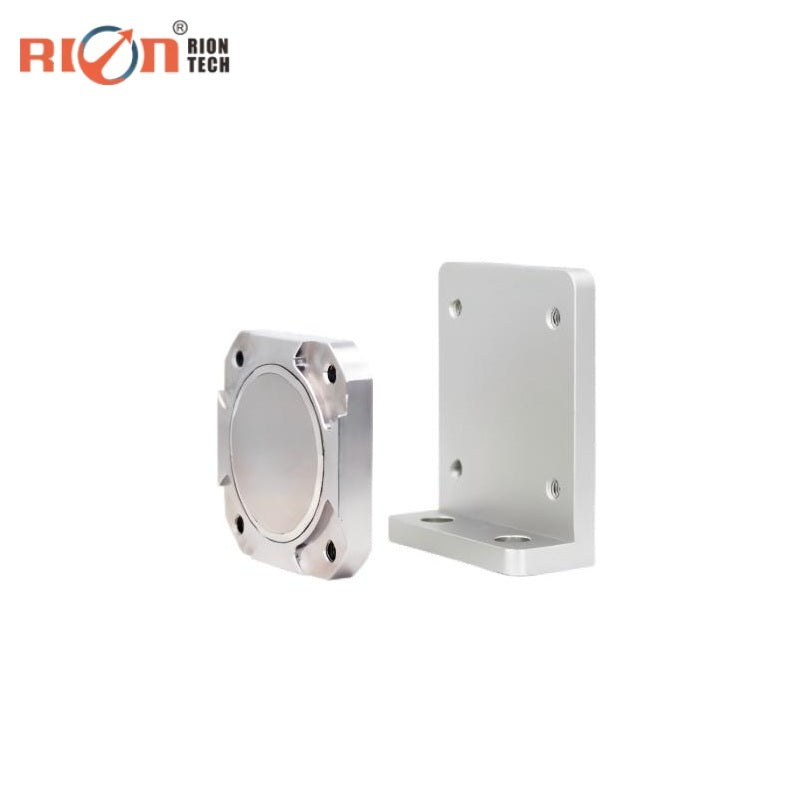

Weight Net: 82g; Magnetic Base: 48g; L-Bracket: 20g
Dimensions (mm) Main: 34.3x34.3x38.5; Base: 34.23x34.23x6
