DexRobot

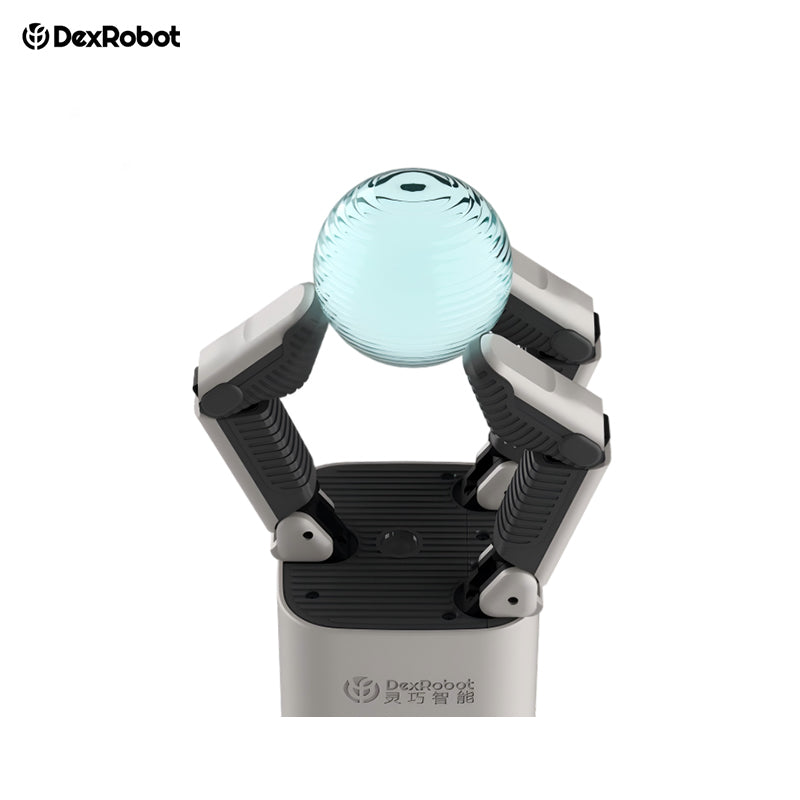

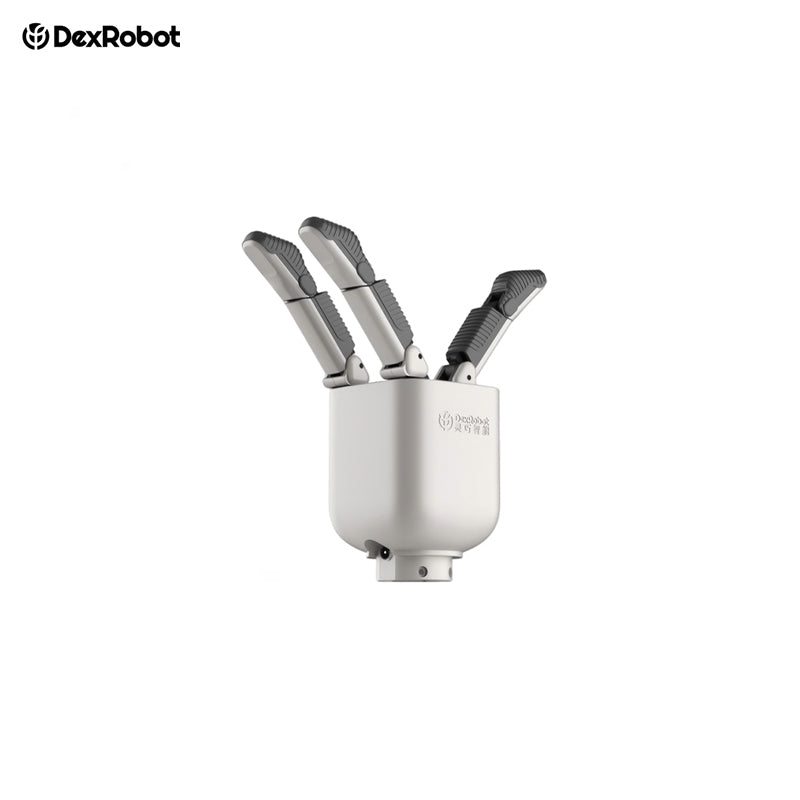

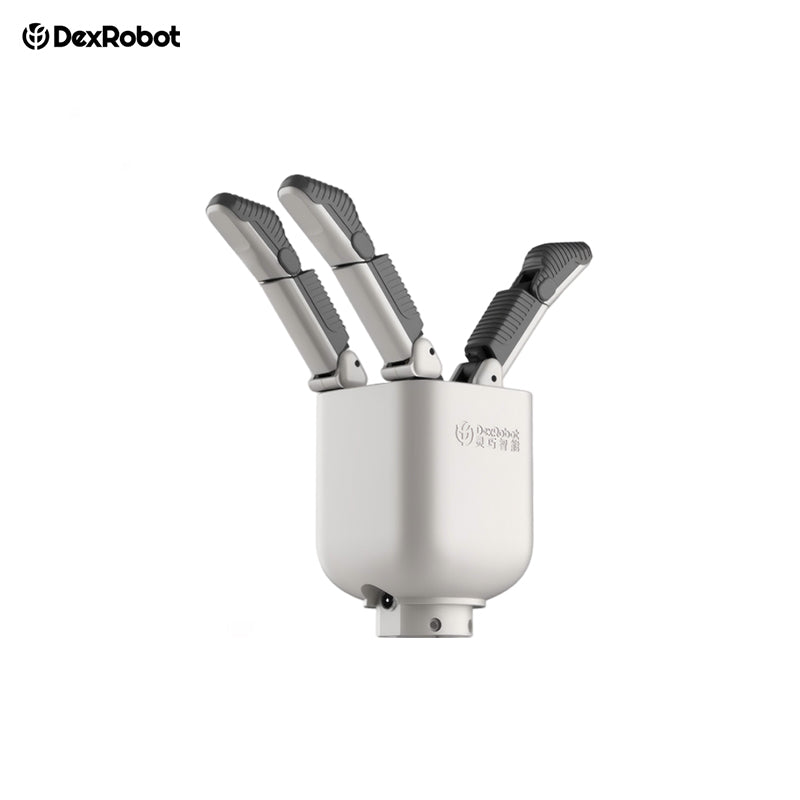

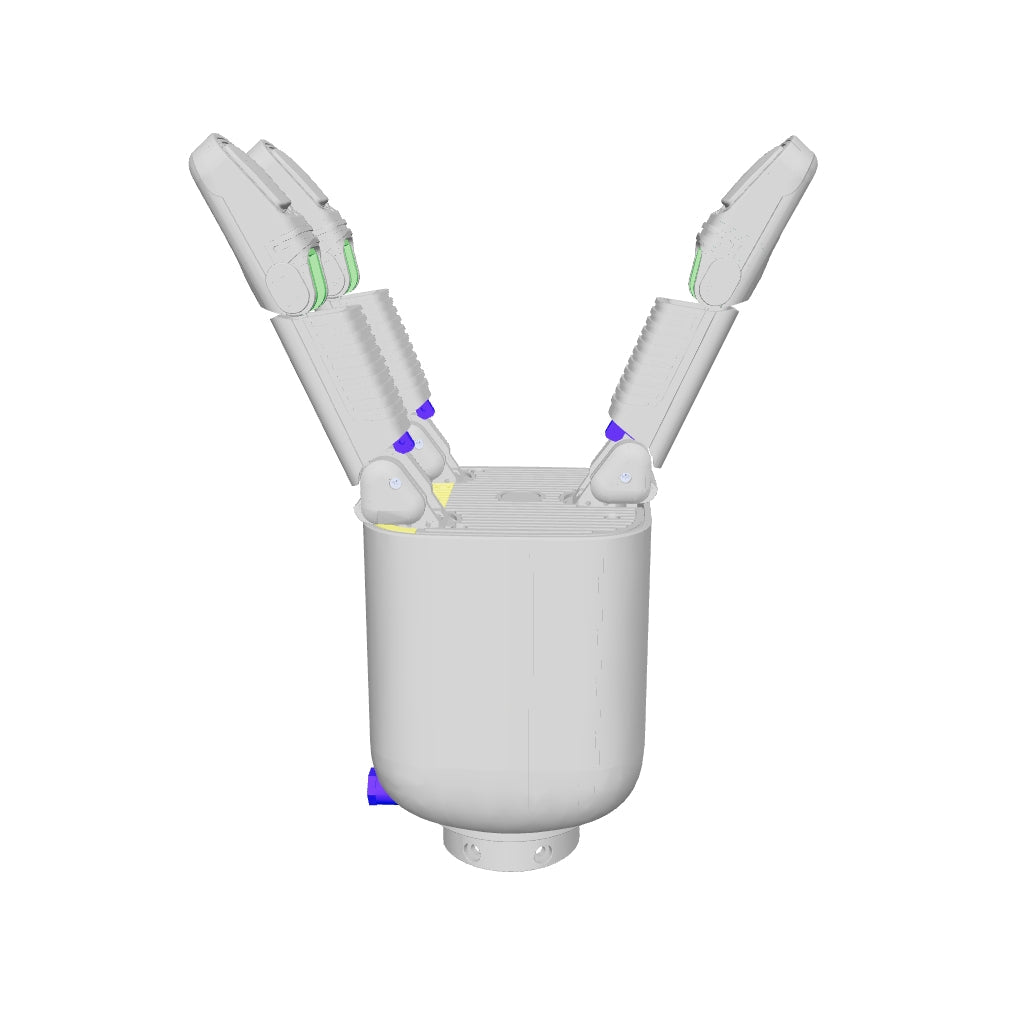

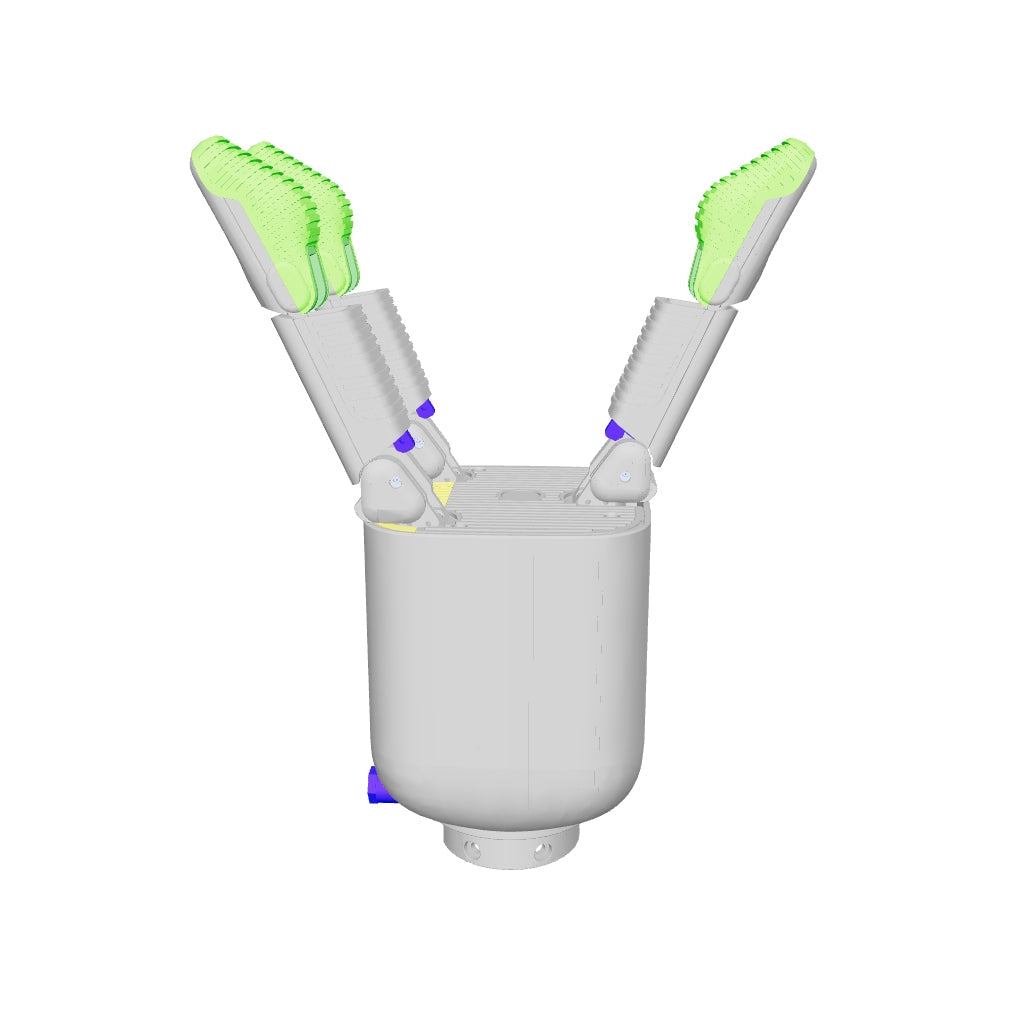

DexRobot DexHand021 S

$2,600.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
DdF 8 DdF
weight 0.6 kg
Dimensions (LWH) 200mm * 80mm * 82.5mm
Mounting Method Welding + Bolt + Support Rod
Minimum Depth Diameter < 50 mm
Repeat Positioning Accuracy ± 0.5 mm
Tension > 10 N
Preload Force Preload = 20 N
Preload = 45 N
Preload = 100 N
Load (Required environment, parts that will not be damaged in emergency) Rated load 2.5 kg
Maximum load 5 kg
Operating Voltage DC 24 V
Static Current 0.15 A
Maximum Current 2 A
Communication Protocol CAN FD / RS485
Lifespan 200,000 cycles
Incompatibility Reasons Assembly, inspection, debugging
Assembly, inspection, debugging, repair, replacement
Verified Equipment Failure Causes Tested (after trial), after trial, after repair
Sampling Frequency ≥ 50 Hz
Measurement Range 0 - 30 N
Resolution 0.01 N
Accuracy ± 3% F.S.
Switching Range 0.25 N
Switching Angle 40°
Locking Range Automatically detects distance > 1 cm
Rebound Rate 1 HP
Frame Rate 50 FPS
Dynamic Range 70°
Other Parameters > 6 cm
