DSSERVO | SKU:

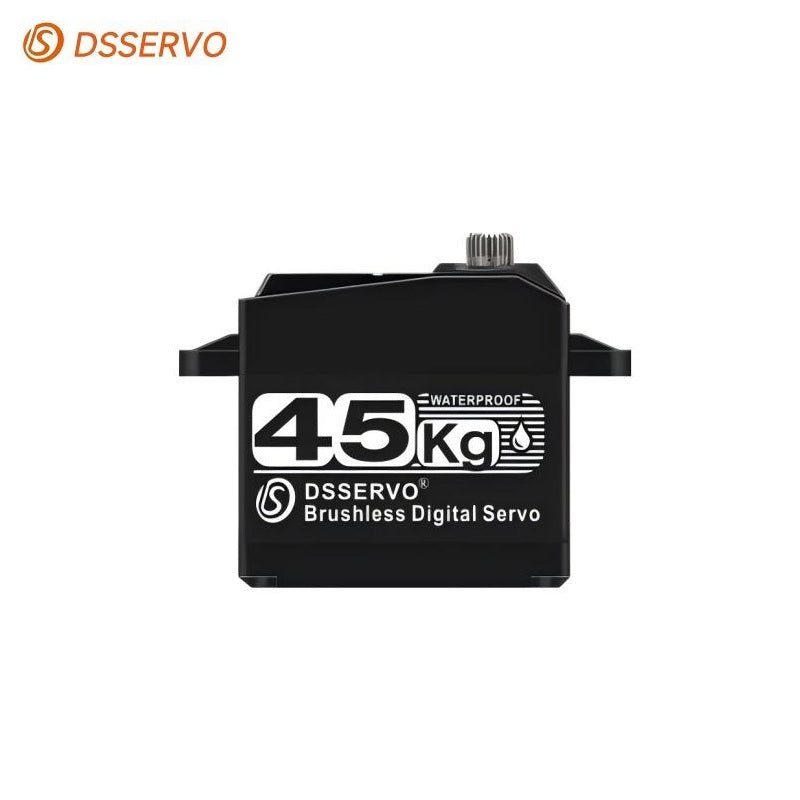

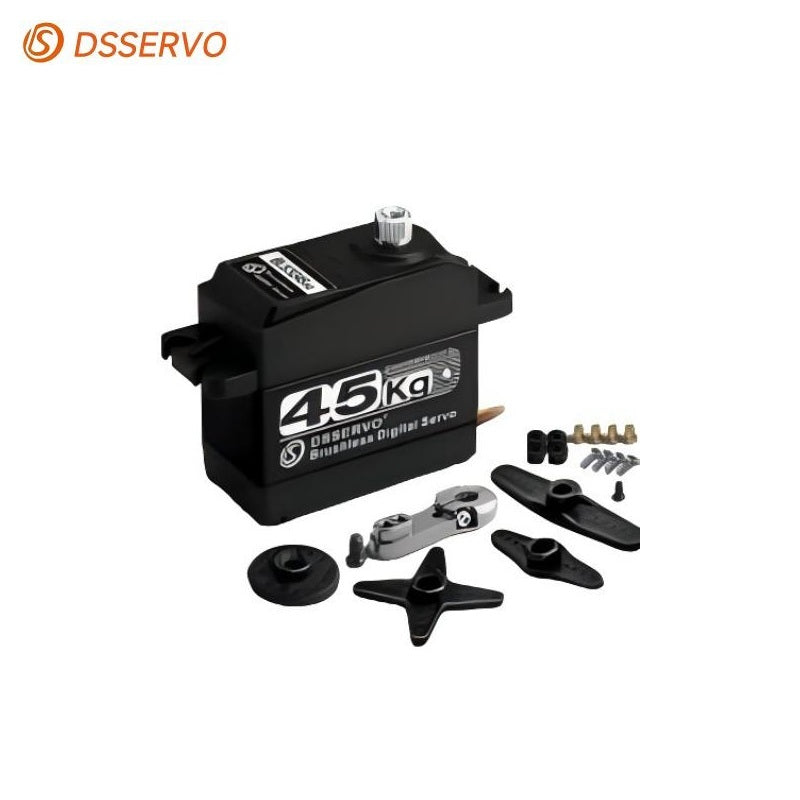

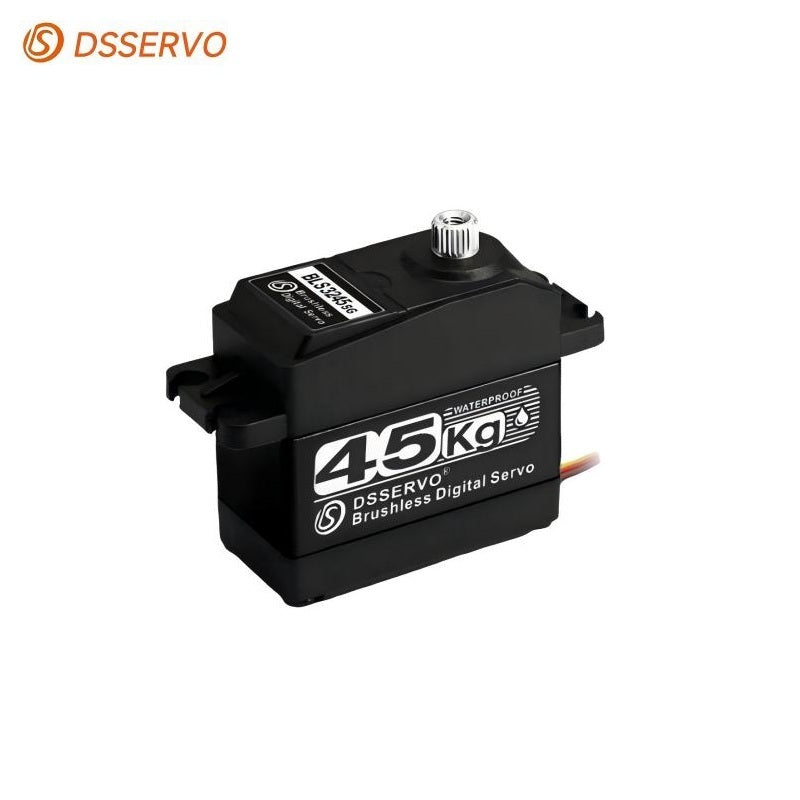

DSSERVO BLS3245 Servo Motor
Regular price
$37.00
Unit price
DSSERVO BLS3245 Servo Motor - BLS3245 / 180° is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSSERVO BLS3245 Servo Motor
Regular price
$37.00
Unit price
DSSERVO BLS3245 Servo Motor - BLS3245 / 180° is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Specification |
|---|---|
| Storage Temperature Range | -30℃～80℃ |
| Operating Temperature Range | -15℃～70℃ |
| Operating Voltage Range | 5-8.4V |
| Size | 40*20*38.5mm |
| Weight | 60g |
| Gear ratio | 293 |
| Bearing | Double bearing |
| Connector wire | 300±5mm |
| Motor | Brushless motor |
| Waterproof performance | IP67 |
| Operating Voltage | 4.8V / 7.4V / 8.4V |
| Idle current (at stopped) | 5mA @ 4.8V / 5mA @ 7.4V / 5mA @ 8.4V |
| Operating speed (at no load) | 0.15 sec/60° @ 4.8V / 0.11 sec/60° @ 7.4V / 0.1 sec/60° @ 8.4V |
| Stall torque (at locked) | 31 kg·cm @ 4.8V / 43 kg·cm @ 7.4V / 49 kg·cm @ 8.4V |
| Stall current (at locked) | 3.2A @ 4.8V / 5.2A @ 7.4V / 6.2A @ 8.4V |
| Control System | PWM (Pulse width modification) |
| Pulse width range | 500～2500 μsec |
| Neutral position | 1500 μsec |
| Running degree | 180° or 270° (when 500～2500 μsec) |
| Dead band width | 2 μsec |
| Operating frequency | 50-330Hz |
| Rotating direction | Counterclockwise (when 500～2500 μsec) |
BLS3245_Servo-Motor.stp
BLS3245_Servo-Motor_drawing.pdf
