LINKERBOT | SKU:

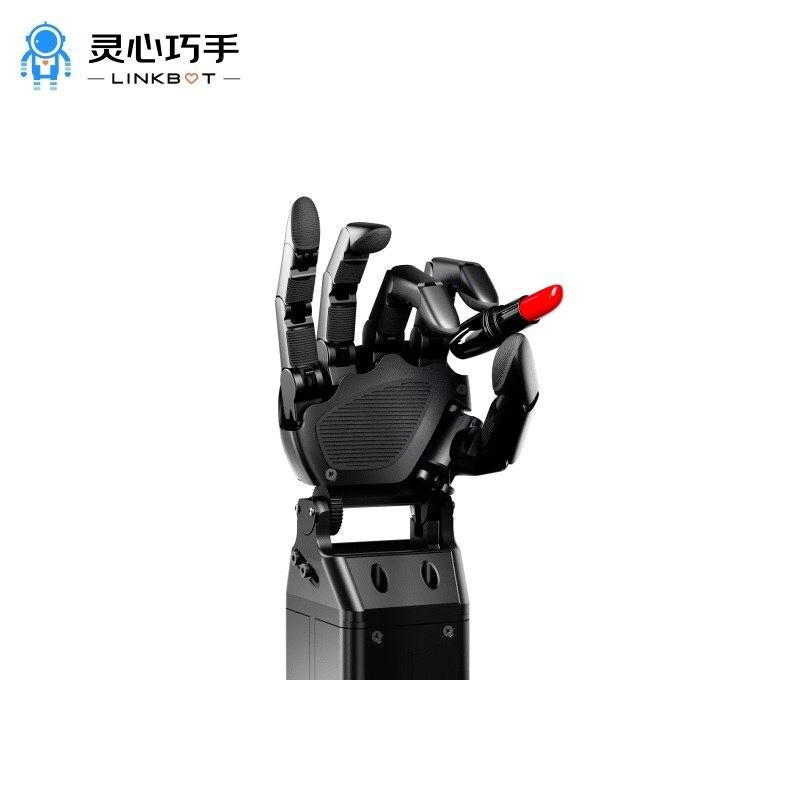

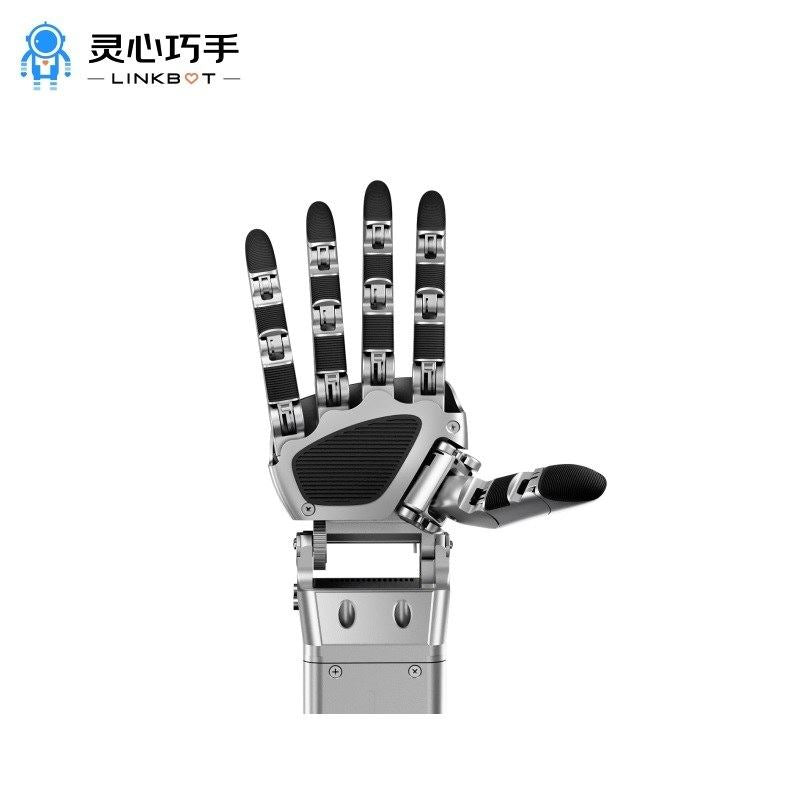

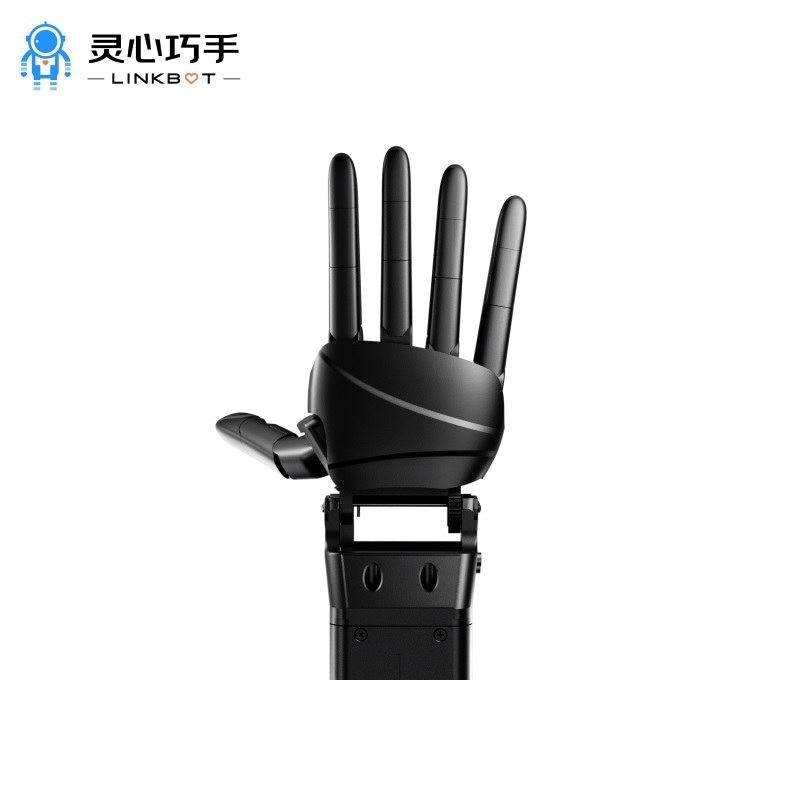

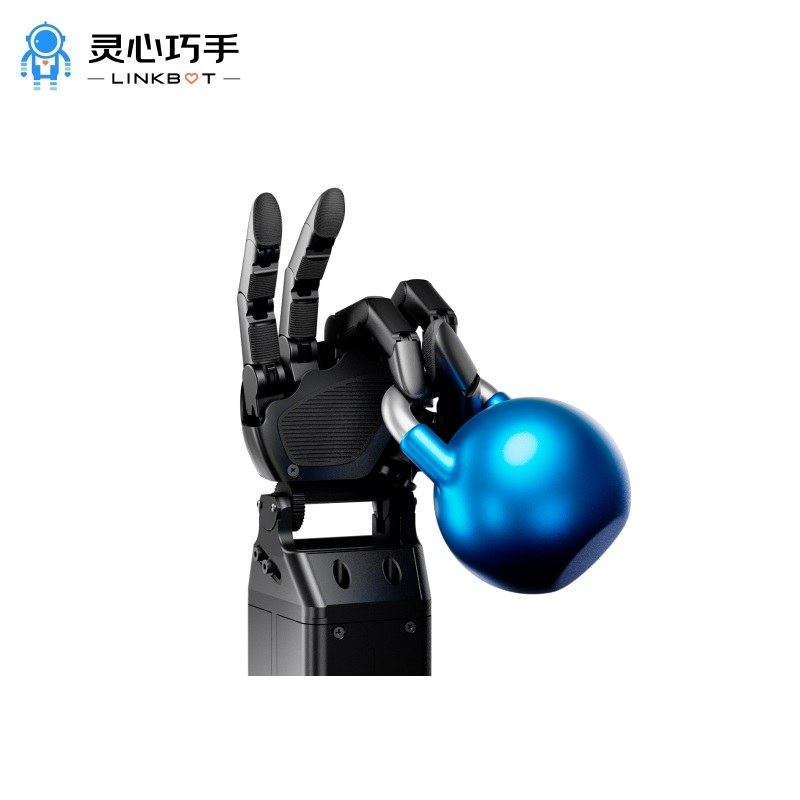

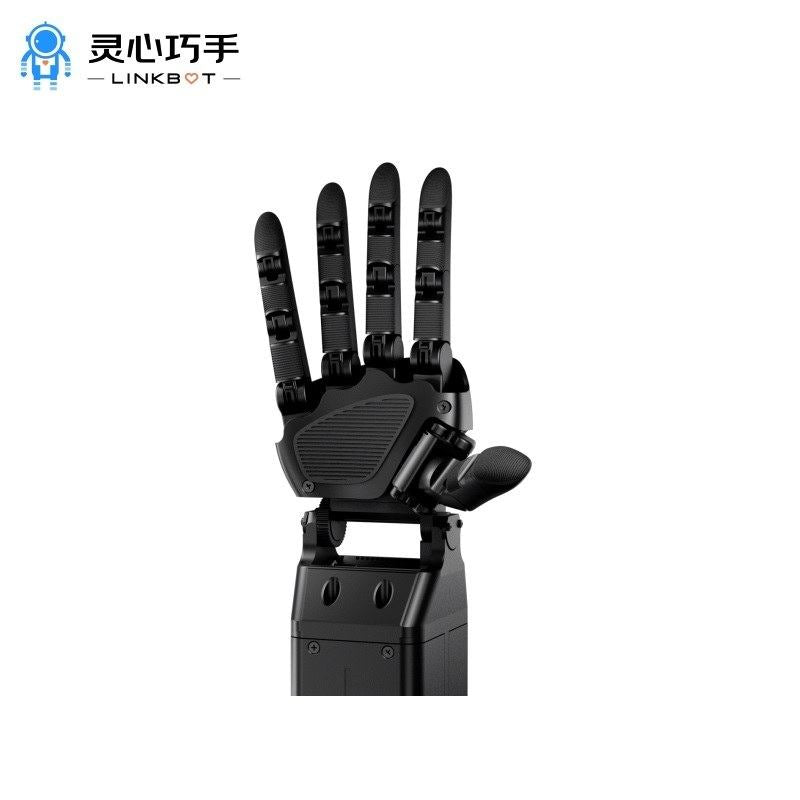

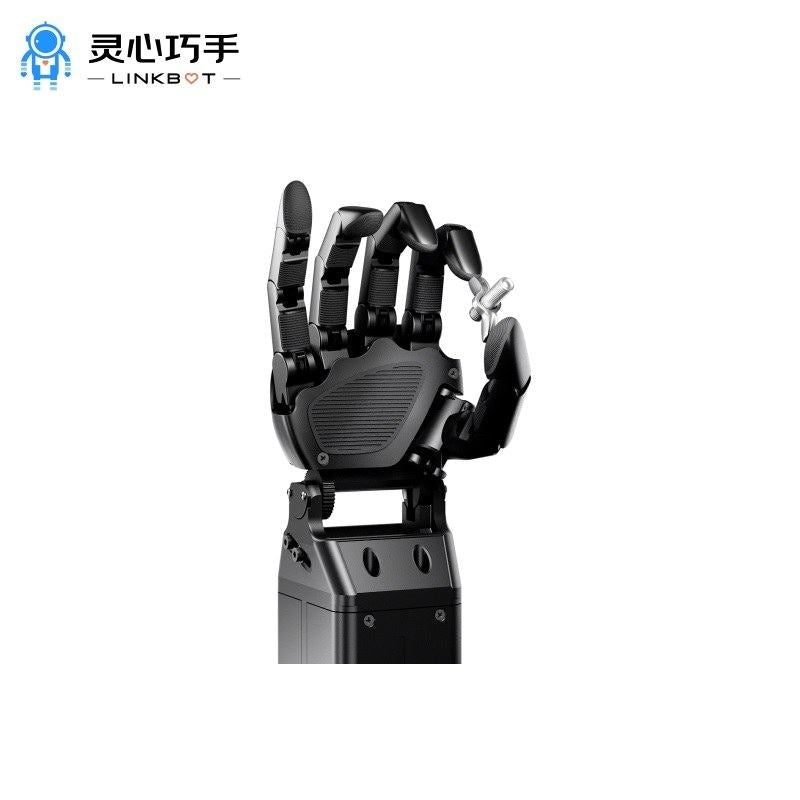

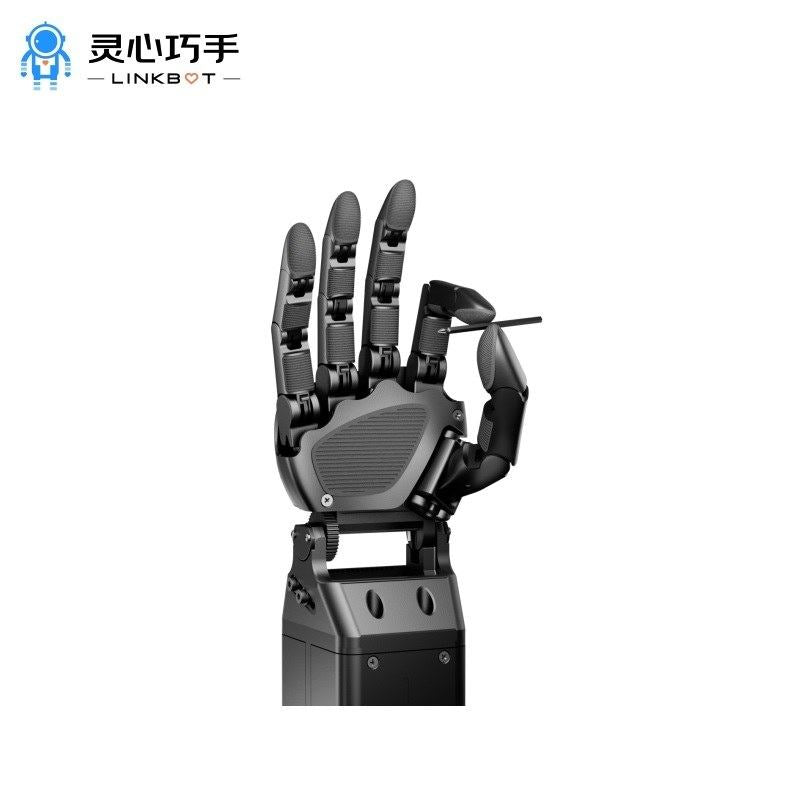

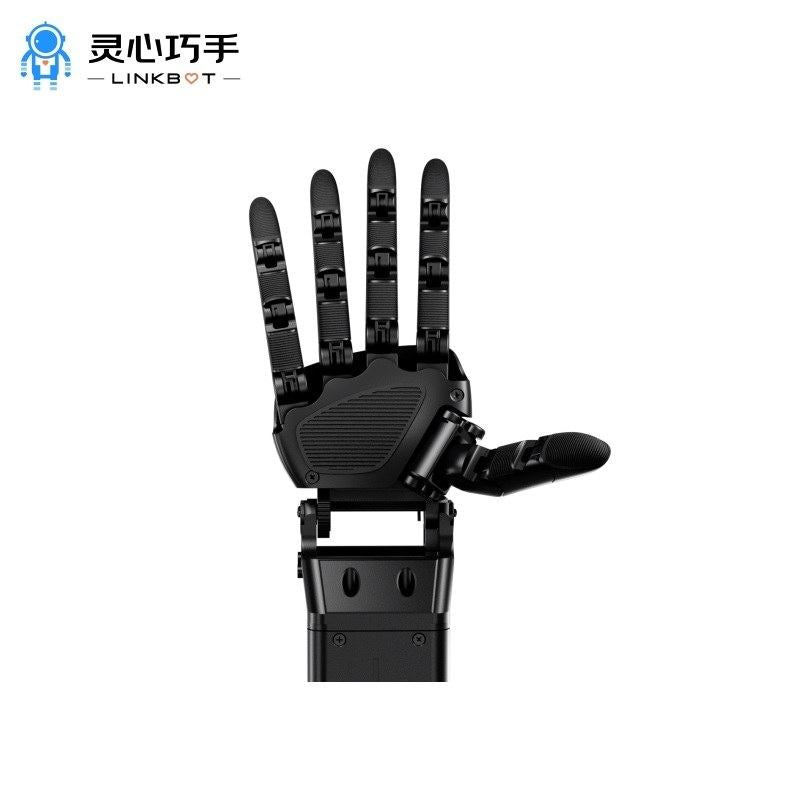

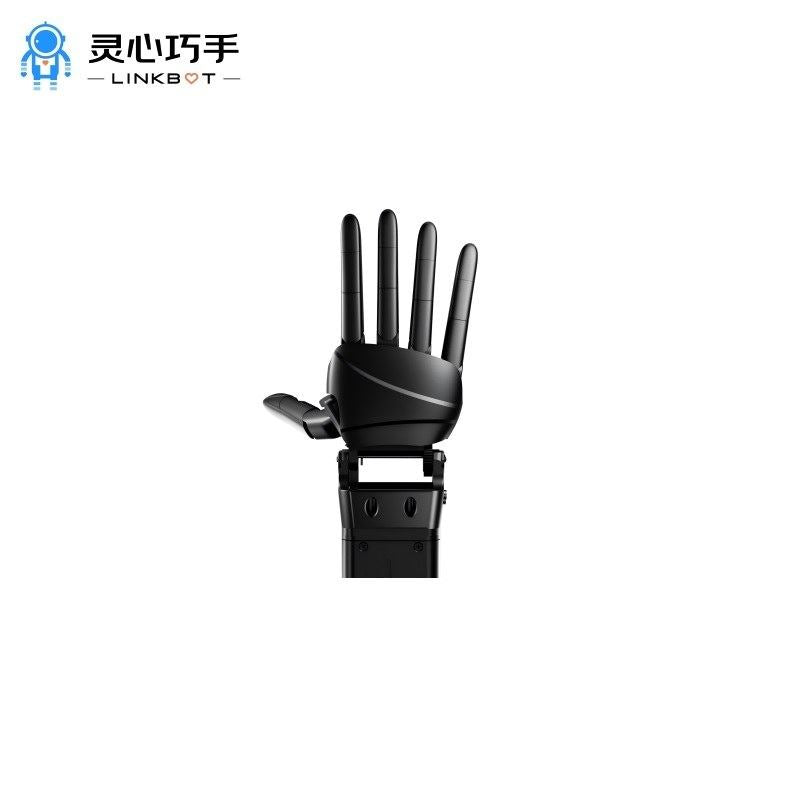

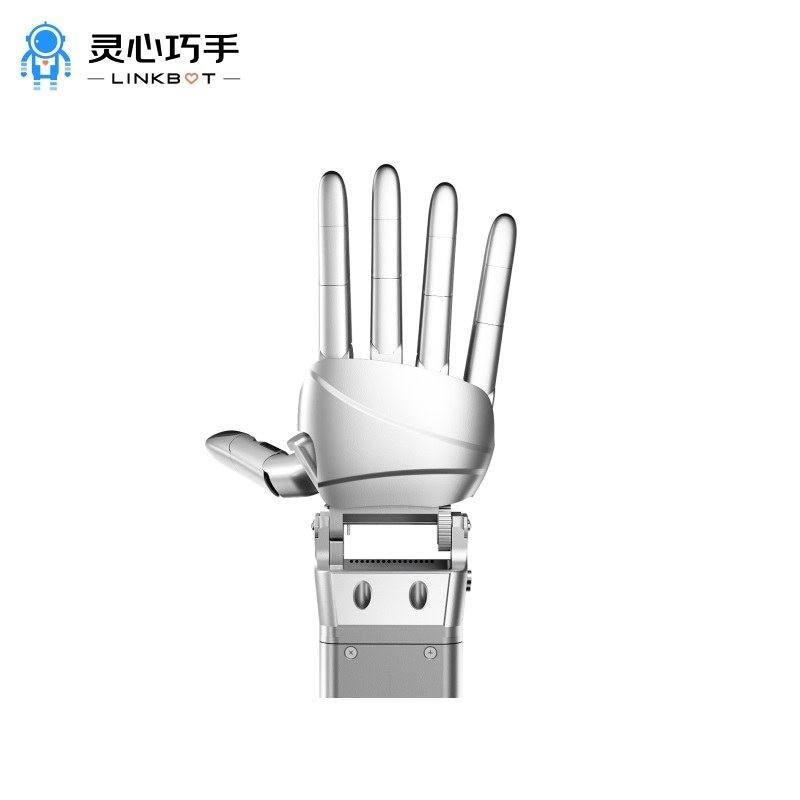

LINKERBOT Linker Hand L30
Regular price
$19,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L30 - Linker Hand L30 (Left) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
LINKERBOT Linker Hand L30
Regular price
$19,999.00
Unit price
Unavailable
LINKERBOT Linker Hand L30 - Linker Hand L30 (Left) is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | Value |
|---|---|
| Degrees of Freedom (DoF) | 17 |
|
Number of Joints
|
21 (17 Active + 4 Passive)
|
| Transmission Mode |
Tendon-Driven
|
|
Control Interface
|
CAN FD
|
|
Communication Rate
|
500kbps
|
|
Weight
|
≈1400g
|
|
Maximum Load
|
5kg
|
|
Operating Voltage
|
DC24V |
|
Quiescent current
|
0.45A |
|
Average Current (No-Load Movement)
|
0.63A |
|
Maximum Current
|
2.3A |
|
opening and closing time
|
0.2s |
| Repeat Positioning Accuracy | ±0.2mm |
| Maximum Tip Force of Thumb | 8N |
| Maximum Tip Force of Four Fingers | 7N |
|
Maximum Grasping Force of Five Fingers
|
12N
|
