HiPNUC

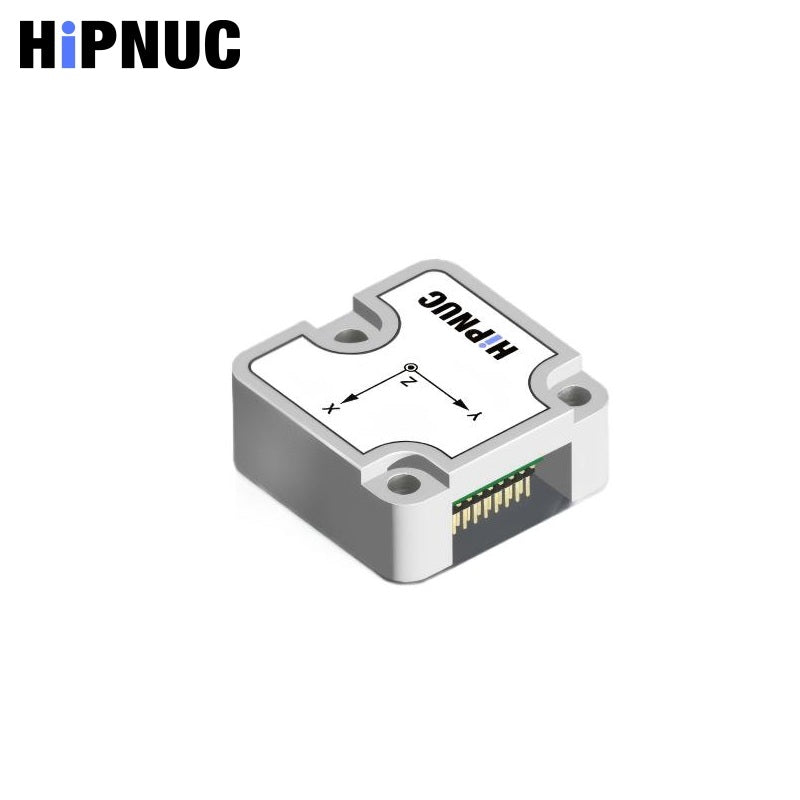

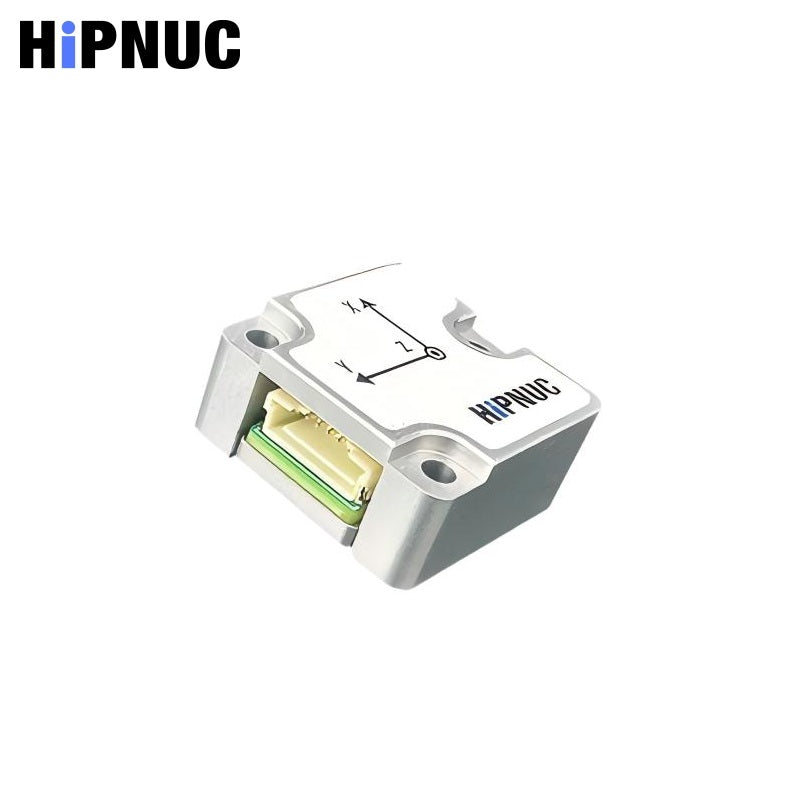

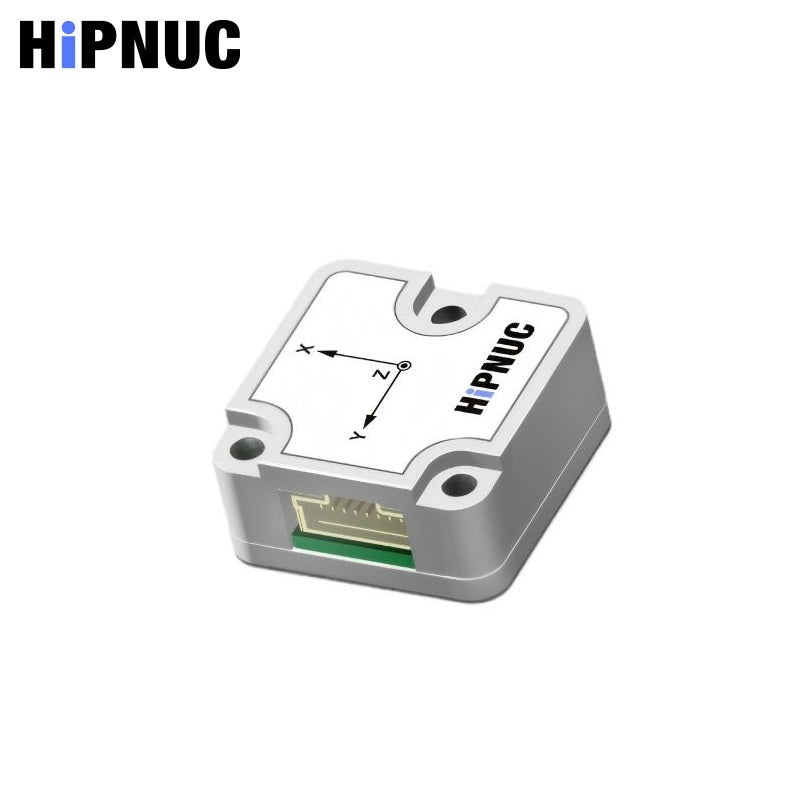

HiPNUC HI12S Sensor

$215.00
Version
Data Interface

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Gyroscope:
Measurement Range ±250 / ±500 / ±1000 / ±2000 / ±4000 °/s (Default: ±2000 °/s)
Resolution 16 bit (Typical: 20 bit)
Angular Resolution (RMS @ 100 °/s rotation) <600 ppm (Typical: 1200 ppm)
Non-linearity ±0.05 %FS
Noise Density 0.0025 °/s/√Hz (Bandwidth: 10 Hz)
   3dB Bandwidth 80 Hz (Max: 400 Hz)
   Zero Rate Output ≤±0.1 °/s (Typical: ±0.2 °/s, RMS)
Sampling Rate 1000 Hz
Bias Instability (Allen Variance, 1σ) X: 2.2–5 °/h; Y: 1.5–2.5 °/h; Z: 1.7–4 °/h
Bias Stability (10s smoothing, 3σ) X: 6–14 °/h; Y: 4–7 °/h; Z: 5–13 °/h
Bias Repeatability (3σ) X: 11–32 °/h; Y: 10–30 °/h; Z: 9–20 °/h
   Angular Random Walk (Allen Variance, 1σ) X: 0.12–0.16 °/√h; Y: 0.1–0.12 °/√h; Z: 0.1–0.14 °/√h
Full-temperature Bias Variation (-40 ~ 85 °C) 0.07–0.15 °/s
Scale Factor Sensitivity 0.05 °/s/g (XYZ axes)
Accelerometer:
Measurement Range ±2 / ±8 / ±16 / ±32 g (Default: ±16 g)
Resolution 16 bit (Typical: 20 bit)
Initial Zero Bias 1–2 mg (RMS)
Non-linearity ±0.01 %FS
Noise Density 0.05–0.07 mg/√Hz (Bandwidth: 10 Hz)
3dB Bandwidth 90 Hz (Max: 400 Hz)
Sampling Rate 1000 Hz
Bias Instability (Allen Variance, 1σ) X: 0.012–0.02 mg; Y: 0.009–0.015 mg; Z: 0.016–0.022 mg
Bias Stability (10s smoothing, 3σ) X: 0.032–0.055 mg; Y: 0.022–0.032 mg; Z: 0.048–0.082 mg
Bias Repeatability (3σ) X: 0.1–0.3 mg; Y: 0.06–0.2 mg; Z: 0.1–0.2 mg
Velocity Random Walk (Allen Variance, 1σ) 0.019–0.03 m/s/√h (XYZ axes)
Full-temperature Bias Variation (-40 ~ 85 °C) XY: 2–5 mg; Z: 6–15 mg
Magnetometer:
Measurement Range ±2000 μT
Noise 0.19–0.45 μT
Non-linearity ±10–±20 μT
Temperature Sensor:
Measurement Range -40 ~ 85 °C
Bias Error ±5 °C
Fusion Attitude Accuracy:
Static Pitch/Roll Accuracy 0.15–0.2 °
Dynamic Pitch/Roll Accuracy 0.2–0.3 °
AHRS Yaw Accuracy 2–3 °
6-DoF Yaw Static Drift (2h) 0.15–0.2 °
6-DoF Yaw Dynamic Drift ±5–±10 °
6-DoF Yaw Rotation Error (@ 100 °/s) 0.3–0.4 °
