SHINING 3D

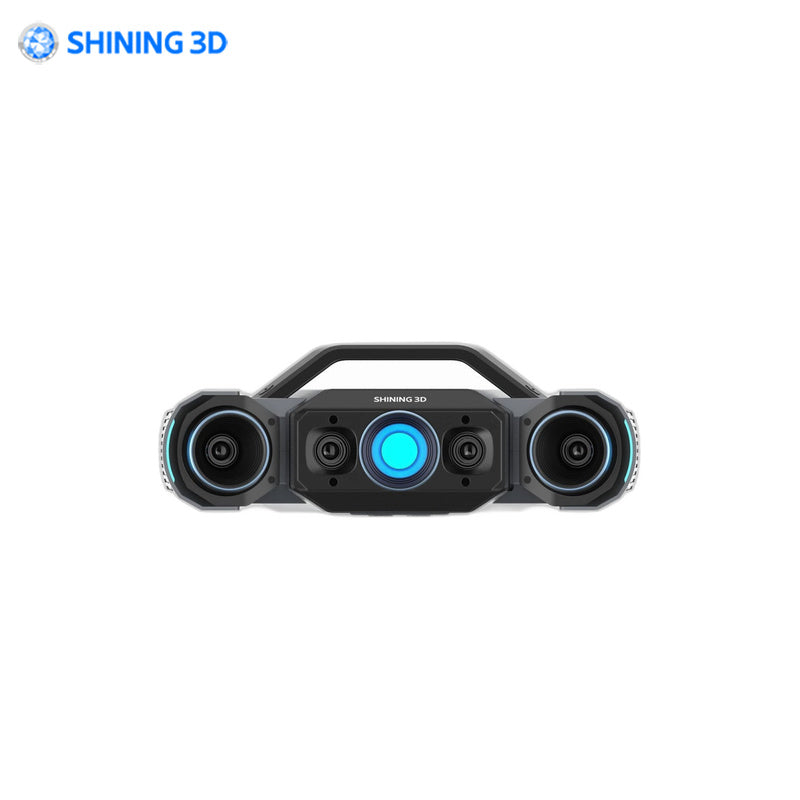

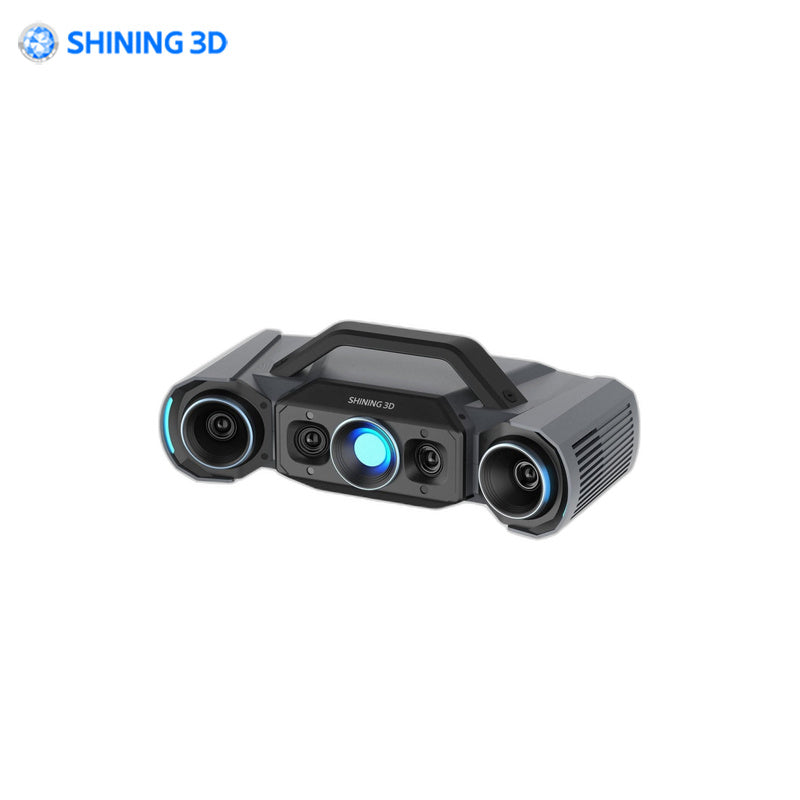

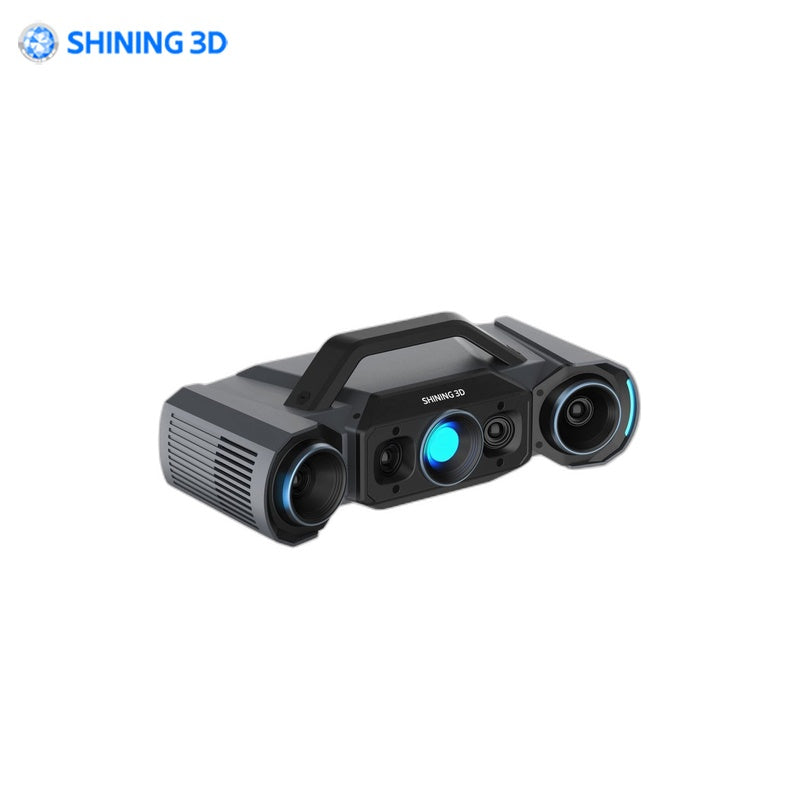

SHINING 3D OptimScan Q12 Scanner

$112,000.00

Version

OptimScan Q12

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Operating Temperature	0 °C ~ 40 °C
Operating Humidity	10% RH ~ 90% RH
Weight (Scanner Head)	3.5 kg
Dimensions (L × W × H, incl. handle)	366 × 162 × 132 mm
Scanning Modes	Large FOV / Small FOV
Single‑Shot Measurement Range	Large: 430 × 300 mm; Small: 160 × 110 mm
Maximum Accuracy	Large: 0.015 mm; Small: 0.005 mm
Average Point Distance	Large: 0.1 mm; Small: 0.04 mm
Optimal Working Distance	Large: 590 mm; Small: 210 mm
Depth of Field	Large: 300 mm; Small: 60 mm
Total Sensor Pixels	12.3 MP × 4
Light Source Type	Blue LED
Scanning Speed (Projection Time)	< 1 s
Hardware‑accelerated Computation	Yes (built‑in, outputs single‑shot point cloud directly)
Focus Method	Dual‑range auto‑focus
Scanning Type	Non‑contact photographic
Single‑/Dual‑Camera Support	Supported
Multi‑Resolution Scanning	Supported
Multiple Exposure	Supported
Real‑time Marker Detection	Supported
Data Output Formats	ASC, STL, etc. (compatible with PolyWorks, NX, Solid Edge, CATIA, SolidWorks, Creo, Inventor, Geomagic)
Optional Automation	Collaborative robot, turntable, servo system – forms RobotScan Q12/Q9 robotic 3D inspection system
Minimum PC Configuration	Windows 10+ (64‑bit); NVIDIA RTX 4060 (8 GB VRAM); Intel i7‑13700H+; RAM ≥64 GB
